Pneumatic Angle Drill – AVRO CF101

Pneumatic Angle Drill – AVRO CF101

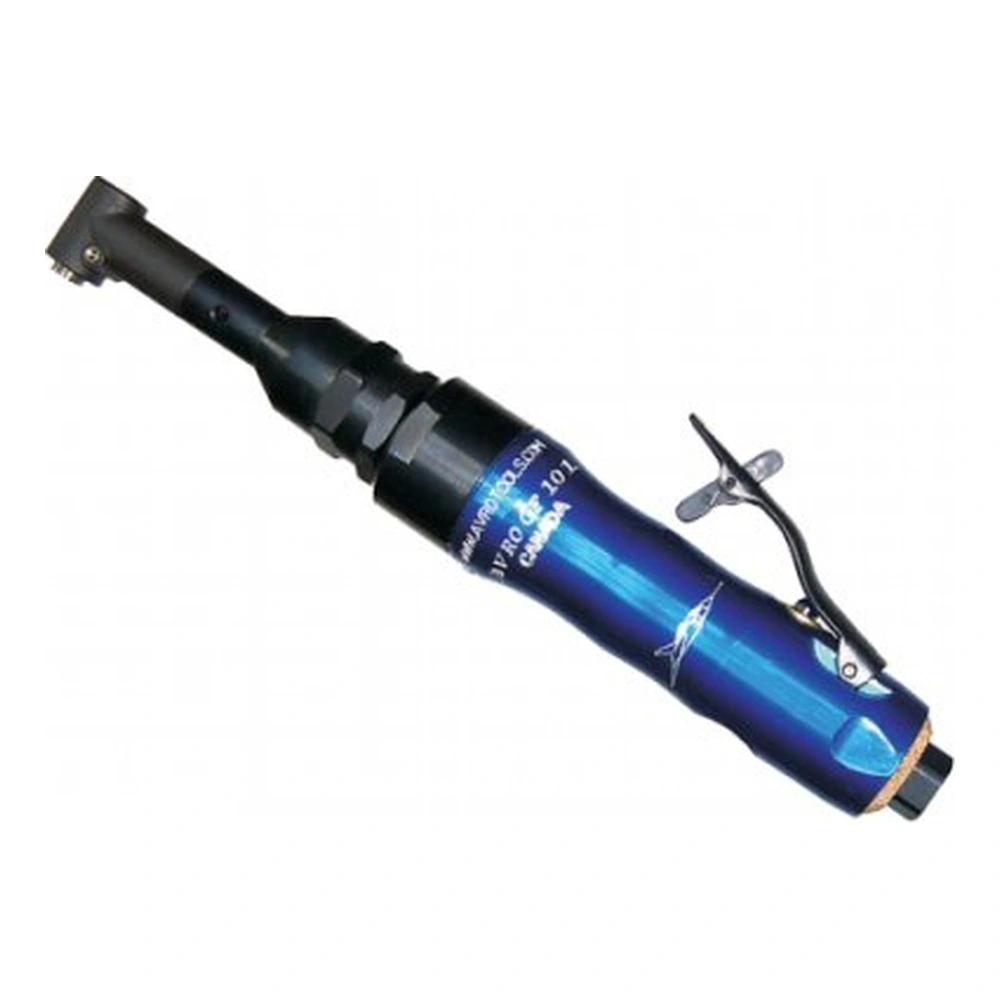

The AVRO CF101 series is a high performance pneumatic angle drill designed for the most demanding requirements of 21st century applications.

It incorporates the latest ergonomic principles into the design, with a high power-to-weight ratio and complete throttle control to help achieve fast completion on operations.

Key Features

• High performance: A pneumatic angle drill from the AVRO CF101 series, designed for demanding applications.
• Ergonomic design: Incorporates the latest ergonomic principles into the design.
• Power-to-weight ratio: A high power-to-weight ratio supports efficient operation.
• Throttle control: Complete throttle control helps provide better control during use.

Technical Specifications

Model	Speed (Rpm)	Spindle	Length (Inch / mm)	Weight (Lbs / kg)	Image

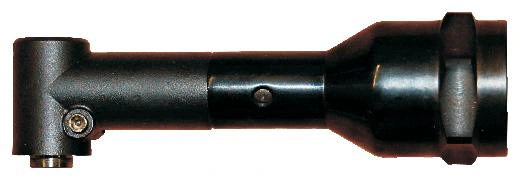

90 Degree Rear exhaust
21001	5,000	1/4-28	10 / 254	1.8/ 0.85
21002	3,000	1/4-28	10 / 254	1.8/ 0.85
21004	800	1/4-28	11.8/299	2.2 / 1.0
21005	500	1/4-28	11.8/299	2.2/ 1.0

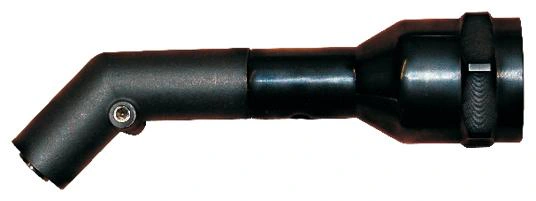

45 Degree Rear exhaust
21008	5,000	1/4-28	10 / 254	1.8/ 0.85
21009	3,000	1/4-28	10 / 254	1.8/ 0.85
21011	800	1/4-28	11.8/299	2.2 / 1.0
21012	500	1/4-28	11.8/299	2.2/ 1.0

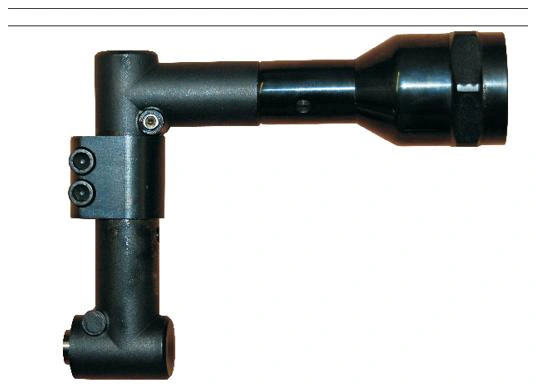

360 Degree Rear exhaust
21015	5,000	1/4-28	10 / 254	1.8/ 0.85
21016	3,000	1/4-28	10 / 254	1.8/ 0.85
21018	800	1/4-28	11.8/299	2.2 / 1.0
21019	500	1/4-28	11.8/299	2.2/ 1.0

General

• The AVRO CF101 series of Angle drills are High Performance tools designed for the most demanding requirements of the 21st century applications.
• The drill incorporates advanced ergonomic design principles to support efficient, comfortable operation over extended periods.
• The HIGH POWER-TO-WEIGHT ratio and complete throttle control mean the shortest possible completion on all operations.
• Power: 0.4 hp {0.30 kw}
• Air Inlet: 1/4” NPT Standard
• Air pressure 90 psi (620 KPA)
• High Performance Angle Drill

Frequently Asked Questions

Who is the AVRO CF101 pneumatic angle drill for?
It is designed for demanding applications and the high requirements of 21st century work.

What characterizes the design of this model?
According to the manufacturer, it incorporates the latest ergonomic principles.

Are power and air connection details provided?
Yes, the specs list Power of 0.4 hp {0.30 kw}, Air Inlet 1/4” NPT Standard, and Air pressure 90 psi (620 KPA).
