Two 45° pneumatic drill models with 300 W motor power and 3,200 rpm free speed. Choose by collet arrangement and thread connection.
A 45° configuration places the body diagonally to the bore axis, providing a different access envelope from a 30° or 90° head. Match this geometry to the part and fixture, allowing space for the operating lever and air hose.
The two models have comparable motor specifications but different drilling-tool connections. A threaded-collet model and an internal-thread model require the appropriate compatible tool interface. This distinction determines the ordering number even where speed and power are the same.
| Model | Part number | Free speed | Motor power | Tool interface | Head type | Collet size | Delivered collet size | Tool thread | Tool weight | Air consumption at free speed | Maximum working pressure | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

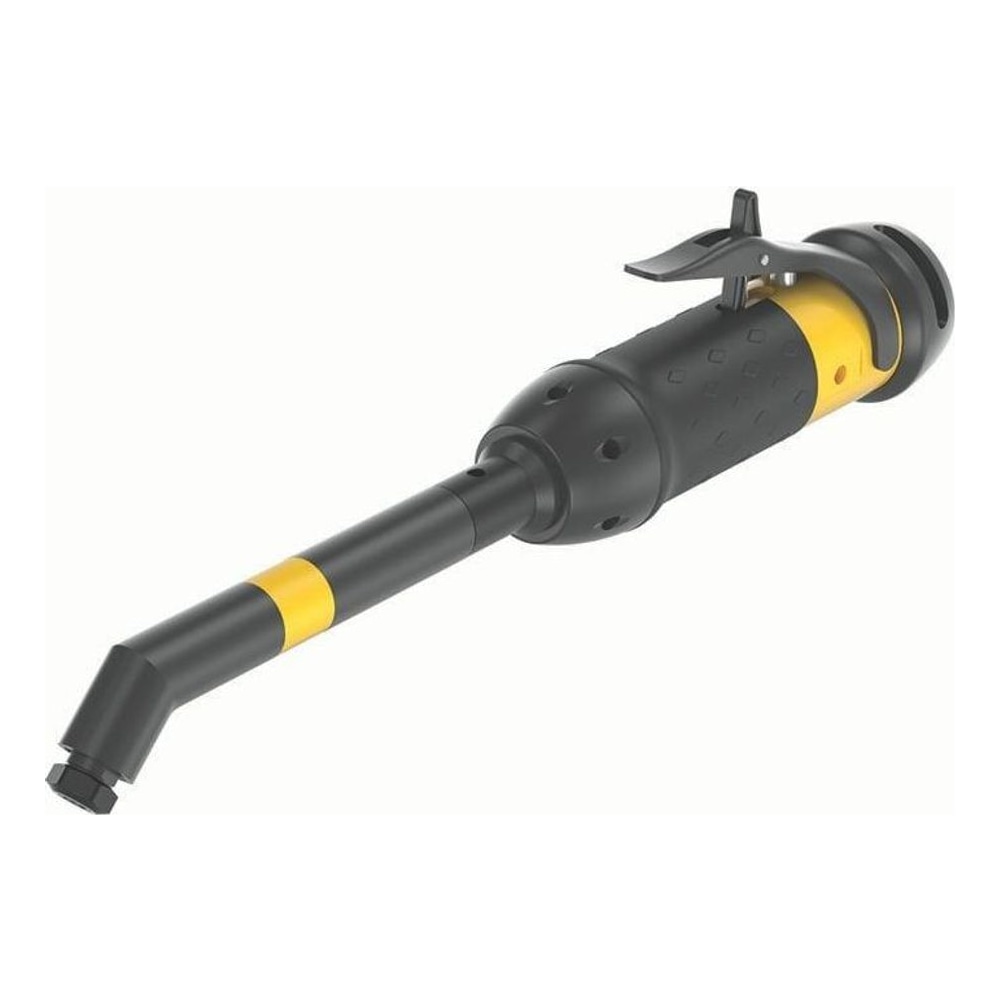

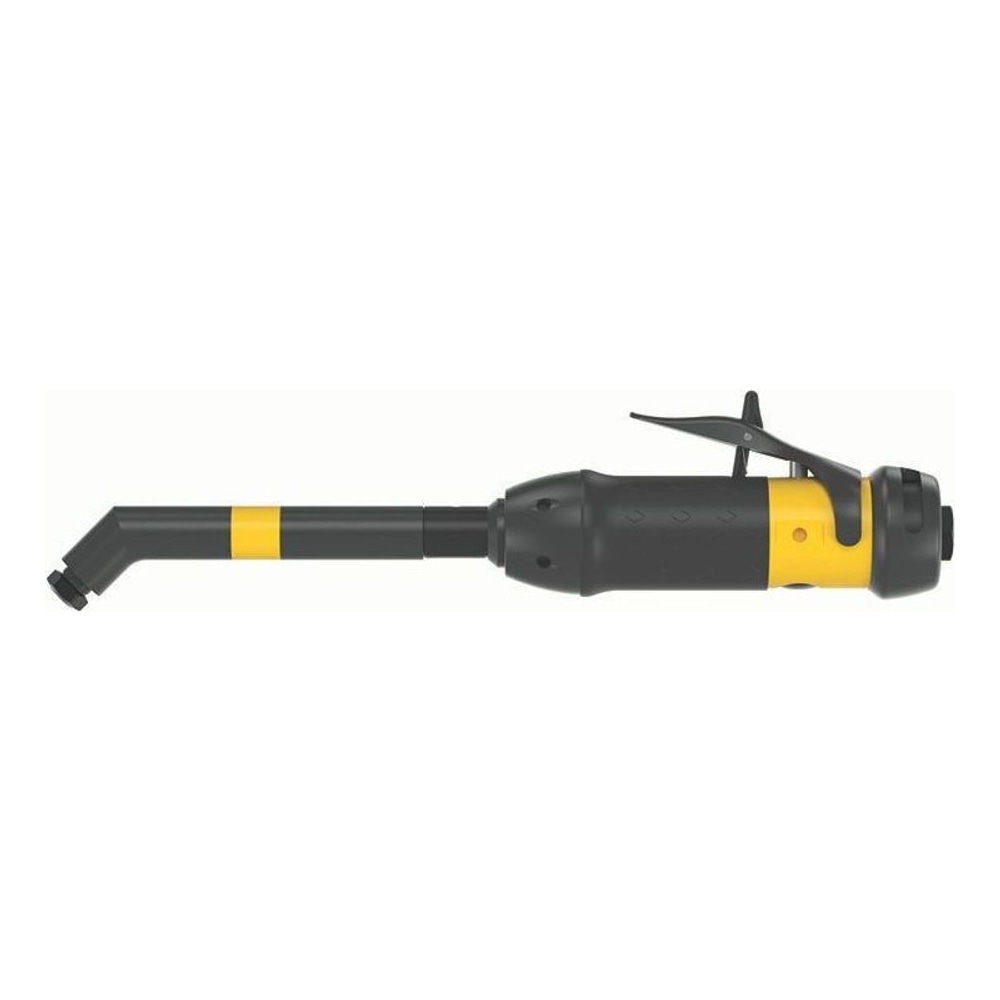

LBV16 032-45 | 8421011059 | 3,200 r/min | 300 W | Threaded collet | Standard | 5 mm | - | UNF 9/32" - 40 | 0.5 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |

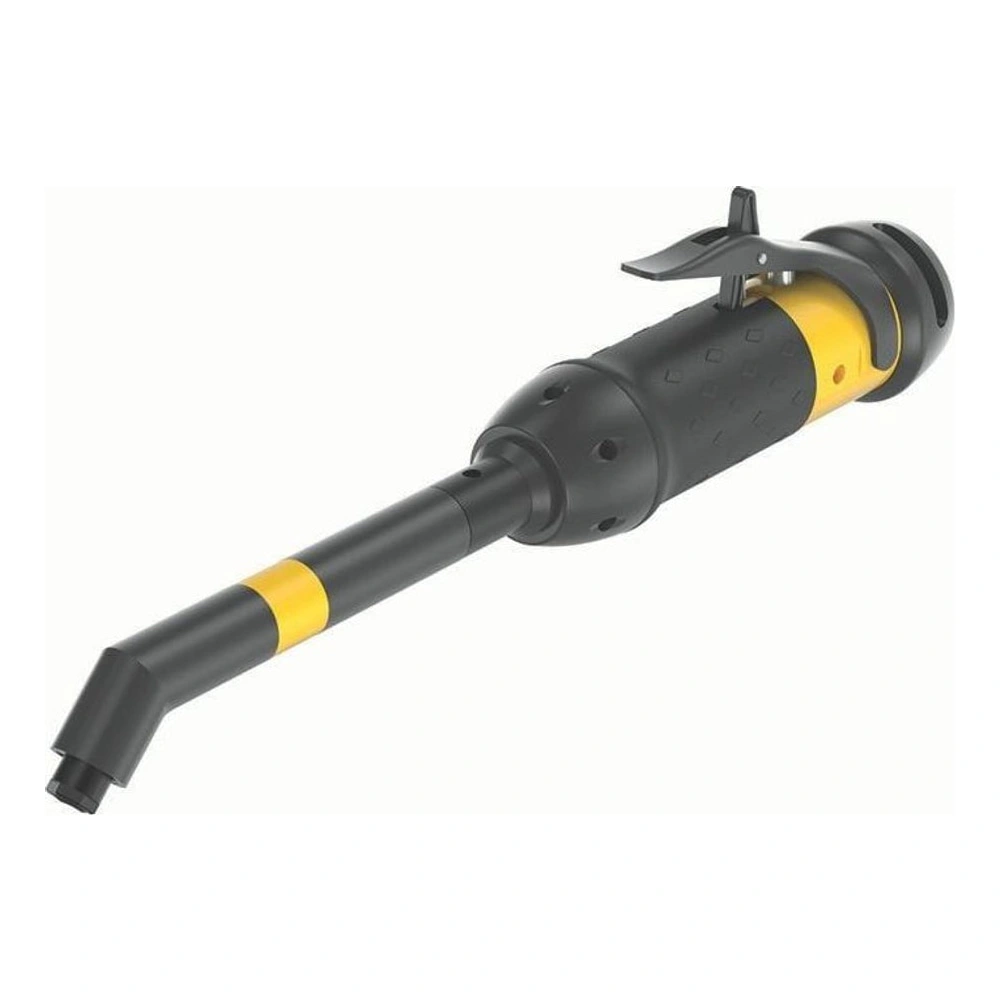

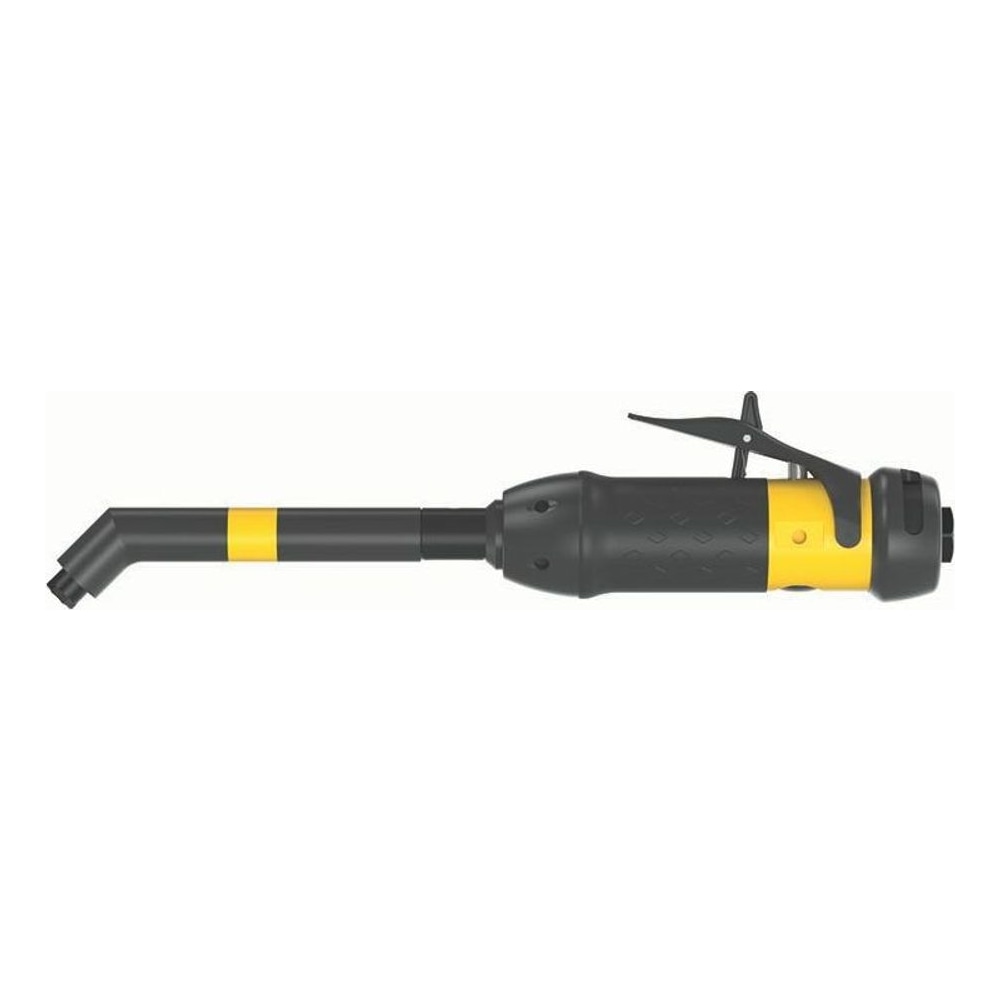

LBV16 032-46 | 8421011060 | 3,200 r/min | 300 W | Internal thread | Standard | - | - | UNF 1/4" - 28 | 0.5 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |
If the process already specifies a cutting tool, start with its connection dimensions and then check the drill envelope. A plain-shank bit and a threaded bit cannot be interchanged on nominal diameter alone. Hadi can help check the selected ordering number against the application.
LBV16 032-45842101105945°StandardThreaded collet300 W3,200 r/min1,500 r/min3,200 r/min5 mm-UNF 9/32" - 400.5 kg278 mm140 mm33 mm42 mm17 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 032-45
LBV16 032-45Atlas Copco safety information

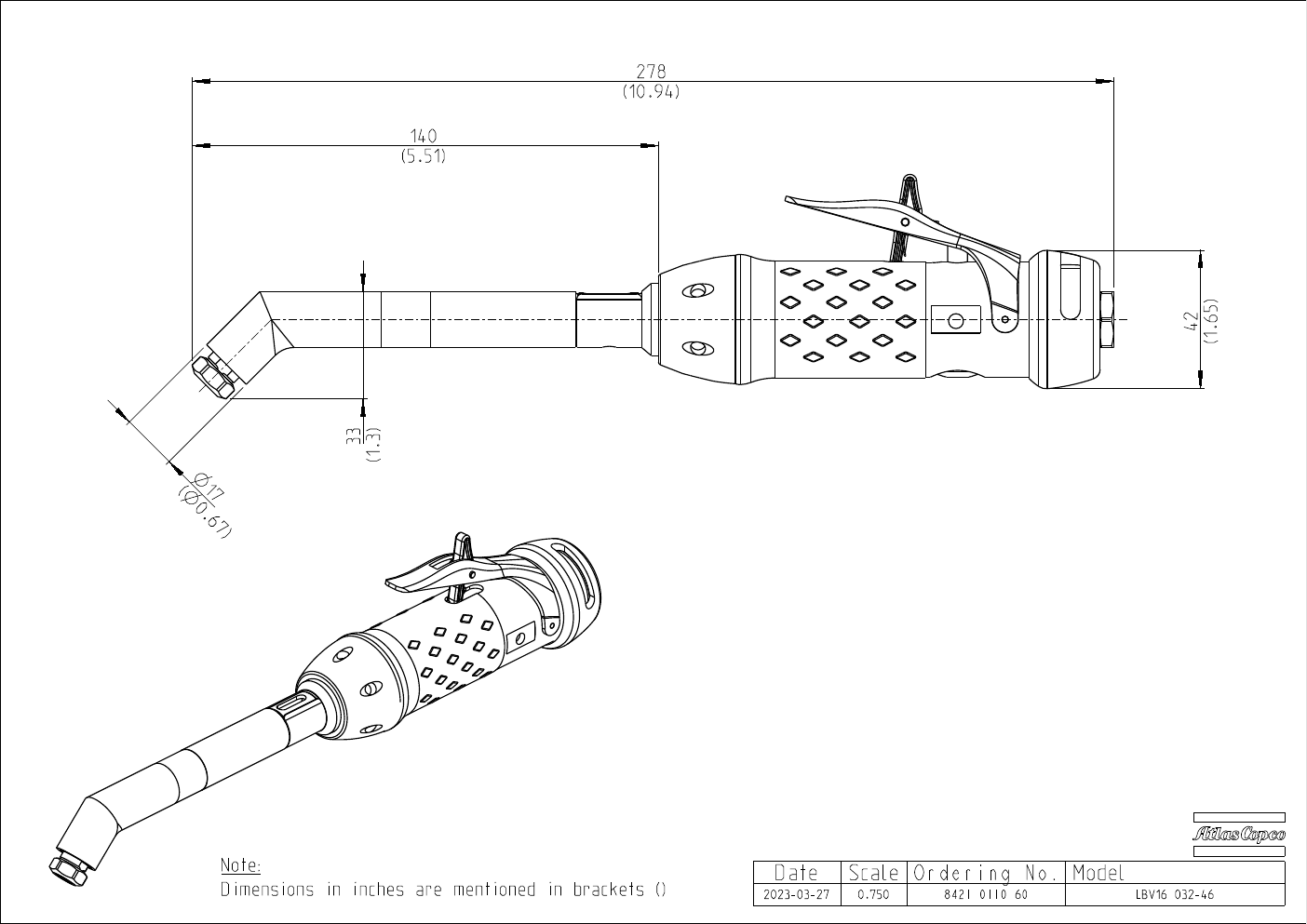

LBV16 032-46842101106045°StandardInternal thread300 W3,200 r/min1,500 r/min3,200 r/min--UNF 1/4" - 280.5 kg278 mm140 mm33 mm42 mm17 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 032-46
LBV16 032-46Atlas Copco safety information
Match working pressure, collet and cutting tool to the model instructions and process. Contact Hadi with the table ordering number for selection advice.
