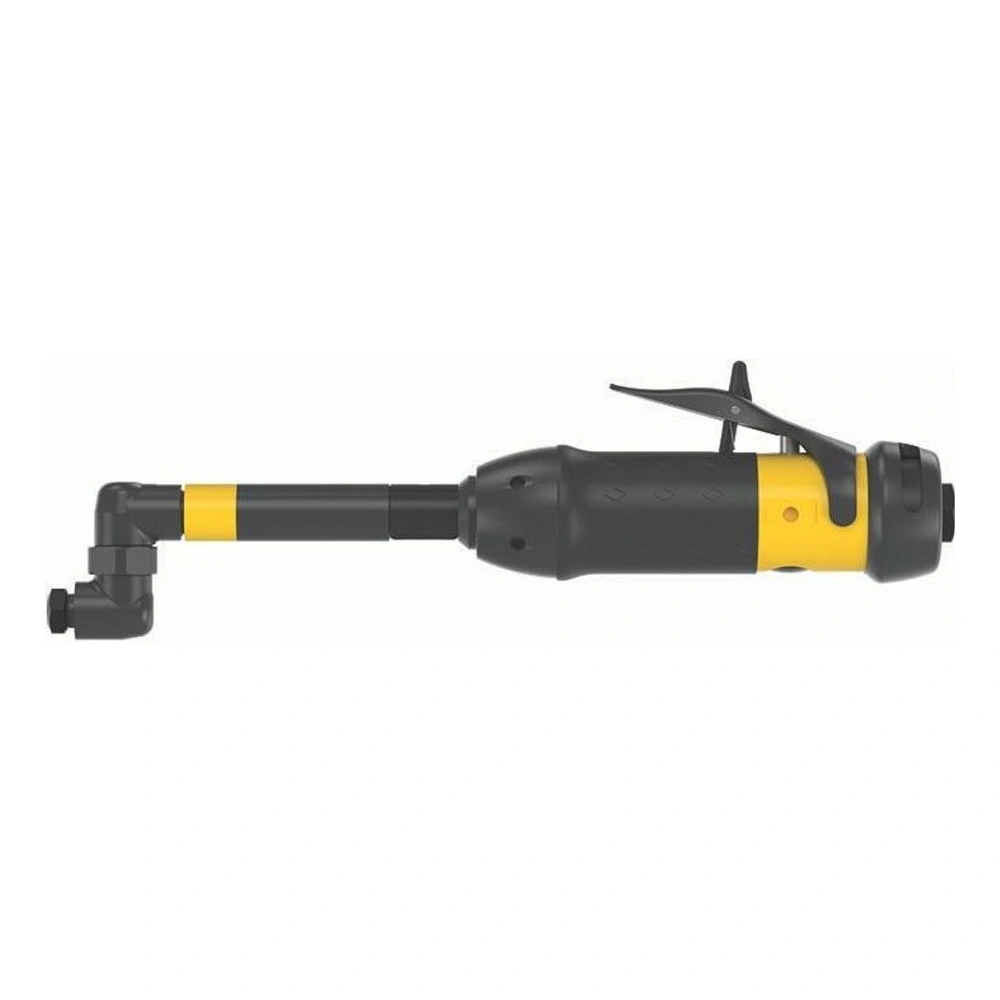

Two LBV16 models in the 360° head configuration, with a threaded collet or internal thread. The designation describes the head configuration, not a 360° drilling angle.
These models are classified as the 360° head configuration. The designation describes the head assembly; it does not mean drilling a bore at 360° or tilting the spindle to any desired angle. The offset head geometry is visible in the model photographs and must be checked against the part.
Both ordering numbers have 3,200 rpm free speed and 300 W motor power, but their drilling-tool interfaces differ. The table distinguishes threaded collet from internal thread and lists the thread designation and delivered collet where published.
| Model | Part number | Free speed | Motor power | Tool interface | Head type | Collet size | Delivered collet size | Tool thread | Tool weight | Air consumption at free speed | Maximum working pressure | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
LBV16 032-90Z | 8421011064 | 3,200 r/min | 300 W | Threaded collet | Standard | 5 mm | - | UNF 9/32" - 40 | 0.5 kg | 8.7 l/s | - | Specifications and drawings Request quote |
LBV16 032-92Z | 8421011068 | 3,200 r/min | 300 W | Internal thread | Standard | - | - | UNF 1/4" - 28 | 0.5 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |
Check the offset between the head sections and the available clearance around the part. Use current model instructions when designing a fixture or specifying an operating position. The 360° designation alone does not establish free rotation under load or a particular locking arrangement.

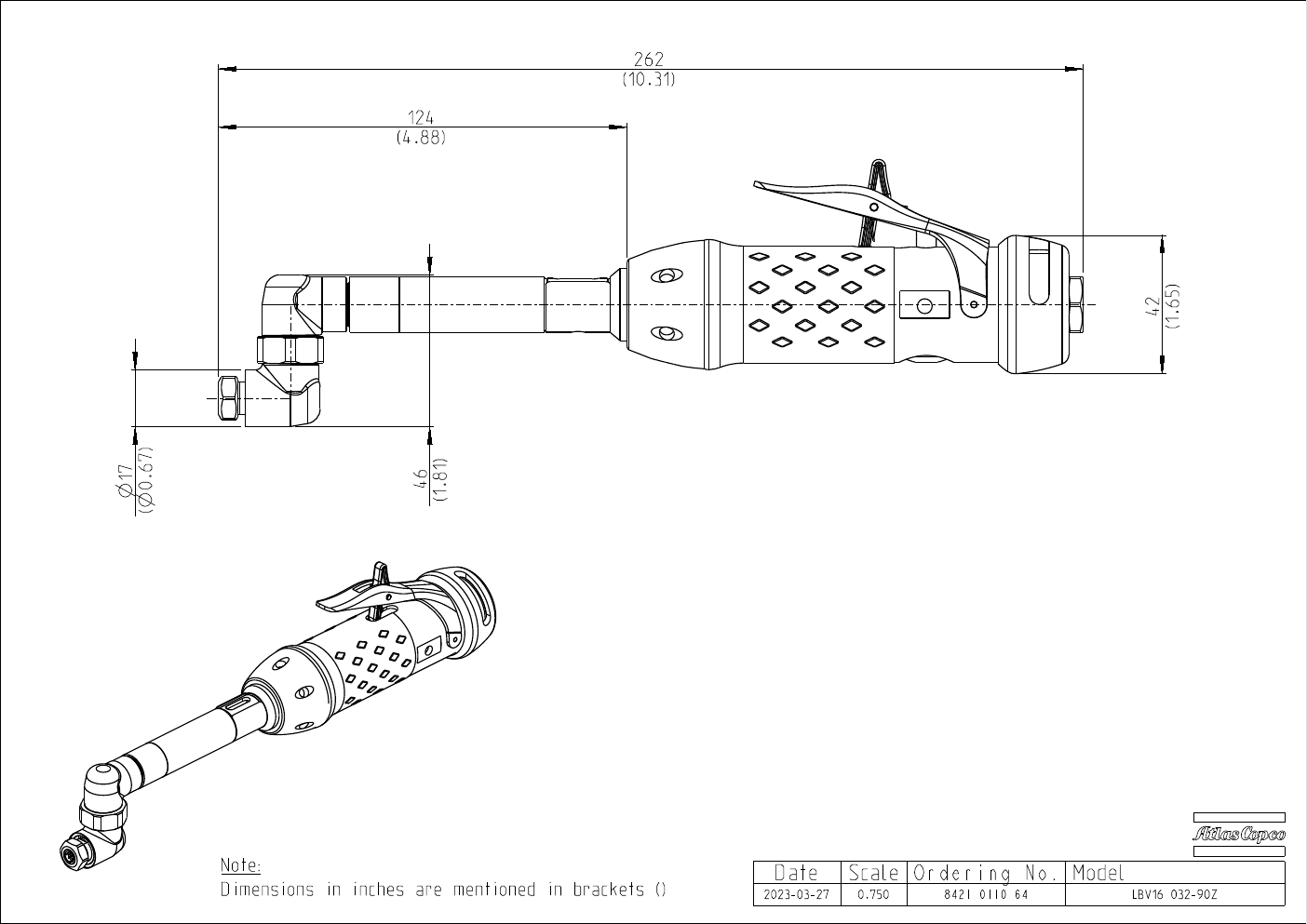

LBV16 032-90Z8421011064360°StandardThreaded collet300 W3,200 r/min1,500 r/min3,200 r/min5 mm-UNF 9/32" - 400.5 kg262 mm124 mm46 mm42 mm17 mm8.7 l/s-1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 032-90Z
LBV16 032-90ZAtlas Copco safety information
LBV16 032-92Z8421011068360°StandardInternal thread300 W3,200 r/min1,500 r/min3,200 r/min--UNF 1/4" - 280.5 kg262 mm124 mm46 mm42 mm17 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 032-92Z
LBV16 032-92ZAtlas Copco safety information
Match working pressure, collet and cutting tool to the model instructions and process. Contact Hadi with the table ordering number for selection advice.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Atlas Copco LBV 360° Head Pneumatic Drill.
