Compact, low-noise angle drills built for precise work and easier operator comfort.

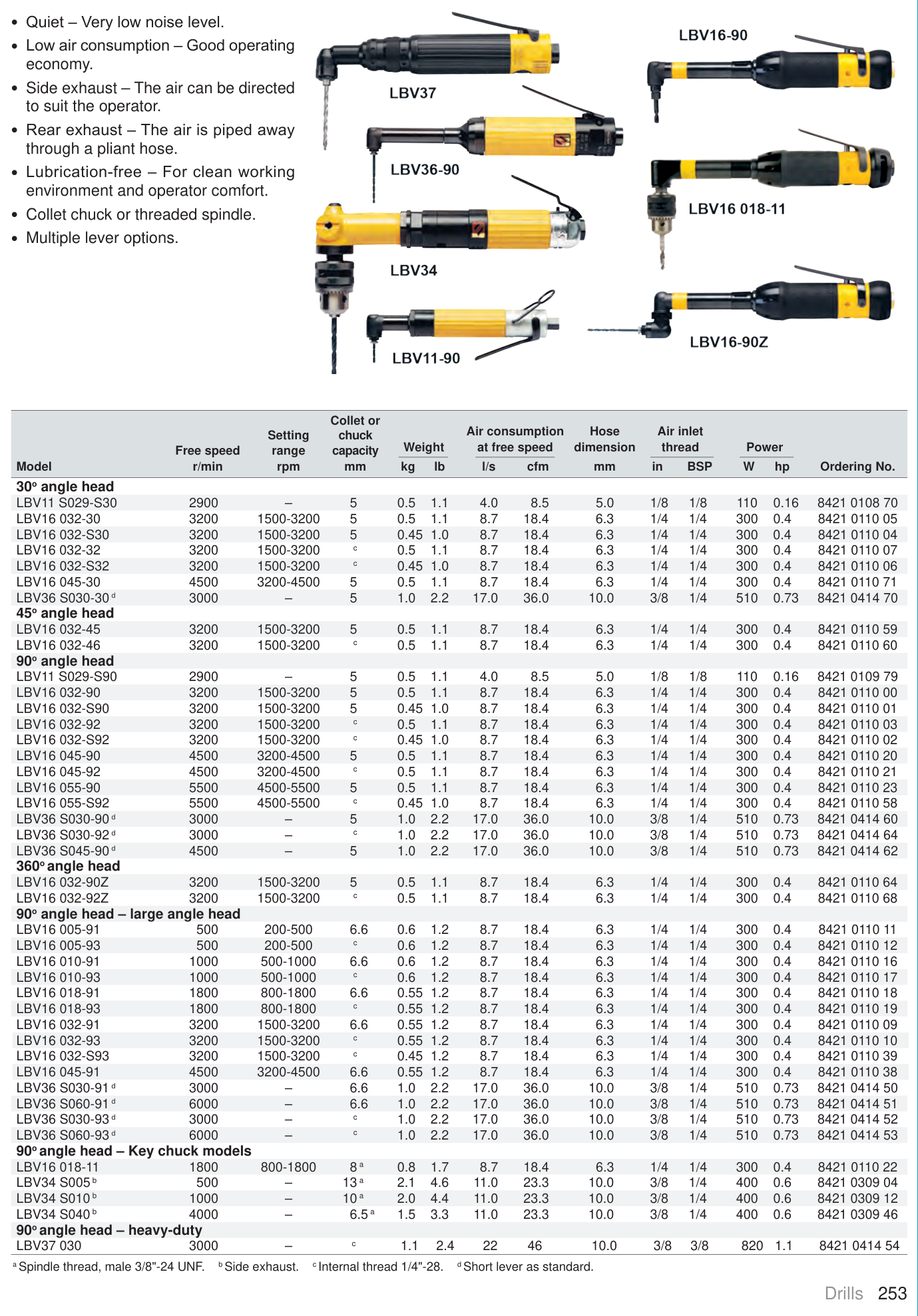

The Atlas Copco LBV family is a range of pneumatic angle drills designed for accurate drilling where access is limited.
It combines low noise, low air consumption and flexible exhaust options to support a cleaner, more comfortable assembly environment.
How do I choose the right LBV model for my application?
Step 1: Define the access you need at the workpoint.
Step 2: Choose the chuck or threaded spindle arrangement that fits your setup.
Step 3: Decide whether side exhaust or rear exhaust suits the station better.
Step 4: Match the tool choice to the required operating economy and workflow.
What is the difference between side exhaust and rear exhaust?
Side exhaust directs the air to the side of the tool.
Rear exhaust sends the air away through a pliant hose for better routing at the station.
Is the LBV family suitable for a clean production area?
Yes.
The lubrication-free design is suited to cleaner working conditions and improved operator comfort.
What type of tool holding options are available?
The family offers a collet chuck or a threaded spindle, depending on the station needs and preferred tool setup.
Why does low air consumption matter in daily use?
Low air consumption supports better operating economy, especially when the tool is used repeatedly during a shift.
What should I confirm before ordering for use in an assembly line?
Confirm the preferred chuck type, exhaust direction and lever option so the tool matches the station and the operator’s workflow.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Atlas Copco LBV Pneumatic Angle Drills.
