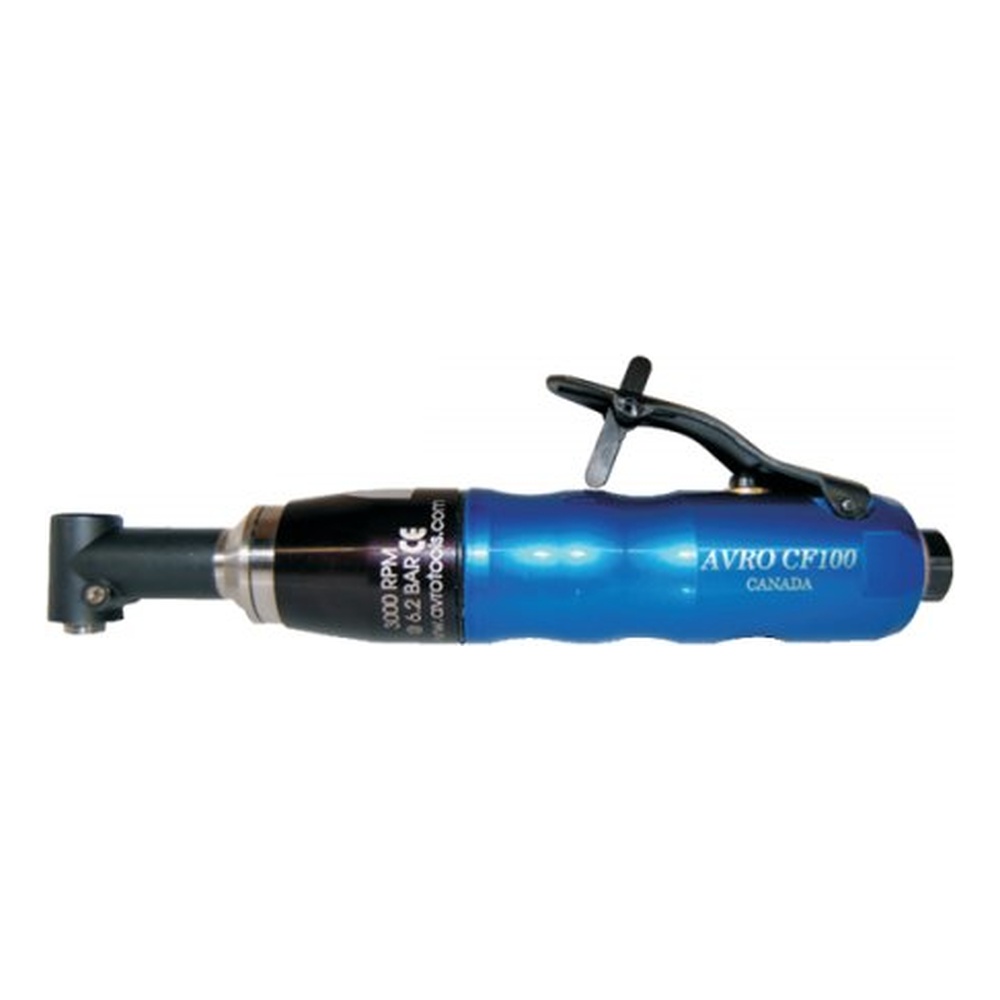

Pneumatic Angle Drill – AVRO CF100

Pneumatic Angle Drill – AVRO CF100

The AVRO CF100 series of angle drills is designed for the most demanding requirements of 21st century applications.

It incorporates the latest ergonomic principles into the design, with productivity as the primary goal and complete throttle control.

Key Features

• High performance: A high-performance tool designed for the most demanding requirements.
• Power-to-weight ratio: High power-to-weight ratio, helping shorten completion time on operations.
• Throttle control: Complete throttle control for better comfort and control.
• Power: 0.5 hp {0.37 kw}.
• Air inlet: 1/4” NPT Standard.

Technical Specifications

Model	Speed	Spindle	Length	Weight	Image

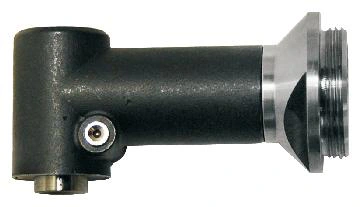

90 Degree Rear Exhaust
20801	4,500	1/4-28	8 / 205	1.3/ 0.62
20802	3,000	1/4-28	8 / 205	1.3/ 0.62
20803	2,400	1/4-28	8 / 205	1.3/ 0.62
45 Degree Rear exhaust
20821	4,500	1/4-28	8 / 205	1.3/ 0.62
20822	3,000	1/4-28	8 / 205	1.3/ 0.62
20823	2,400	1/4-28	8 / 205	1.3/ 0.62

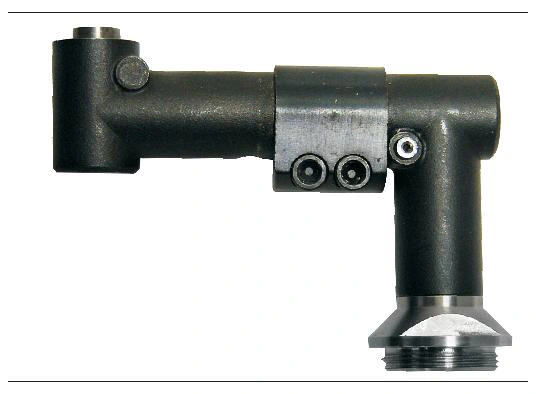

360 Degree Rear exhaust
20831	4,500	1/4-28	8 / 205	1.4/ 0.63
20832	3,000	1/4-28	8 / 205	1.4/ 0.63
20833	2,400	1/4-28	8 / 205	1.4/ 0.63

Add Suffix to model ex:20801 A A=9/32-40

General

• The AVRO CF100 series of Angle drills are High Performance tools designed for the most demanding requirements of the 21st century applications.
• The drill incorporates advanced ergonomic design principles to support efficient, comfortable operation over extended periods.
• The HIGH POWER-TO-WEIGHT ratio and complete throttle control mean the shortest possible completion on all operations.
• Power: 0.5 hp {0.37 kw}
• Air Inlet: 1/4” NPT Standard
• Air pressure 90 psi (620 KPA)

Frequently Asked Questions

Is the AVRO CF100 Pneumatic Angle Drill suitable for demanding applications?
Yes, according to the manufacturer it is designed for the most demanding requirements of 21st century applications.

What does the design emphasize?
According to the manufacturer, the design incorporates the latest ergonomic principles and complete throttle control.

What are the air and power specifications?
Power is 0.5 hp {0.37 kw}, air inlet is 1/4” NPT Standard, and air pressure is 90 psi (620 KPA).
