Compare 13 right-angle pneumatic drills by free speed, power, short or standard head and drilling-tool connection, with an individual specification for every ordering number.
A 90° head places the drilling axis perpendicular to the drill body. This geometry can provide access beside an assembly or behind a local obstruction, subject to clearance for the head, operating lever and air hose.
The largest group in the range includes different motor powers, speeds, short and standard heads, and collet or threaded interfaces. Higher free speed does not automatically make a model suitable for a process, and a smaller tool is not an automatic substitute for a higher-power unit. Compare the required connection first, then consider the remaining specifications together.
| Model | Part number | Free speed | Motor power | Tool interface | Head type | Collet size | Delivered collet size | Tool thread | Tool weight | Air consumption at free speed | Maximum working pressure | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
LBV11 S029-S90 | 8421010979 | 2,900 r/min | 110 W | Threaded collet | Short | 5 mm | - | UNF 9/32" - 40 | 0.5 kg | 4 l/s | 7 bar | Specifications and drawings Request quote |
LBV16 005-91 | 8421011011 | 500 r/min | 300 W | Collet | Standard | 6.6 mm | 6 mm | - | 0.6 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |

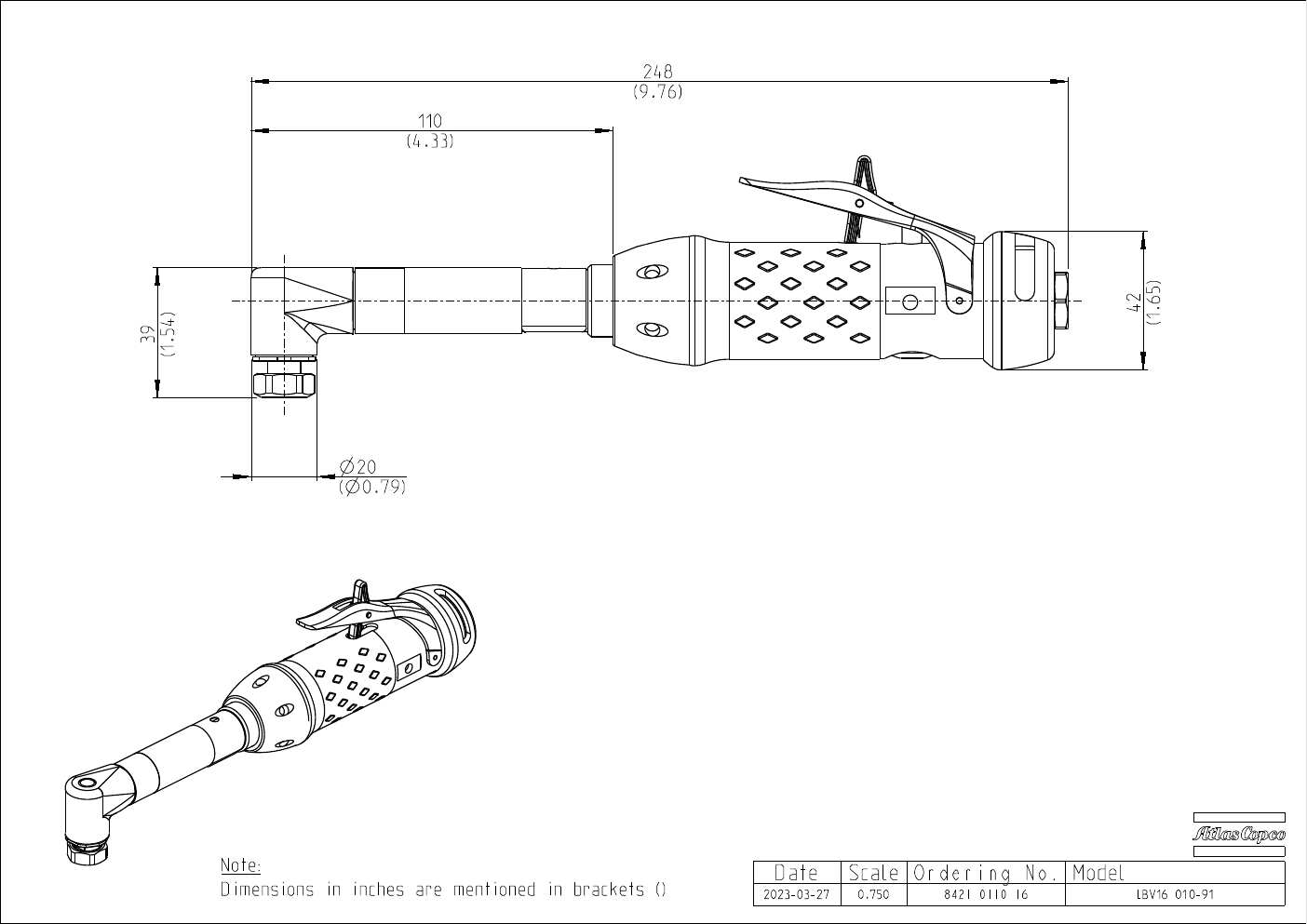

LBV16 010-91 | 8421011016 | 1,000 r/min | 300 W | Collet | Standard | 6.6 mm | 6 mm | - | 0.6 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |
LBV16 032-90 | 8421011000 | 3,200 r/min | 300 W | Threaded collet | Standard | 5 mm | - | UNF 9/32" - 40 | 0.5 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |
LBV16 032-91 | 8421011009 | 3,200 r/min | 300 W | Collet | Standard | 6.6 mm | 6 mm | - | 0.55 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |
LBV16 032-92 | 8421011003 | 3,200 r/min | 300 W | Internal thread | Standard | - | - | UNF 1/4" - 28 | 0.5 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |
LBV16 045-90 | 8421011020 | 4,500 r/min | 300 W | Threaded collet | Standard | 5 mm | - | UNF 9/32" - 40 | 0.5 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |
LBV16 045-91 | 8421011038 | 4,500 r/min | 300 W | Collet | Standard | 6.6 mm | 6 mm | - | 0.55 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |
LBV16 045-92 | 8421011021 | 4,500 r/min | 300 W | Internal thread | Standard | - | - | UNF 1/4" - 28 | 0.5 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |
LBV36 S030-91 | 8421041450 | 3,000 r/min | 510 W | Collet | Standard | 6.6 mm | 6 mm | - | 1 kg | 17 l/s | 7 bar | Specifications and drawings Request quote |

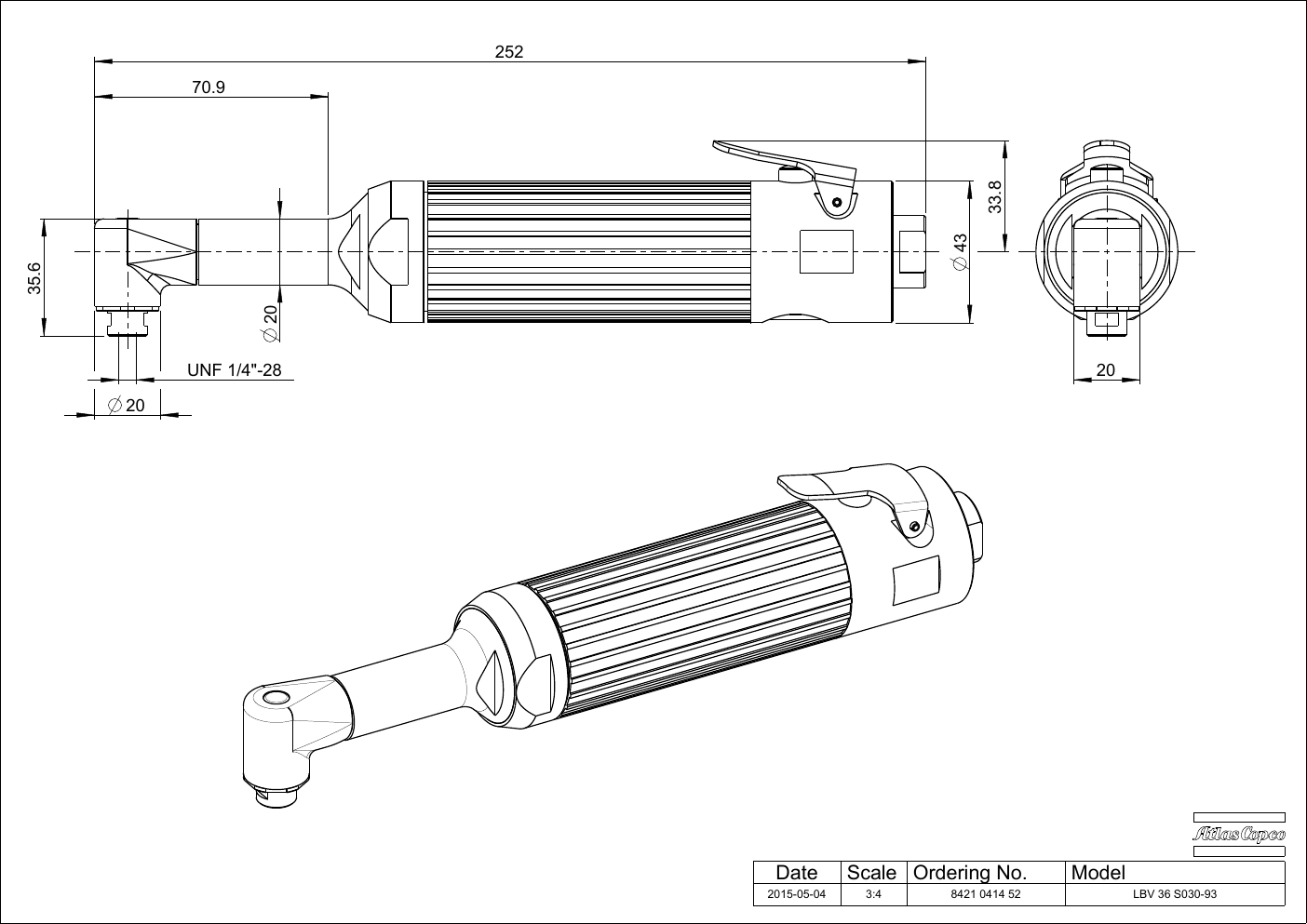

LBV36 S030-93 | 8421041452 | 3,000 r/min | 510 W | Internal thread | Standard | - | - | UNF 1/4" - 28 | 1 kg | 17 l/s | 7 bar | Specifications and drawings Request quote |

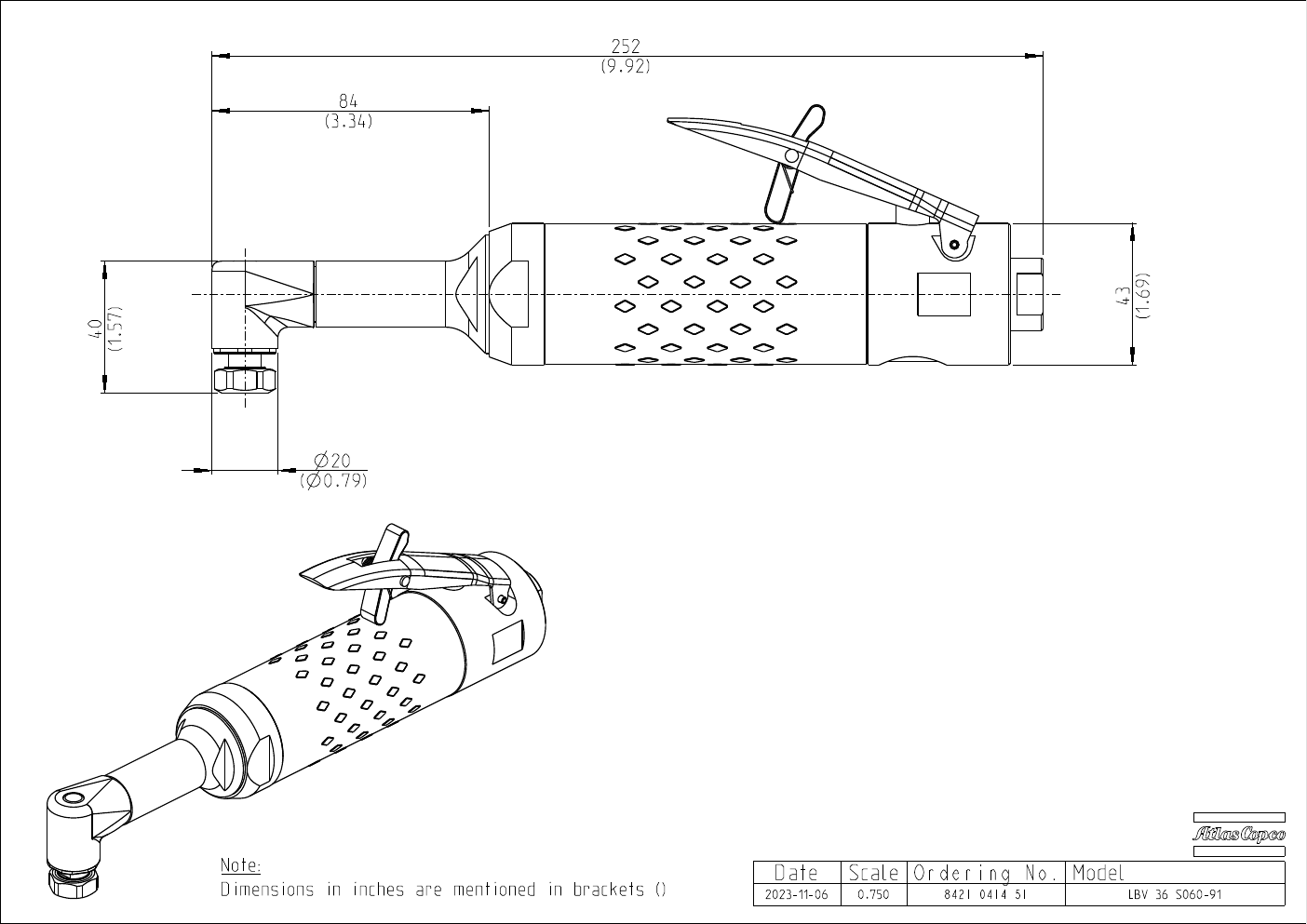

LBV36 S060-91 | 8421041451 | 6,000 r/min | 510 W | Collet | Standard | 6.6 mm | 6 mm | - | 1 kg | 17 l/s | 7 bar | Specifications and drawings Request quote |
LBV36 S060-93 | 8421041453 | 6,000 r/min | 510 W | Internal thread | Standard | - | - | UNF 1/4" - 28 | 1 kg | 17 l/s | 7 bar | Specifications and drawings Request quote |
When planning a workstation, account for air consumption and recommended hose size. Selecting by rpm alone can overlook a different tool connection or head envelope. For application advice, provide material, hole diameter, cutting-tool type, available clearance and air-supply details.

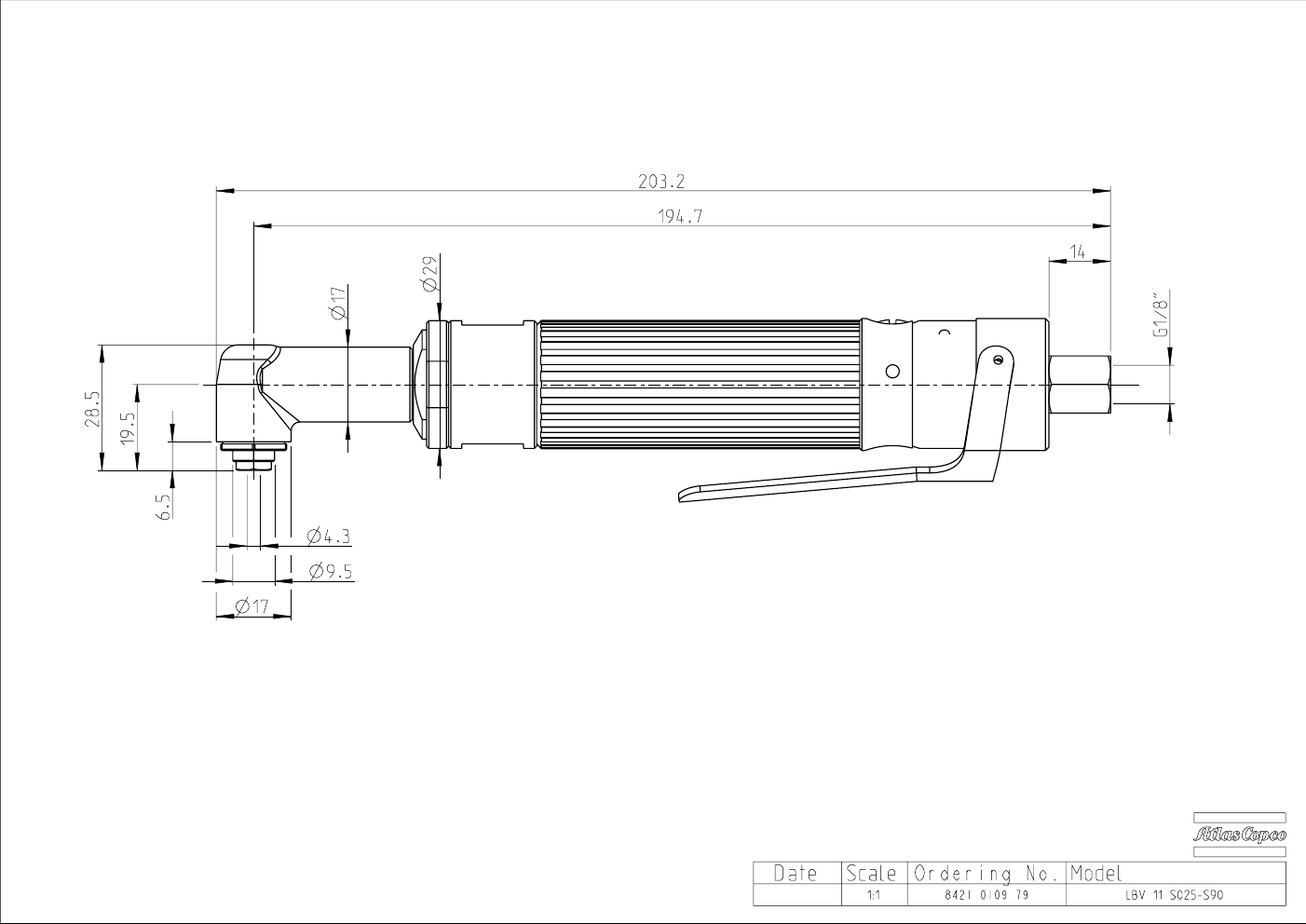

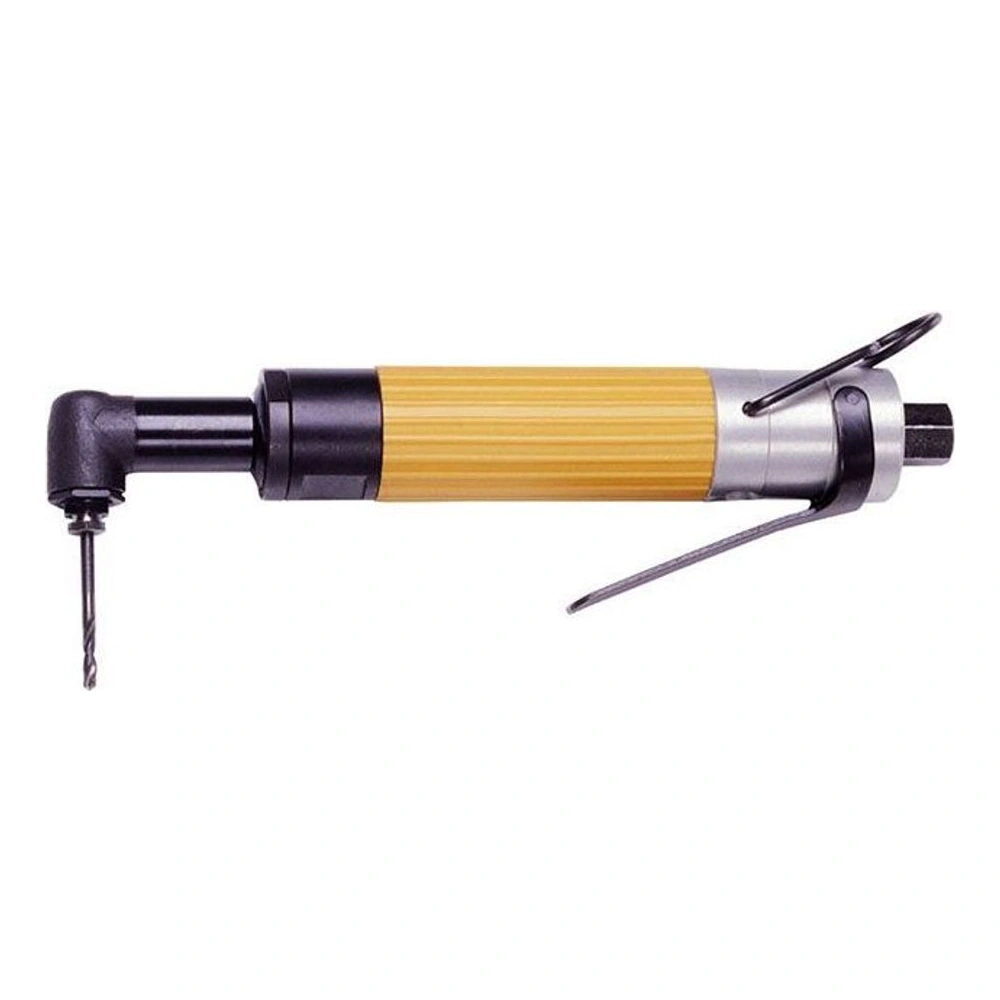

LBV11 S029-S90842101097990°ShortThreaded collet110 W2,900 r/min--5 mm-UNF 9/32" - 400.5 kg202 mm47 mm31 mm30 mm17 mm4 l/s7 bar1/8 in5 mm72 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV11 S029-S90
LBV11 S029-S90LBV16 005-91842101101190°StandardCollet300 W500 r/min200 r/min500 r/min6.6 mm6 mm-0.6 kg248 mm110 mm39 mm42 mm20 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 005-91
LBV16 005-91Atlas Copco safety information
LBV16 010-91842101101690°StandardCollet300 W1,000 r/min500 r/min1,000 r/min6.6 mm6 mm-0.6 kg248 mm110 mm39 mm42 mm20 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 010-91
LBV16 010-91Atlas Copco safety information

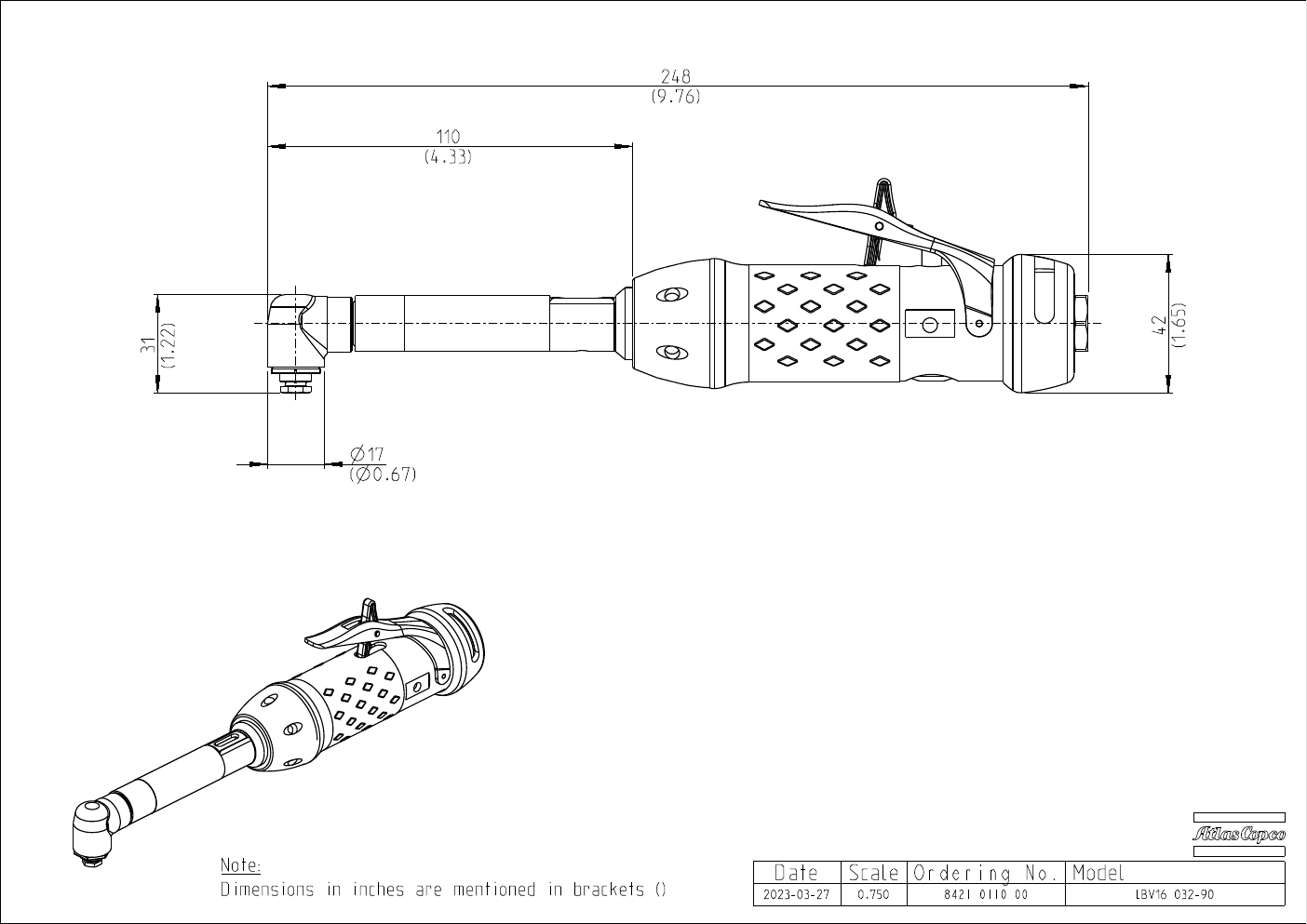

LBV16 032-90842101100090°StandardThreaded collet300 W3,200 r/min1,500 r/min3,200 r/min5 mm-UNF 9/32" - 400.5 kg248 mm110 mm31 mm42 mm17 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 032-90

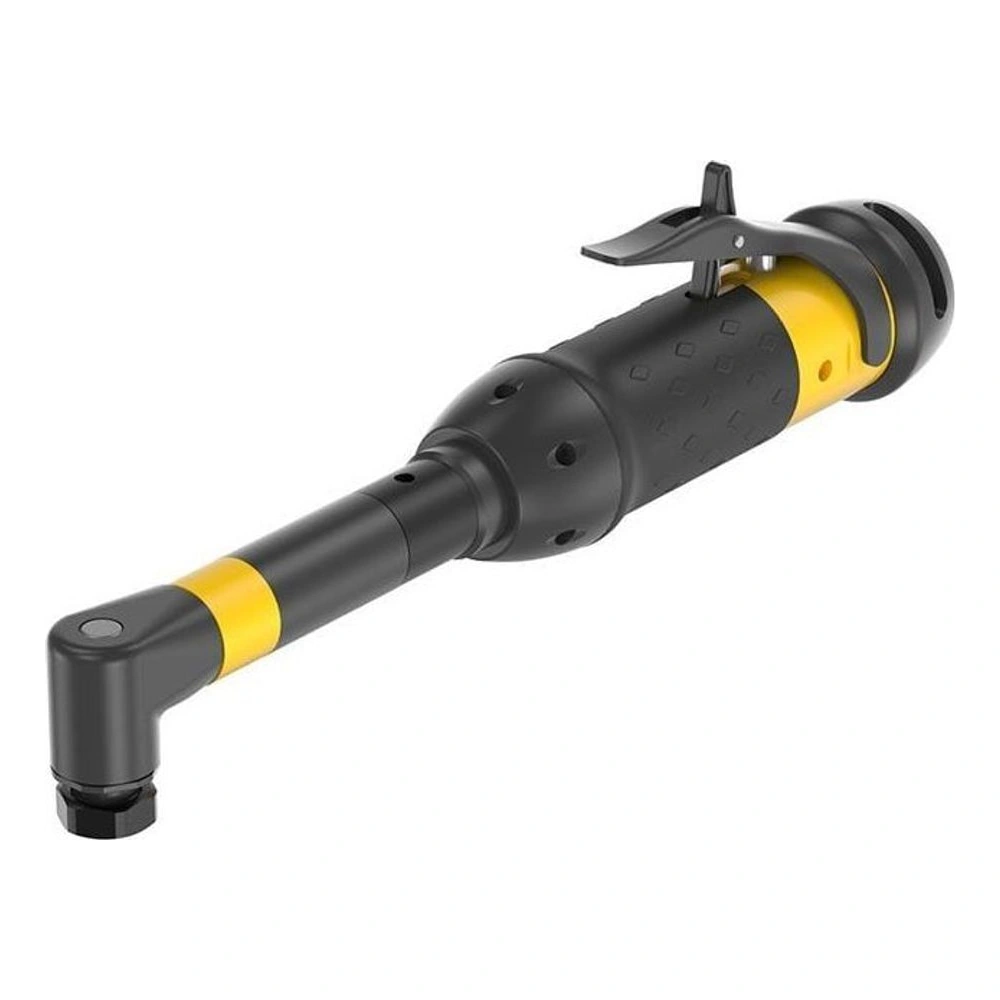

LBV16 032-90LBV16 032-91842101100990°StandardCollet300 W3,200 r/min1,500 r/min3,200 r/min6.6 mm6 mm-0.55 kg248 mm110 mm39 mm42 mm20 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 032-91
LBV16 032-91Atlas Copco safety information
LBV16 032-92842101100390°StandardInternal thread300 W3,200 r/min1,500 r/min3,200 r/min--UNF 1/4" - 280.5 kg248 mm110 mm31 mm42 mm17 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 032-92
LBV16 032-92Atlas Copco safety information

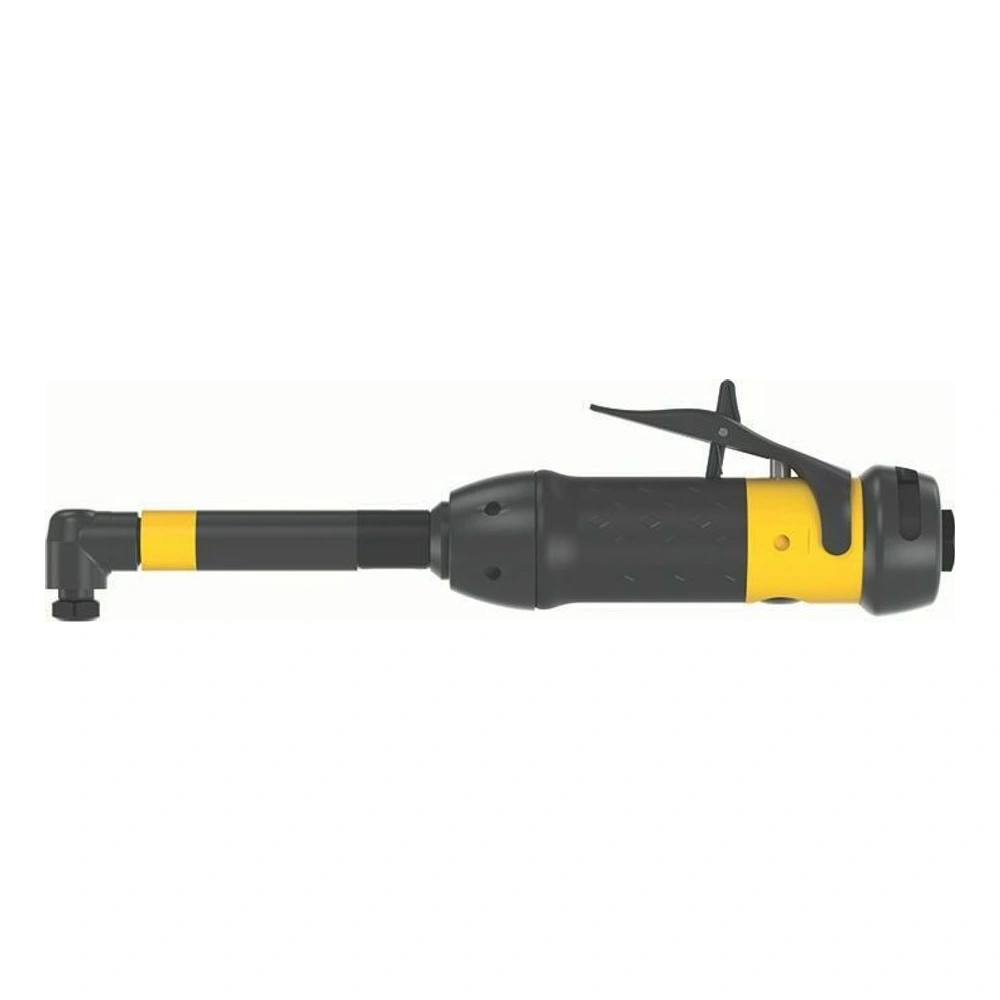

LBV16 045-90842101102090°StandardThreaded collet300 W4,500 r/min3,200 r/min4,500 r/min5 mm-UNF 9/32" - 400.5 kg248 mm110 mm31 mm42 mm17 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 045-90
LBV16 045-90Atlas Copco safety information

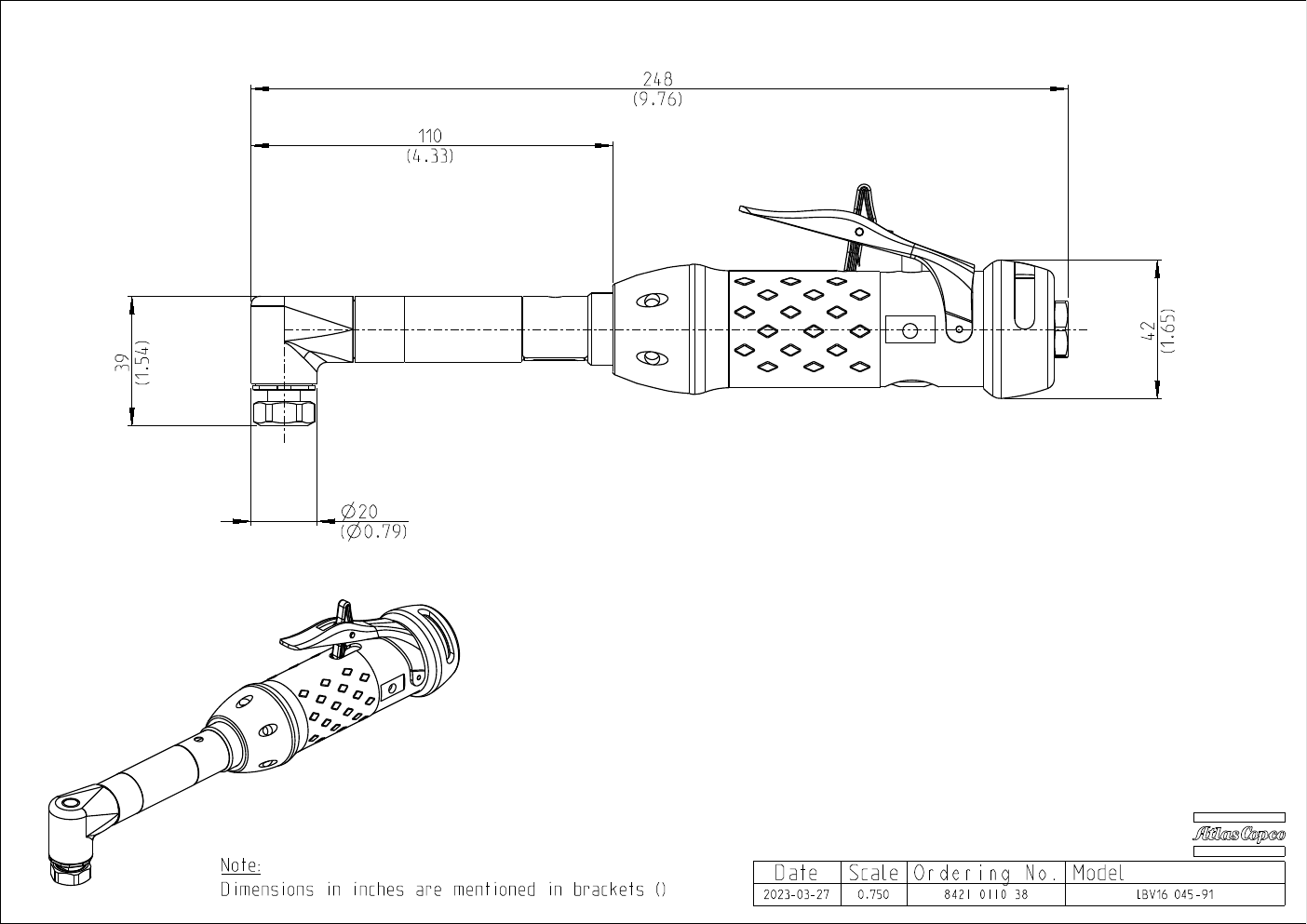

LBV16 045-91842101103890°StandardCollet300 W4,500 r/min3,200 r/min4,500 r/min6.6 mm6 mm-0.55 kg248 mm110 mm39 mm42 mm20 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 045-91
LBV16 045-91Atlas Copco safety information

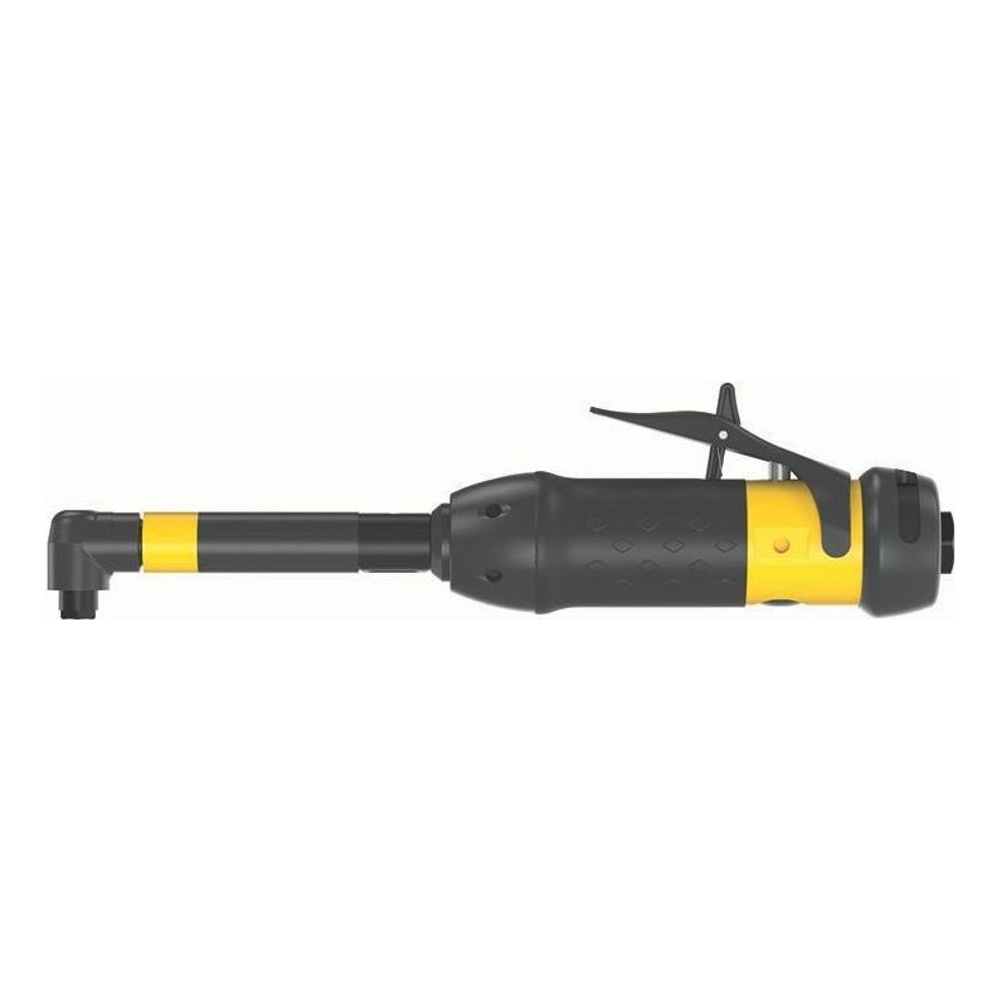

LBV16 045-92842101102190°StandardInternal thread300 W4,500 r/min3,200 r/min4,500 r/min--UNF 1/4" - 280.5 kg248 mm110 mm31 mm42 mm17 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 045-92
LBV16 045-92Atlas Copco safety information

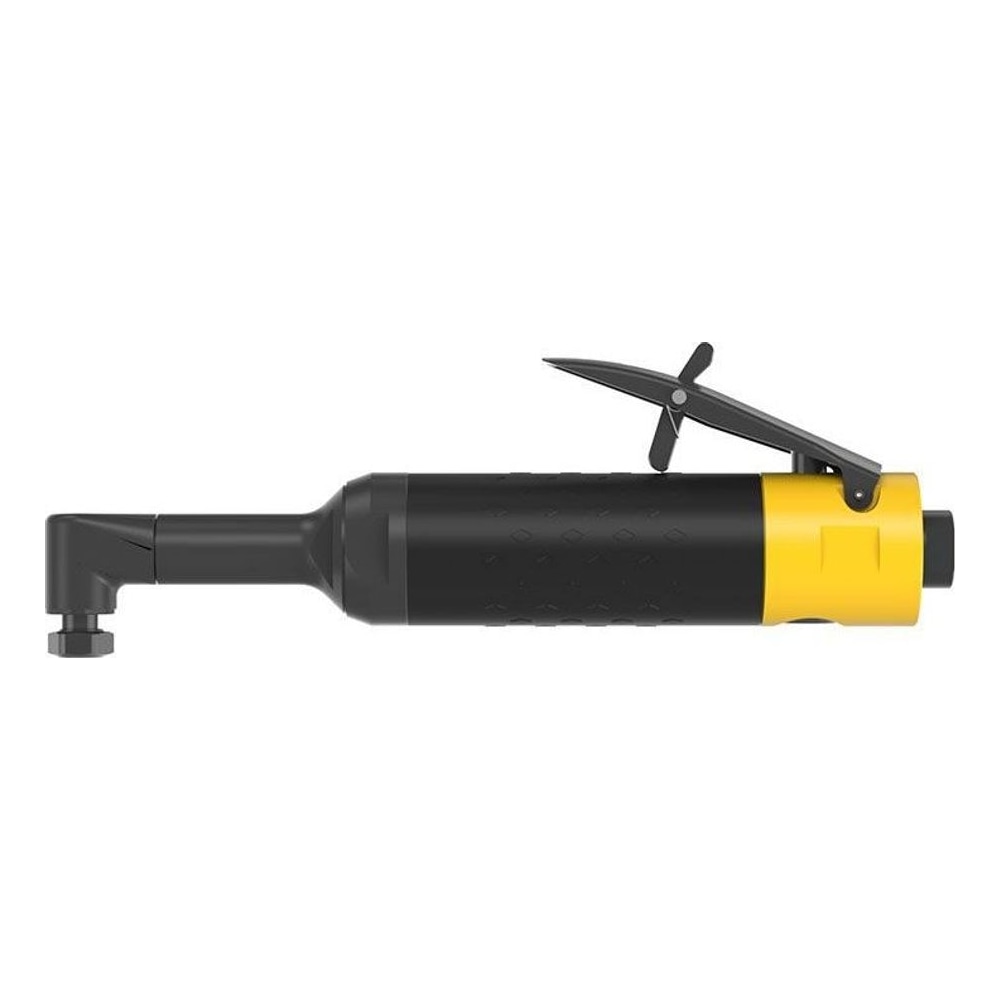

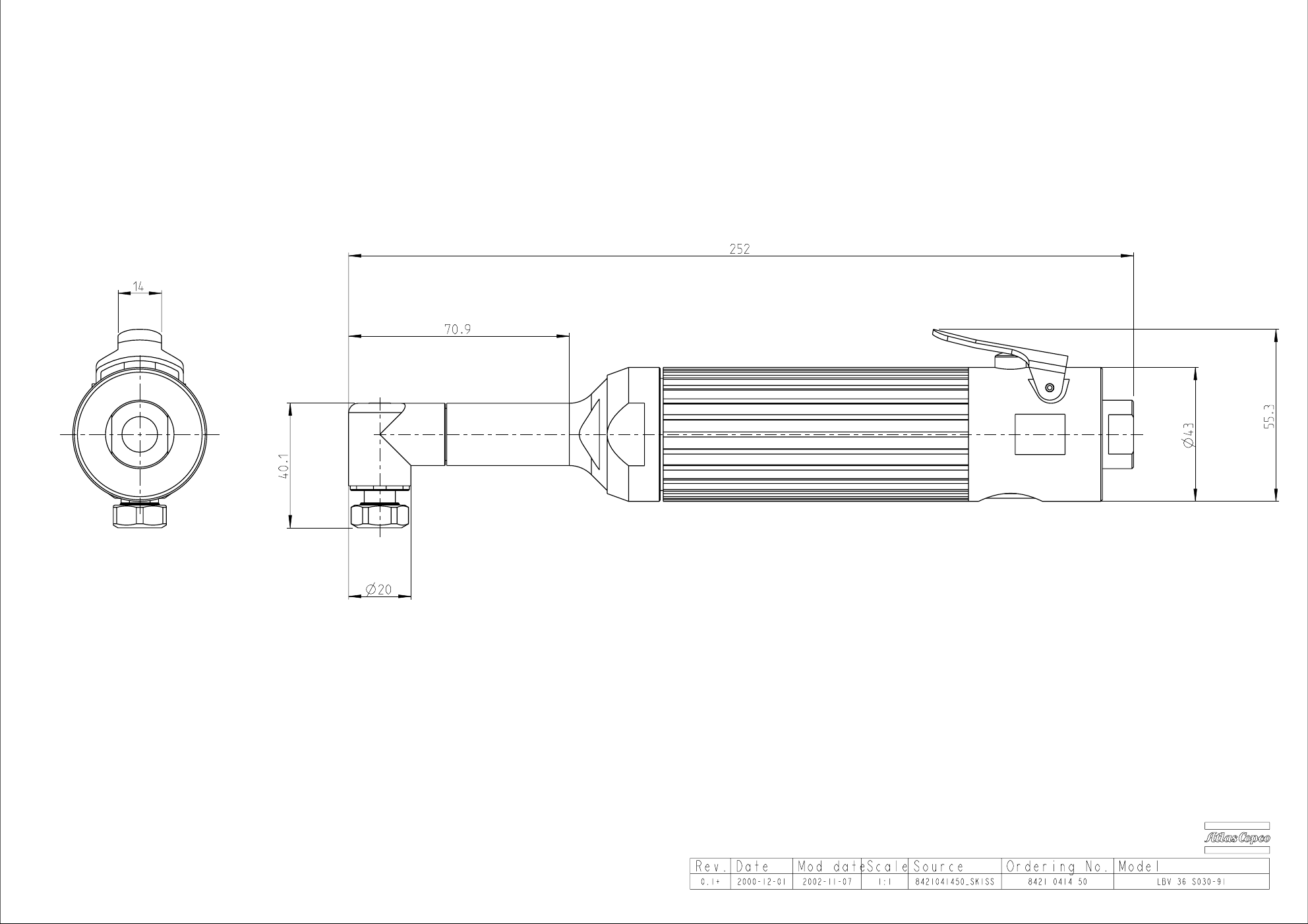

LBV36 S030-91842104145090°StandardCollet510 W3,000 r/min--6.6 mm6 mm-1 kg252 mm84 mm40 mm43 mm20 mm17 l/s7 bar1/4 in10 mm81 dB(A)92 dB(A)3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV36 S030-91
LBV36 S030-91Atlas Copco safety information

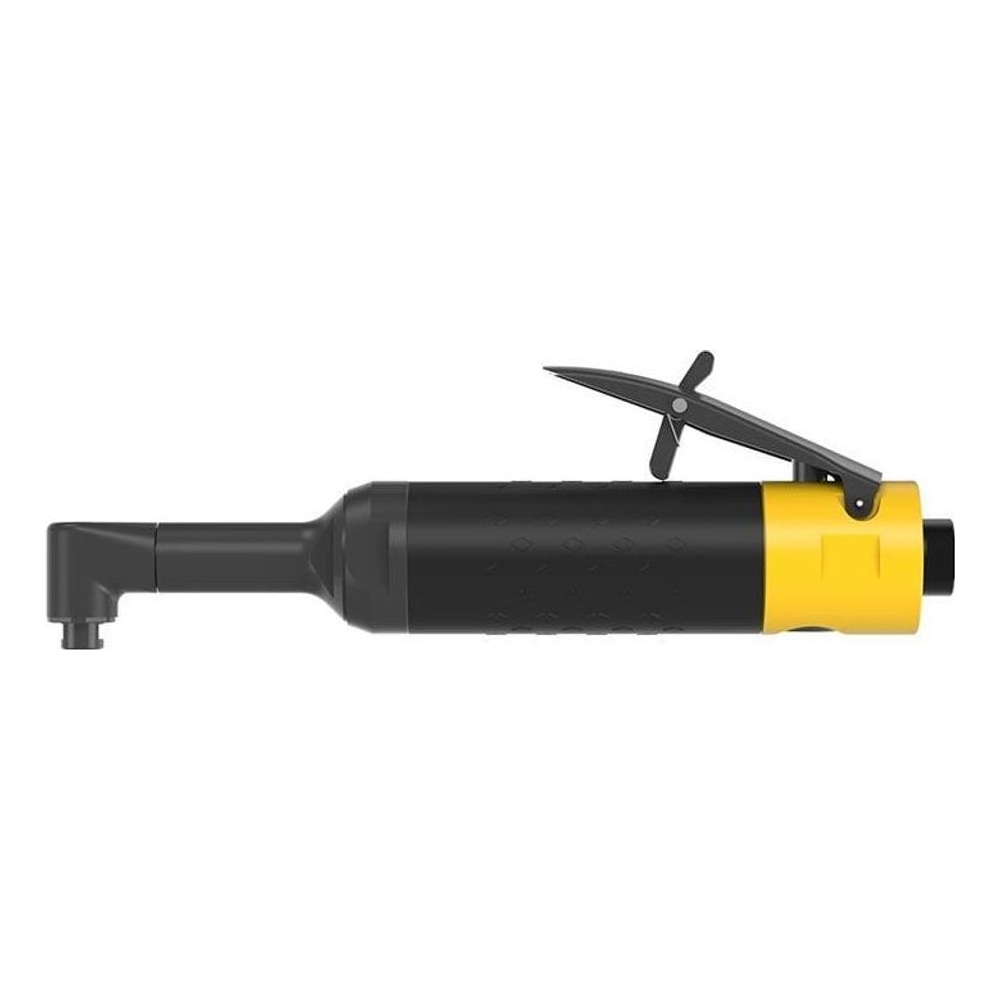

LBV36 S030-93842104145290°StandardInternal thread510 W3,000 r/min----UNF 1/4" - 281 kg252 mm84 mm36 mm43 mm20 mm17 l/s7 bar1/4 in10 mm81 dB(A)92 dB(A)3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV36 S030-93
LBV36 S030-93Atlas Copco safety information
LBV36 S060-91842104145190°StandardCollet510 W6,000 r/min--6.6 mm6 mm-1 kg252 mm84 mm40 mm43 mm20 mm17 l/s7 bar1/4 in10 mm81 dB(A)92 dB(A)3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV36 S060-91
LBV36 S060-91Atlas Copco safety information

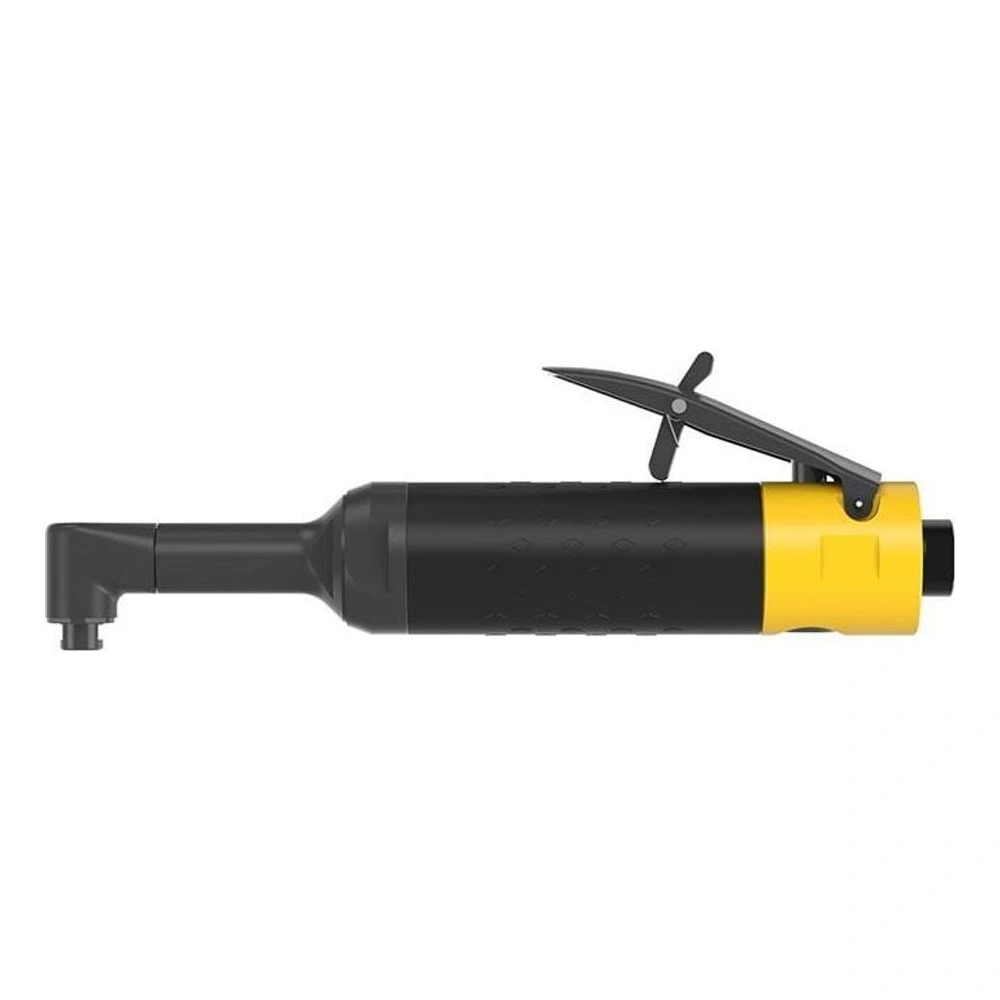

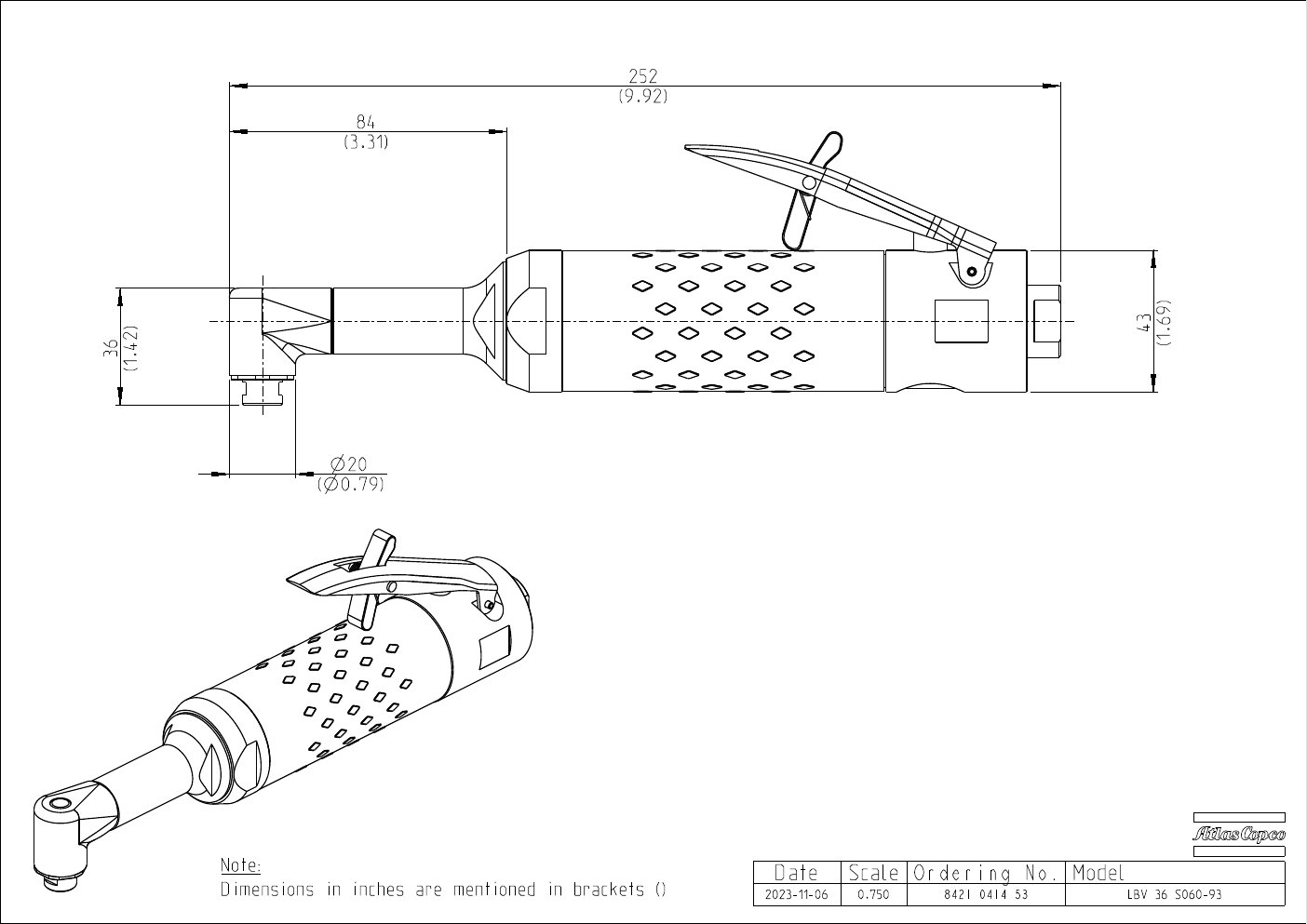

LBV36 S060-93842104145390°StandardInternal thread510 W6,000 r/min----UNF 1/4" - 281 kg252 mm84 mm36 mm43 mm20 mm17 l/s7 bar1/4 in10 mm81 dB(A)92 dB(A)3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV36 S060-93
LBV36 S060-93Atlas Copco safety information
Match working pressure, collet and cutting tool to the model instructions and process. Contact Hadi with the table ordering number for selection advice.
