A 30° pneumatic drill configuration for oblique access in restricted spaces. Compare three models by free speed, motor power and drilling-tool connection.
A 30° head places the drill body at an oblique angle to the drilling axis. This configuration can help where a workpiece or fixture restricts access with an inline drill. Check the head envelope and the available movement before selecting a model.
This group includes different drive units and two tool interfaces. A threaded collet and an internal thread are different connections; similar speed does not establish compatibility with the same drill bit. Delivered collet size, collet size and thread dimensions are listed separately.
| Model | Part number | Free speed | Motor power | Tool interface | Head type | Collet size | Delivered collet size | Tool thread | Tool weight | Air consumption at free speed | Maximum working pressure | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

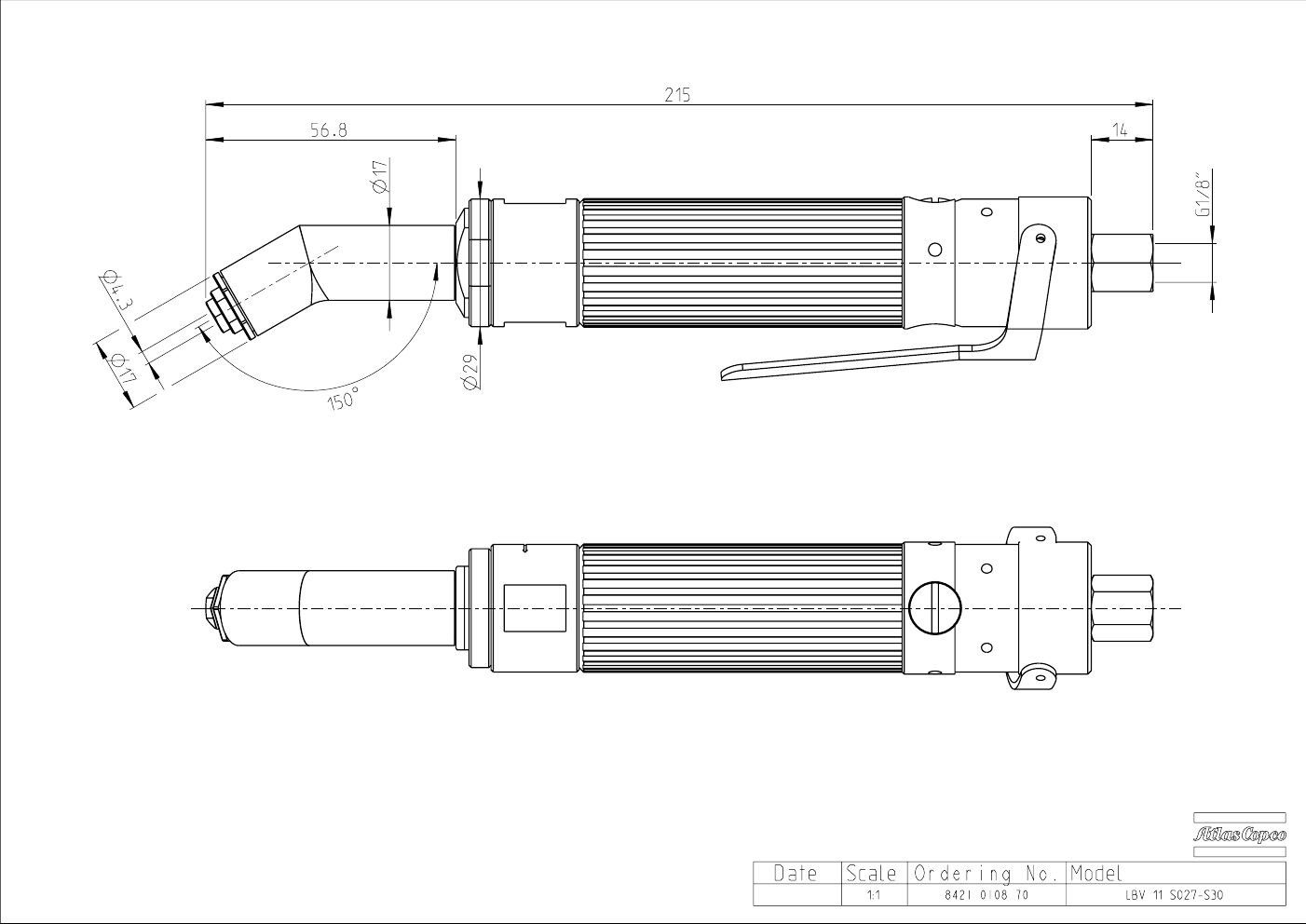

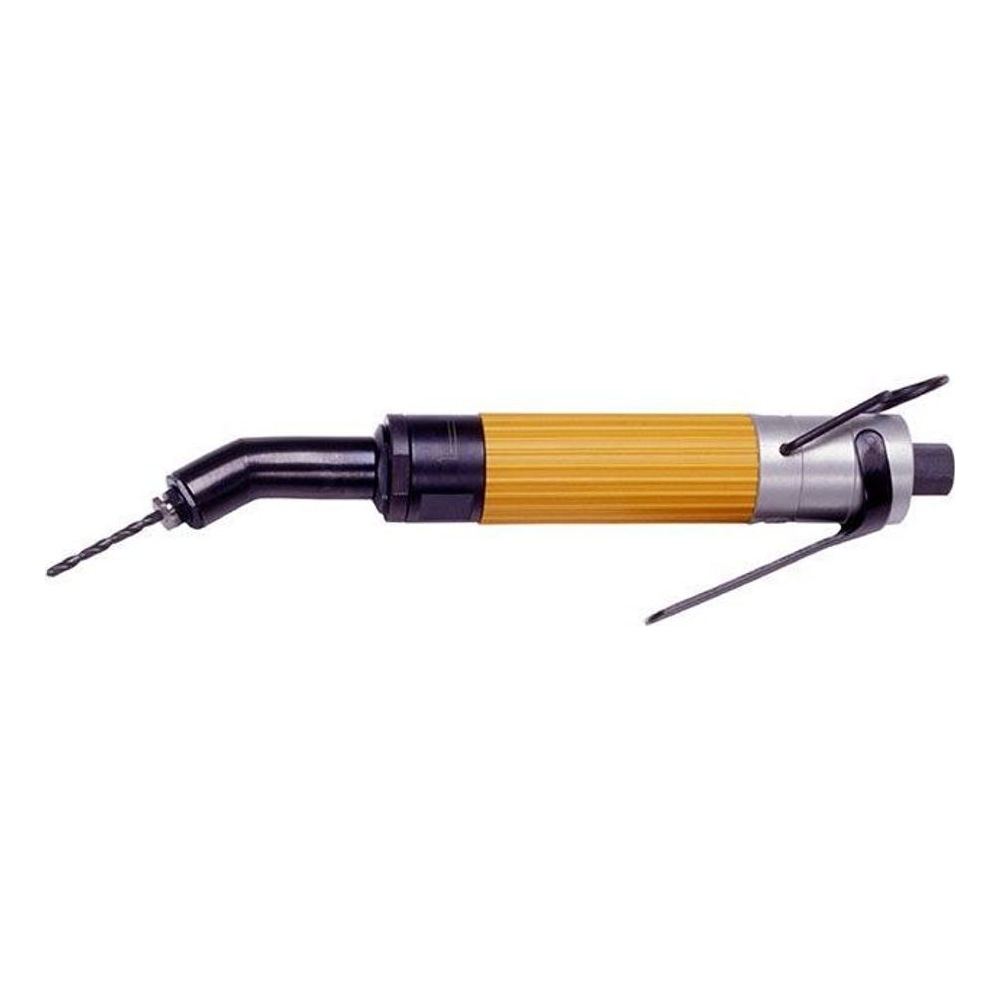

LBV11 S029-S30 | 8421010870 | 2,900 r/min | 110 W | Threaded collet | Short | 5 mm | - | UNF 9/32" - 40 | 0.5 kg | 4 l/s | 7 bar | Specifications and drawings Request quote |

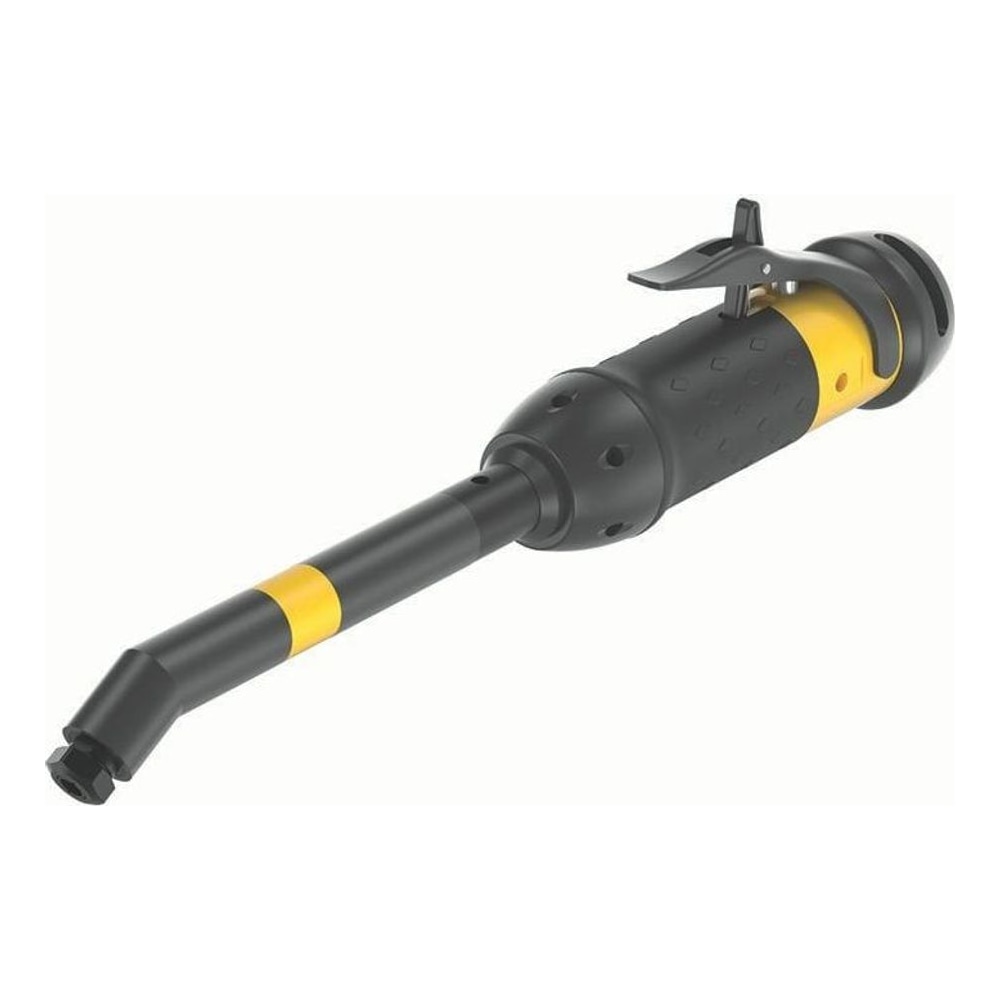

LBV16 032-30 | 8421011005 | 3,200 r/min | 300 W | Threaded collet | Standard | 5 mm | - | UNF 9/32" - 40 | 0.5 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |

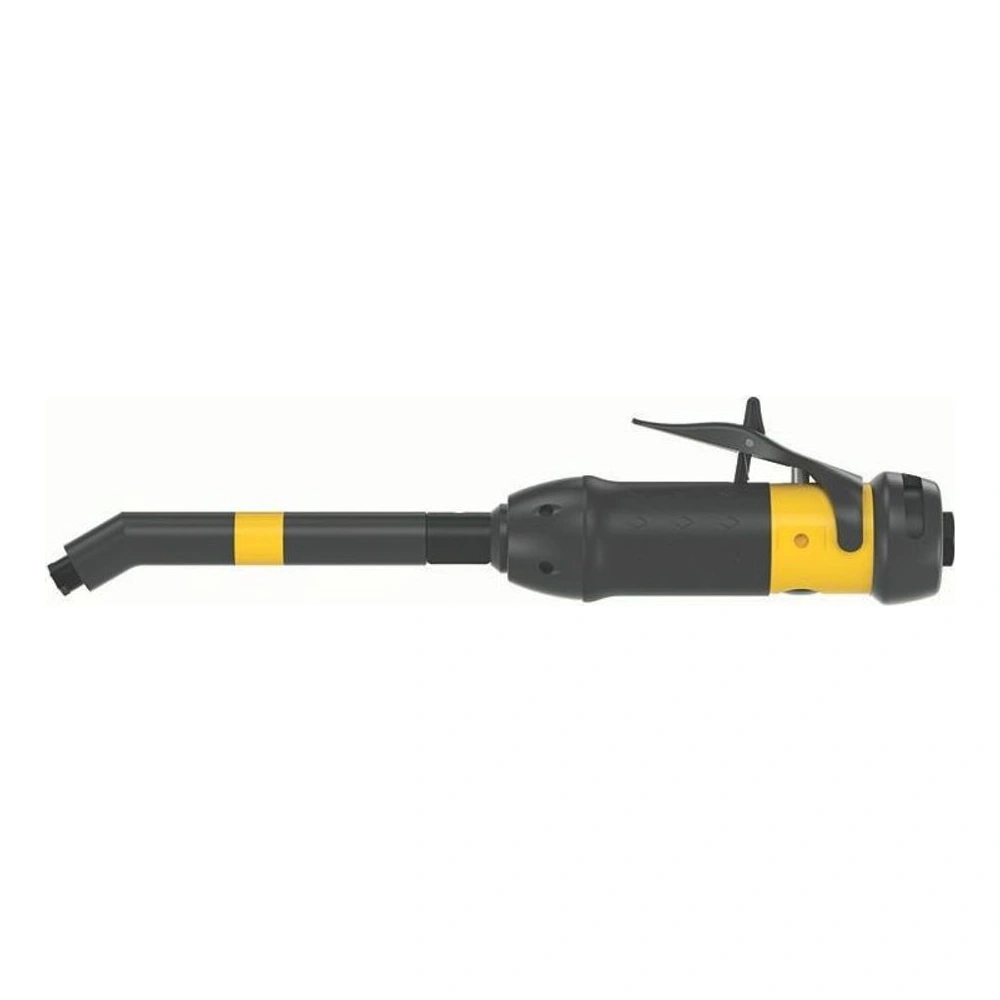

LBV16 032-32 | 8421011007 | 3,200 r/min | 300 W | Internal thread | Standard | - | - | UNF 1/4" - 28 | 0.5 kg | 8.7 l/s | 7 bar | Specifications and drawings Request quote |
For drilling near walls, fixtures and internal assembly features, compare overall length, head height and diameter as well as head angle. Allow room to insert and withdraw the tool. Match operating speed to the workpiece material, bit diameter and process; free speed is a comparison value, not a promised speed under load.
LBV11 S029-S30842101087030°ShortThreaded collet110 W2,900 r/min--5 mm-UNF 9/32" - 400.5 kg216 mm61 mm28 mm30 mm17 mm4 l/s7 bar1/8 in5 mm72 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV11 S029-S30
LBV11 S029-S30LBV16 032-30842101100530°StandardThreaded collet300 W3,200 r/min1,500 r/min3,200 r/min5 mm-UNF 9/32" - 400.5 kg280 mm143 mm28 mm42 mm17 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO157442.7 m/s²0.9 m/s²ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 032-30
LBV16 032-30Atlas Copco safety information

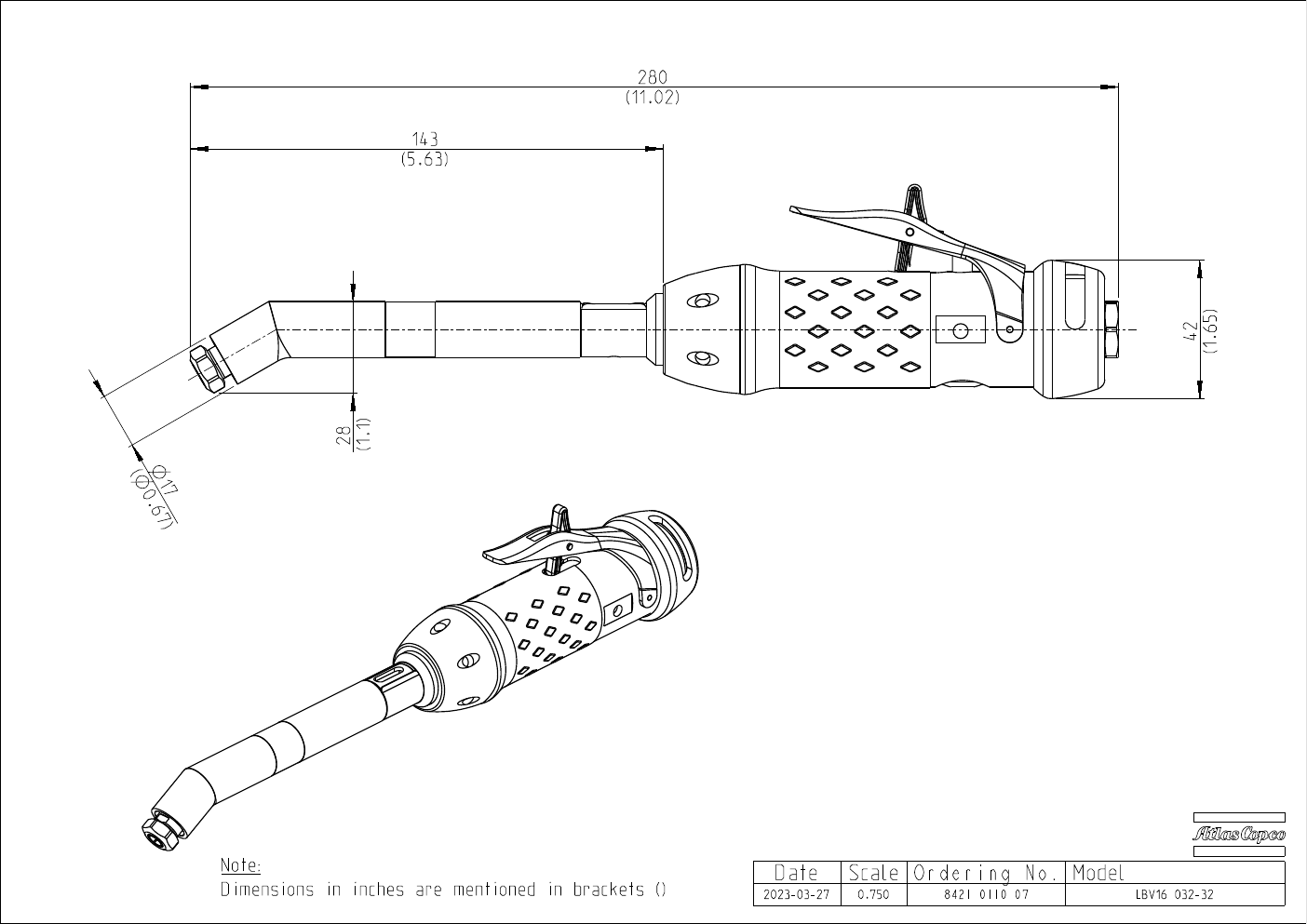

LBV16 032-32842101100730°StandardInternal thread300 W3,200 r/min1,500 r/min3,200 r/min--UNF 1/4" - 280.5 kg280 mm143 mm28 mm42 mm17 mm8.7 l/s7 bar1/4 in6.3 mm75 dB(A)-3 dB(A)ISO15744<2.5 m/s²-ISO28927-5Atlas Copco model specification
Manufacturer document for LBV16 032-32
LBV16 032-32Atlas Copco safety information
Match working pressure, collet and cutting tool to the model instructions and process. Contact Hadi with the table ordering number for selection advice.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Atlas Copco LBV 30° Pneumatic Angle Drill.
