Clayton’s Inline Router provides the power and control needed for trimming and routing along fixtures. Carbon fiber, aluminum and other substrates generate large amounts of airborne dust and pose a serious risk to workers and aerostructures; this router collects the airborne dust and helps reduce chips and debris. The shroud connects to a portable or central vacuum, and the tool is a standard in NAVAIR and USAF maintenance kits.

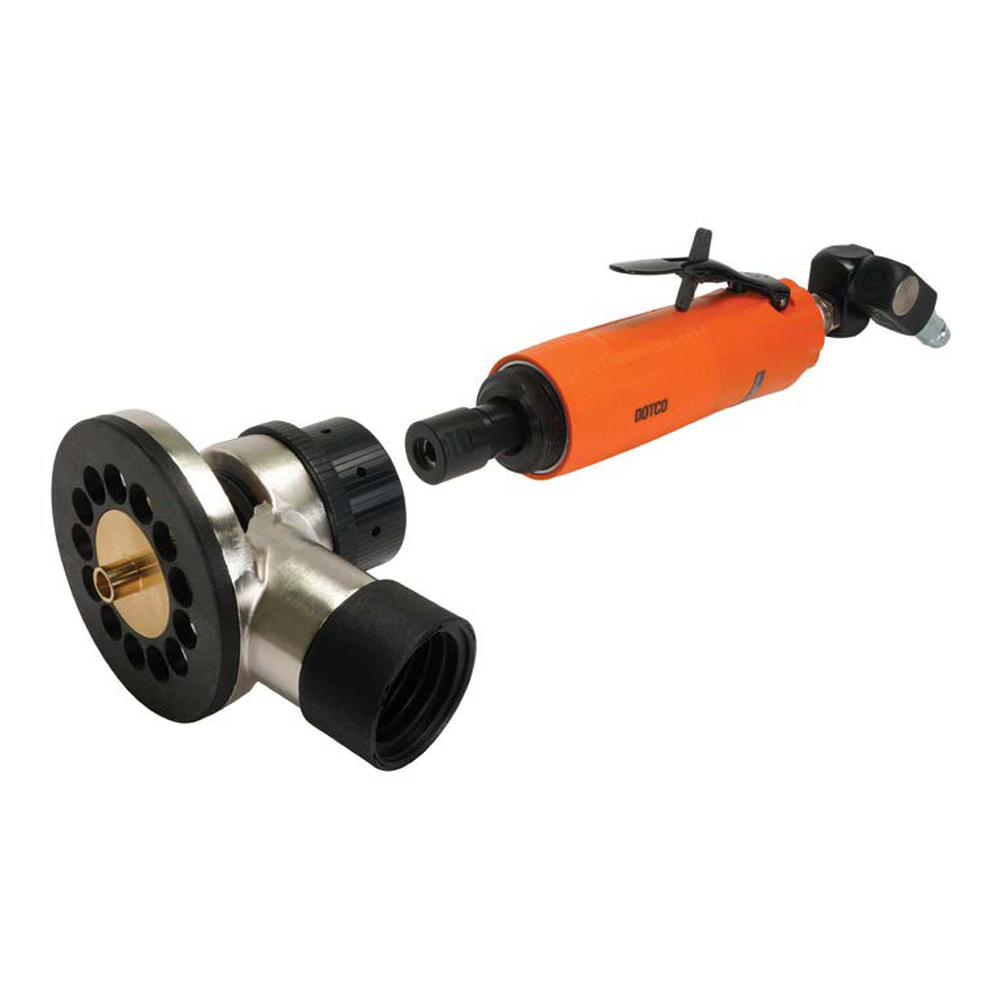

It is available as the shroud alone (no router) or as a complete router with a 0.9 HP motor at 23,000 RPM and a 1/8in guide fitted. Every unit includes a 2′ x 1″ vacuum hose whip, a swivel adapter for connection to a 1″ hose, a Positive Lock hose fitting, depth adjustment and router guides with skirt.
A set of interchangeable router guides is offered (Outer Diameter / Inner Diameter): 1″/25/32″, 3/4″/21/32″, 5/8″/17/32″, 1/2″/13/32″, 7/16″/11/32″, 3/8″/9/32″ and 5/16″/1/4″, plus 2 locking nuts. Warning: never exceed the maximum operating speed of your abrasive.
| SKU | Select |
| Configuration | Select |
| Speed | 23K RPM |
| Motor power | 0.9 HP (motor-equipped model) |
| Guide fitted | 1/8in (motor-equipped model) |
| Vacuum hose whip | 2′ x 1″, with swivel adapter for 1″ hose |
| Hose fitting | Positive Lock (won’t pull free) |
| Features | Depth adjustment, router guides and skirt |
| Interchangeable guides | OD/ID from 1″ down to 5/16″ (7 guides), plus 2 locking nuts |
| Applications | Trimming and routing along fixtures in carbon fiber, aluminum and other substrates with dust collection; aerostructure maintenance (NAVAIR / USAF) |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Clayton Inline Router with Dust-Collection Shroud.
