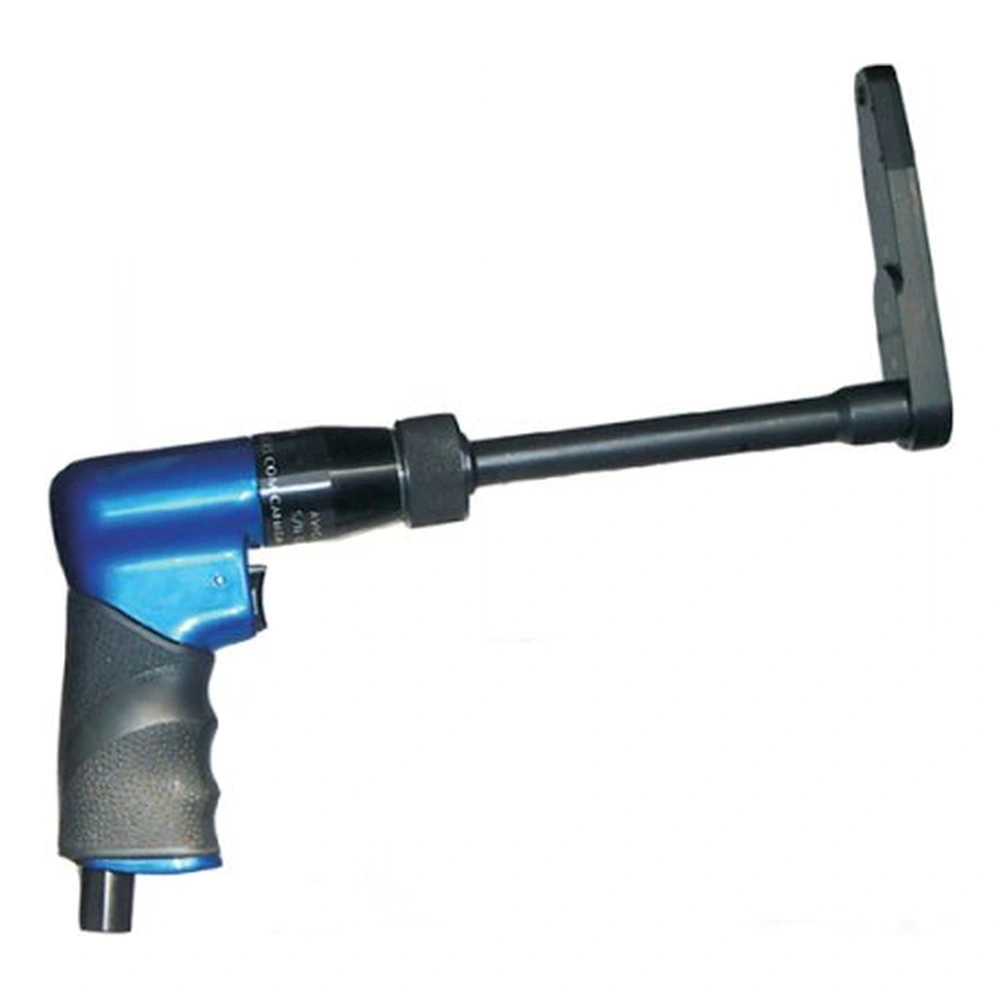

Modular Drill Dogleg Left – AVRO XT250 L – LONG DOGLEG LEFT

Modular Drill Dogleg Left – AVRO XT250 L – LONG DOGLEG LEFT

AVRO/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.

Interchangeable heads can be indexed up to and including 360° and are matched with ergonomic motor packages at the rpm you need.

Key Features

• Interchangeable heads: Interchangeable heads provide flexible setup for the job.
• 360° indexing: Heads can be indexed up to and including 360°.
• Motor package match: Matched with ergonomic motor packages.

Technical Specifications

Model	Rpm	fb / Nm	Inch/mm	lbs / kg	Image

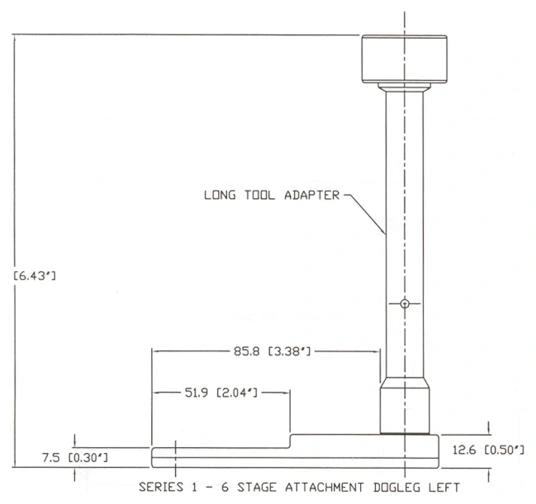

Series 1
44161LL	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44162LL	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44163LL	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44164LL	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44165LL	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 2
44261LS	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44262LL	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44263LL	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44264LL	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44265LL	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 3
44361LL	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44362LL	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44363LL	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44364LL	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44365LL	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9

A=9/32-40 B=10-3 C=1/4 Hex

General

• Avro/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.
• Interchangeable heads that can be indexed through 360° are matched with Avro/Aerotech ergonomic motor packages at the required rotational speed.

Frequently Asked Questions

What is the XT250 modular drill dogleg left for?
It is intended for modular drilling solutions and today’s most demanding drilling applications.

Can the heads be indexed?
Yes, interchangeable heads can be indexed up to and including 360°.

What does it match with?
It is matched with ergonomic motor packages.
