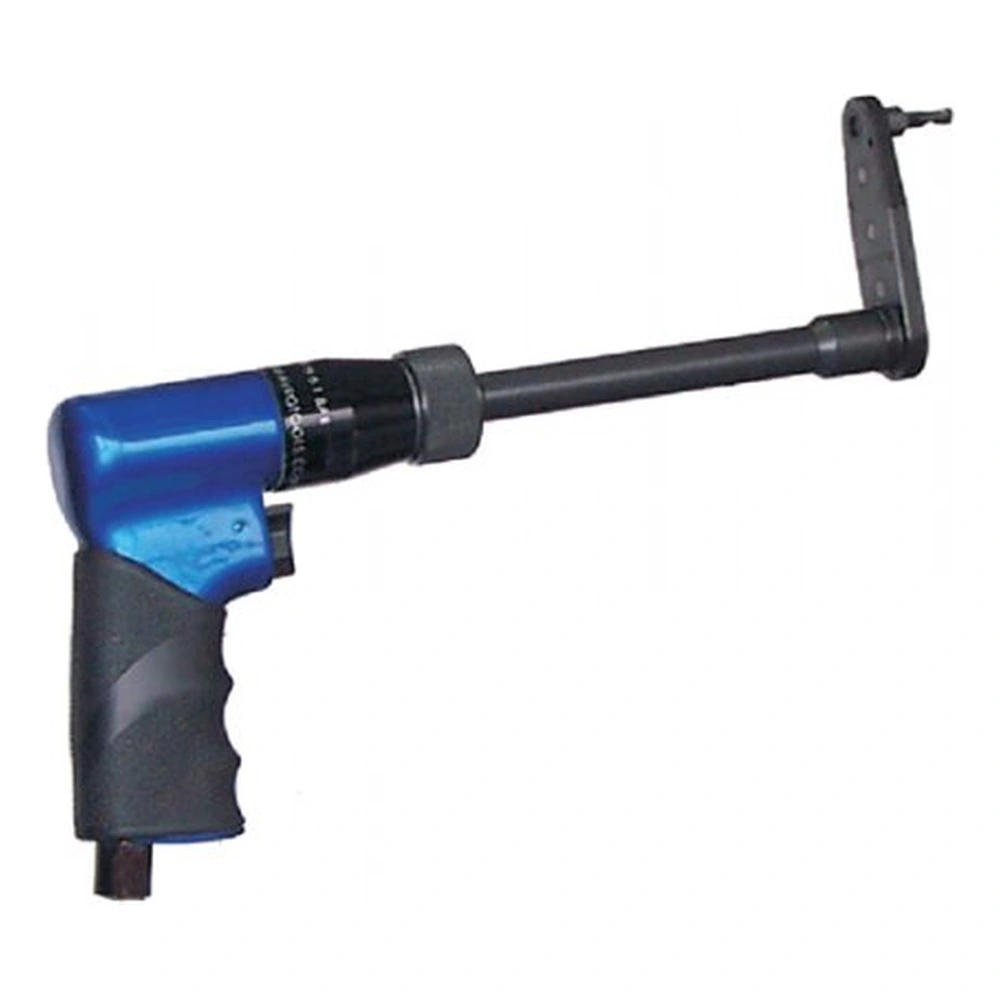

AVRO XT250 "L" – LONG 4 STAGE is a modular drill long 4 stage for demanding drilling applications.
Avro/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.
Interchangeable heads that can be indexed up to and including 360° are matched with ergonomic motor packages.
| Model | Speed | Torque | Length | Weight | Image |
|---|---|---|---|---|---|
| 44141L | 3,200 | 2.5 / 3.4 | 5.5 / 140 | 1.6 / 0.7 |  |
| 44142L | 1,600 | 4.2 / 5.7 | 6.6 / 168 | 1.7 / 0.9 | |
| 44143L | 1,000 | 5.5 / 7.5 | 6.6 / 168 | 1.7 / 0.9 | |
| 44144L | 800 | 5.8 / 7.8 | 6.6 / 168 | 1.7/ 0.9 | |
| 44145L | 500 | 7.5 / 10.2 | 6.6 / 168 | 1.7 / 0.9 | |
| 44341L | 3,200 | 2.5 / 3.4 | 5.5 / 140 | 1.6 / 0.7 |  |
| 44342L | 1,600 | 4.2 / 5.7 | 6.6 / 168 | 1.7 / 0.9 | |
| 44343L | 1,000 | 5.5 / 7.5 | 6.6 / 168 | 1.7 / 0.9 | |
| 44344L | 800 | 5.8 / 7.8 | 6.6 / 168 | 1.7/ 0.9 | |
| 44345L | 500 | 7.5 / 10.2 | 6.6 / 168 | 1.7 / 0.9 | |
| 44241L | 3,200 | 2.5 / 3.4 | 5.5 / 140 | 1.6 / 0.7 |  |
| 44242L | 1,600 | 4.2 / 5.7 | 6.6 / 168 | 1.7 / 0.9 | |
| 44243L | 1,000 | 5.5 / 7.5 | 6.6 / 168 | 1.7 / 0.9 | |
| 44244L | 800 | 5.8 / 7.8 | 6.6 / 168 | 1.7/ 0.9 | |
| 44245L | 500 | 7.5 / 10.2 | 6.6 / 168 | 1.7 / 0.9 |
A=9/32-40 B=10-3 C=1/4 Hex
Who is the AVRO XT250 “L” – LONG 4 STAGE for?
It is for demanding drilling applications, and we will be happy to help you choose the right solution in Israel.
What is special about the product design?
The product includes interchangeable heads that can be indexed up to and including 360°.
Is it matched with motor packages?
Yes, it is matched with ergonomic motor packages from Avro/Aerotech.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Modular Drill Long 4 Stage - AVRO XT250 L - LONG 4 STAGE.
