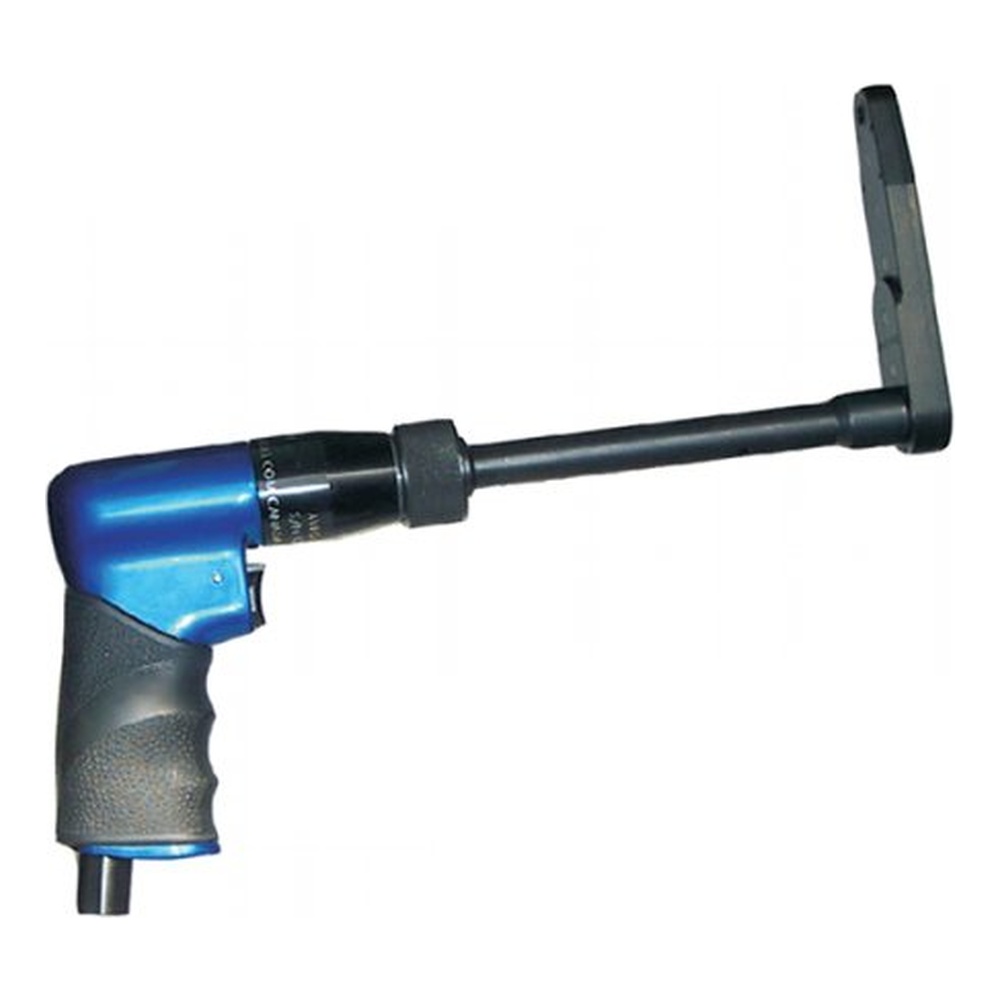

Modular Drill Long 6 Stage – AVRO XT250 L – LONG 6 STAGE

Modular Drill Long 6 Stage – AVRO XT250 L – LONG 6 STAGE

Avro/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.

Interchangeable heads that can be indexed up to and including 360° are matched with ergonomic motor packages at the rpm you.

Key Features

• Interchangeable heads: Interchangeable heads that can be indexed up to and including 360°.
• Series: Series 1-6 Stage, Series 2-6 Stage, Series 3-6 Stage.
• Standard output: Standard output 1/4-28.
• Model suffix: Add suffix to model, for example: 44161LA.
• Attachments: Attachment #A4416L, Attachment #A4426L, Attachment #A4436L.

Technical Specifications

Model	Speed	Torque	Length	Weight	Image

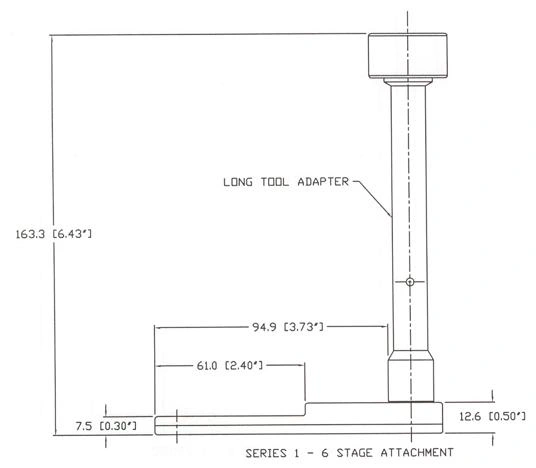

Series 1
44161L	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44162L	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44163L	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44164L	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44165L	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 2
44261L	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44262L	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44263L	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44264L	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44265L	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 3
44361L	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44362L	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44363L	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44364L	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44365L	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9

A=9/32-40 B=10-3 C=1/4 Hex

General

• Attachment #A4426L
• Attachment #A4436L
• Series 3-6 Stage
• Series 2-6 Stage
• Series 1-6 Stage
• Standard Output 1/4-28
• Add Suffix to model ex:44161LA
• Attachment #A4416L
• Avro/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.
• Interchangeable heads that can be indexed through 360° are matched with Avro/Aerotech ergonomic motor packages at the required rotational speed.

Frequently Asked Questions

Is this modular drill intended for demanding drilling applications?
According to the manufacturer, yes – it introduces modular drilling solutions for today’s most demanding drilling applications.

Can the interchangeable heads be indexed?
Yes, the interchangeable heads can be indexed up to and including 360°.

Can a suffix be added to the model?
Yes, the manufacturer states that a suffix can be added to the model, for example 44161LA.
