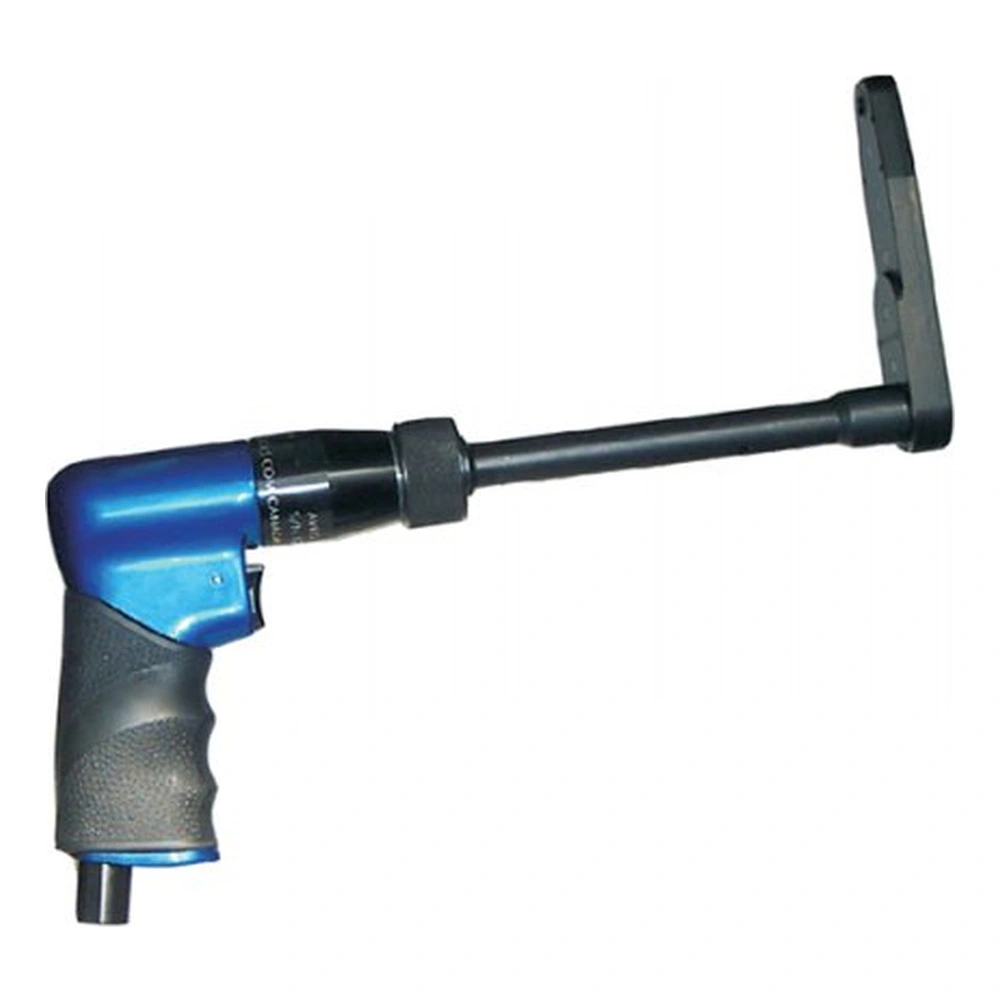

Pneumatic Modular Drill Long – AVRO XT250 L – LONG 8 STAGE

Pneumatic Modular Drill Long – AVRO XT250 L – LONG 8 STAGE

AVRO introduces modular drilling solutions for today’s most demanding drilling applications.

Interchangeable heads can be indexed up to and including 360° and matched with ergonomic motor packages at the rpm you need.

Key Features

• Interchangeable heads: Interchangeable heads can be indexed up to and including 360°.
• Modular solution: A modular drilling solution for today’s most demanding drilling applications.
• Motor packages: Matched with ergonomic motor packages.
• Compatible attachments: Attachment #A4428L, Attachment #A4438L, Attachment #A4418L.

Technical Specifications

Model	Speed	Torque	Length	Weight	Image
Series 1
44181L	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44182L	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44183L	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44184L	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44185L	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 2
44281L	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44282L	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44283L	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44284L	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44285L	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 3
44381L	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44382L	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44383L	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44384L	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44385L	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9

A=9/32-40 B=10-3 C=1/4 Hex

General

• Attachment #A4428L
• Attachment #A4438L
• Series 3-8 Stage
• Series 2-8 Stage
• Series 1-8 Stage
• Standard Output 1/4-28
• Add Suffix to model ex:44181LA
• Attachment #A4418L
• Avro/Aerotech offers modular drilling solutions for demanding applications. Interchangeable heads that can be indexed through 360° are matched with Avro/Aerotech ergonomic motor packages at the required rotational speed.

Frequently Asked Questions

What applications is this drill for?
According to the manufacturer, it is for today’s most demanding drilling applications.

What can the heads do?
The interchangeable heads can be indexed up to and including 360°.

Are there additional models or options?
Yes. The spec sheet lists Attachment #A4428L, Attachment #A4438L, and Attachment #A4418L, and notes that a suffix can be added to the model.
