Modular Drill Short 3 Stage – AVRO XT250 L – SHORT 3 STAGE

Modular Drill Short 3 Stage – AVRO XT250 L – SHORT 3 STAGE

Avro/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.

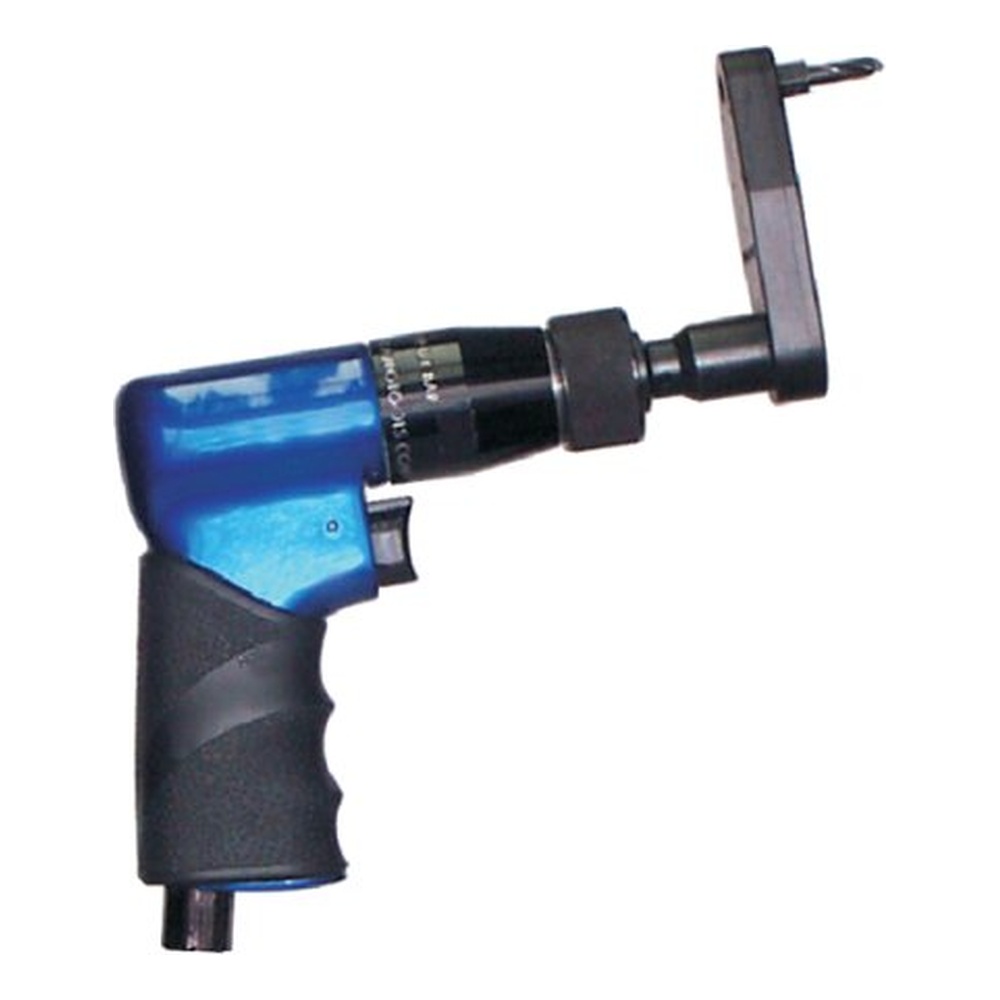

The AVRO XT250 “L” – SHORT 3 STAGE combines interchangeable heads indexed up to 360° with ergonomic motor packages.

Key Features

• Modular solution: A modular drilling solution for demanding drilling applications.
• Interchangeable heads: Interchangeable heads that can be indexed up to and including 360°.
• Motor packages: Matched with ergonomic motor packages.

Technical Specifications

Model	Speed Rpm	Torque fb / Nm	Length Inch / mm	Weight lbs / kg	Image

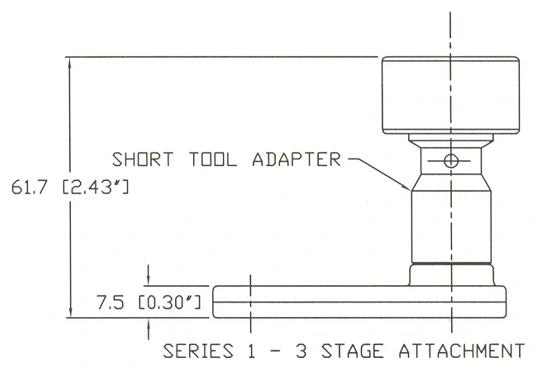

Series 1
44131S	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44132S	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44133S	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44134S	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44135S	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 2
44231S	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44232S	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44233S	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44234S	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44235S	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 3
44331S	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44332S	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44333S	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44334S	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44335S	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9

Standard Output 1/4-28
Add Suffix to model ex:44131SA
A=9/32-40 B=10-3 C=1/4 Hex

General

• Avro/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.
• Interchangeable heads that can be indexed through 360° are matched with Avro/Aerotech ergonomic motor packages at the required rotational speed.

Frequently Asked Questions

What is the AVRO XT250 “L” – SHORT 3 STAGE used for?
It is designed for today’s most demanding drilling applications.

Can the heads be adjusted?
Yes, the interchangeable heads can be indexed up to 360°.

Does the system include motors?
It is matched with ergonomic motor packages, at the rpm you.
