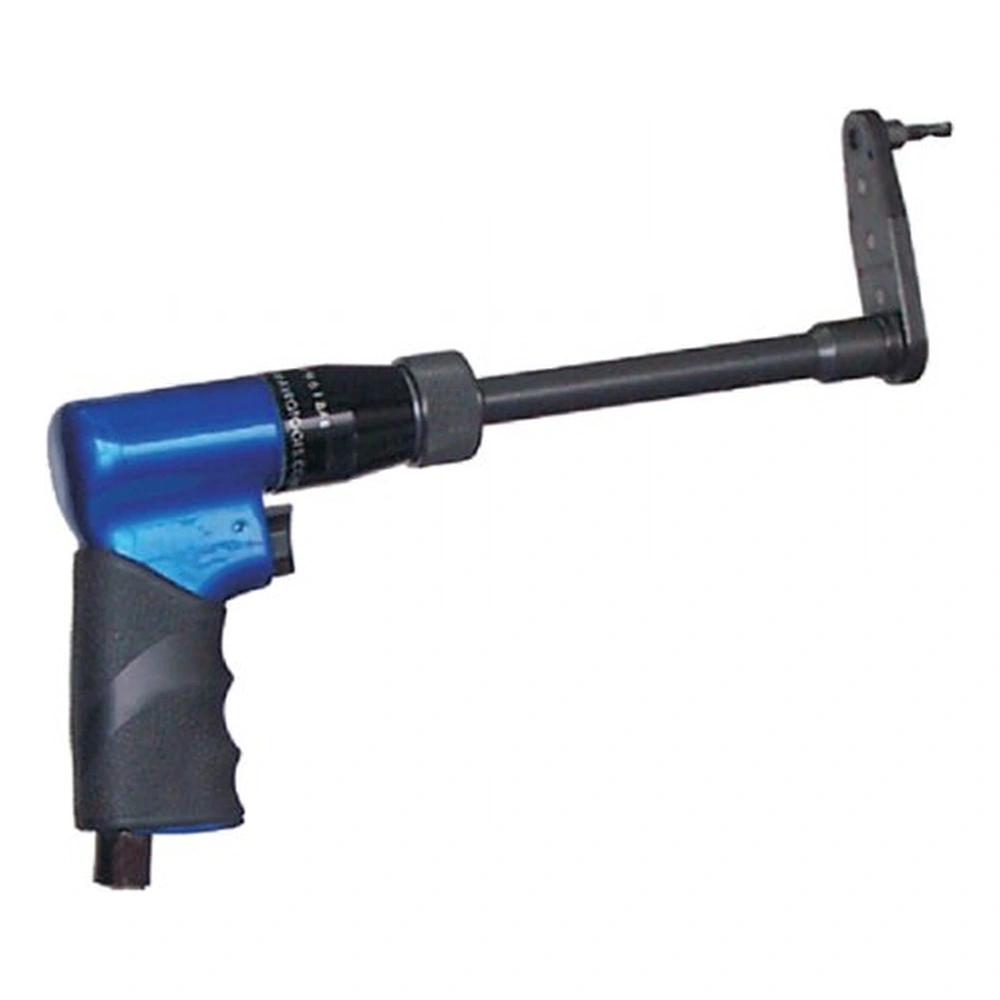

Modular Drill Long 3 Stage – AVRO XT250 L – LONG 3 STAGE

Modular Drill Long 3 Stage – AVRO XT250 L – LONG 3 STAGE

Avro/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.

Interchangeable heads that can be indexed up to and including 360° are matched with ergonomic motor packages at the rpm you need.

Key Features

• Modular solution: Modular drilling solutions for today’s most demanding drilling applications.
• Interchangeable heads: Interchangeable heads that can be indexed up to and including 360°.
• Motor matching: Matched with ergonomic motor packages.

Technical Specifications

Model	Speed	Torque	Length	Weight	Image
Series 1
44131L	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44132L	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44133L	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44134L	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44135L	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 2
44231L	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44232L	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44233L	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44234L	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44235L	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 3
44331L	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44332L	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44333L	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44334L	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44335L	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9

Standard Output 1/4-28
Add Suffix to model ex:44131LA
A=9/32-40 B=10-3 C=1/4 Hex

General

• Avro/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.
• Interchangeable heads that can be indexed through 360° are matched with Avro/Aerotech ergonomic motor packages at the required rotational speed.

Frequently Asked Questions

Who is this product for?
For users looking for modular drilling solutions for demanding drilling applications.

What is special about the heads?
The heads are interchangeable and can be indexed up to and including 360°.

Is it matched to operating speed?
Yes, it is matched with ergonomic motor packages at the rpm you need.
