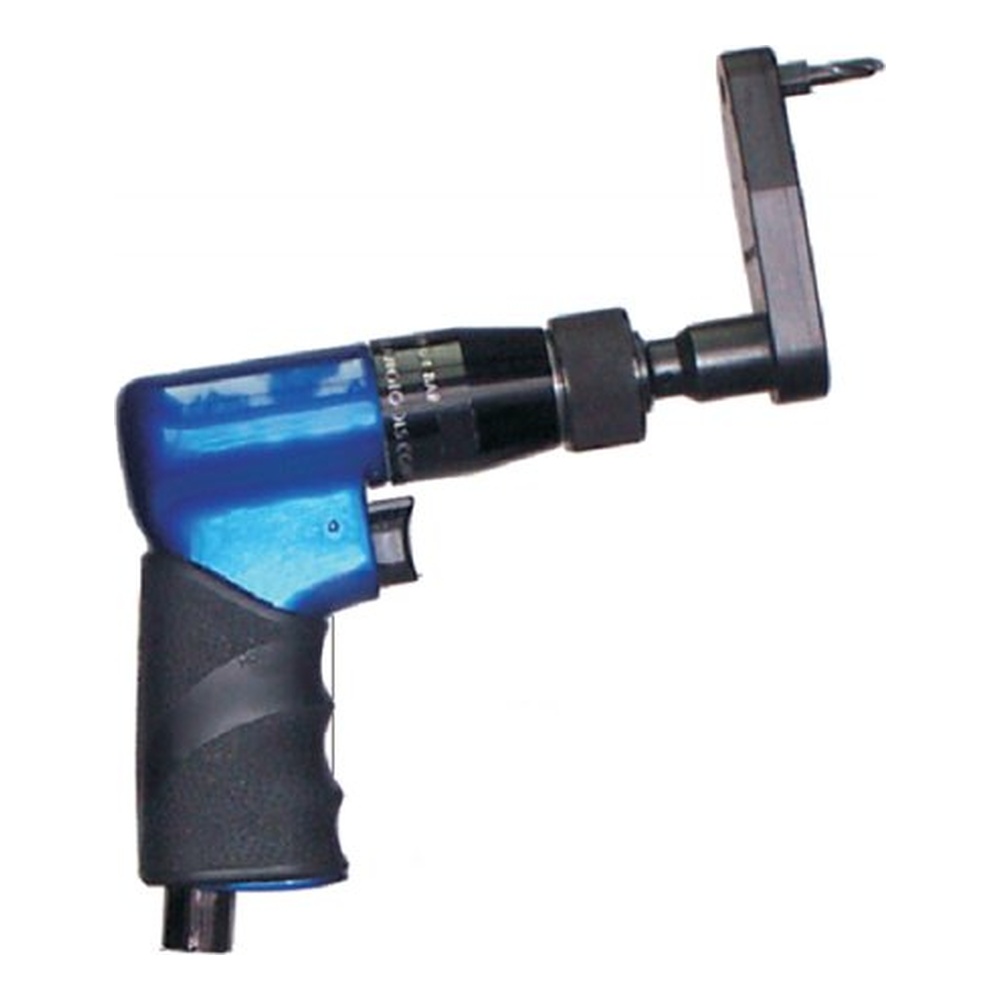

Modular Drill Short 4 Stage – AVRO XT250 L – SHORT 4 STAGE

Modular Drill Short 4 Stage – AVRO XT250 L – SHORT 4 STAGE

AVRO/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.

Interchangeable heads can be indexed up to and including 360° and matched with ergonomic motor packages at the rpm you need.

Key Features

• Interchangeable heads: Interchangeable heads can be indexed up to and including 360°.
• Modular solution: A modular drilling solution for demanding drilling applications.
• Standard output: Standard output 1/4-28.
• Model suffix: A suffix can be added to the model, for example 44141SA.

Technical Specifications

Model	Speed	Torque	Length	Weight	Image
Series 1
44141S	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44142S	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44143S	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44144S	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44145S	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 2
44241S	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44242S	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44243S	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44244S	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44245S	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9
Series 3
44341S	3,200	2.5 / 3.4	5.5 / 140	1.6 / 0.7
44342S	1,600	4.2 / 5.7	6.6 / 168	1.7 / 0.9
44343S	1,000	5.5 / 7.5	6.6 / 168	1.7 / 0.9
44344S	800	5.8 / 7.8	6.6 / 168	1.7/ 0.9
44345S	500	7.5 / 10.2	6.6 / 168	1.7 / 0.9

A=9/32-40 B=10-3 C=1/4 Hex

General

• Attachment #A4424S
• Attachment #A4434S
• Series 3-4 Stage
• Series 2-4 Stage

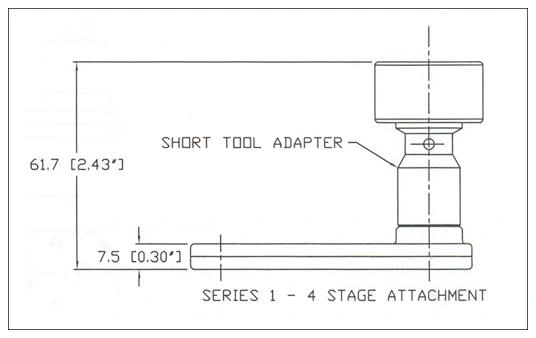

• Series 1-4 Stage
• Standard Output 1/4-28
• Add Suffix to model ex:44141SA
• Attachment #A4414S
• Avro/Aerotech introduces modular drilling solutions for today’s most demanding drilling applications.
• Interchangeable heads that can be indexed through 360° are matched with Avro/Aerotech ergonomic motor packages at the required rotational speed.

Frequently Asked Questions

Is this drill suitable for demanding drilling applications?
Yes. According to the manufacturer, it is a modular drilling solution for today’s most demanding drilling applications.

Can the heads be indexed?
Yes. The interchangeable heads can be indexed up to and including 360°.

Can I order different model configurations?
We’ll be happy to check the available model suffix options for you in Israel.
