A modular electric articulated tapping machine for M2-M27 steel threads and up to M30 in aluminum, with seven quick-change speed modules.

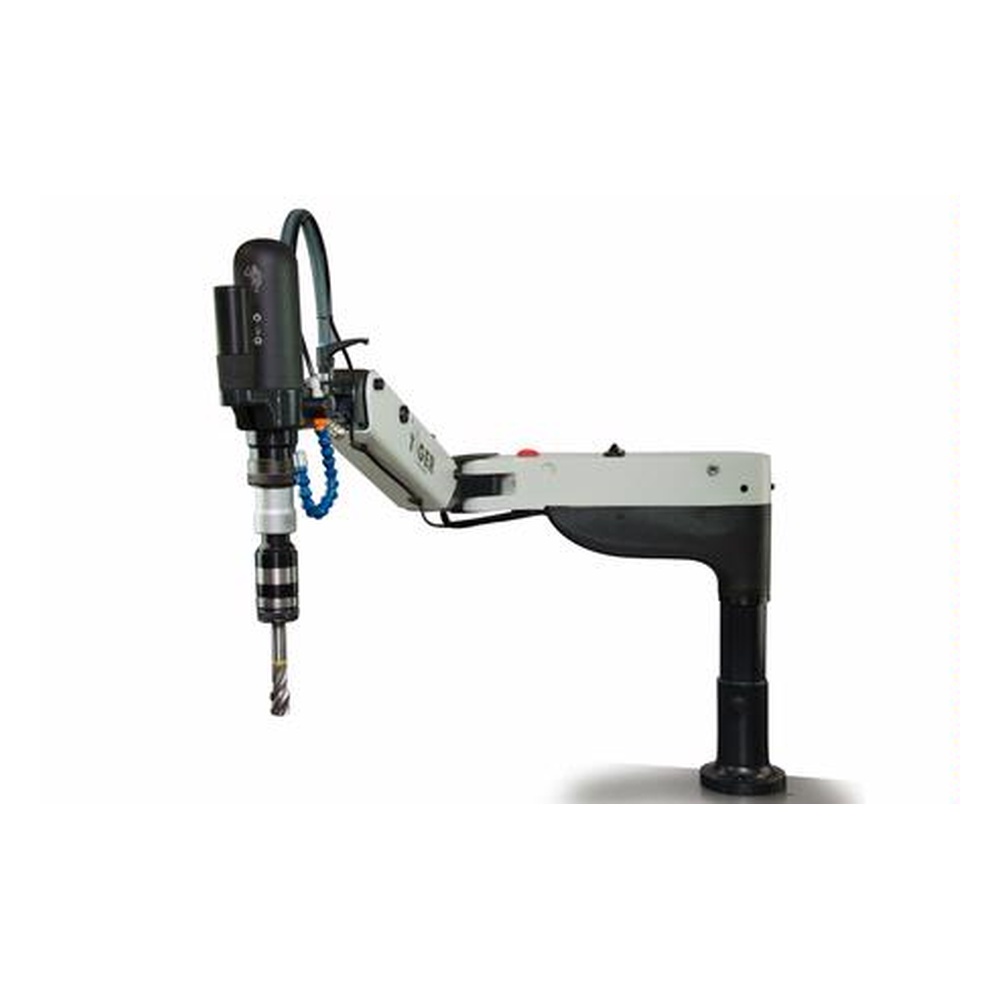

The Roscamat Tiger combines a radial arm with a pneumatic-spring-balanced tilting arm, allowing the tapping head to remain perpendicular to the work surface. It mounts through three M8 screws spaced at 120° or with a clamp. Seven quick-change modules provide different speed and torque ranges for tapping and light drilling work.
| Parameter | Value |
|---|---|

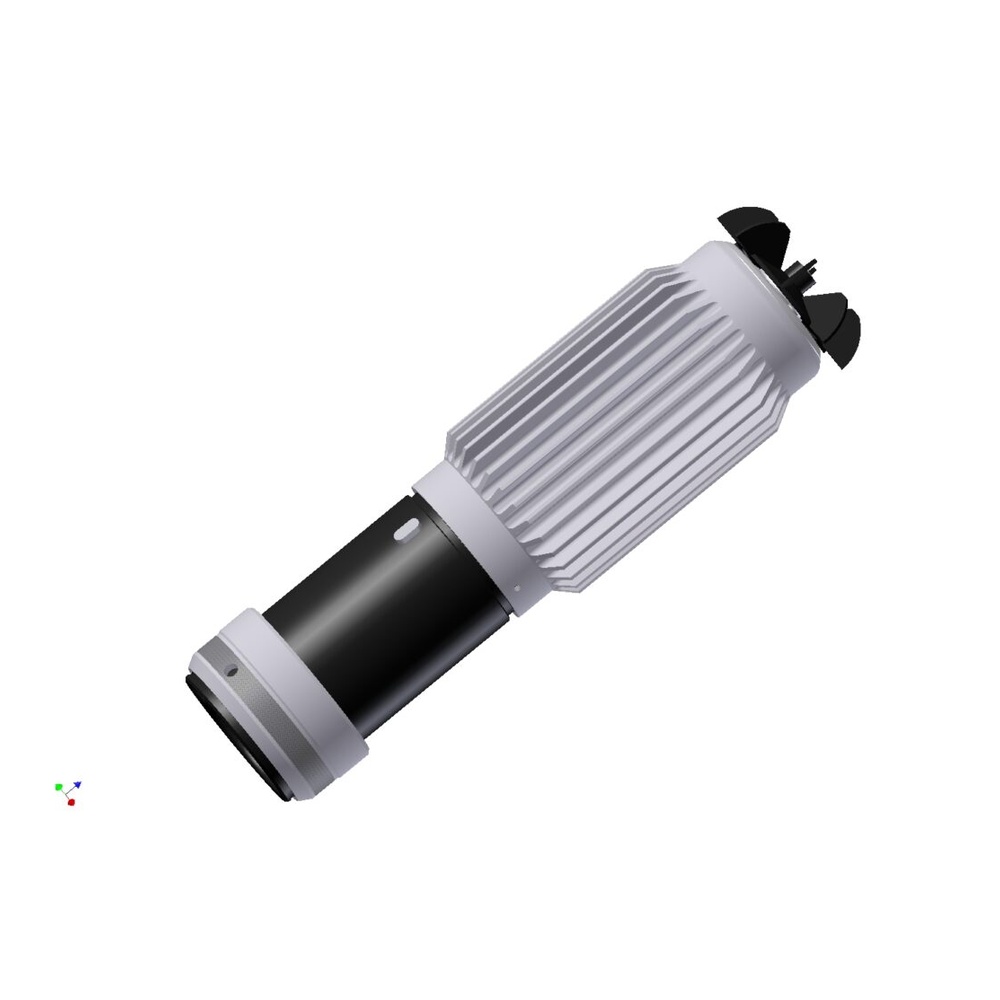

| Drive | High-frequency electric motor |
| Power | 0.55 kW |
| Power supply | Single-phase, 200-240 V, 50/60 Hz |
| Speed range | 90-2,100 rpm |
| Tapping capacity | M2-M27 in steel; up to M30 in aluminum |

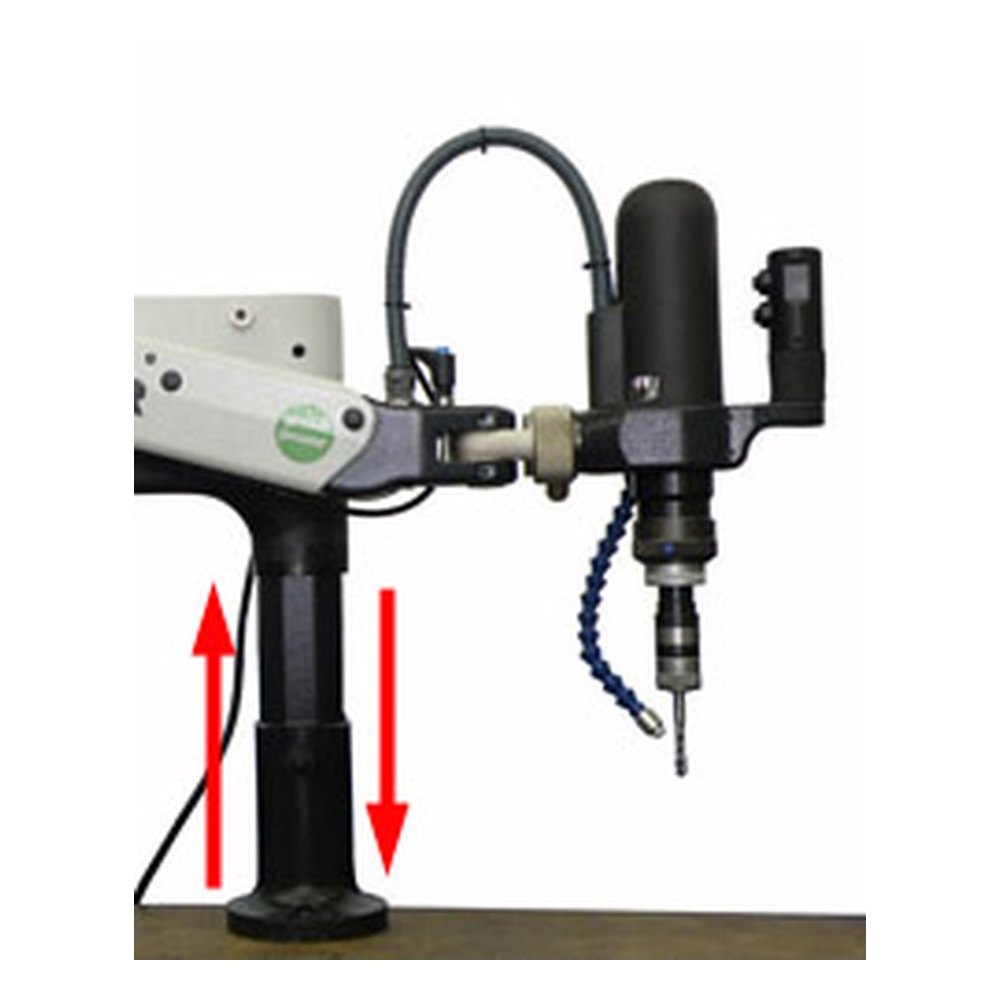

| Optional lifter | Adds 130 mm to the working height |
| Module | Maximum Speed (rpm) | Maximum Torque (Nm) | Coupling Diameter | Maximum Thread in Aluminum and Cast Iron | Maximum Thread in Steel |
|---|---|---|---|---|---|
| 90 | 90 | 150 | Ø 31 | M30 - 1 /1/8" | M27 - 1 " |
| 170 | 170 | 79 | Ø 31 | M24 - 7/8" | M20 - ¾" |
| 300 | 300 | 44 | Ø 19 | M16 - 9/16" | M16 - 9/16" |
| 550 | 550 | 24 | Ø 19 | M14 - ½" | M12 - 7/16" |
| 750 | 750 | 17 | Ø 19 | M12 - 7/16" | M10 - 3/8" |
| 1050 | 1,050 | 12.5 | Ø 19 | M8 - 5/16" | M8 - 5/16" |
| 2100 | 2,100 | 6 | Con B-16 | To drill up to Ø 8 Aluminium, brass, etc. | |
| Configuration | Working radius | Working height |
|---|---|---|

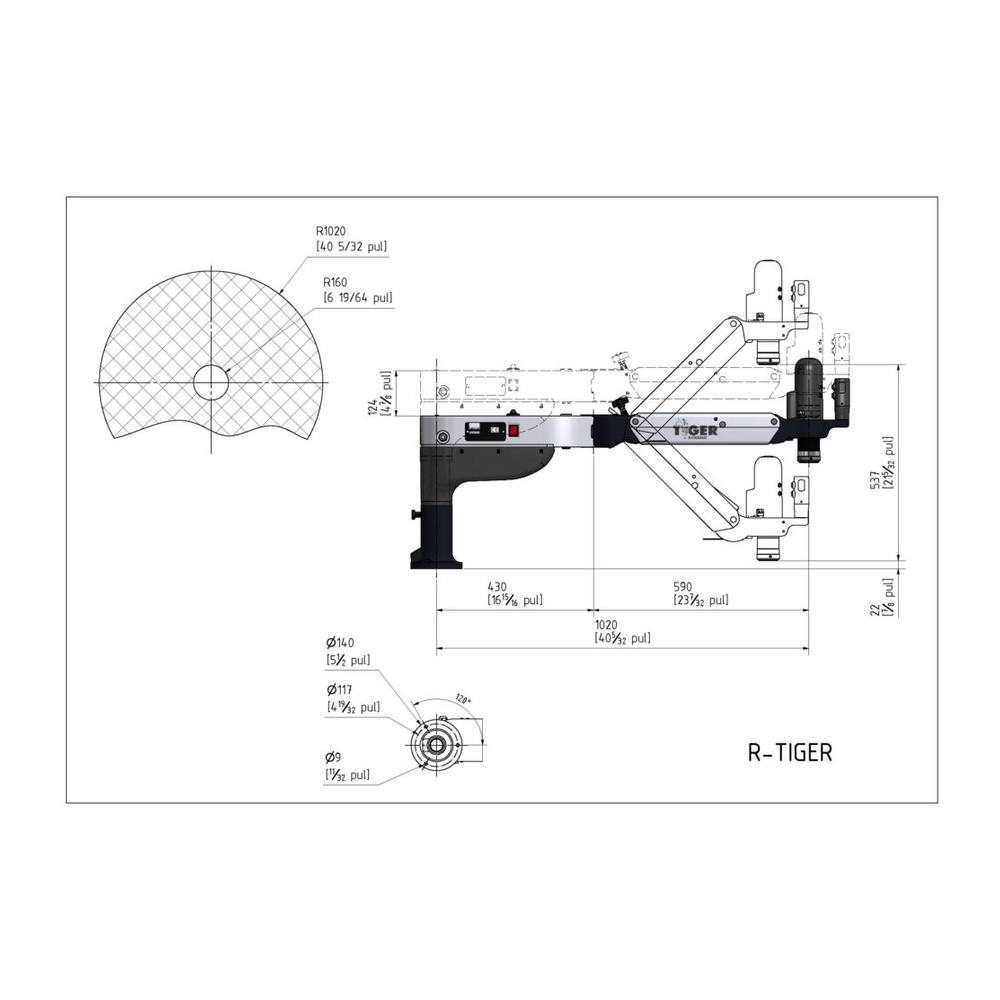

| Tiger | 1,020 mm | 535 mm (660 mm with lifter) |
| Tiger VH | 1,160 mm | 535 mm (660 mm with lifter) |

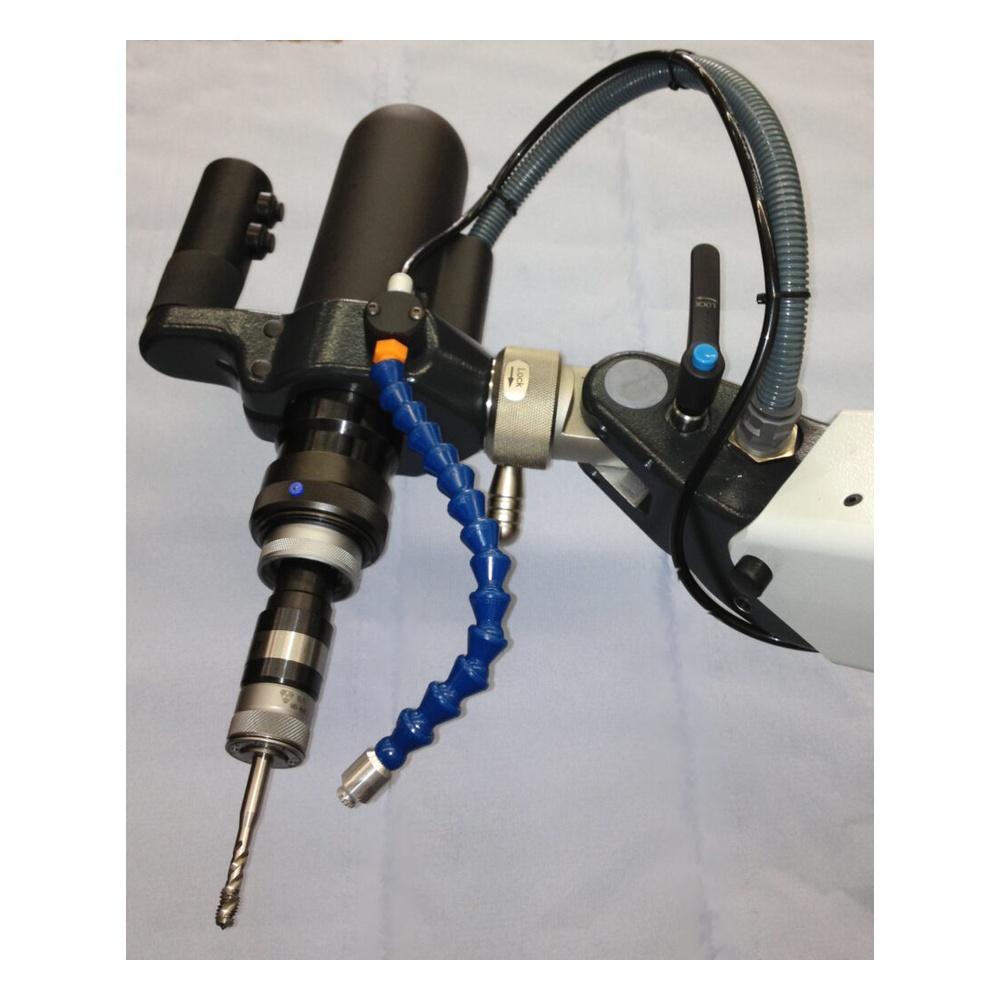

The Tiger VH configuration positions the motor in four 90° increments for vertical or horizontal tapping.

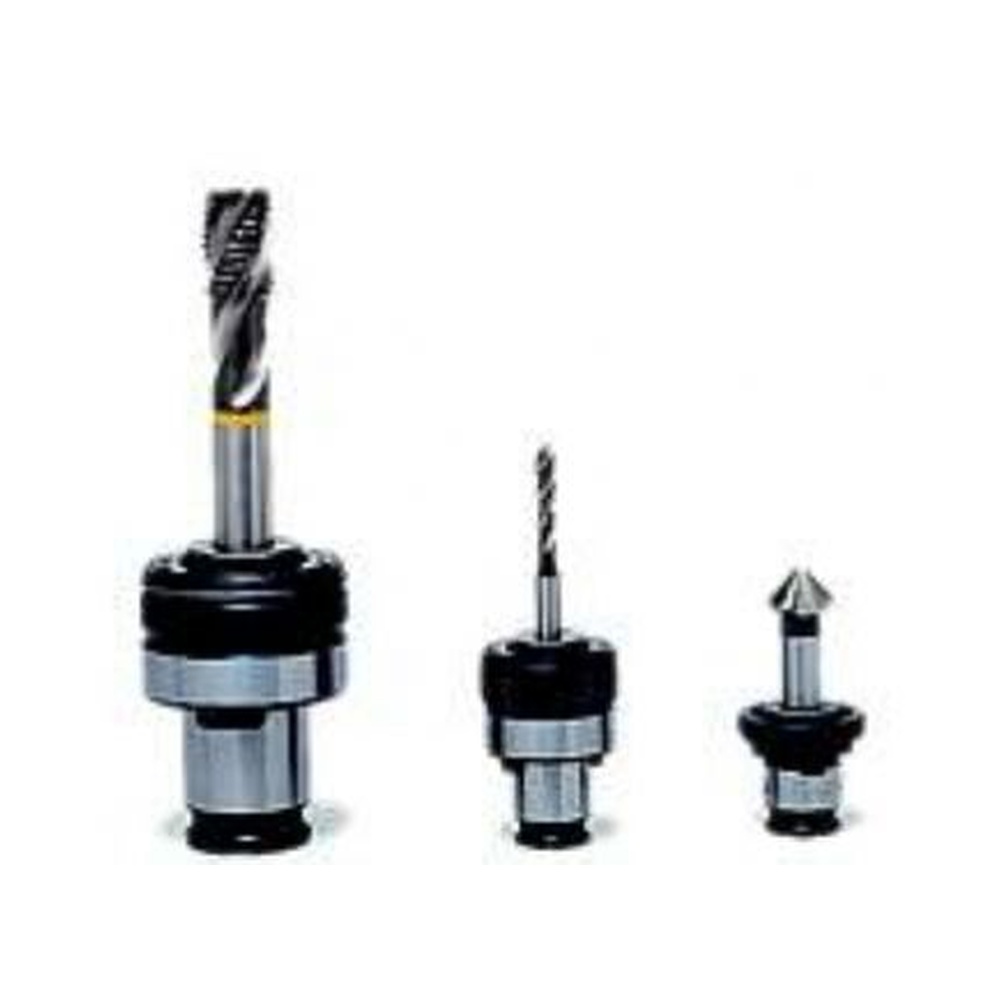

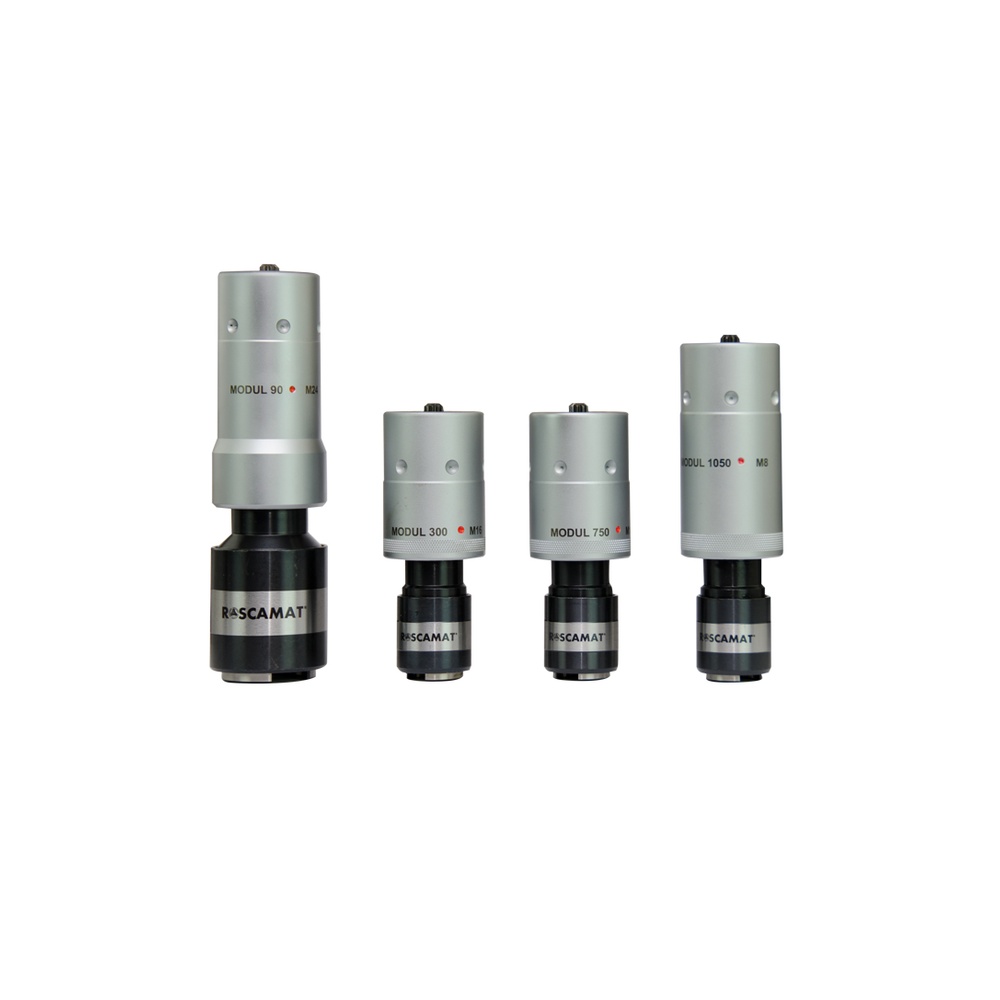

Modules 300, 550, 750 and 1050 use a Ø19 coupling for M2-M16 tap holders. Modules 90 and 170 use a Ø31 coupling for M6-M30 tap holders. Holders are available with or without a safety clutch.

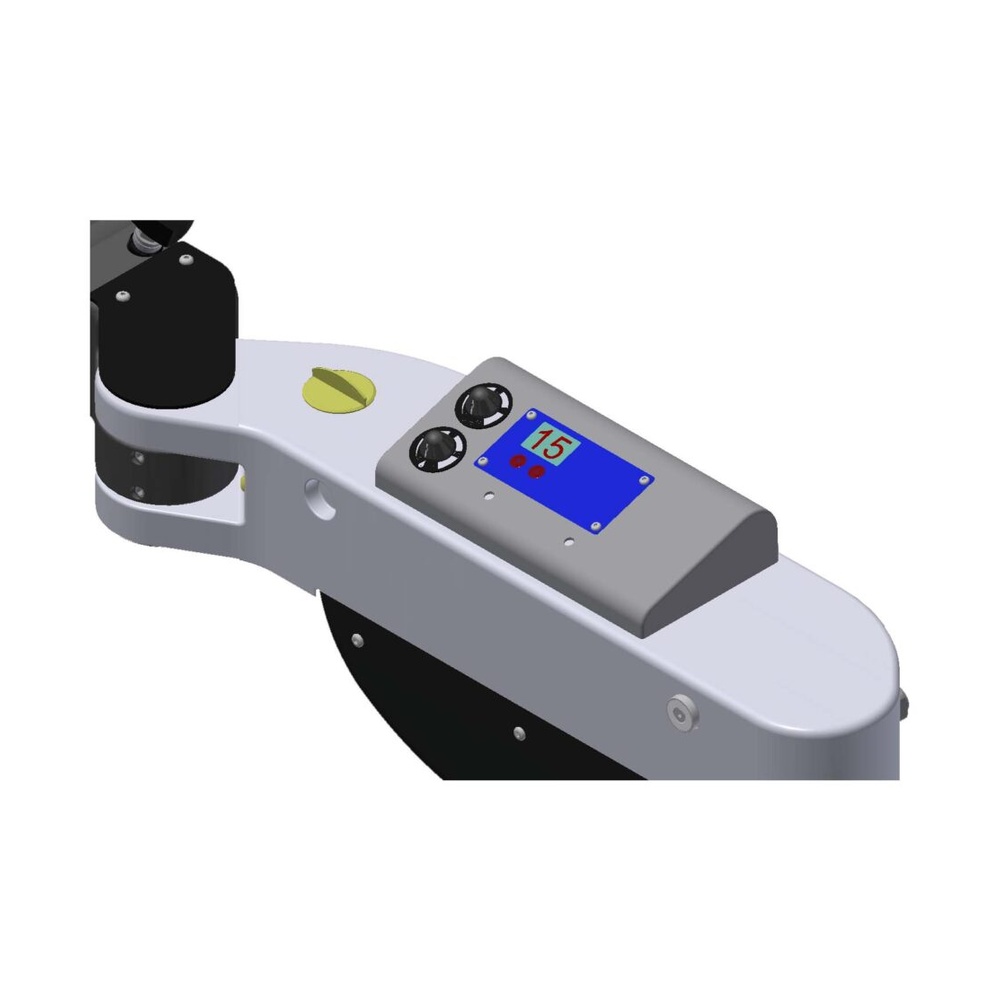

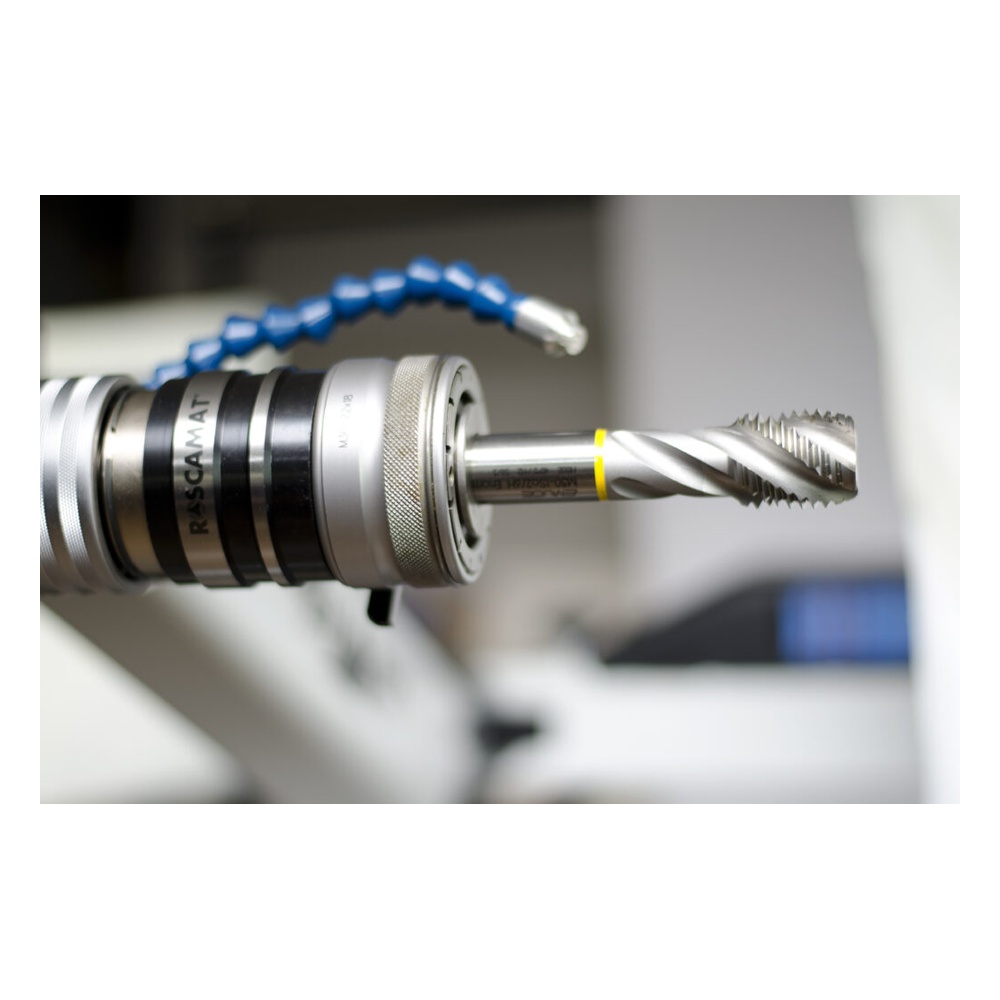

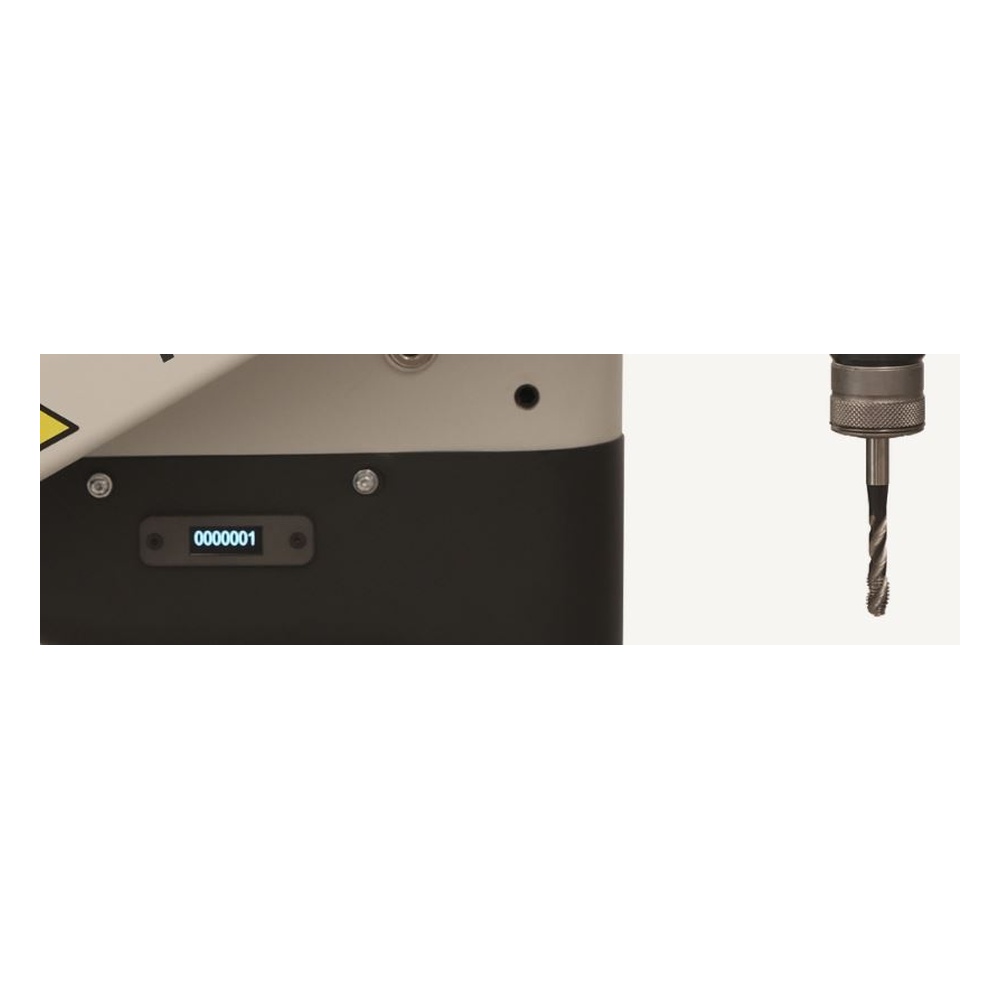

Available functions include automatic lubrication, Z-axis depth control and a thread counter with total and partial counts.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Roscamat Tiger Modular Electric Articulated Tapping Machine.
