A compact electric articulated tapping machine for M2-M14 steel threads and up to M16 in aluminum, with three speed configurations.

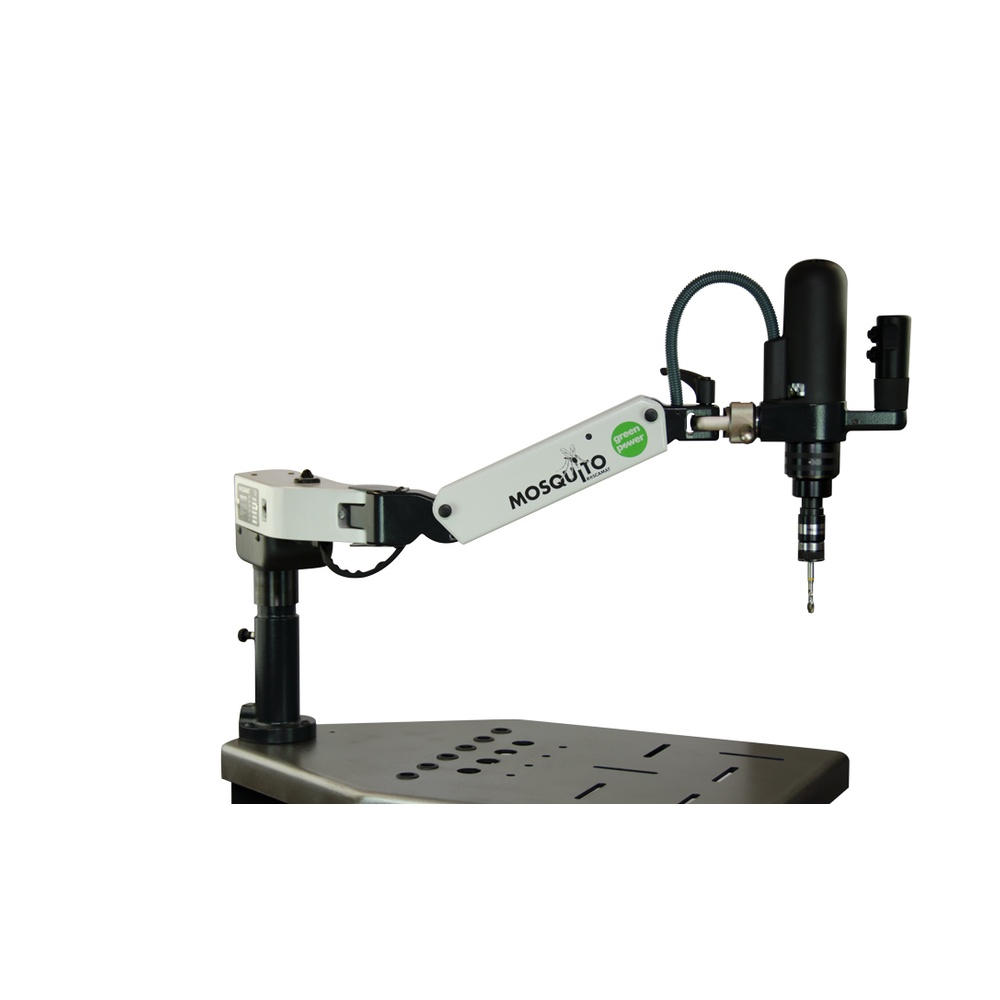

The Roscamat Mosquito is designed for precise tapping at production and assembly stations. A radial arm joins a tilting arm balanced by a pneumatic spring, keeping the tapping head perpendicular to the work surface. Its high-frequency motor and variable-speed control allow the spindle speed to be matched to the thread, while tap holders connect through a quick-change system.
| Parameter | Value |
|---|---|
| Drive | High-frequency electric motor |
| Power | 550 W |
| Power supply | Single-phase, 220-240 V, 50/60 Hz |
| Tapping capacity | M2-M14 in steel; up to M16 in aluminum |
| Available speeds | 300, 600 or 300/600 rpm, depending on motor model |
| Motor Model | Speed (rpm) | Maximum Torque (Nm) | Coupling Diameter | Maximum Thread in Aluminum | Maximum Thread in Steel up to 100 kg/mm² |
|---|---|---|---|---|---|
| AF220301 | 300 | 36 | Ø 19 | M16 | M14 |
| AF220201 | 600 | 17 | Ø 19 | M12 | M10 |
| AF220101 | 300 / 600 | 36 | Ø 19 | M16 | M14 |
| Configuration | Working radius | Working height |
|---|---|---|
| Mosquito | 767 mm | 396 mm (120 mm) |
| Mosquito VH | 885 mm | 396 mm (120 mm) |
| Image | Accessory | Compatibility |
|---|---|---|
 | Roscamat Ø250 Magnetic Support | Compatible with the Roscamat Mosquito |
 | Roscamat ENSAT Insert Accessory | Compatible with the Roscamat Mosquito |
 | Roscamat Drill Chuck for Drilling, Reaming and Countersinking | Compatible with the Roscamat Mosquito |
 | Roscamat Helicoil Insert Accessory | Compatible with the Roscamat Mosquito |
 | Roscamat 1 m Arm Extension Support | Compatible with the Roscamat Mosquito |
 | Roscamat Ø200 Magnetic Support | Compatible with the Roscamat Mosquito |
 | Roscamat 150×150 mm Magnetic Support | Compatible with the Roscamat Mosquito |
 | Roscamat Pneumatic Lifter | Compatible with the Roscamat Mosquito |
 | Roscamat Support Column | Compatible with the Roscamat Mosquito |
 | Roscamat Mobile Trolley | Compatible with the Roscamat Mosquito |
 | Roscamat 850×850 mm Work Table | Compatible with the Roscamat Mosquito |
 | Roscamat 700×700 mm Work Table | Compatible with the Roscamat Mosquito |
 | Roscamat 500×500 mm Work Table | Compatible with the Roscamat Mosquito |
 | Roscamat Mounting Clamp | Compatible with the Roscamat Mosquito |
 | Roscamat Mounting Clamp 2 | Compatible with the Roscamat Mosquito |
 | Roscamat 19-13 Reducer Cup | Compatible with the Roscamat Mosquito |
 | Roscamat Quick-Change Extension | Compatible with the Roscamat Mosquito |
 | Roscamat M6-M12 Long Die Holder, Ø19, Type 1 | Compatible with the Roscamat Mosquito |
 | Roscamat M5-M12 Die Holder, Ø19, Type 1 | Compatible with the Roscamat Mosquito |
 | Roscamat M3-M16 Tap Holder without Clutch, Ø19, Type 1 | Compatible with the Roscamat Mosquito |
 | Roscamat M2-M16 Tap Holder with Clutch, Ø19, Type 1 | Compatible with the Roscamat Mosquito |
The Mosquito VH configuration has an articulated head that can be set in four positions at 90° intervals and can operate in both rotational directions.
In the ENGRAS configuration, the cutting-oil reservoir is located inside the arm. Lubrication time is adjusted through the control on the electronic-board cover.
A display on the radial arm records the total number of tapped threads and a partial count that restarts with each power cycle.
