A long-reach electric articulated tapping machine for M2-M27 steel threads and up to M30 in aluminum, with seven modules and a multi-position head.

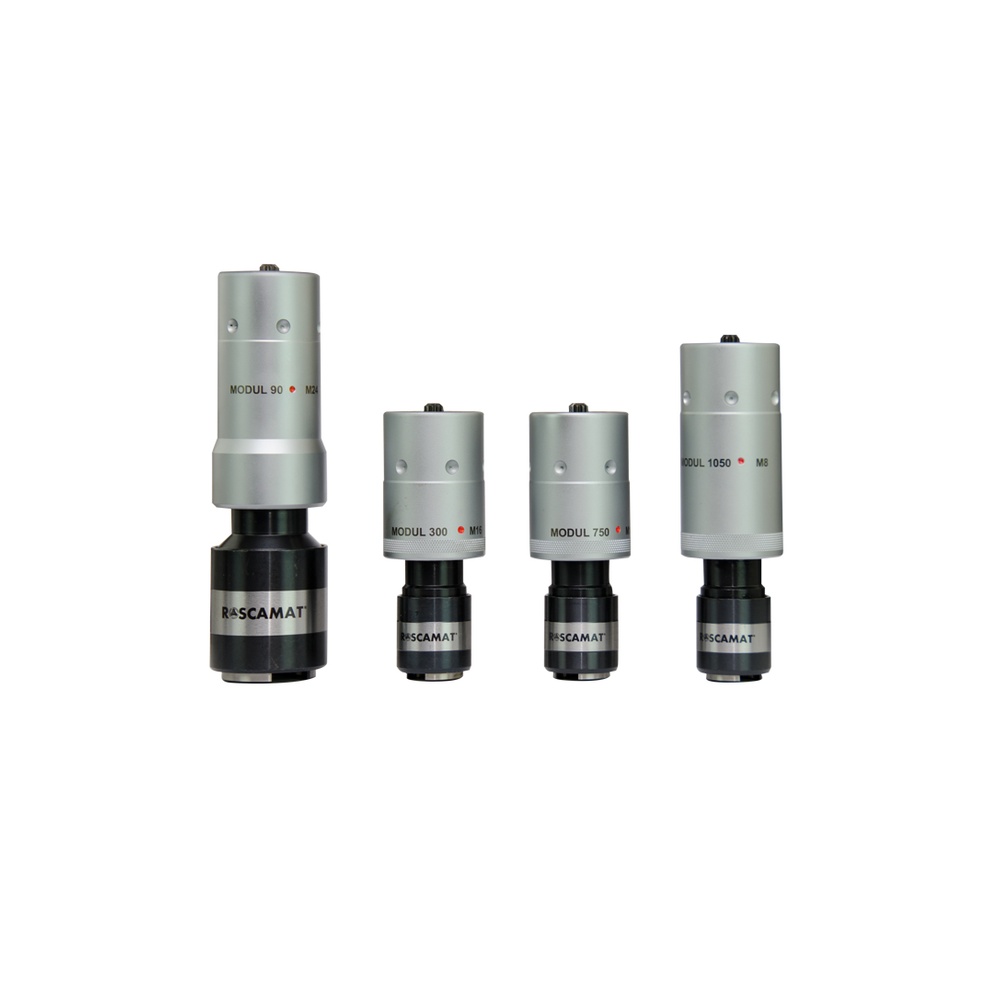

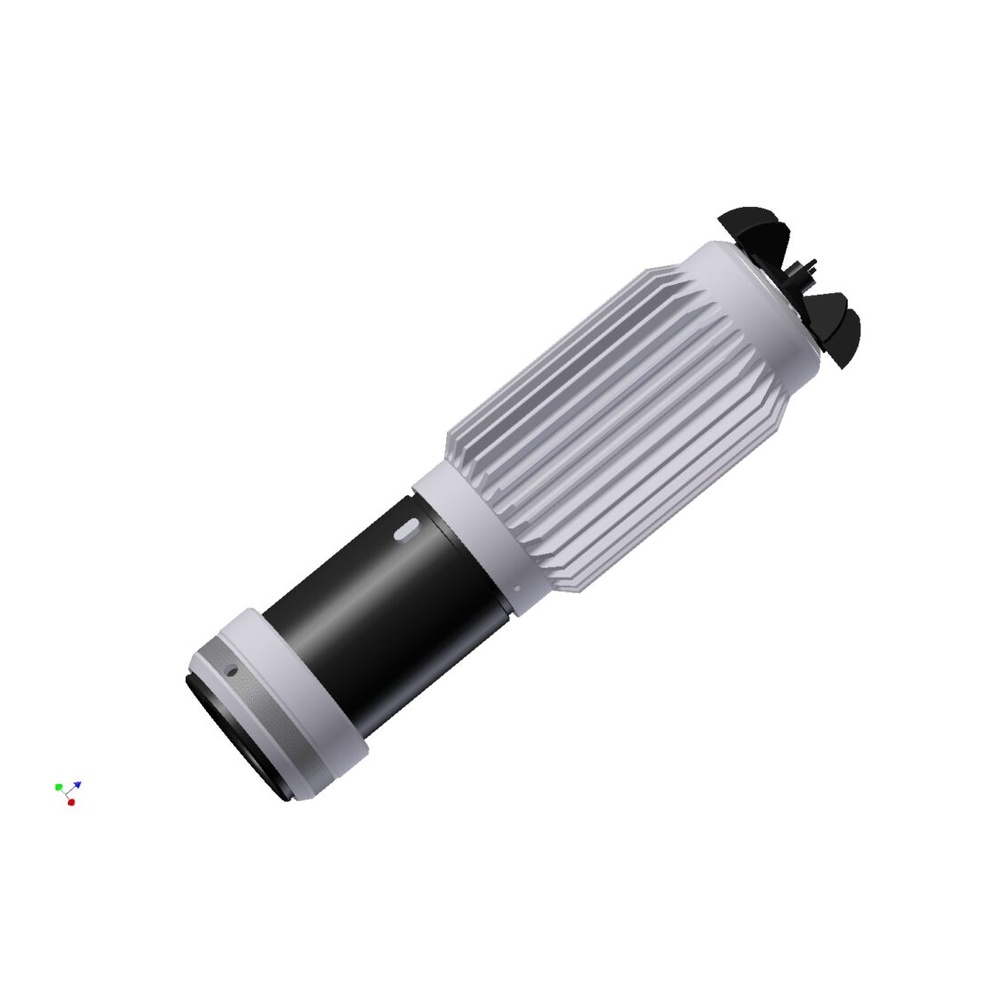

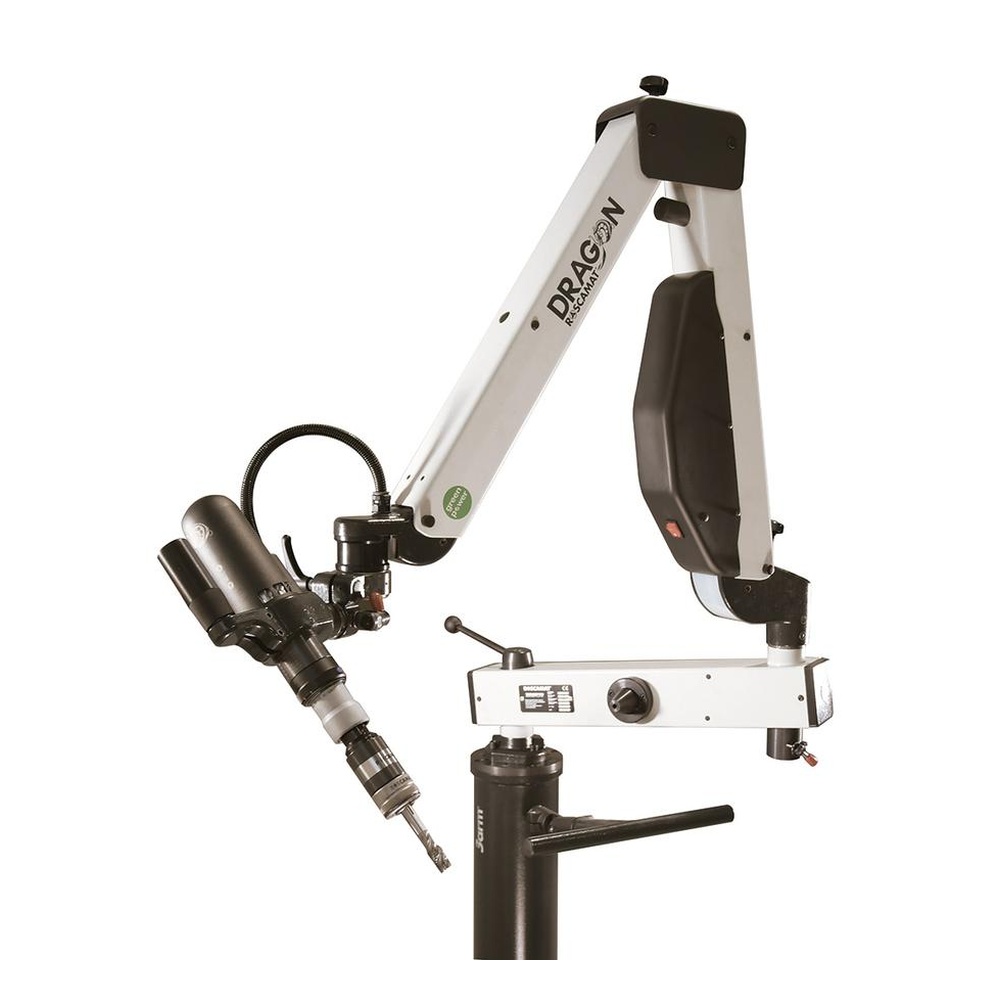

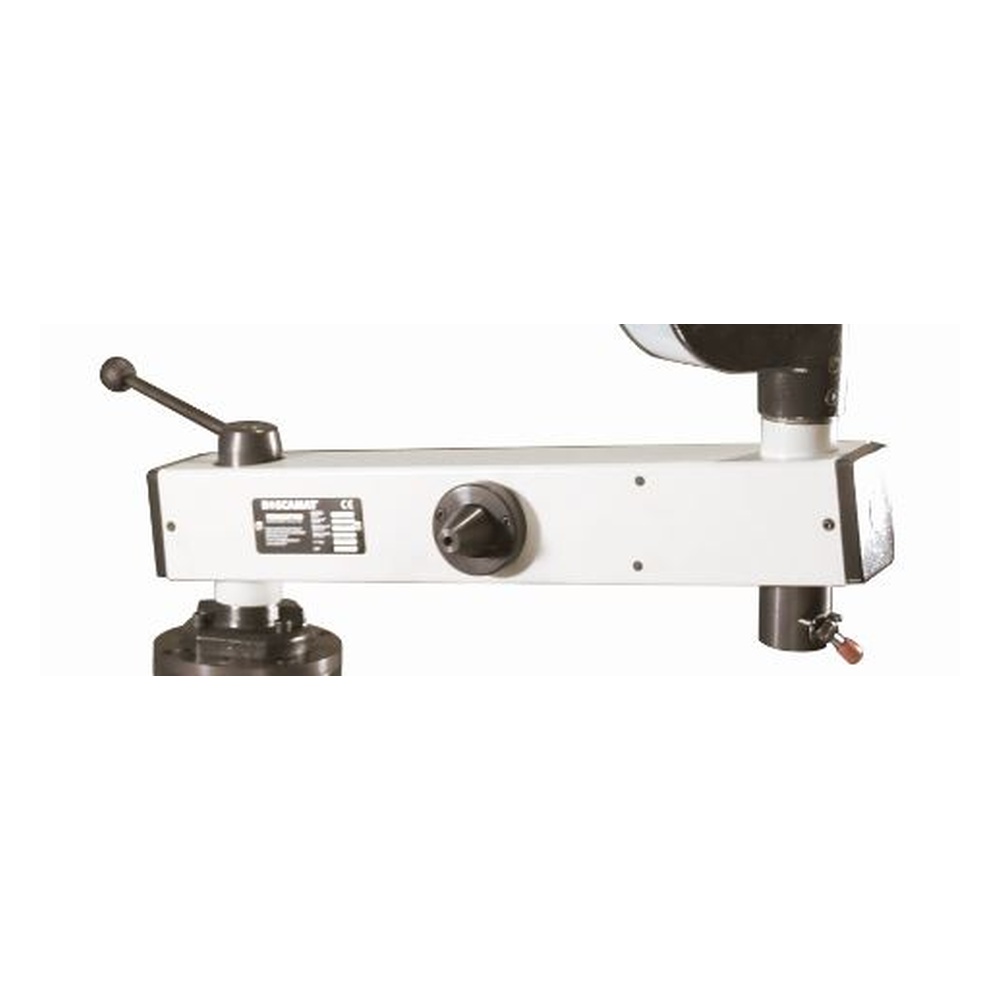

The Roscamat Dragon combines a high-frequency electric motor with long arms and a multi-position head for tapping remote work points while maintaining perpendicularity to the reference surface. It mounts through three M8 screws or with a clamp. Seven quick-change modules provide different speed and torque ranges.
| Parameter | Value |
|---|---|
| Drive | High-frequency electric motor |
| Power | 0.55 kW |
| Power supply | Single-phase, 200-240 V, 50/60 Hz |
| Speed range | 90-2,100 rpm |
| Tapping capacity | M2-M27 in steel; up to M30 in aluminum |
| Head system | V / RHM / RHC multi-position system |
| Module | Maximum Speed (rpm) | Maximum Torque (Nm) | Coupling Diameter | Maximum Thread in Aluminum and Cast Iron | Maximum Thread in Steel |
|---|---|---|---|---|---|
| 90 | 90 | 150 | Ø 31 | M30 - 1 /1/8" | M27 - 1 " |
| 170 | 170 | 79 | Ø 31 | M24 - 7/8" | M20 - ¾" |
| 300 | 300 | 44 | Ø 19 | M16 - 9/16" | M16 - 9/16" |
| 550 | 550 | 24 | Ø 19 | M14 - ½" | M12 - 7/16" |
| 750 | 750 | 17 | Ø 19 | M12 - 7/16" | M10 - 3/8" |
| 1050 | 1,050 | 12.5 | Ø 19 | M8 - 5/16" | M8 - 5/16" |
| 2100 | 2,100 | 6 | Con B-16 | To drill up to Ø 8 Aluminium, brass, etc. | |

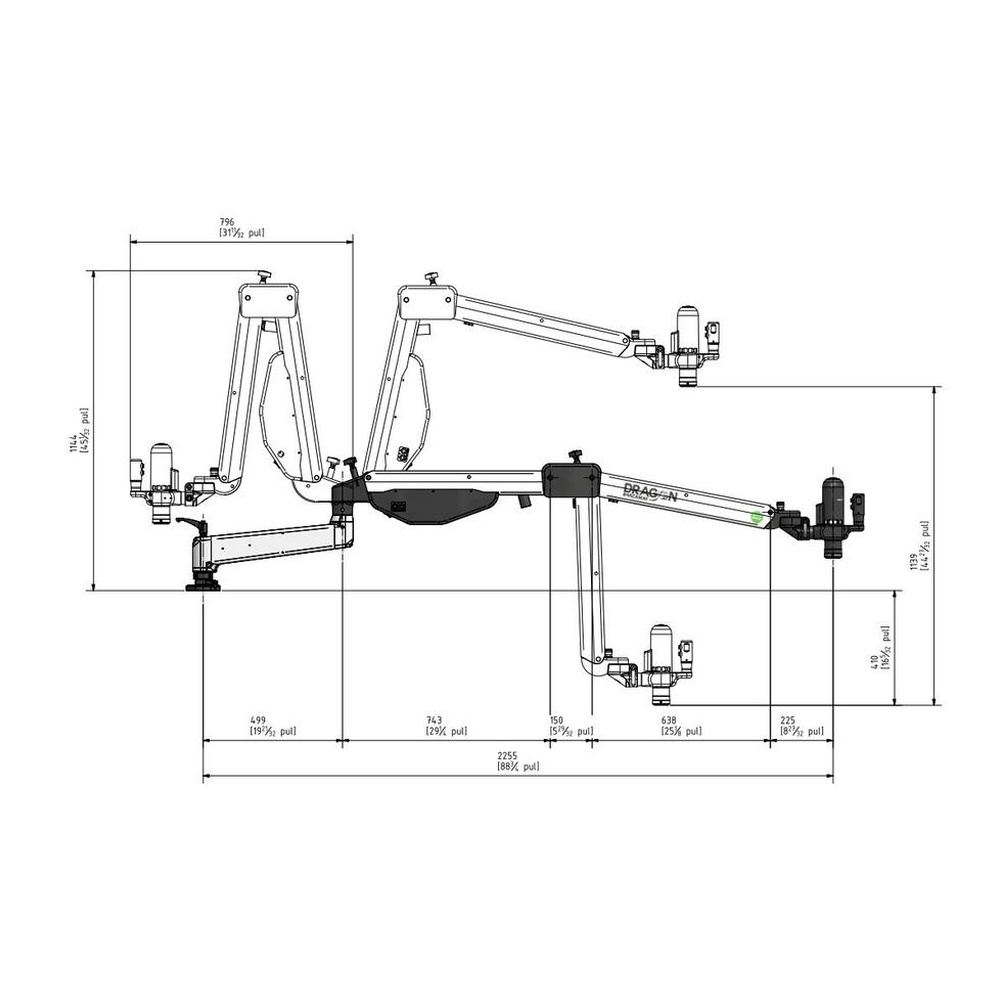

| Configuration | Working radius | Working height |
|---|---|---|
| Dragon | 2,255 mm | 1,139 mm |
The head system positions the tapping unit at multiple angles while maintaining perpendicularity to the work surface.

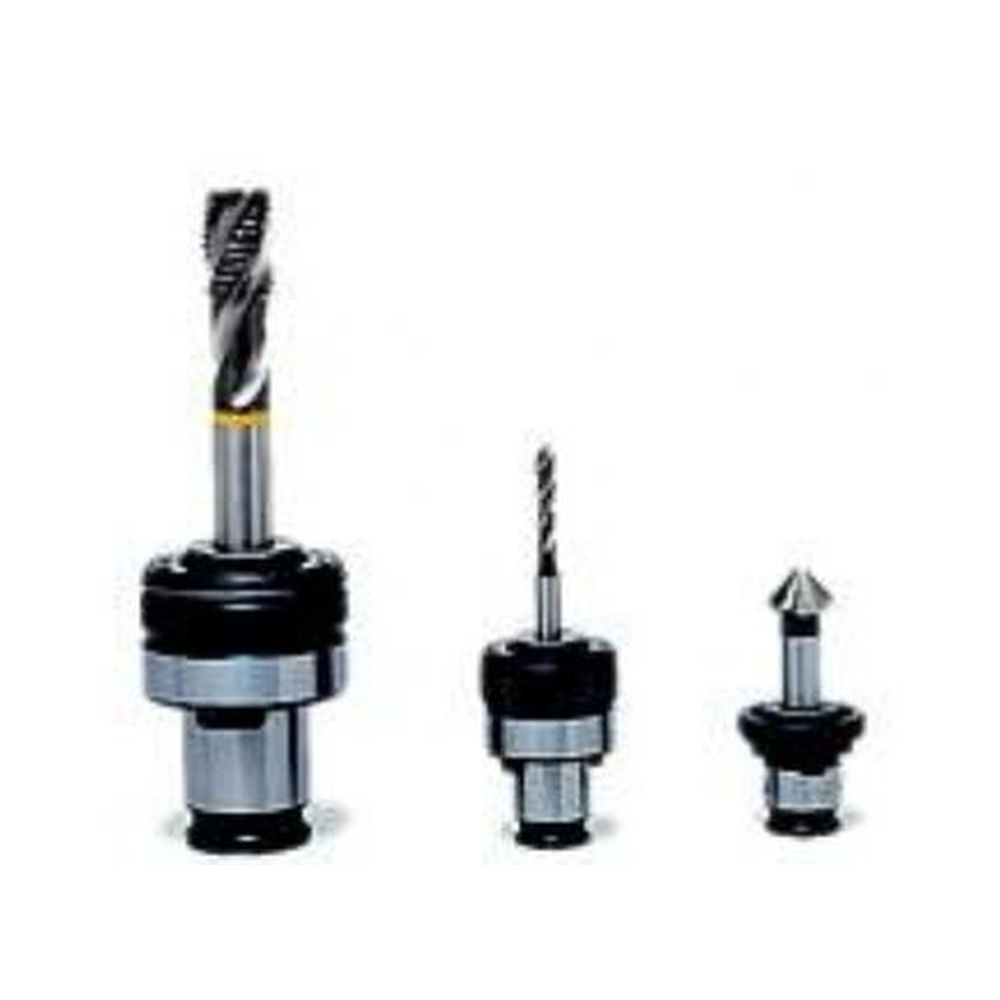

Modules 300, 550, 750 and 1050 use a Ø19 coupling for M2-M16 holders. Modules 90 and 170 use a Ø31 coupling for M6-M30 holders.

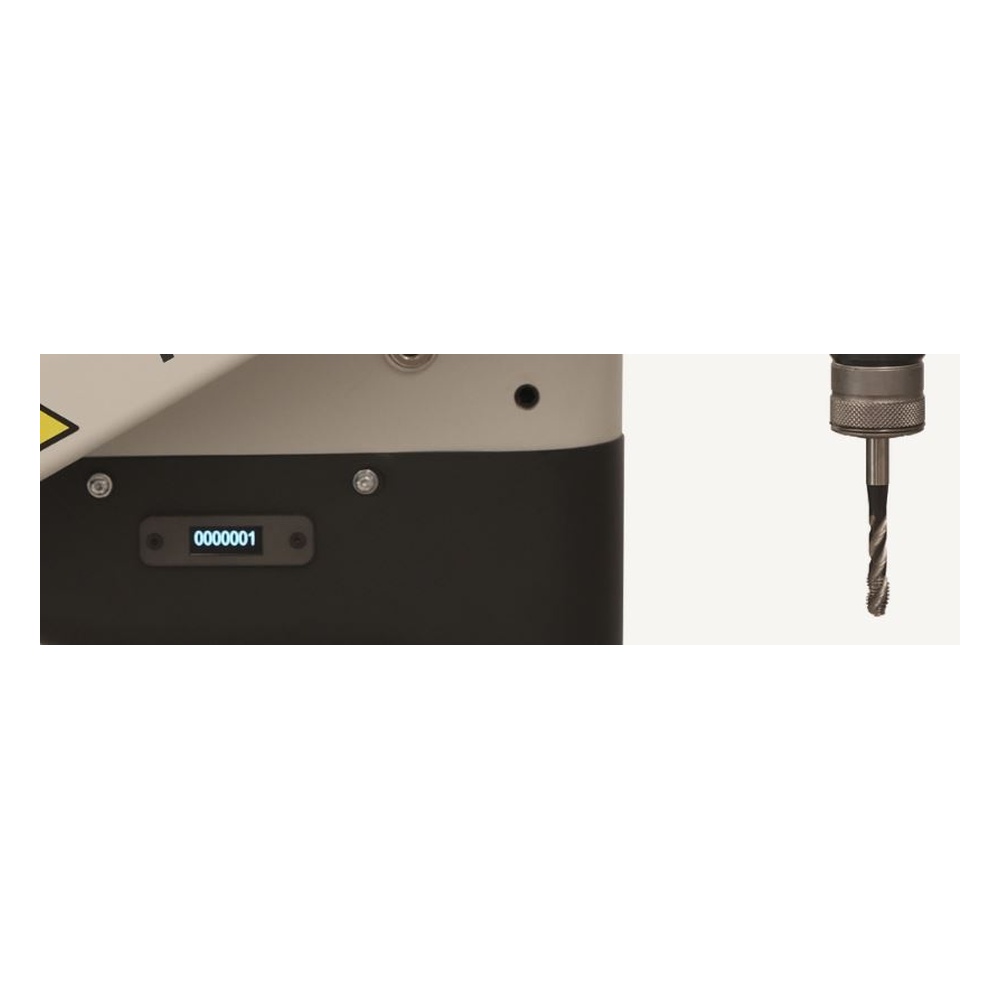

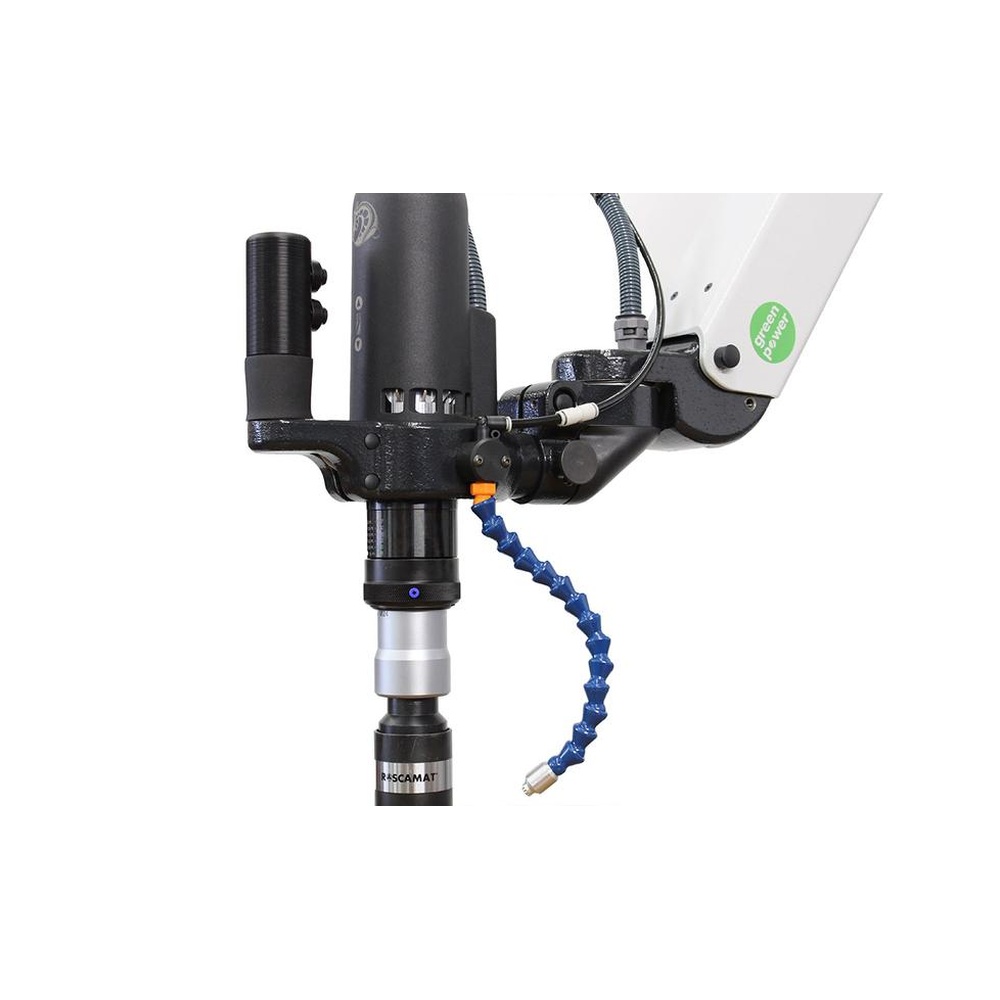

Available functions include automatic lubrication and a thread counter with total and partial counts.
