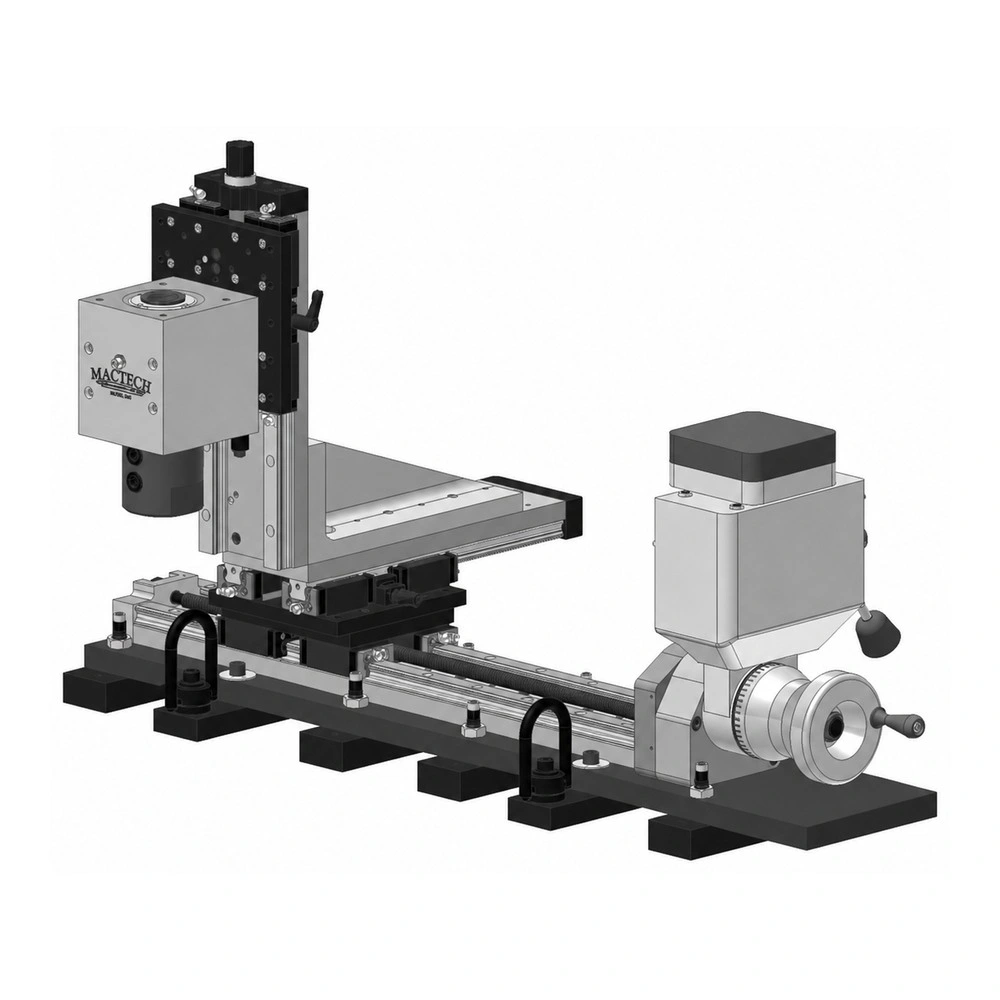

The Mactech MT4 LRA is a portable milling machine with a 4″ linear rail for large repairs in which dismantling the workpiece is impractical. Its 3-axis system performs close-tolerance milling, drilling, boring and other on-site machining operations. The compact platform brings precision machining directly to the repair area.
The Mactech MT4 LRA is a portable milling machine with a 4″ linear rail for large repairs in which dismantling the workpiece is impractical. Its 3-axis system performs close-tolerance milling, drilling, boring and other on-site machining operations. The compact platform brings precision machining directly to the repair area.
The MT4 can be welded, clamped, bolted or magnetically attached to the workpiece at any orientation. A reversible Y-Z axis and a milling head that flips for overhead machining expand the available working positions. These mounting choices adapt the machine to varied repair geometries.
| MT4 LRA x 24 | MT4 LRA x 36 | MT4 LRA x 72 | |
|---|---|---|---|
| X-Axis Travel | 16.5″ (420 mm) | 28.5″ (724 mm) | 64.5″ (1628 mm) |
| Bed Length | 24″ (610 mm) | 36″ (914 mm) | 72″ (1829 mm) |
| Y-Axis Travel | 5.5″ (140 mm) | 5.5″ (140 mm) | 5.5″ (140 mm) |
| Overall Length | 35.125″ (892 mm) | 47.125″ (1197 mm) | 83.125″ (2111 mm) |
| Package Number | 605-6903 | 605-6878 | 605-6876 |
