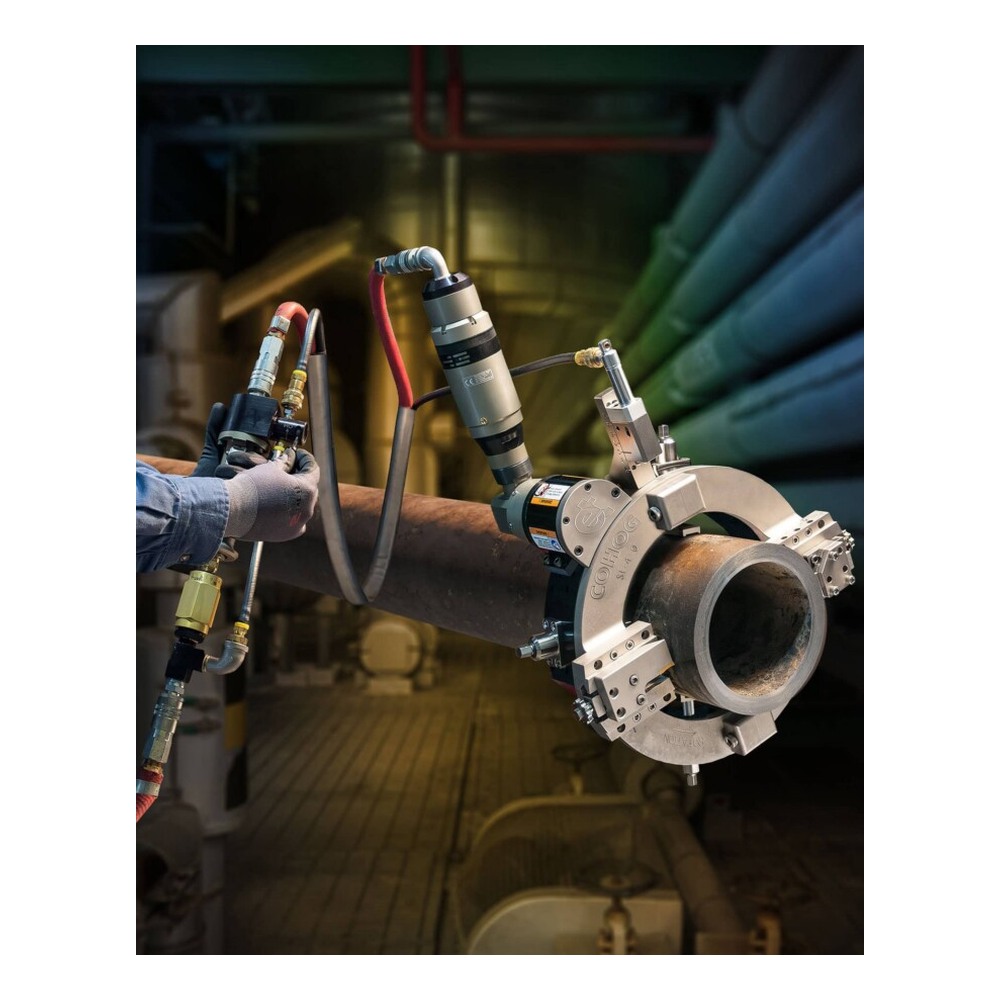

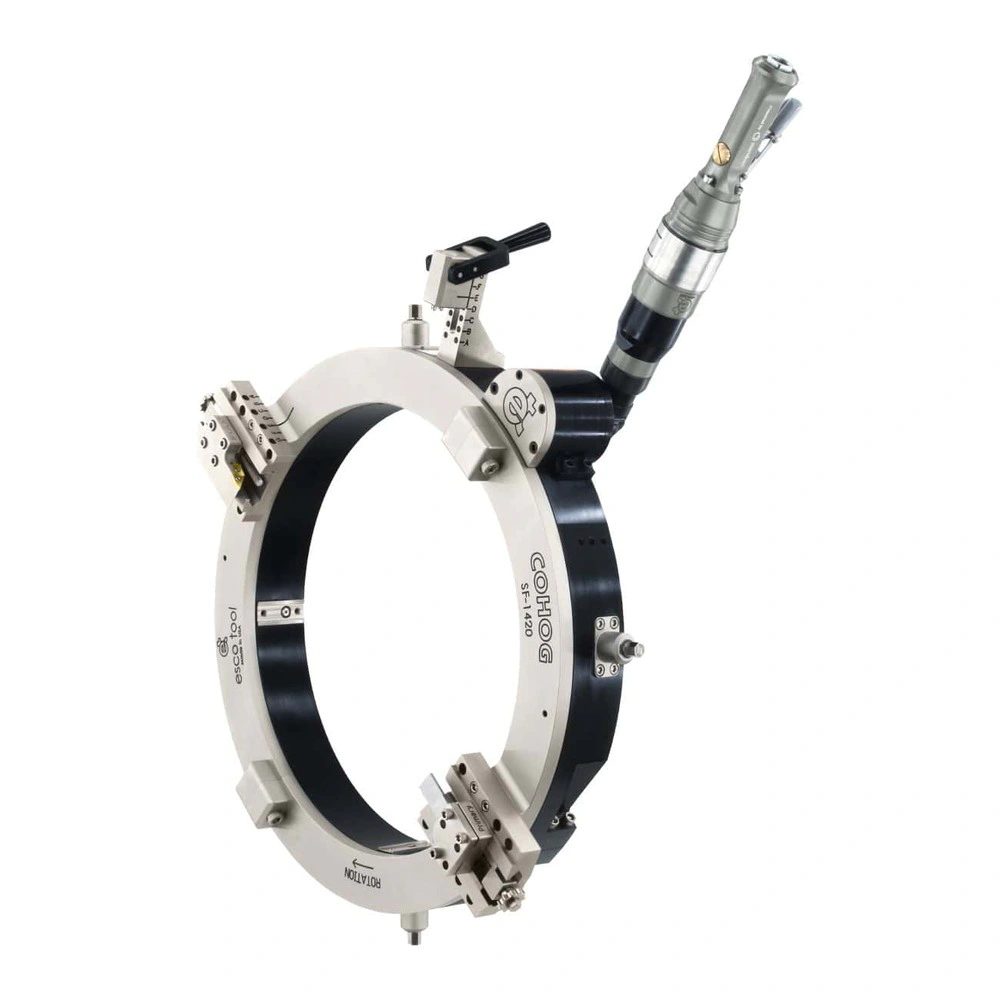

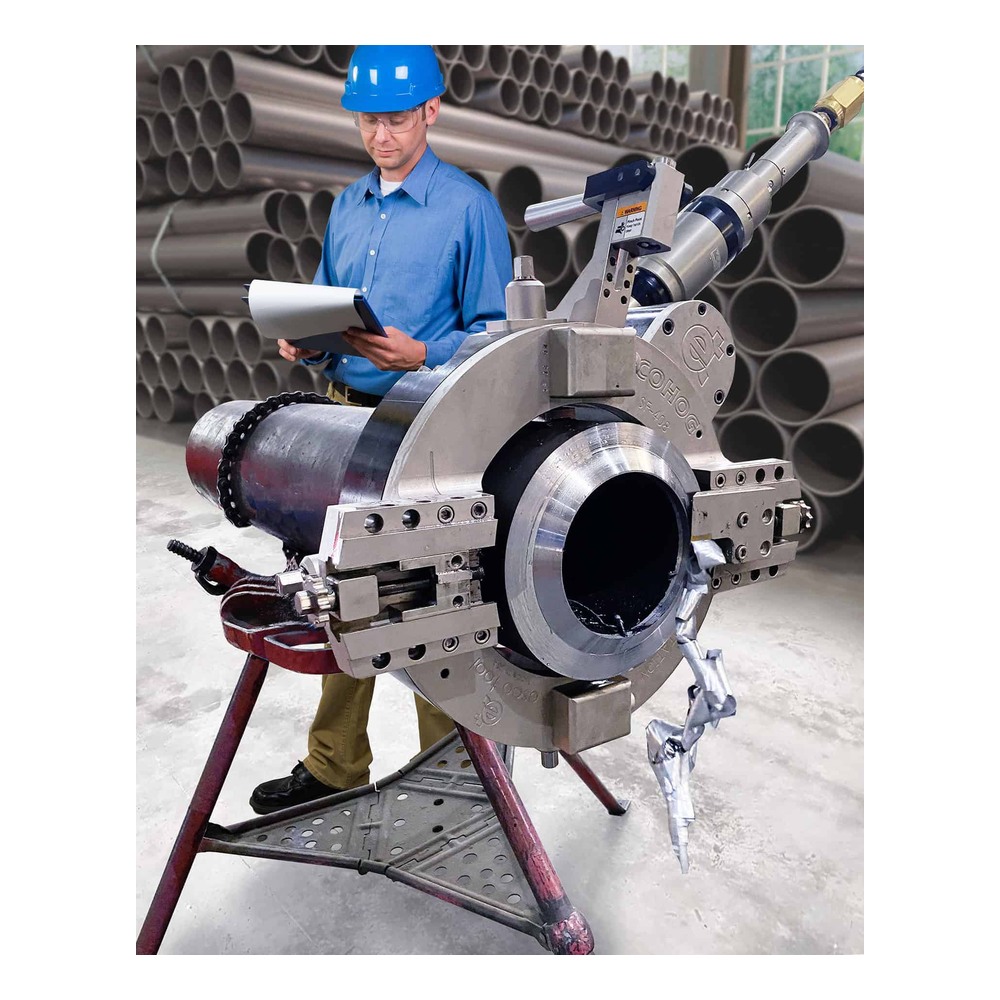

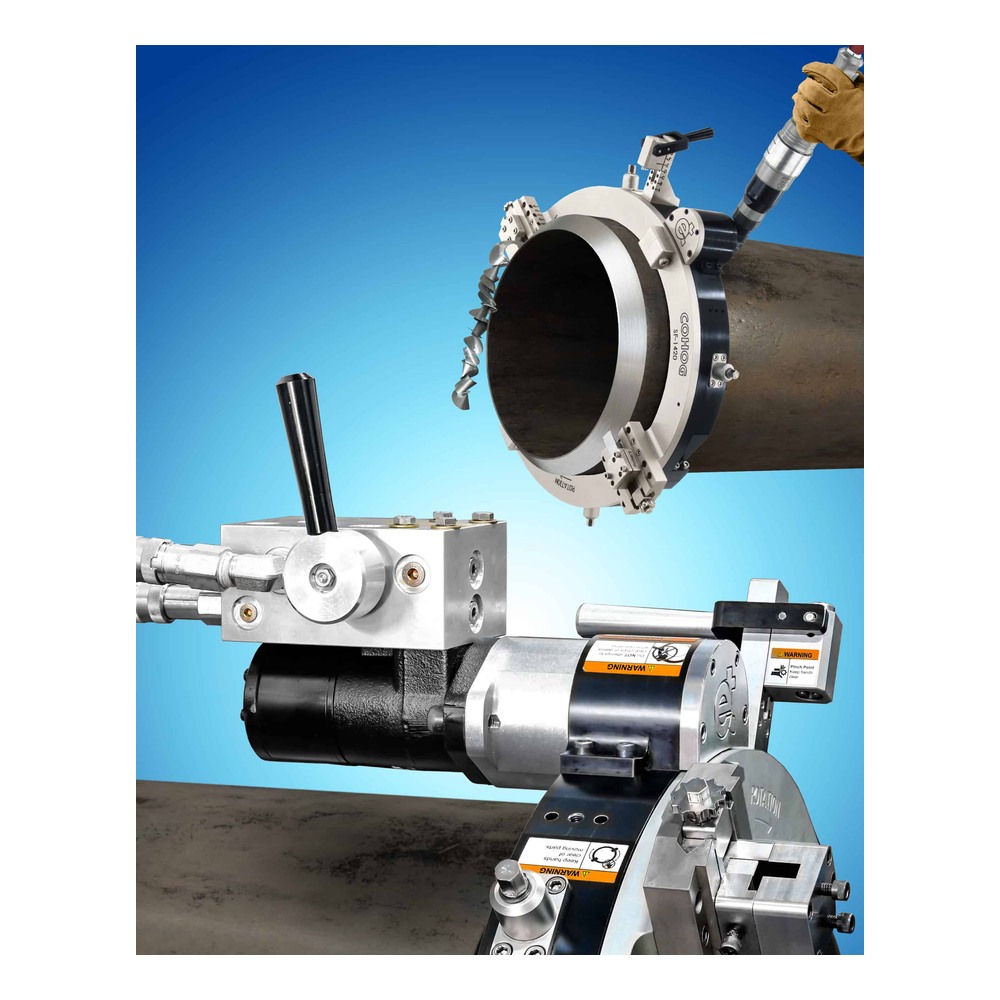

The all-new COHOG split frame eliminates the complication associated with traditional OD mounted tube and pipe fabrication machines while setting a new standard for lasting performance. Engineered for precision cold cutting of inline pipe, the COHOG is a portable, OD mount split frame that simultaneously cuts and bevels heavy wall pipe.
For decades, ESCO Tool has manufactured rugged, reliable and simple to operate tube and pipe fabrication equipment known to the industry as MILLHOG. Long-term work with end users led to the development of the dedicated split-frame machine line.

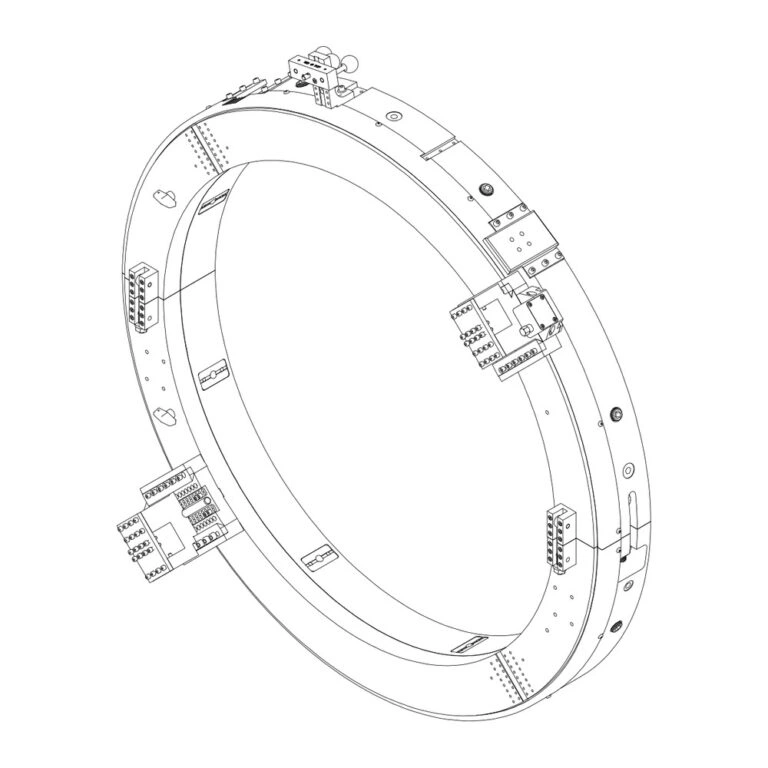

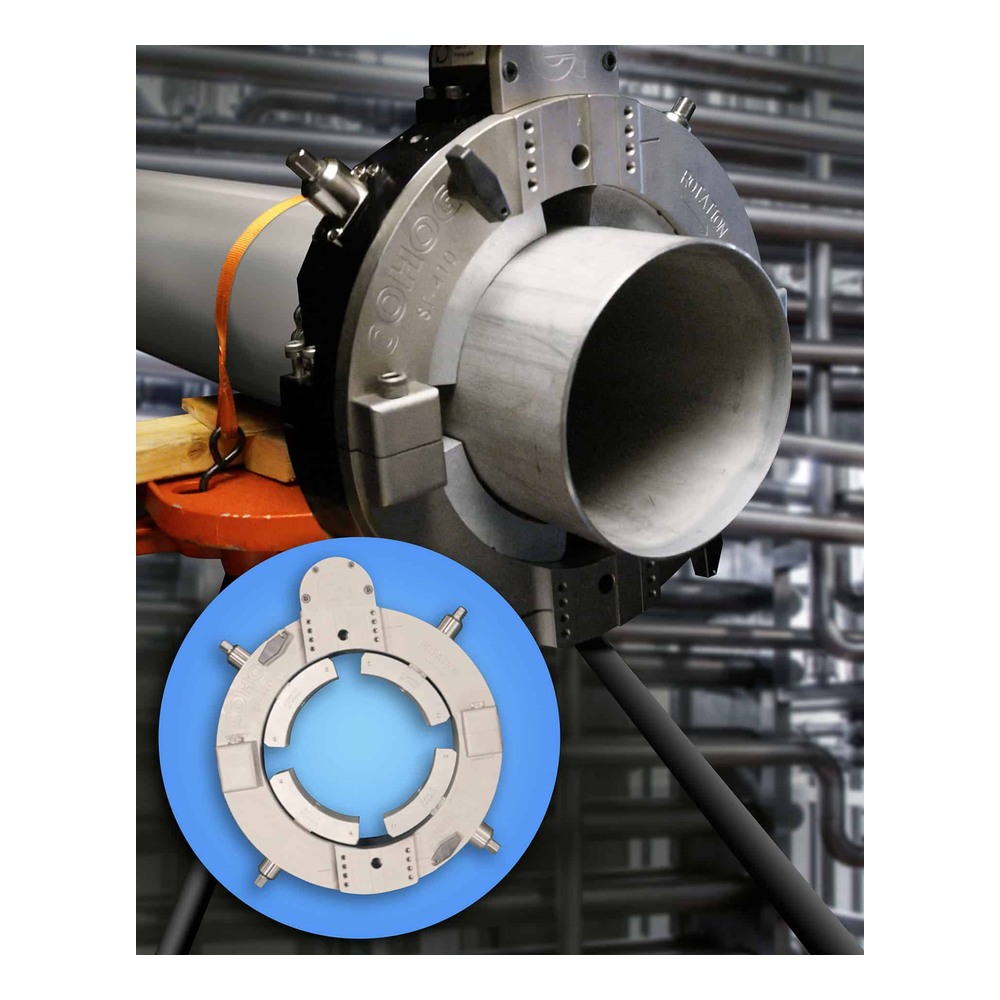

At the core of the COHOG is its uniquely built frame. The stationary ring is machined out of 7,075 aluminum alloy, the strongest aluminum obtainable, and hard coated for maximum strength and durability. A full complement of precision-tuned eccentric bearings fully support the rotating ring which is machined from a custom steel forging, heat-treated and nickel-plated for long-lasting corrosion and wear resistance. Self-squaring clamp legs quickly align and secure the machine to the pipe making it rigid enough to part and bevel heavy wall pipe, in one operation, without vibration or chatter.

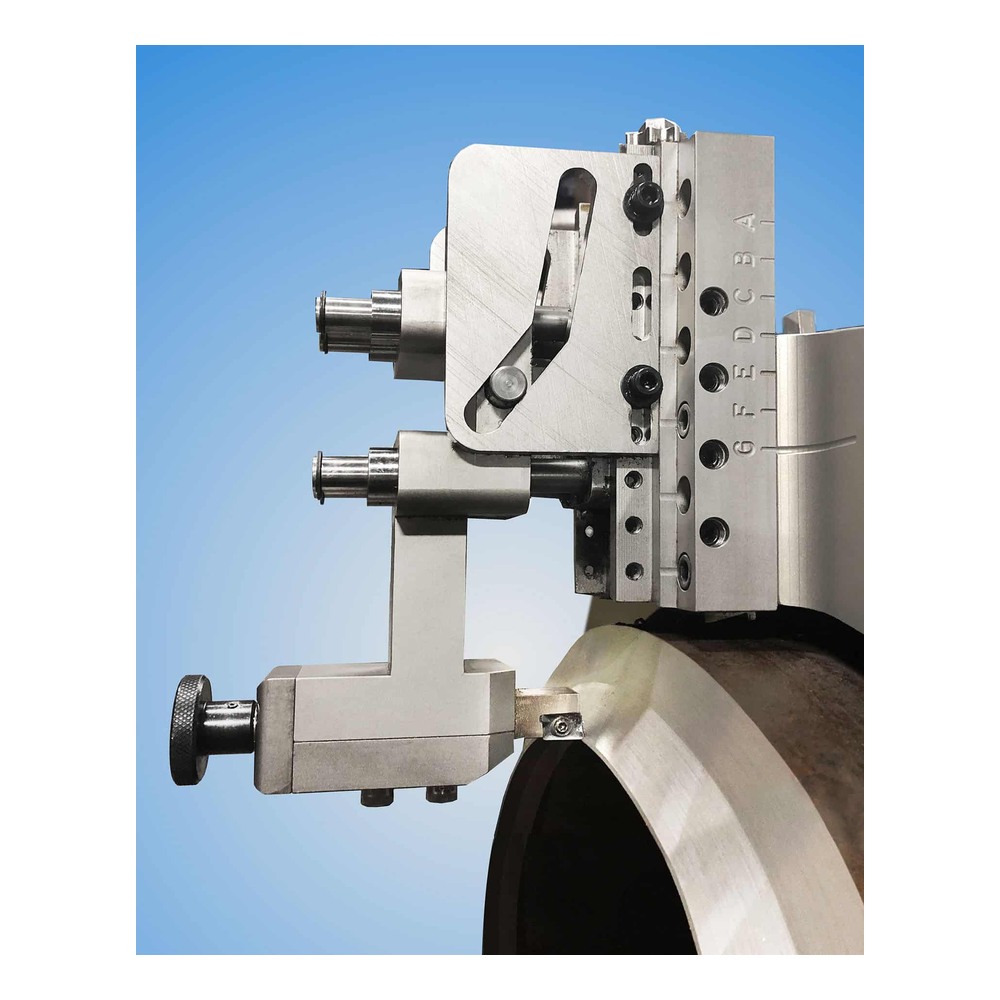

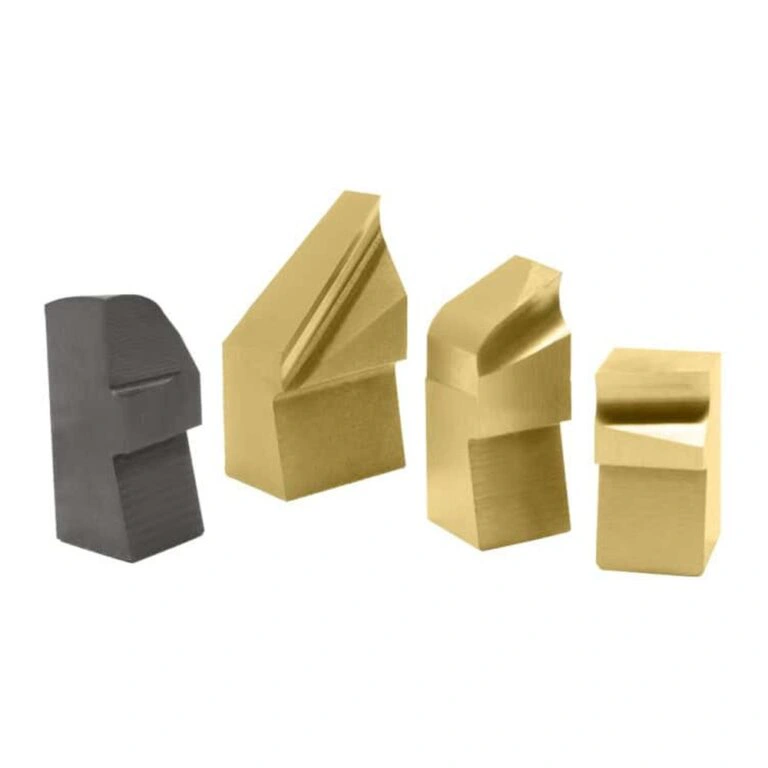

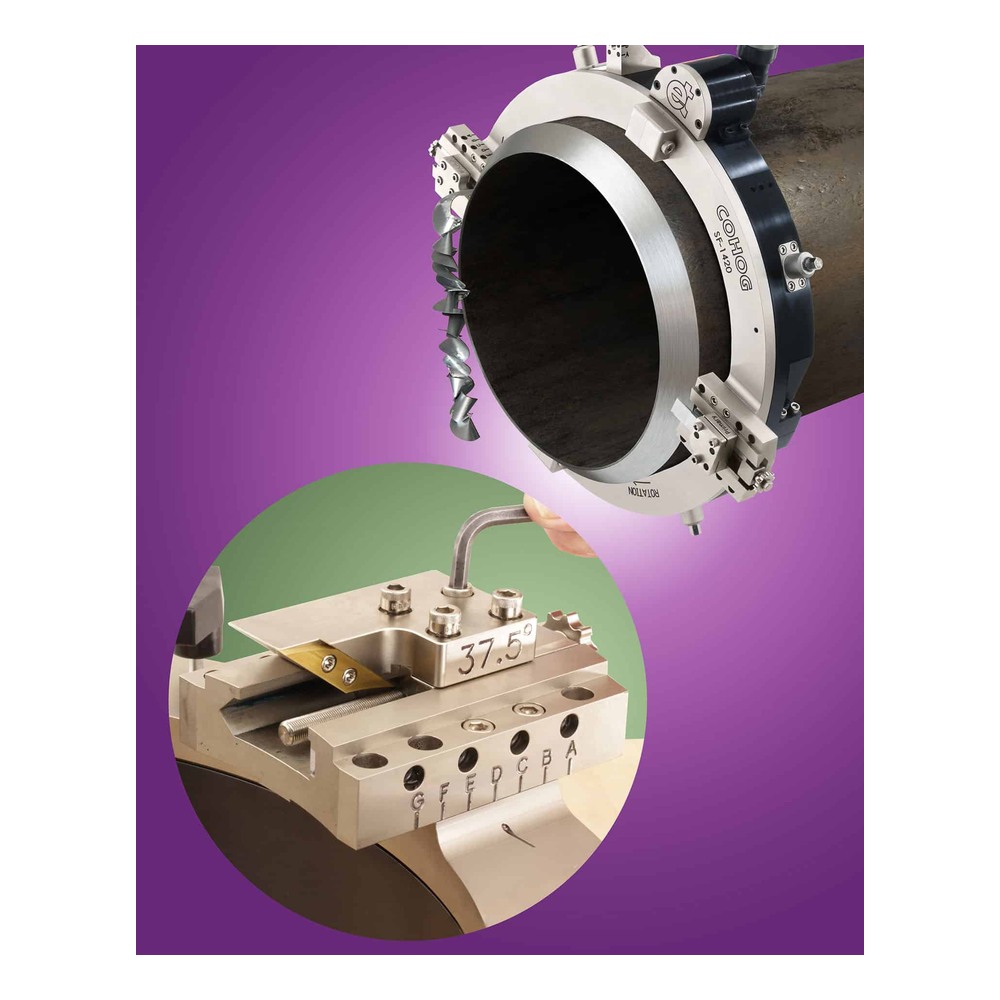

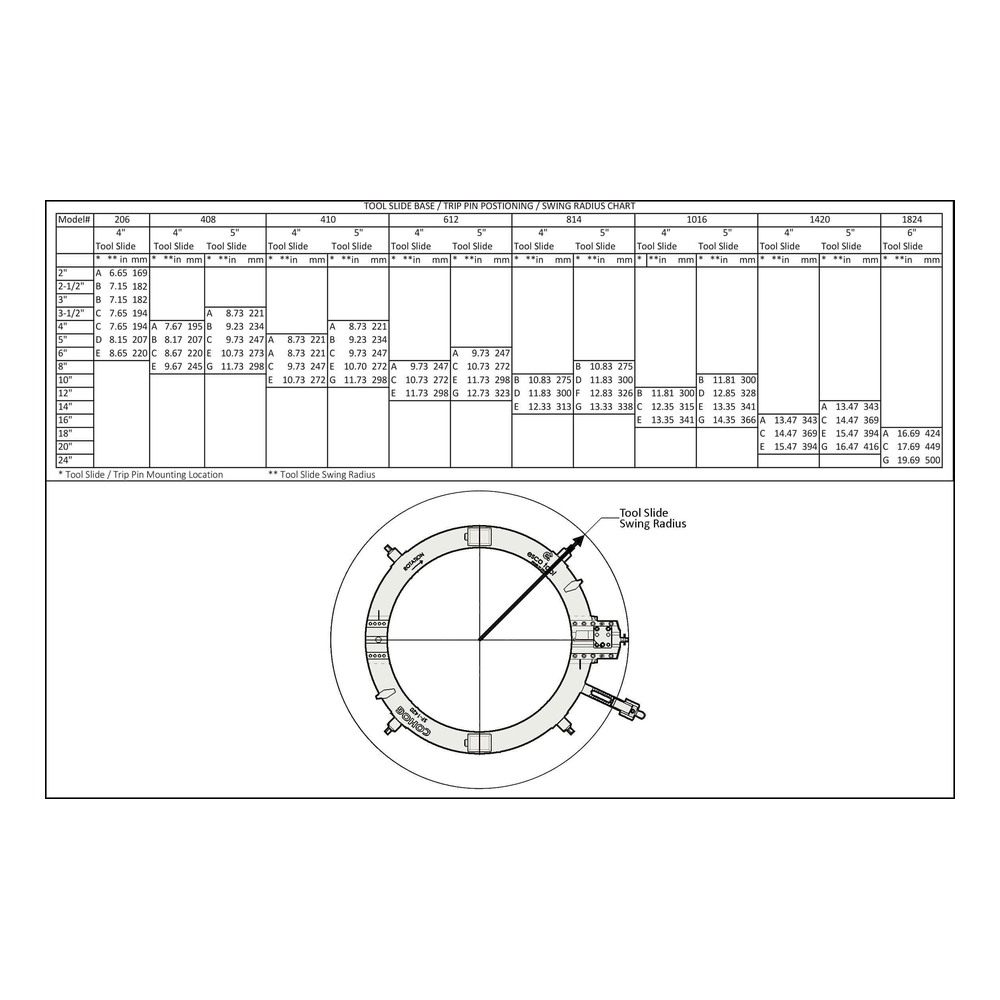

COHOGs feature indexable tool slides and trip mechanisms that use a marked locating system to precisely align and quickly attach without shims or guesswork. A variety of blade modules easily attach to the tool slides and can hold conventional high-speed tool steel blades or cutting inserts. Most cutting inserts have multiple cutting edges, are simple to replace, and provide more cuts per blade at a lower cost.

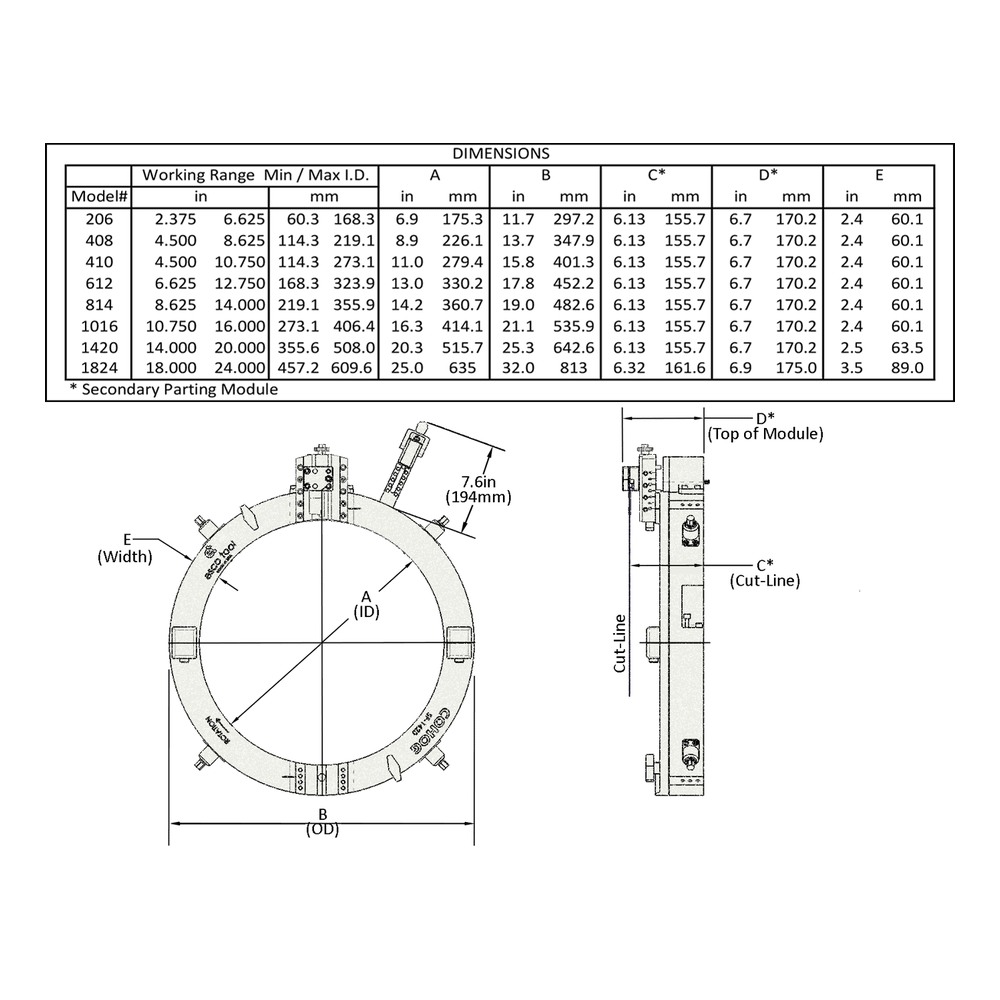

| Model | Pipe Range | Weight |
|---|---|---|
| SF206 | 2″ to 6″ | 59 LB / 27 KG |
| SF408 | 4″ – 8″ | 66 LB / 30 KG |
| SF410 | 4″ – 10″ | 77 LB / 35 KG |
| SF612 | 6″ – 12″ | 84 LB / 38 KG |
| SF814 | 8″ – 14″ | 88 LB / 40 KG |
| SF1016 | 10″ – 16″ | 101 LB / 46 KG |
| SF1420 | 14″ – 20″ | 117 LB / 53 KG |
| SF1824 | 18″ – 24″ | 192 LB / 87 KG |
| Accessory | Details |
|---|---|
| Modular Tool Slide |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Esco Tool COHOG Clamshell Pipe Cutter & Beveler.
