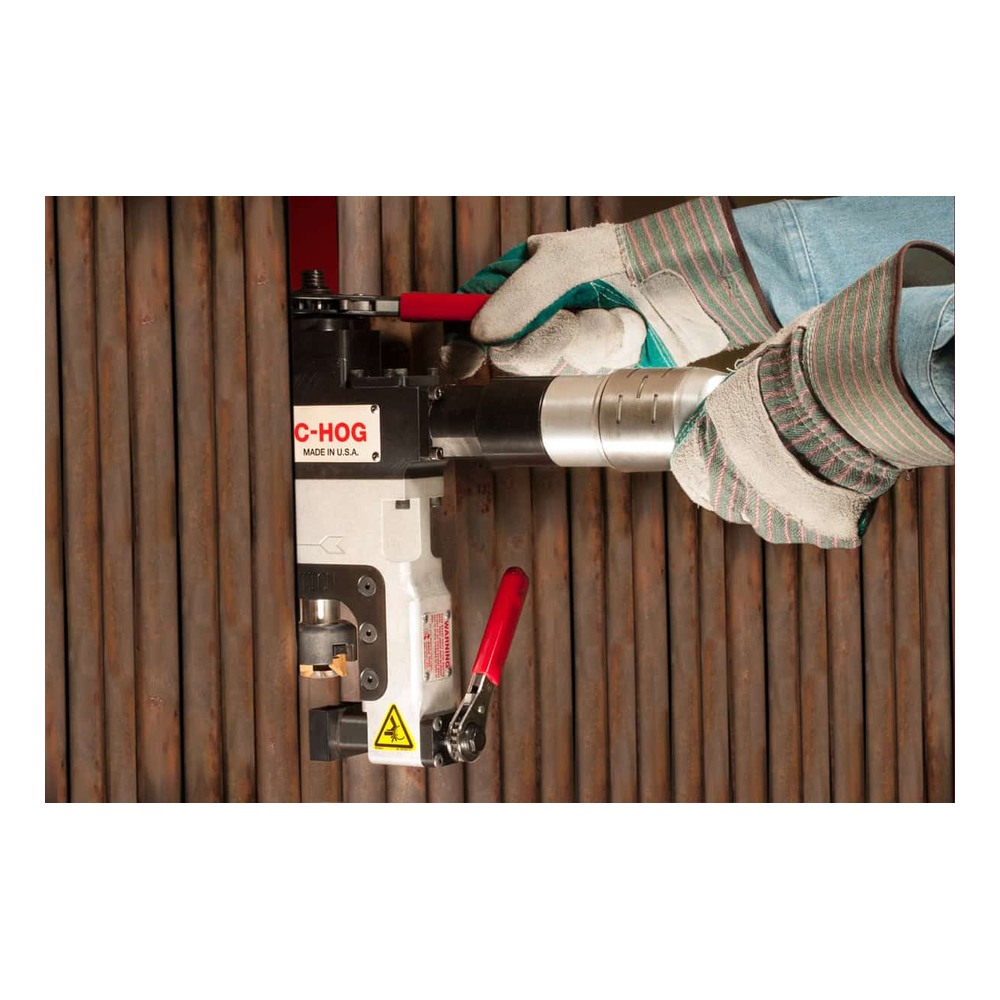

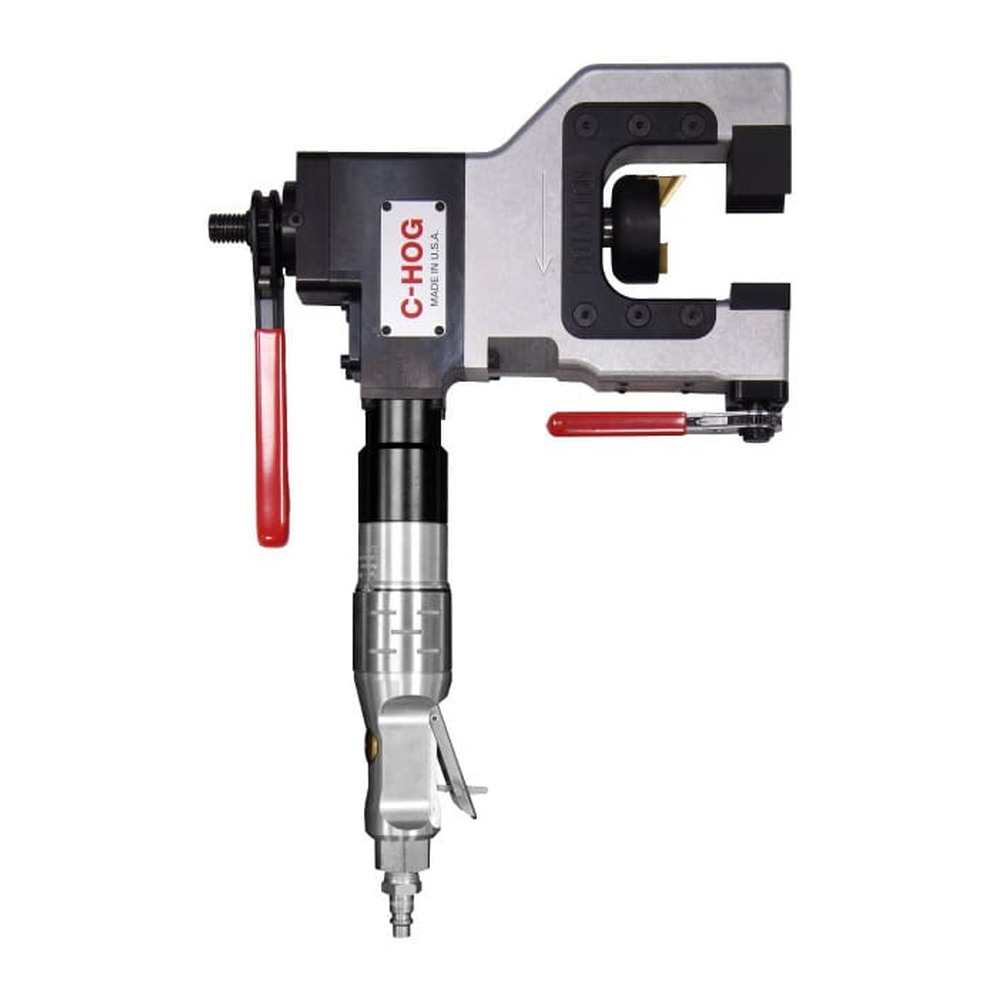

The C-Hog beveling machine securely attaches to the tube O.D. with a huge clamp that minimizes chatter and vibration. Well suited for small bore tubes – there is no I.D. clamp or mandrel to interfere, leaving room for tough I.D. boring blades that increase cutter blade endurance.
The C-Hog Beveling machine securely attaches to the tube O.D. with a huge clamp that minimizes chatter and vibration and is well suited for small bore tubes because there is no I.D. clamp or mandrel to interfere. The I.D. clearance gained also allows for large, tough I.D. boring blades that increase Cutter Blade endurance.
Designed for maximum operator comfort, efficiency and ease of use, the C-Hog’s attached feed wrench lets the operator comfortably feed the tool as it bevels the tube with minimal fatigue. Constructed to deliver reliable performance on the toughest applications, the C-Hog is a rugged tool that is light weight and compact. Highly engineered, it incorporates state of the art materials and heat treated components.
| Specification | Imperial | Metric |
|---|---|---|
| Working Range | 0.5″ O.D. – 3.0″ O.D. | 12.7 mm O.D. – 76.2 mm O.D. |
| Blade Series | G-Series Blades | G-Series Blades |
| Min. Width | 1.75″ | 44.5 mm |
| Length | 9.7″ | 246.4 mm |

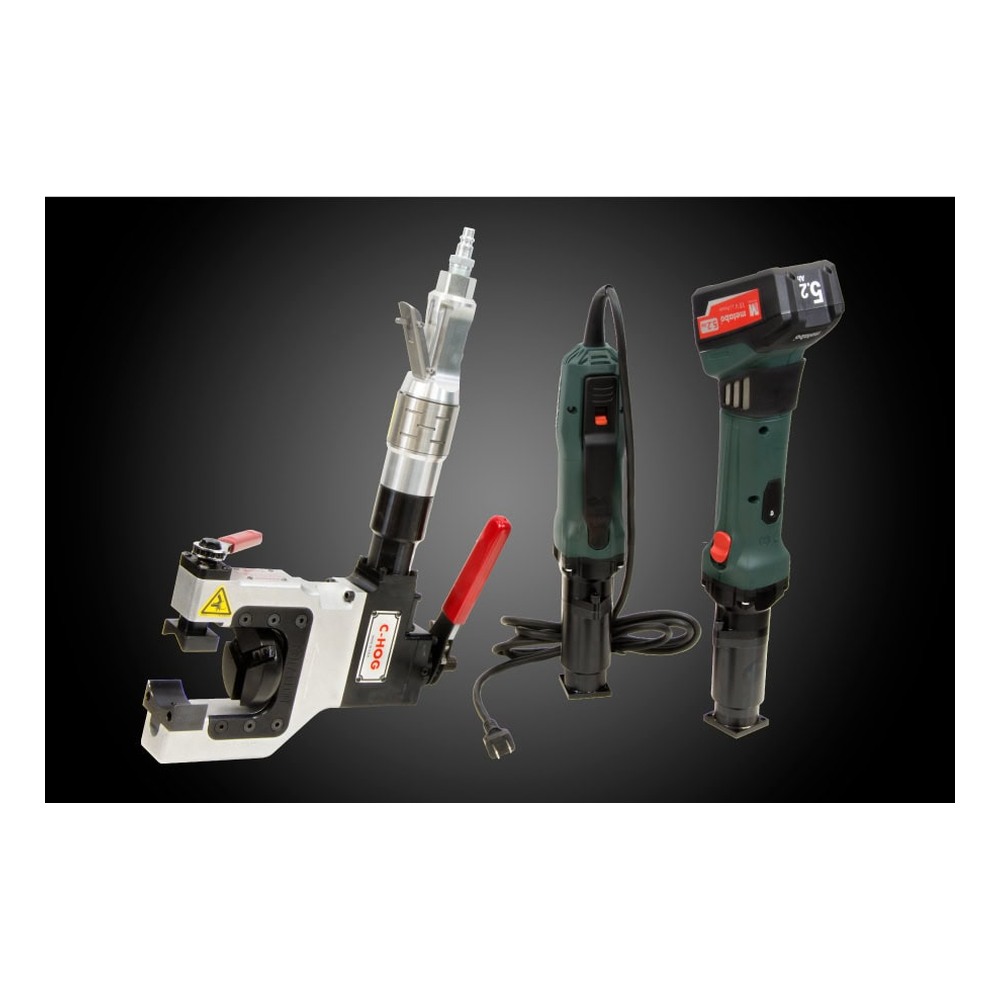

| Pneumatic – Power | 1.07 hp | 800 W |
| Pneumatic – Air Pressure | 90 psi | 6.2 bar |
| Pneumatic – Air Flow | 35 cfm | 990 L/min |
| Electric – Power | 950 W | 950 W |
| Electric – Voltage | 220-240 V | |
| Electric – Frequency | 50/60 Hz | 50/60 Hz |
| Battery | 18 V – 5.2 ah | 18 V – 5.2 ah |
| Cutterhead Speed – Pneumatic | 114 rpm | 114 rpm |
| Cutterhead Speed – Electric | 14-58 rpm | 14-58 rpm |
| Cutterhead Speed – Battery | 43 rpm | 43 rpm |
| Max Working Weight – Pneumatic | 20.1 lbs | 9.1 kg |
| Max Working Weight – Electric | 22.3 lbs | 10.1 kg |
| Max Working Weight – Battery | 20.8 lbs | 10.3 kg |
| Shipping Weight – Pneumatic | 40 lbs | 18.1 kg |
| Shipping Weight – Electric | 46 lbs | 20.9 kg |
| Shipping Weight – Battery | 46.6 lbs | 21.1 kg |
| Shipping Dimensions – Pneumatic | 21″ × 18″ × 7″ | 533 mm × 457 mm × 178 mm |
| Shipping Dimensions – Electric | 17″ × 31″ × 8″ | 432 mm × 787 mm × 203 mm |
| Shipping Dimensions – Battery | 17″ × 31″ × 8″ | 432 mm × 787 mm × 203 mm |
| Cutterhead Size (in) | Cutterhead Size (mm) | Cutterhead Part # |
|---|---|---|
| 1.75 | 44.5 | CF-35 |
| 2.0 | 50.8 | CF-35 A |
| 2.25 | 57.2 | CF-35B |
| 2.5 | 63.5 | CF-35C |
| 3.0 | 76.2 | CF-35D |
| Image | Accessory | Details |
|---|---|---|

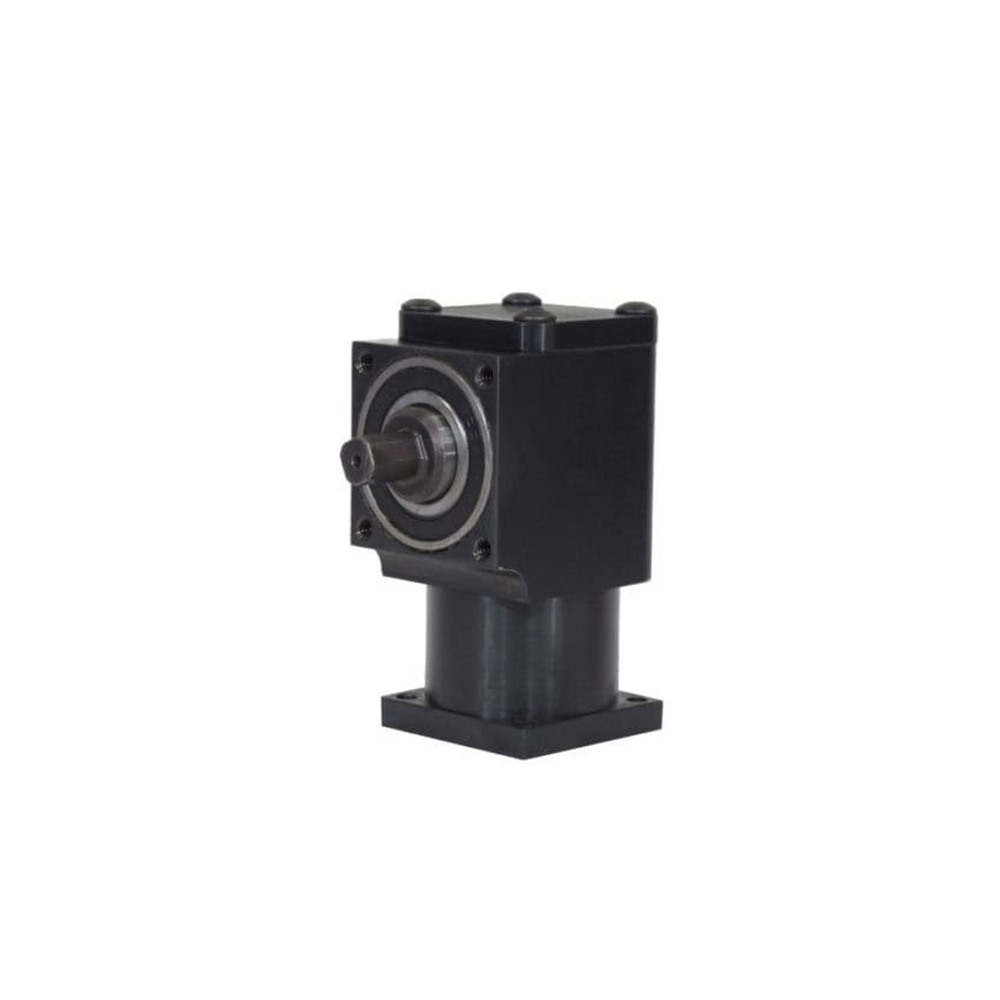

 | Right Angle Drive – G-290 | When space is limited, the C-Hog can be fitted with the Right Angle Drive (also fits Ground MILLHOG) so that the motors can be mounted to either side, or up/down. The Right Angle Drive is constructed out of precision machined components and is easy to assemble with all three motor options.
|
