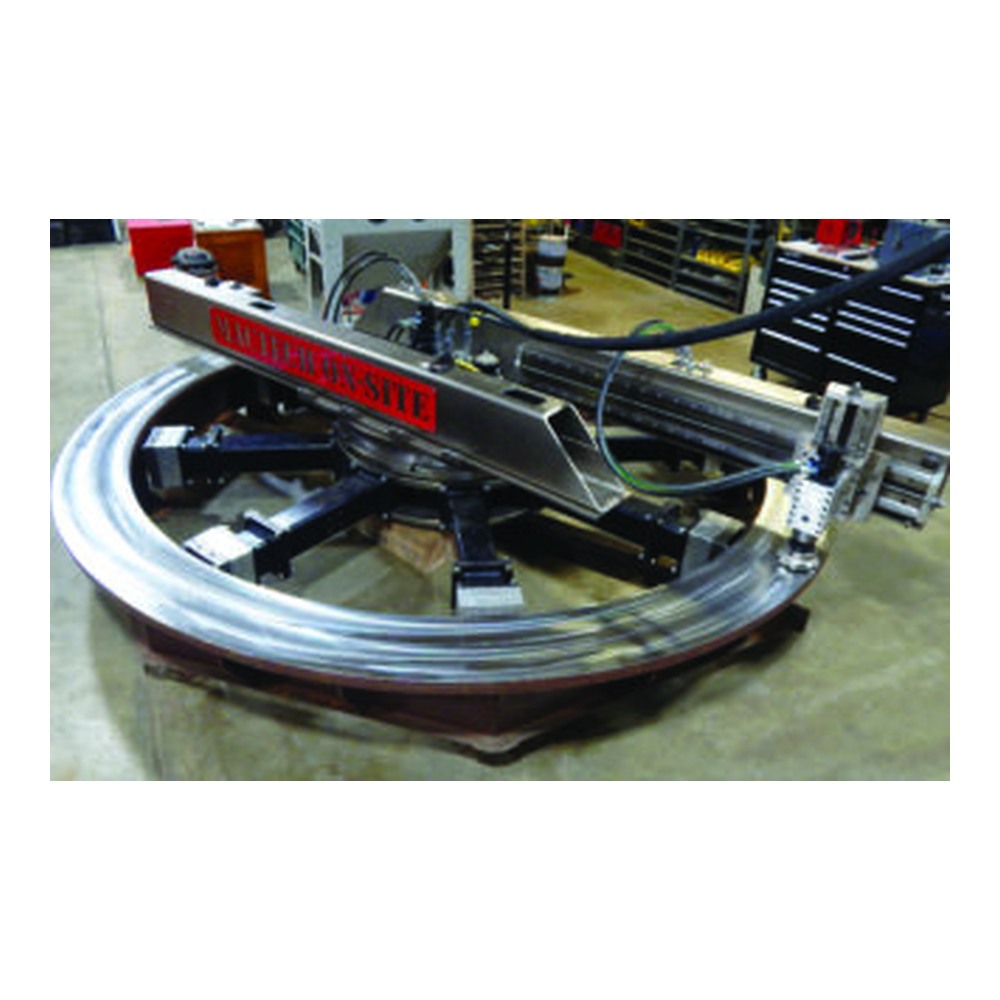

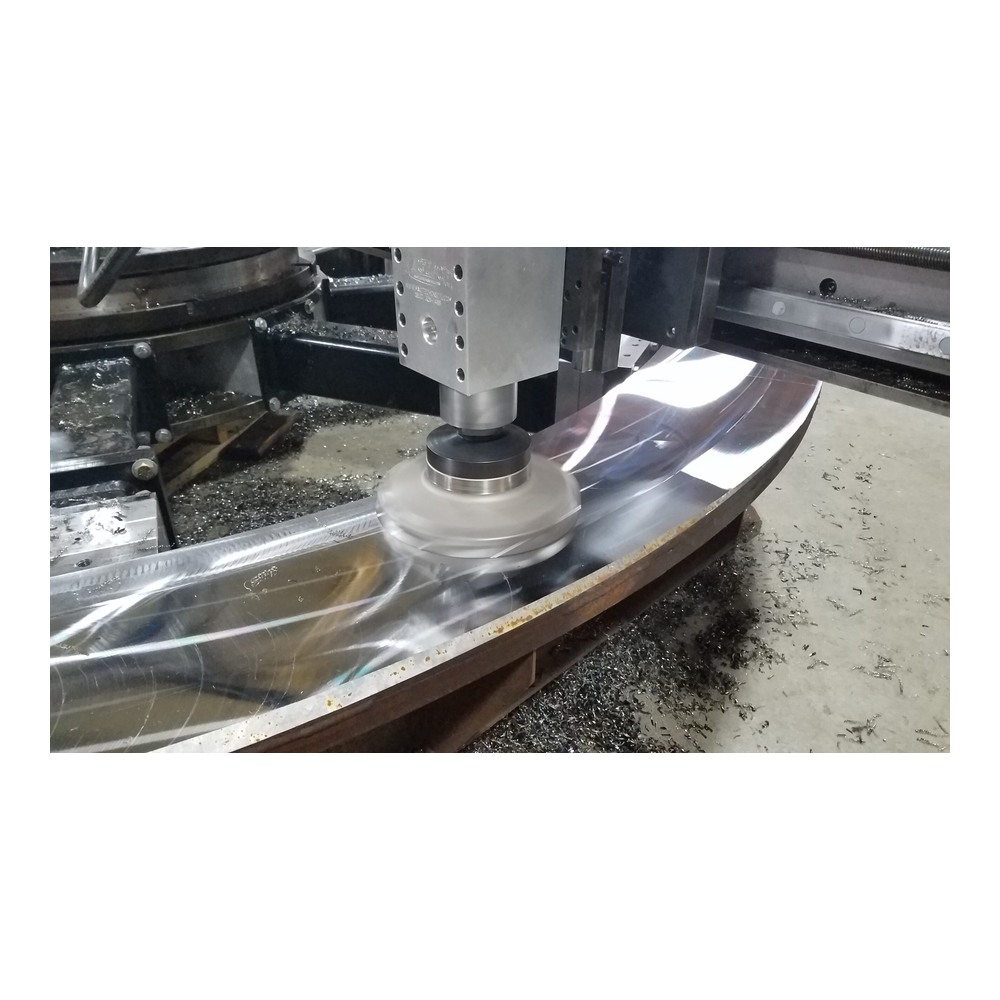

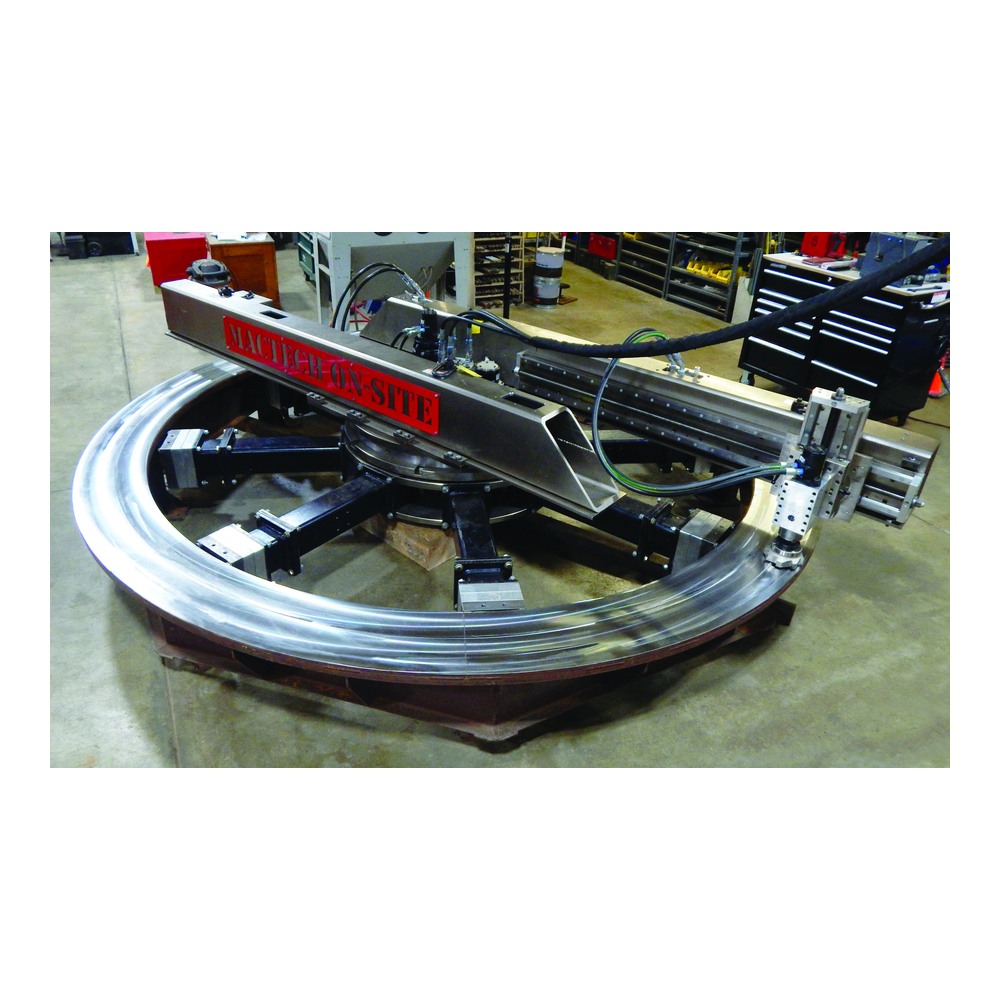

The Mactech Large Diameter Facing Machine (LDFM) covers facing diameters from 55″ to 229″. It supports both single-point tooling and rotary milling for precision flange facing. An adjustable rotary hub moves independently of the mounting legs, supporting flat and accurate machined surfaces.
The Mactech Large Diameter Facing Machine (LDFM) covers facing diameters from 55″ to 229″. It supports both single-point tooling and rotary milling for precision flange facing. An adjustable rotary hub moves independently of the mounting legs, supporting flat and accurate machined surfaces.

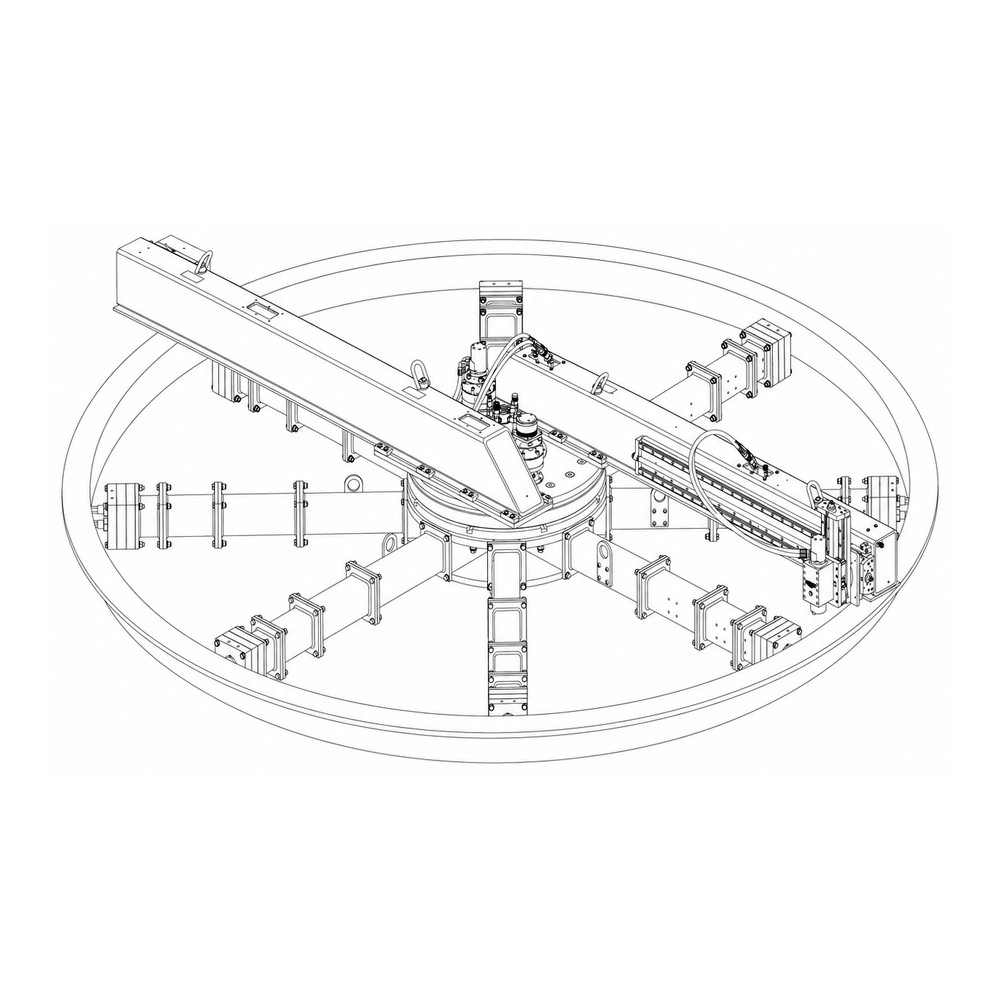

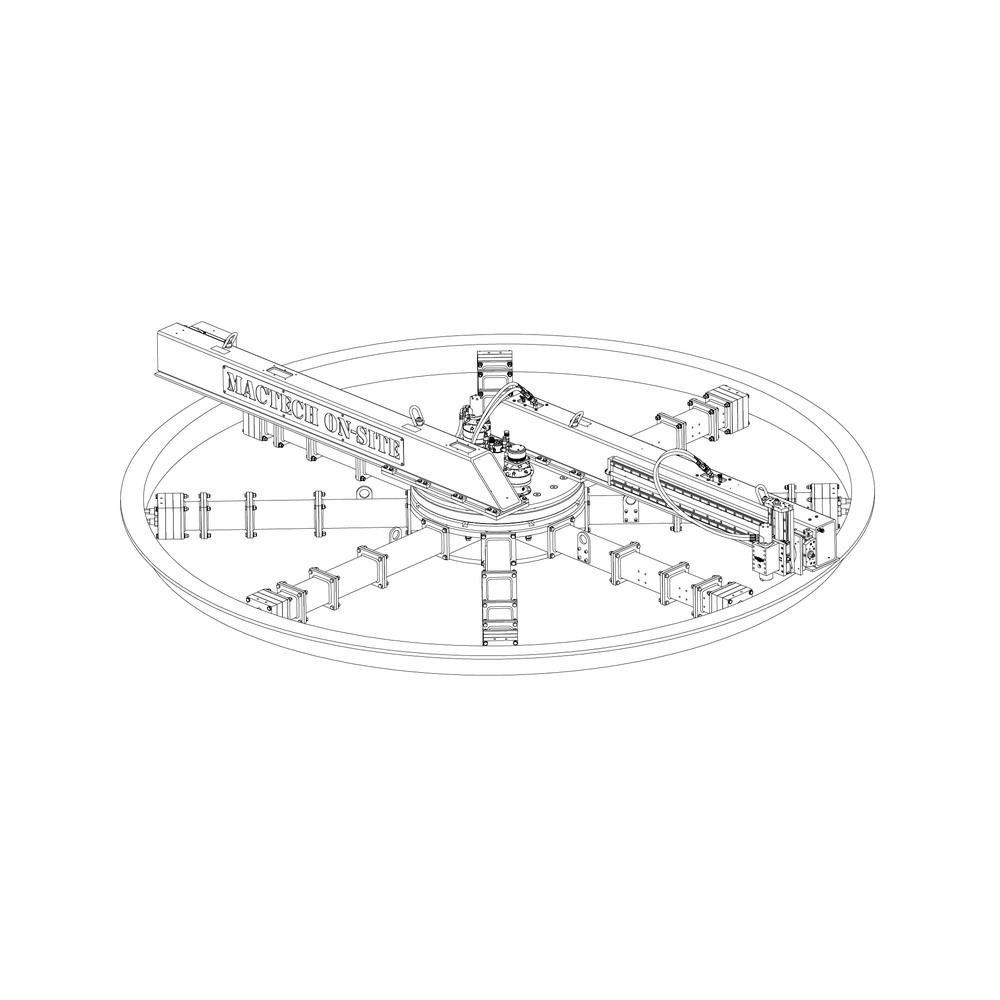

The LDFM uses flexible segmented legs to fit a range of inside diameters and shorten setup for complex facing work. Its rigid tubular-beam construction reduces vibration and supports a smooth surface finish. The combination of adjustable mounting and stable machining is intended for large-scale flange applications.
| Specification | Imperial | Metric |
|---|---|---|
| Interior Mounting Diameter | MIN: 55″ – MAX: 185″ | MIN: 1397 mm – MAX: 4699 mm |
| Cutting Range: Milling | MIN: 55″ – MAX: 205″ | MIN: 1397 mm – MAX: 5207 mm |
| w/ Extension Bracket | MIN: 55″ – MAX: 229″ | MIN: 1397 mm – MAX: 5816 mm |
| Cutting Range: Single Point Tooling | MIN: 55″ – MAX: 204″ | MIN: 1397 mm – MAX: 5182 mm |
| w/ Extension Bracket | MIN: 55″ – MAX: 224″ | MIN: 1397 mm – MAX: 5689 mm |
| Head Travel | X-Axis: 59.5″ – Z-Axis: 7″ | X-Axis: 511 mm – Z-Axis: 177 mm |
| Weight | Max: 7500 lbs | 3402 kg |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Mactech Large-Diameter Portable Facing Machine.
