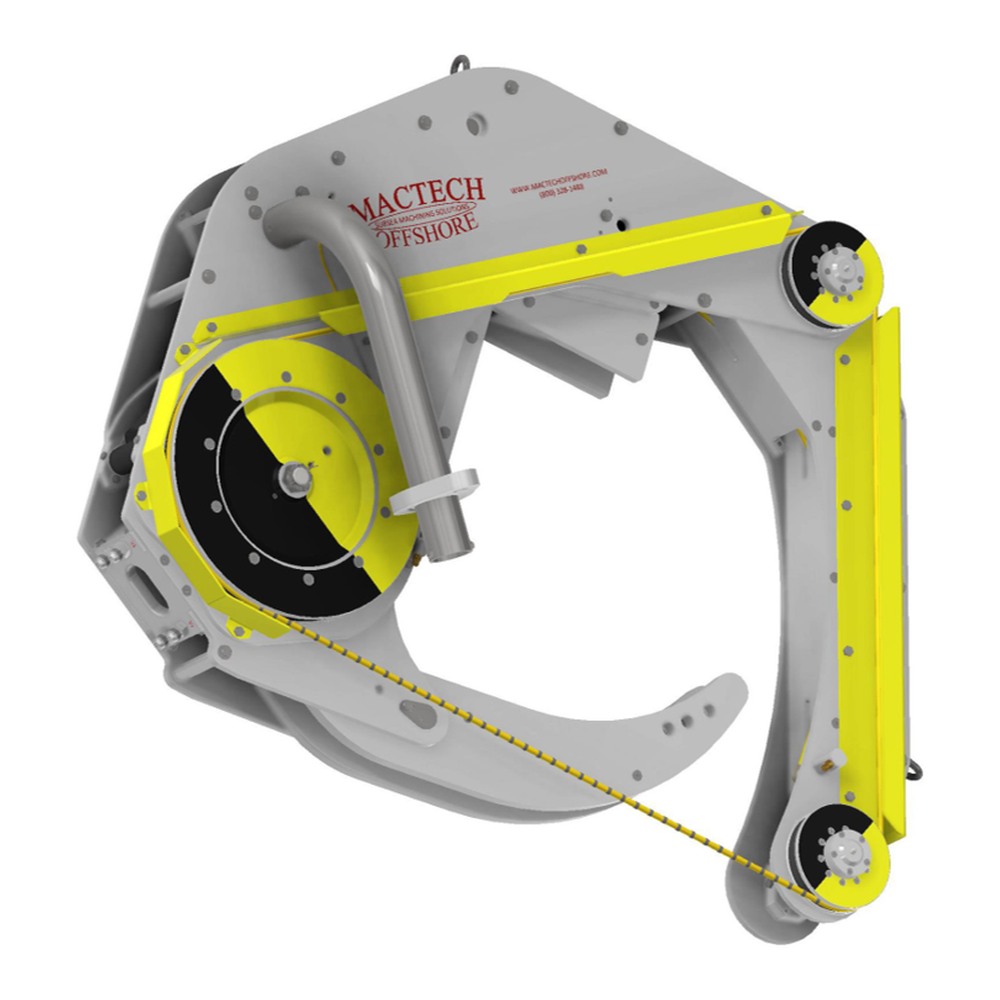

The Mactech portable cut-off diamond wire saws cover cutting diameters from 4.5″ to 24″. Designed for surface and underwater operation, they combine a compact footprint with capacity for substantial cuts. Their low weight and maneuverability support cutting in locations that cannot accommodate larger equipment.
The Mactech portable cut-off diamond wire saws cover cutting diameters from 4.5″ to 24″. Designed for surface and underwater operation, they combine a compact footprint with capacity for substantial cuts. Their low weight and maneuverability support cutting in locations that cannot accommodate larger equipment.
The lightweight cut-off saw is designed for fast setup during demanding marine work. When supplied from the surface through a hose reel, it can operate at depths up to 550 ft. Hydraulic models installed on remotely operated vehicles can operate at depths up to 10,000 ft.
| DWS-16co-SS (0607-0019-SS) | DWS-24co-SS (0607-0095-SS) | |
|---|---|---|
| Cutting Capacity | Ø 4.5″-16″ (114-406 mm) | Ø 10″ – Ø 24″ (254-610 mm) |
| Operating Dimensions | 44″ x 41″ x 11″ (1,117 x 1,041 x 279 mm) | 61″ x 53″ x 18″ (1,526 x 1,445 x 408 mm) |
| Operating Weight (Dry) | 210 lbs / 95 kg | 320 lbs / 145 kg |
| Operating Weight (Wet) | 150 lbs / 68 kg | 217 lbs / 98 kg |
| Drive: Hydraulic Requirements | 15 gpm @ 3,000 psi 57 lpm @ 207 bar | 15 gpm @ 3,000 psi 57 lpm @ 207 bar |
| Feed: Hydraulic Requirements | .5 gpm @ 500 psi 2 lpm @ 34 bar | .5 gpm @ 500 psi 2 lpm @ 34 bar |
| Clamp: Hydraulic Requirements | .5 gpm @ 1,500 psi 2 lpm @ 103 bar | .5 gpm @ 1,500 psi 2 lpm @ 103 bar |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Mactech Cut-Off Diamond Wire Saw.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
