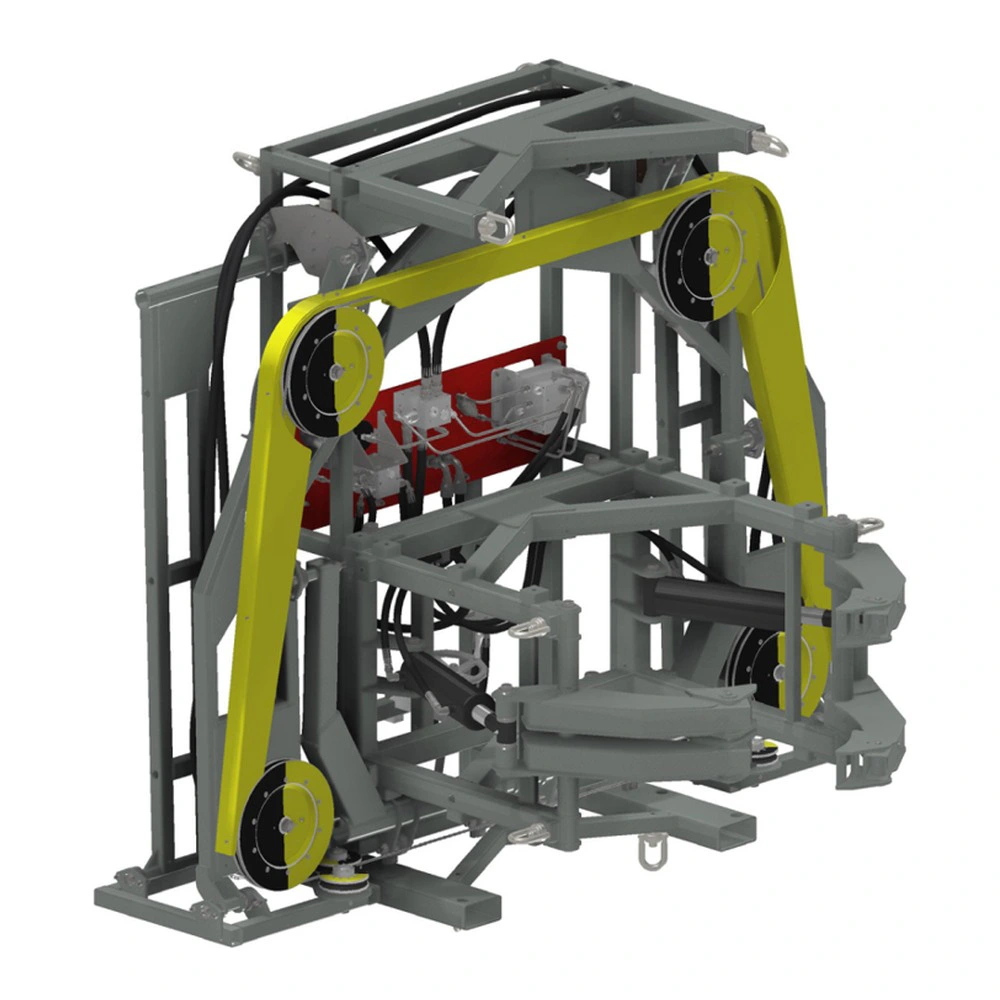

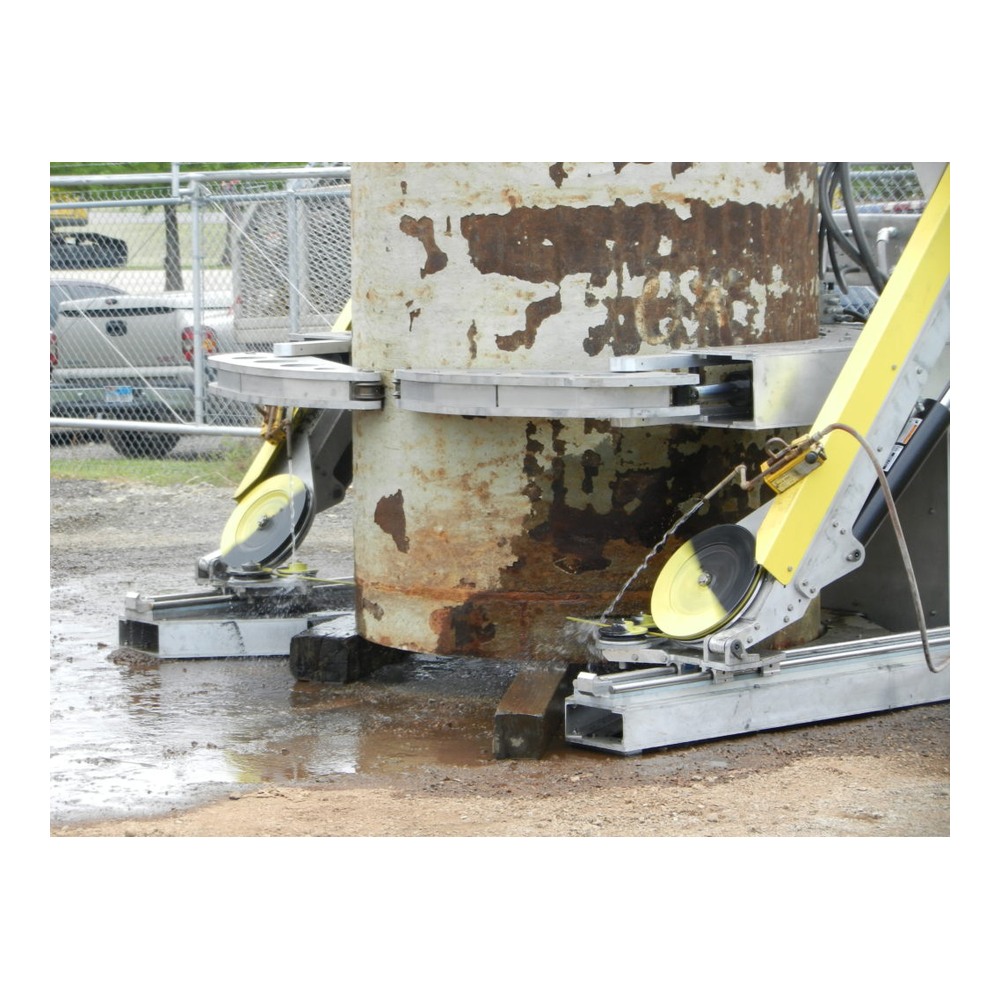

The Mactech articulating diamond wire saw is available in 40″ and 60″ models for demanding cuts in hard-to-reach locations. Its vertical orientation and low axial-clearance requirement allow deployment in excavations and cofferdams with minimal dredging. The saw supports multi-string applications and requires only 2 ft of working clearance.
The Mactech articulating diamond wire saw is available in 40″ and 60″ models for demanding cuts in hard-to-reach locations. Its vertical orientation and low axial-clearance requirement allow deployment in excavations and cofferdams with minimal dredging. The saw supports multi-string applications and requires only 2 ft of working clearance.

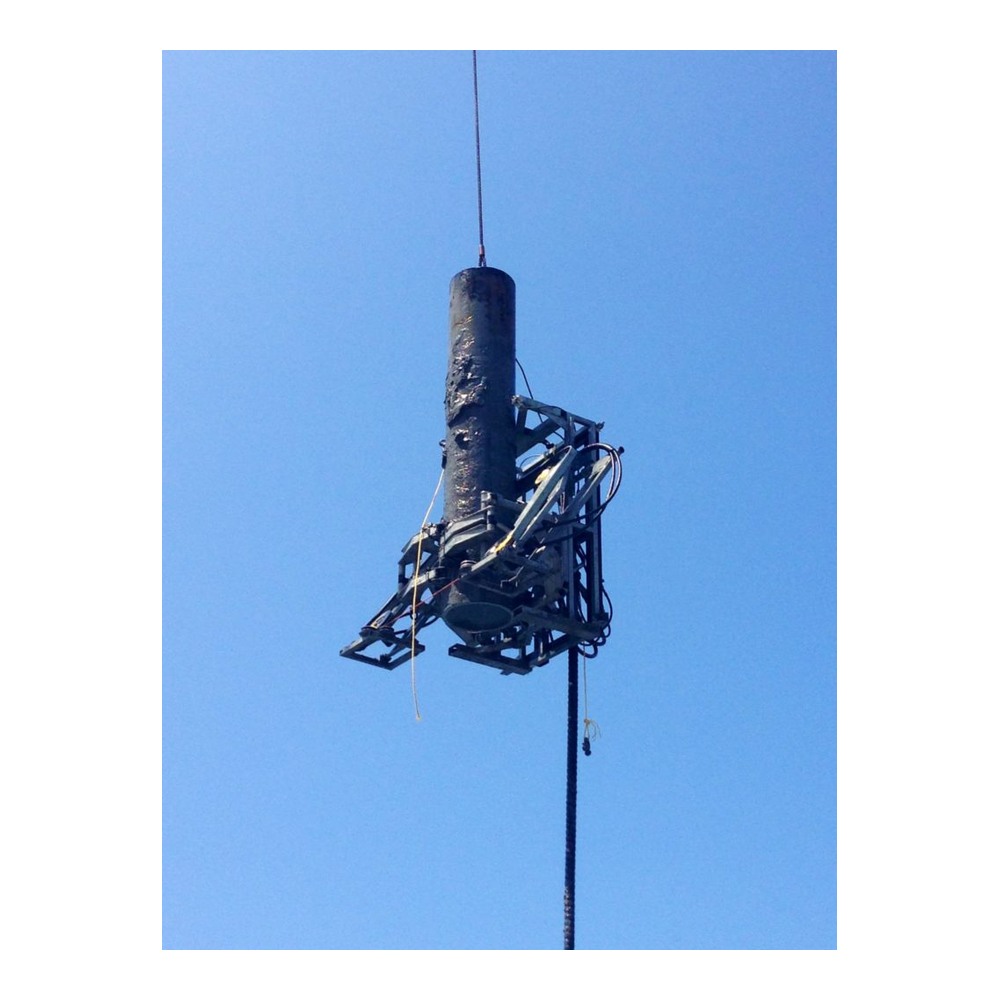

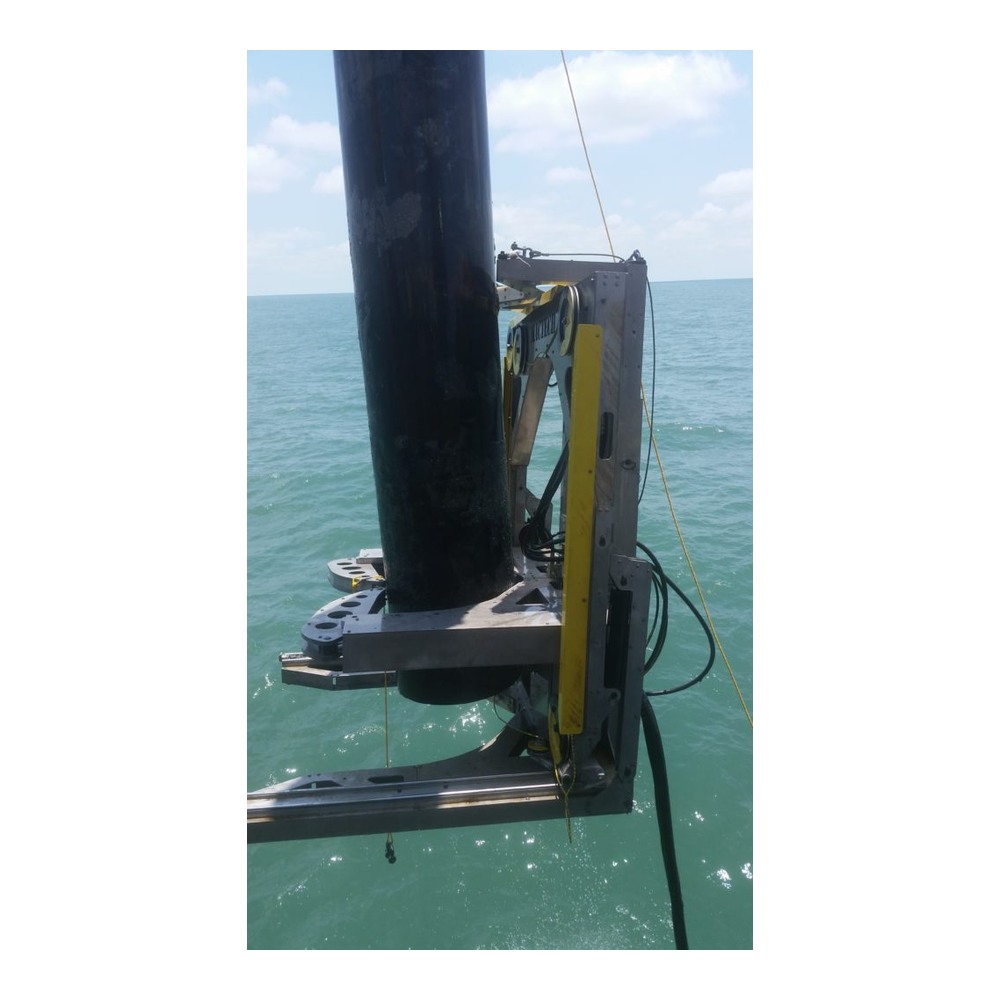

The articulating saw is designed for low-clearance work below the marine mudline. By reducing the excavation and dredging required around the cut, it can shorten preparation time. Its 22″ to 60″ cutting range supports heavy-wall structural legs, cross members, difficult conductor removal and other subsea cutting operations. The installation requires 24 inches of clearance around the casing, equivalent to the 2 ft working-clearance requirement.
| DWS-40a-AF-SS (620-7900) | DWS-60a-AF-SS (607-0084) | |
|---|---|---|
| Cutting Capacity | Ø 22″ – Ø 40″ (Ø 508 – Ø 1016 mm) | Ø 26″ – Ø 60″ (Ø 660 – Ø 1524 mm) |
| Operating Dimensions | 67″ x 105″ x 86″ (1,702 x 2,667 x 2184 mm) | 113″ x 109″ x 128″ (2,870 x 2,769 x 3251 mm) |
| Operating Weight (Dry) | 2,140 lbs / 1161 kg | 3,275 lbs / 1485 kg |
| Operating Weight (Wet) | 1790 lbs / 812 kg | 2158 lbs / 980 kg |
| Drive: Hydraulic Requirements | 15 gpm @ 3,000 psi 57 lpm @ 207 bar | 40 gpm @ 3,000 psi 151 lpm @ 207 bar |
| Feed: Hydraulic Requirements | .5 gpm @ 500 psi 2 lpm @ 34 bar | .5 gpm @ 1,500 psi 2 lpm @ 103 bar |
| Clamp: Hydraulic Requirements | .5 gpm @ 1,500 psi 2 lpm @ 103 bar | .5 gpm @ 1,500 psi 2 lpm @ 103 bar |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Mactech Articulating Diamond Wire Saw.
