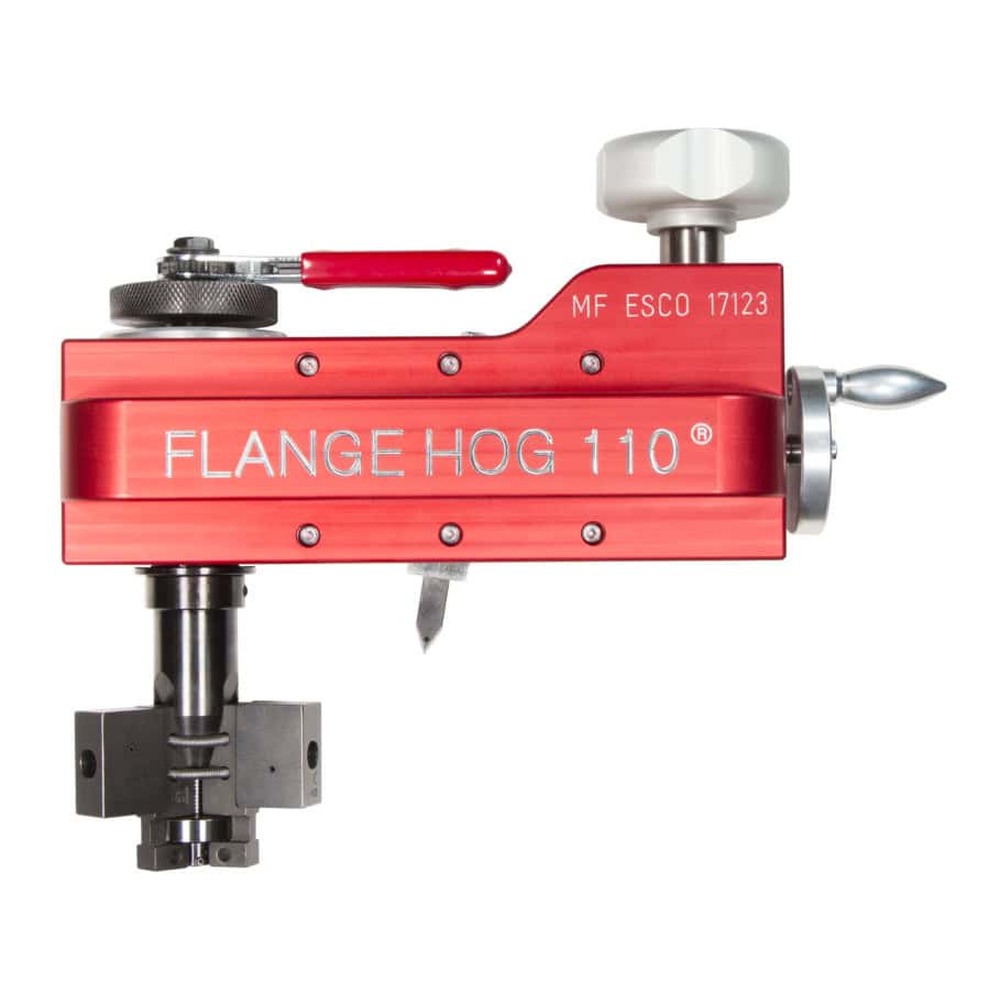

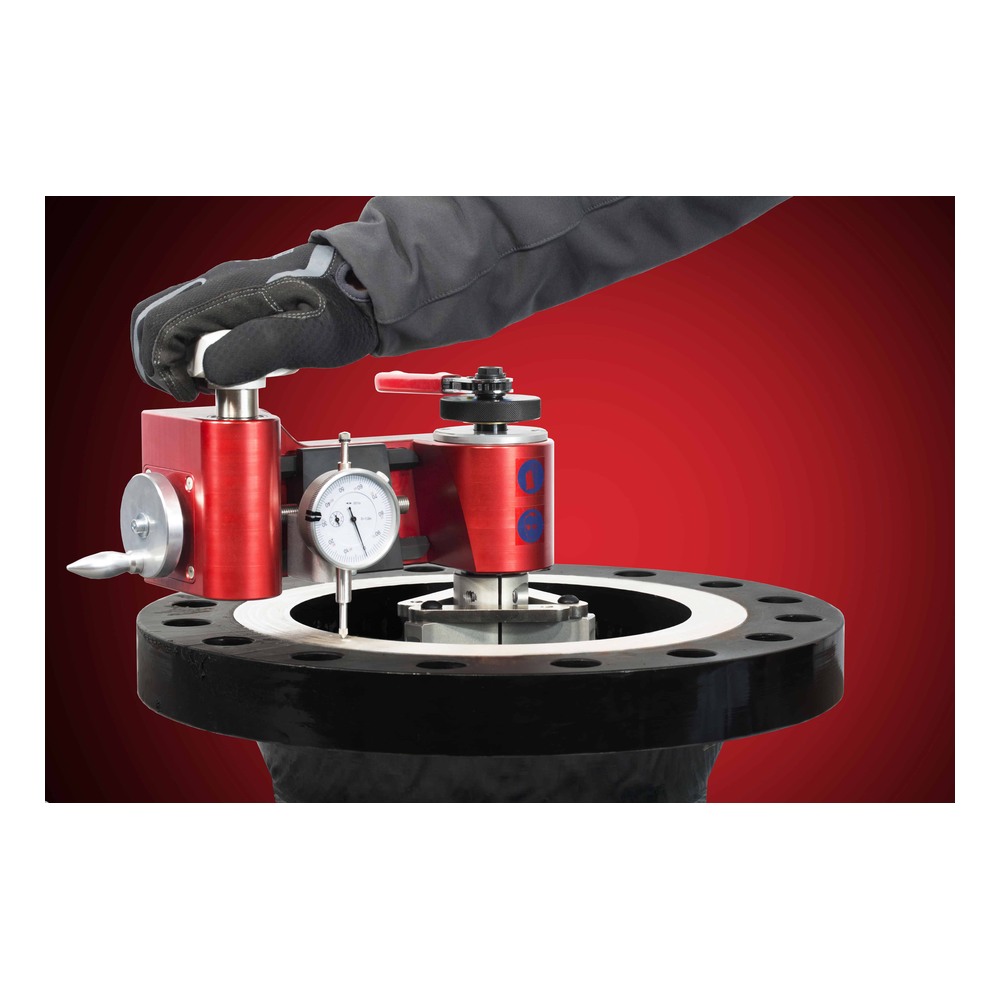

The FLANGE HOG 110 is a rugged, compact, manually-operated flange facer ideal for quickly reconditioning rusty, scarred, or worn flange gasket seats to like-new condition in minutes.

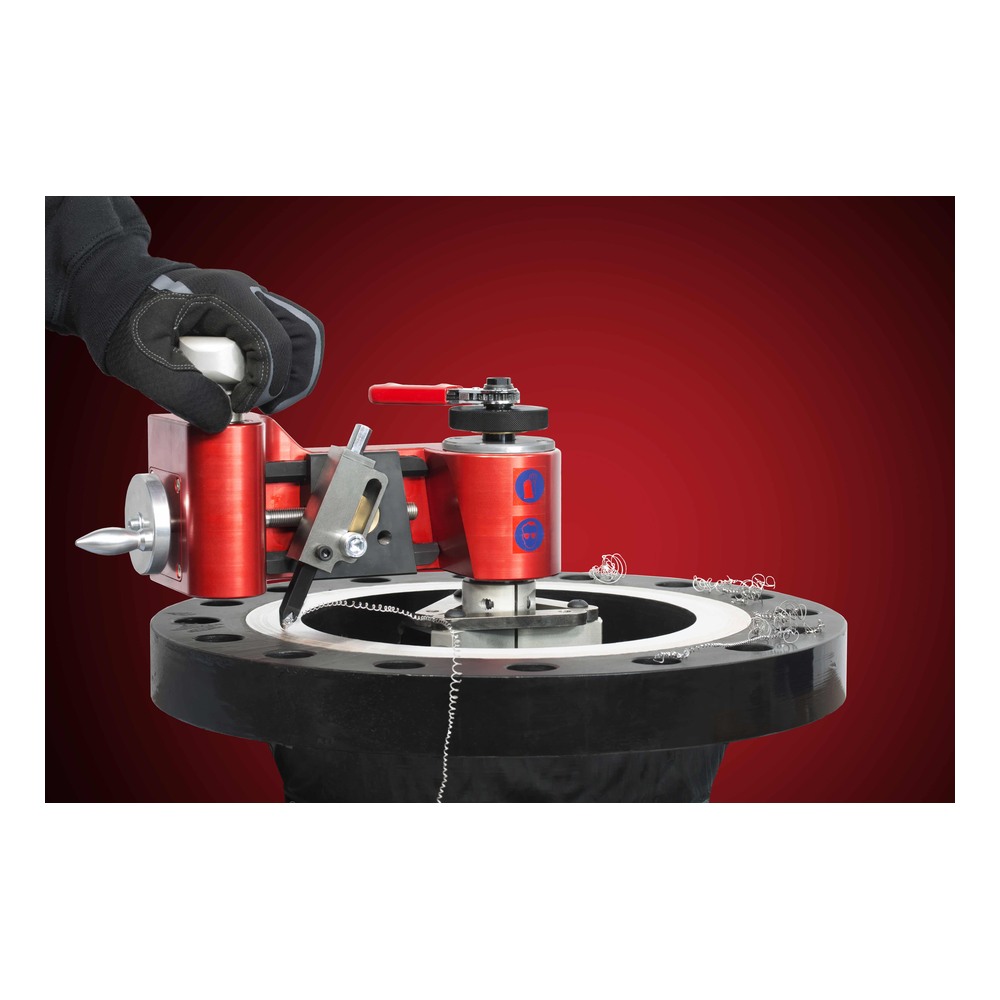

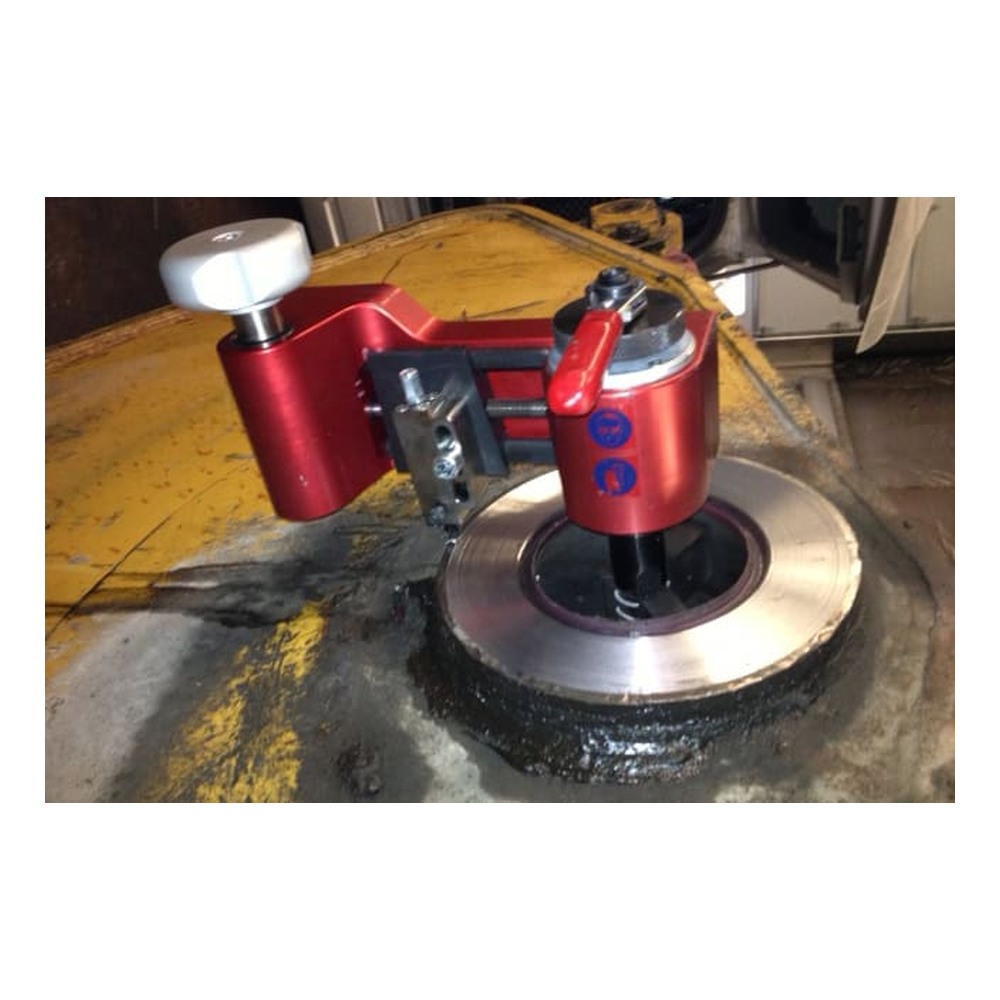

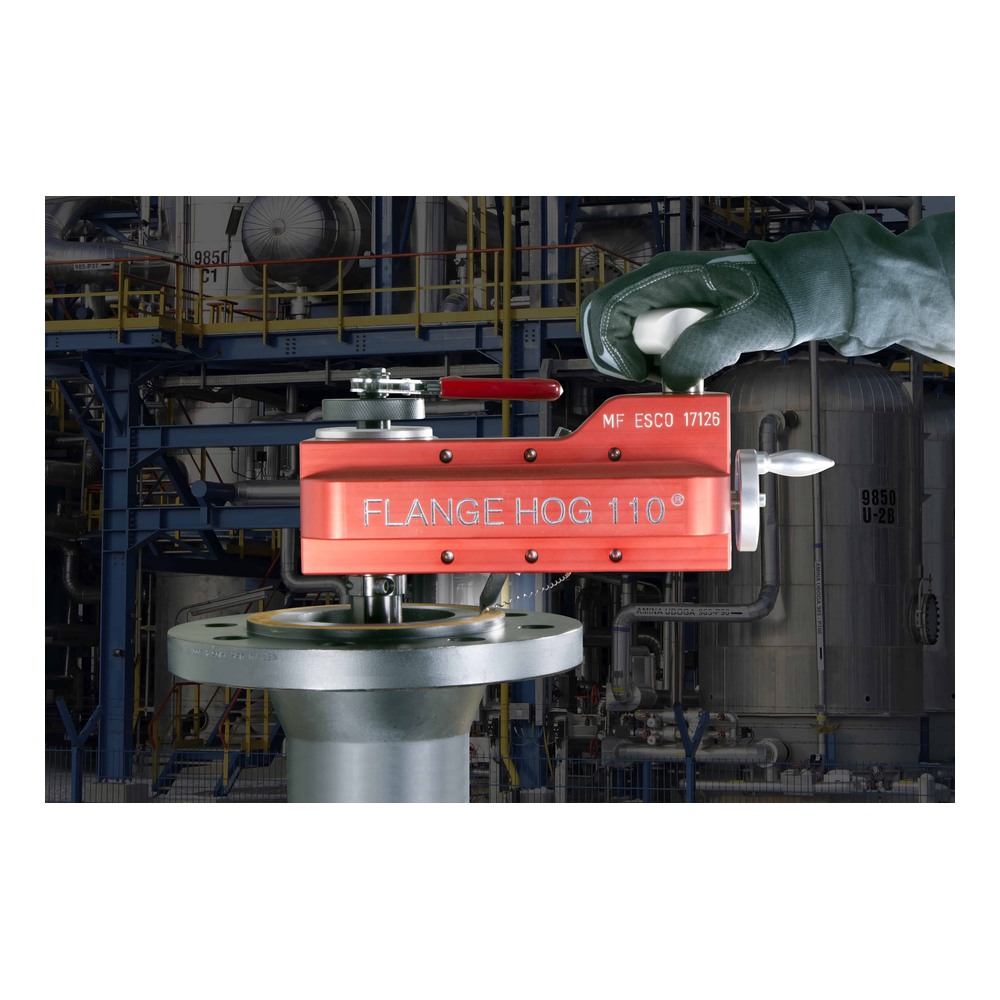

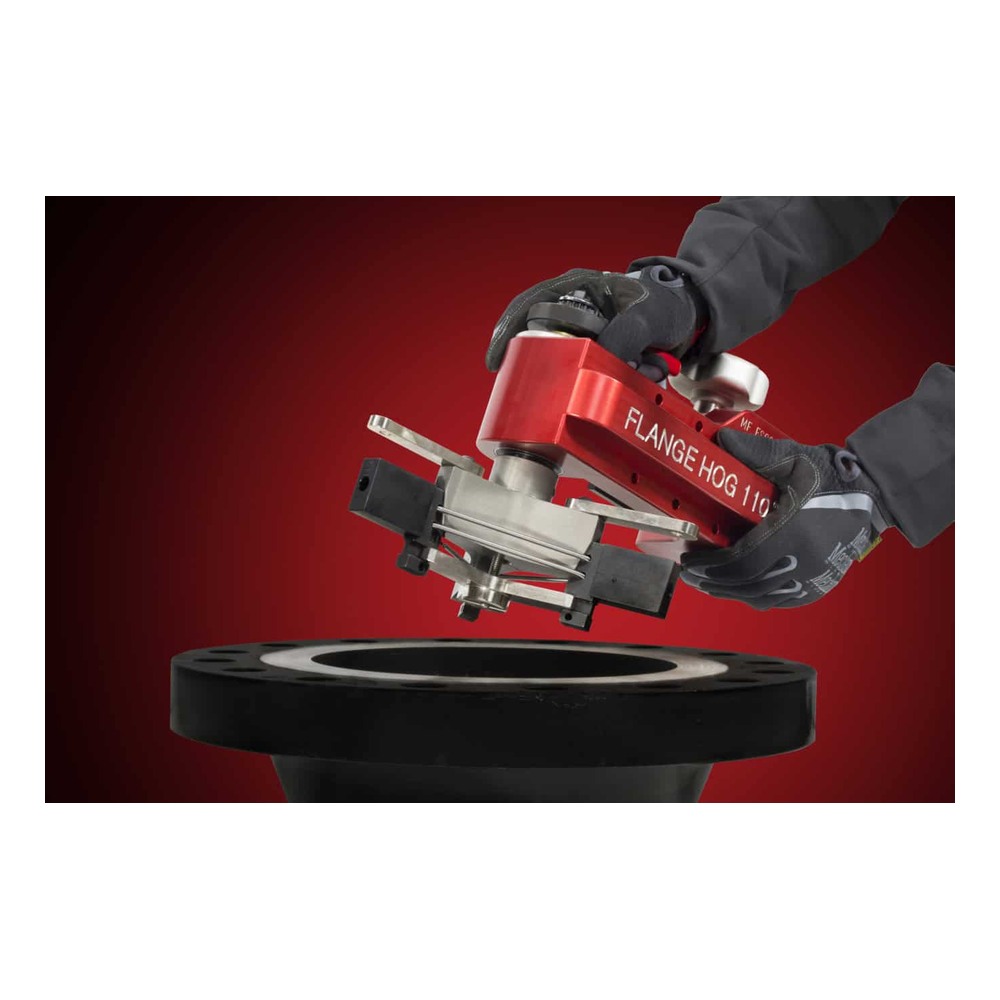

The FLANGE HOG 110 is rugged, compact and ideal for quickly reconditioning rusty, scarred or worn flange gasket seats to like-new condition in minutes. This easy to operate flange facing tool is perfect for re-facing raised-face and flat-faced flanges on site or in a fabrication/repair shop.

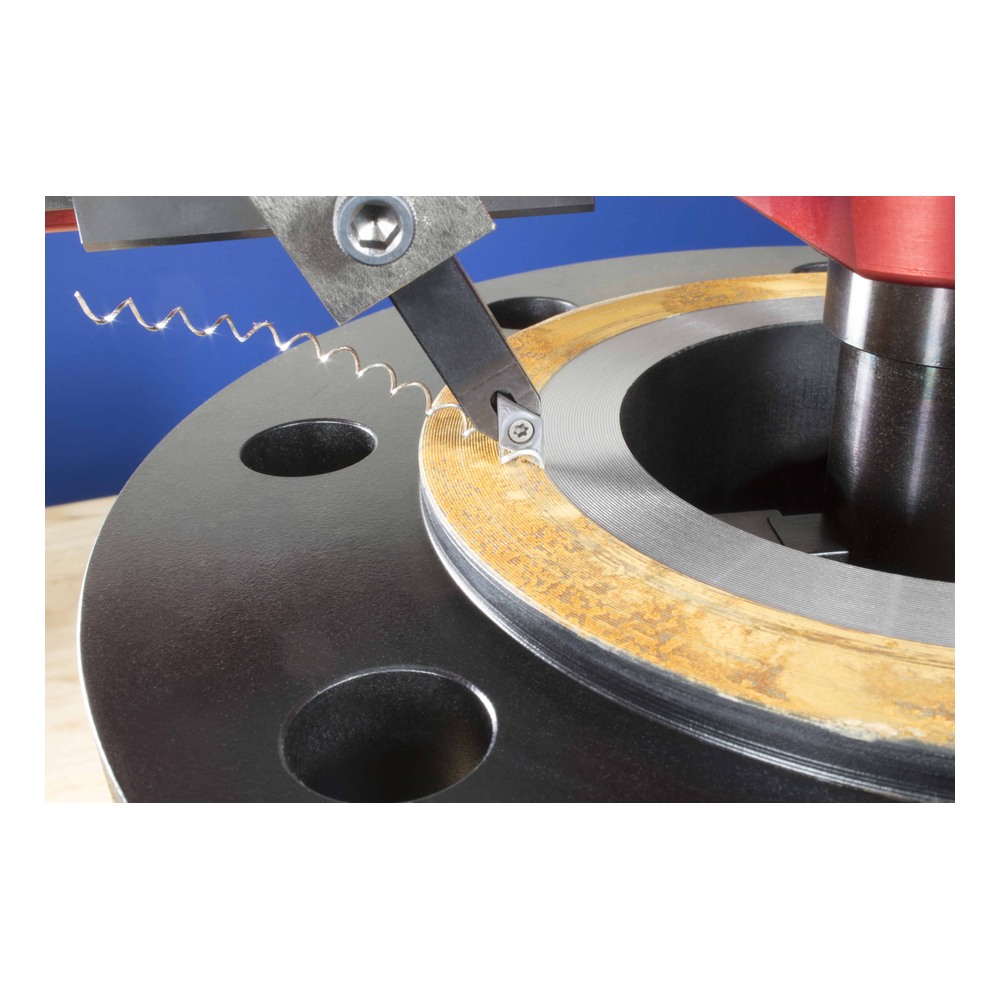

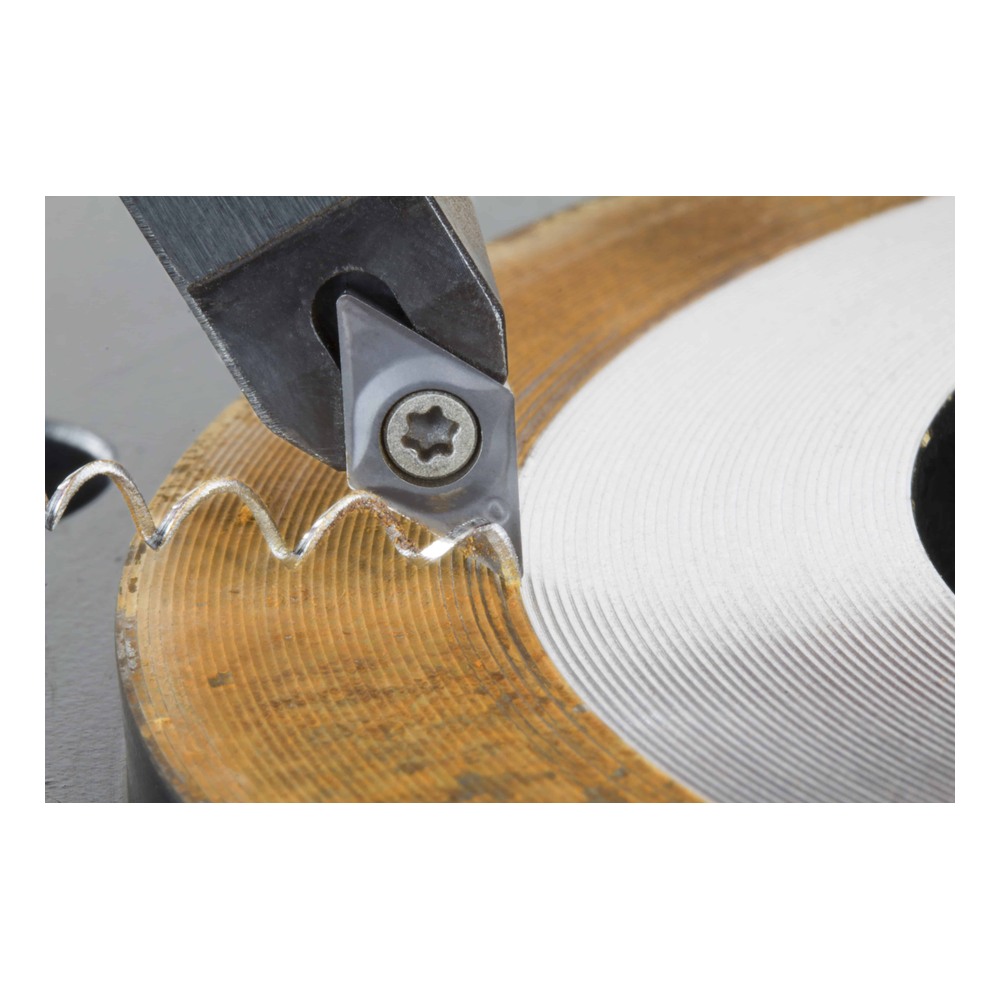

The FLANGE HOG 110 has a clamping range from 0.9″ / 22.9 mm to 10.3″ / 261.6 mm and can machine flanges with a reach up to 14″ / 355.6 mm O.D. The ESCO proprietary clamping system is simple to configure and designed for fast set up with accurate alignment. Cutting bits are double sided, long-lasting, and specially formed to cut through a wide variety of material including carbon steel, stainless steel, alloyed steel, aluminum and cast iron.
| Specification | Imperial | Metric |
|---|---|---|
| Working Range | 0.9″ I.D. – 14″ O.D. | 22.9 mm I.D. – 355.6 mm O.D. |
| Stock Finish | 250-500 μin | 6.3-12.5 μm |
| Smooth Finish (Optional) | 125-250 μin | 3.2-6.3 μm |
| Drive Type | Manual | Manual |
| Housing Width | 5.3″ | 134.6 mm |
| Housing Length | 9.4″ | 238.8 mm |
| Working Weight | 15.4 lbs | 7 kg |
| Shipping Weight | 42 lbs | 19.1 kg |
| Shipping Dimensions | 20.5″ × 9″ × 17″ | 521 mm × 229 mm × 432 mm |
| Wedge | Clamp Rib Set | I.D. Range (in) | I.D. Range (mm) |
|---|---|---|---|
| No Wedge | G-04 | 0.90 – 1.09 | 22.73 – 27.79 |
| G-05 | 1.02 – 1.22 | 25.78 – 30.89 | |
| G-06 | 1.12 – 1.34 | 28.91 – 34.01 | |
| Small Wedge | H-01 | 1.32 – 1.63 | 33.40 – 41.38 |
| H-02 | 1.52 – 1.94 | 38.63 – 49.28 | |
| H-03 | 1.83 – 2.26 | 46.43 – 57.30 | |
| H-04 | 2.15 – 2.58 | 54.56 – 65.41 | |
| H-02 & H-05 | 2.46 – 2.88 | 62.59 – 73.23 | |
| H-03 & H-05 | 2.78 – 3.20 | 70.51 – 81.26 | |
| H-04 & H-05 | 3.09 – 3.51 | 78.51 – 89.33 | |
| H-02 & H-08 | 3.41 – 3.83 | 86.49 – 97.36 | |
| H-03 & H-08 | 3.72 – 4.15 | 94.59 – 105.59 | |
| H-04 & H-08 | 4.04 – 4.47 | 102.72 – 113.64 | |
| H-02 & H-06 | 4.36 – 4.80 | 110.85 – 121.82 | |
| H-03 & H-06 | 4.69 – 5.12 | 119.02 – 130.00 | |
| H-04 & H-06 | 5.01 – 5.44 | 127.20 – 138.20 | |
| Large Wedge | H-01 | 5.30 – 5.57 | 134.62 – 141.58 |
| H-02 | 5.40 – 5.90 | 137.84 – 149.76 | |
| H-03 | 5.72 – 6.22 | 145.34 – 158.01 | |
| H-04 | 6.05 – 6.55 | 153.59 – 166.27 | |
| H-02 & H-05 | 6.33 – 6.83 | 160.76 – 173.38 | |
| H-03 & H-05 | 6.65 – 7.15 | 168.96 – 181.84 | |
| H-04 & H-05 | 6.98 – 7.48 | 177.19 – 189.87 | |
| H-02 & H-08 | 7.30 – 7.80 | 185.37 – 198.01 | |
| H-03 & H-08 | 7.62 – 8.12 | 193.60 – 206.27 | |
| H-04 & H-08 | 7.95 – 8.45 | 201.83 – 214.53 | |
| H-02 & H-06 | 8.27 – 8.77 | 210.06 – 222.73 | |
| H-03 & H-06 | 8.60 – 9.09 | 218.31 – 230.99 | |
| H-04 & H-06 | 8.92 – 9.42 | 226.57 – 239.24 | |
| H-02 & H-07 | 9.24 – 9.74 | 234.75 – 247.42 | |
| H-03 & H-07 | 9.57 – 10.07 | 243.00 – 255.70 | |
| H-04 & H-07 | 9.89 – 10.39 | 251.26 – 263.93 |
| Image | Accessory | Details |
|---|---|---|

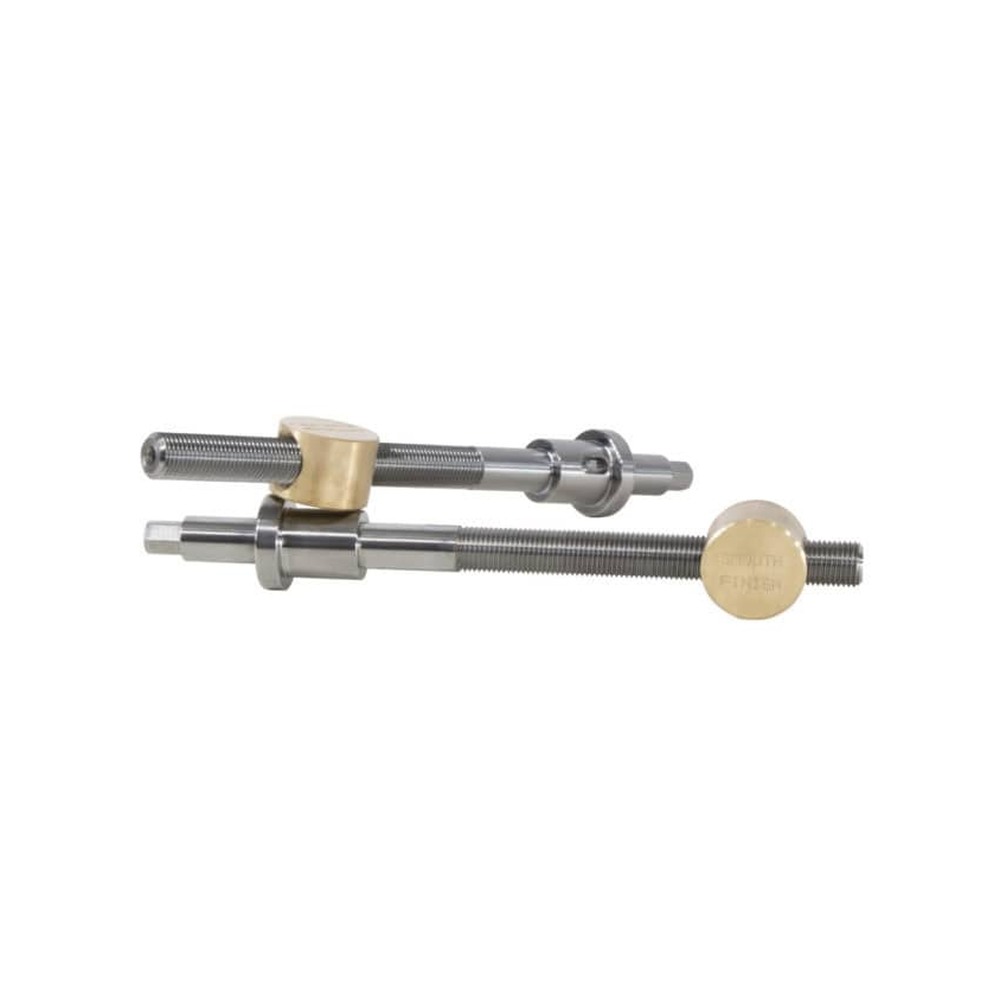

 | Smooth Feed – FL-27 & FL-29 | The Flange Hog 110 comes standard with a stock-finish feed shaft and nut but can be switched out for a smooth-finish feed. This smooth-finish will still appear to show machining marks but will face an average roughness of 125-250 μin / 3.2-6.3 μm.
|
