Overview

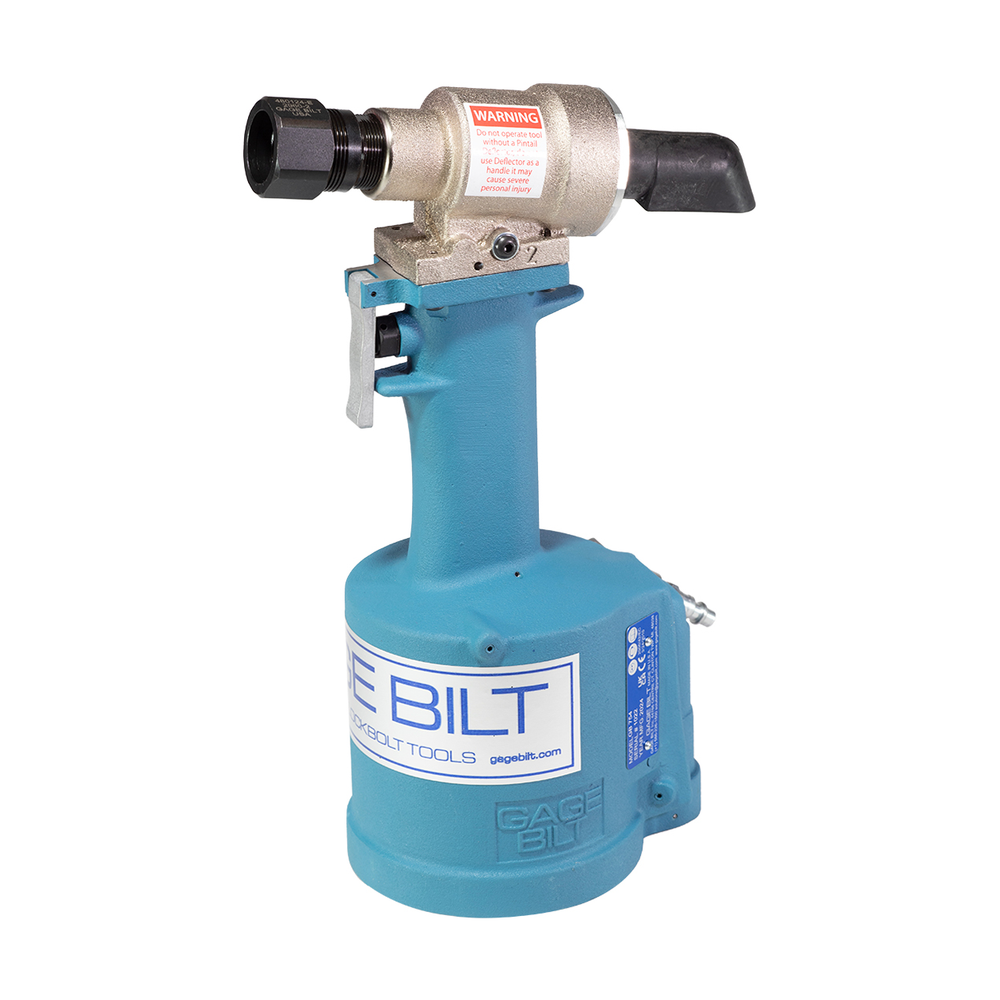

The GB754 is a pneumatic-hydraulic installation tool for blind rivets, lockbolts, and MAGNA-GRIP fasteners.
Product information and applications
Description
The GB754 is an installation tool designed specifically for the efficient installation of blind rivets, lockbolts and MAGNA-GRIP fasteners. It weighs just over 7.20 lbs. (3.26 kg) and can be operated in any position. It has a 0.460” (11.68 mm) fastener setting stroke and a rated pull load of 8,200 lbs. (36.47 kN) with 90 psi (6.2 bar) air pressure at the air inlet. The GB754 installation tool operates on 90 to 100 psi (6.2 – 6.9 bar) of air pressure, with 90 psi (6.2 bar) providing maximum efficiency. At 90 psi (6.2 bar) of air pressure, the GB754 does not exceed 81.5 dB(A) and consumes 0.30 SCF/cycle (8.50 L/cycle). The air inlet is provided with 1/4 – 18 female pipe thread for accepting the user's air hose fitting.
Additional product details

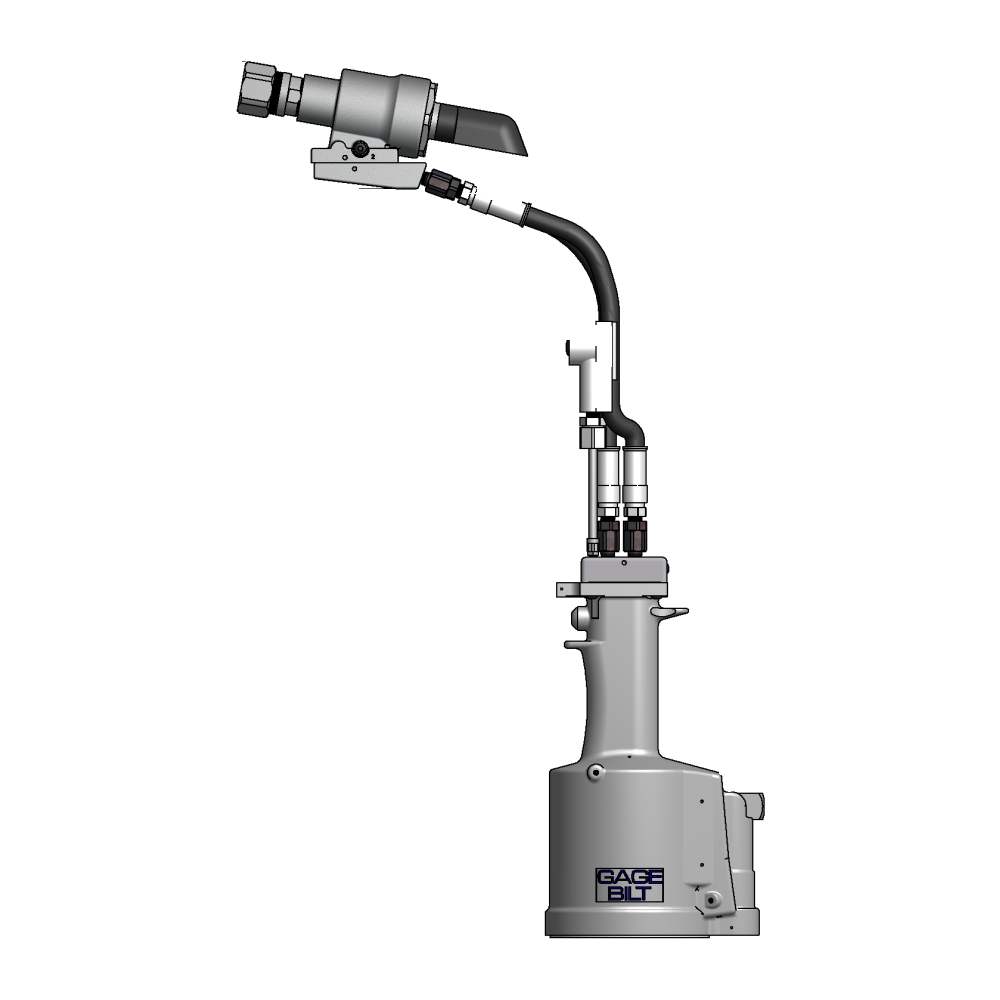

The GB754SH and GB754SR variants use a split configuration that reduces handheld weight; the GB754SH includes an 8 ft (2.4 m) hose and the GB754SR includes a 3 ft (1.5 m) hose.
Specifications and compatibility tables
GB754 Info:
| Weight | 7.20 lbs. (3.26 kg) |
|---|
| Rated Pull Load | 8,200 lbs. (36.47 kN) |
|---|
| Stroke | 0.460” (11.68 mm) |
|---|
| Width | 8.48 (215.5 mm) |
|---|
| Noise Level | 81.5 dB(A) |
|---|
| Warranty | 1 year |
|---|
ASP 2 ASP & ASP PF ASP FF & ASP F ASP-LC and MAF
| DIA. | STRAIGHT | **RIGHT ANGLE | *OFFSET |
|---|
| 13/64 | ASP06-745C-23 ASP06-745C-48 | ***ASP06-751B-54RA | ASP06-27OSSG ASP06-37OSSG |
| 17/64 | ASP08-745B-23 ASP08-745B-48 | | ASP08-27OSSG ASP08-37OSSG |
| 21/64 | ASP10-755-23 ASP10-755-48 | | ASP10-27OSSG ASP10-37OSSG |
BOM
| DIA. | STRAIGHT |
|---|
| 1/4 | BOM08-755A-23 |
COMMERCIAL LOCKBOLTS C6L AVDELOK
| DIA. | STRAIGHT | *OFFSET |
|---|
| 3/16 | NAS06-2581-12 NAS06-2581-48 NAS06-2581-23 | NAS06-25OSSG NAS06-30OSSG NAS06-34OSSG |
| 1/4 | NAS08-2581-12 NAS08-2581-48 NAS08-2581-23 | NAS08-25OSSG NAS08-30OSSG NAS08-34OSSG |
| 5/16 | LB10-745C-26 NAS10-2581-48 | NAS10-208C-31 |
| 3/8 | LB12-756-26 NAS12-756-48 | NAS12-208A-31 |
CONTAINER BOLT(R 12) HLPP, HLPM, HLPE, HLPS HLPSC & HLPSM
| DIA. | STRAIGHT |
|---|
| 3/8 | HT12-756-23 |
FLOOR BOLT
| DIA. | STRAIGHT |
|---|
| 5/16 | FT10-353A-28 |
LGP LOCKBOLT LGPL2SC-V BACB30VM LGPL18SC-V BACB30XT LGPL4SC-V ABS0548 LGPL2SP-V BACB30VN LGPL4SP-V ASNA2392 LGPL8SC-V BACB30WD LGPL9SC-V BACB30WB LGPL9SP-V BACB30VY BACB31N BACB31P
| DIA. | STRAIGHT | *OFFSET |
|---|
| 5/32 | LGP05-2581-12 LGP05-2581-23 LGP05-2581-48 | LGP05-25OSSG LGP05-30OSSG LGP05-34OSSG |
| 3/16 | LGP06-2581-12 LGP06-2581-23 LGP06-2581-48 | LGP06-25OSSG LGP06-30OSSG LGP06-34OSSG |
| 7/32 | LGP07-2581-12 LGP07-755-23 LGP07-755-48 | LGP07-25OSSG LGP07-30OSSG LGP07-34OSSG |
| 1/4 | LGP08-2581-12 LGP08-2581-23 LGP08-2581-48 | LGP08-25OSSG LGP08-30OSSG LGP08-34OSSG |
| 5/16 | LGP10-2581-12 LGP10-2581-23 LGP10-2581-48 | LGP10-208C-31 |
MLGP (MILLIMETER) LOCKBOLT
| DIA. | STRAIGHT | *OFFSET |
|---|
| 4 mm | MLGP4-2581-12 MLGP4-2581-23 MLGP4-2581-48 | MLGP4-25OSSG MLGP4-30OSSG MLGP4-34OSSG |
| 5 mm | MLGP5-2581-12 MLGP5-2581-23 MLGP5-2581-48 | MLGP5-25OSSG MLGP5-30OSSG MLGP5-34OSSG |
| 6 mm | MLGP6-2581-12 MLGP6-2581-23 MLGP6-2581-48 | MLGP6-25OSSG MLGP6-30OSSG MLGP6-34OSSG |
| 8 mm | MLGP8-2581-12 MLGP8-2581-23 MLGP8-2581-48 | |
NAS and GP SHEAR/TENSION LOCKBOLTS BACB30TY BACB30UA BACB30TZ BACB30UB BACB30DY BACB30GX BACB30DX BACB30GP BACB30GO BACB30GY BACB30GW
| DIA. | STRAIGHT | *OFFSET |
|---|
| 5/32 | NASS05-2581-12 NAST05-2581-12 NASS05-2581-23 NAST05-2581-23 NASS05-2581-48 NAST05-2581-48 | NASS05-25OSSG NAST05-25OSSG NASS05-30OSSG NAST05-30OSSG NASS05-34OSSG NAST05-34OSSG |
| 3/16 | NAS06-2581-12 NAS06-2581-23 NAS06-2581-48 | NAS06-25OSSG NAS06-30OSSG NAS06-34OSSG |
| 1/4 | NAS08-2581-12 NAS08-2581-23 NAS08-2581-48 | NAS08-25OSSG NAS08-30OSSG NAS08-34OSSG |
| 5/16 | NAS10-2581-12 NAS10-2581-23 NAS10-2581-48 | NAS10-208C-31 |
MGP (MILLIMETER) LOCKBOLT
| DIA. | STRAIGHT | *OFFSET |
|---|
| 4 mm | MGP4-2581-23 MGP4-2581-48 | MGP4-25OSSG MGP4-30OSSG MGP4-34OSSG |
| 5 mm | MGP5-2581-23 MGP5-2581-48 | MGP5-25OSSG MGP5-30OSSG MGP5-34OSSG |
| 6 mm | MGP6-2581-23 MGP6-2581-48 | MGP6-25OSSG MGP6-30OSSG MGP6-34OSSG |
| 8 mm | MGP8-2581-23 MGP8-2581-48 | |
MAGNA-GRIP, MULTI-GRIP, MAXLOK LOCKBOLTS
| DIA. | STRAIGHT |
|---|
| 3/16 | MG06-745-24 MG06-745-48 |
| 1/4 | MG08-745-24 MG08-745-48 |
MAGNA-LOK, MAGNA-BULB & HEMLOK COUNTER SUNK AND PROTRUDING HEAD SERRATED STEM STRUCTURAL RIVETS
| DIA. | STRAIGHT |
|---|
| 1/4 | **MGL08-752A-21 |
| 5/16 | MGL10-353-28 |
| 3/8 | MGL12-353C-28 |
OVERSIZE STRUCTURAL RIVET
| DIA. | STRAIGHT |
|---|
| 1/4 | OS08-353A-48 |
| 5/16 | OS10-756-26 OS10-756-48 |
| 3/8 | OS12-756A-26 OS12-756A-48 |
MS90353S & U / MS90354S & U MS21140S & U / MS21141S & U MAXIBOLT, BACB30YY, YU, & YT CR7000 SERIES BLIND BOLT (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER
| DIA. | STRAIGHT | **RIGHT ANGLE | *OFFSET |
|---|
| 5/32 | SB05-745C-23 SB05-745C-48 | ***SB05-751C-54RA | SB05-27OSSG SB05-37OSSG |
| 3/16 | SB06-745B-23 SB06-745B-48 | ***SB06-751B-54RA | SB06-27OSSG SB06-37OSSG |
| 1/4 | SB08-755-23 SB08-755-48 | ****SB08-713A-58RA | SB08-27OSSG SB08-37OSSG SB08-205A-35 |
MS90353S & U / MS90354S & U MS21140S & U / MS21141S & U MAXIBOLT, BACB30YY, YU, & YT CR7000 SERIES BLIND BOLT (SINGLE ACTION) WITH DRIVE WASHER
| DIA. | STRAIGHT | **RIGHT ANGLE | *OFFSET |
|---|
| 5/32 | UBB05-745C-23 UBB05-745C-48 | ***UBB05-751C-54RA | UBB05-27OSSG UBB05-37OSSG |
| 3/16 | UBB06-745B-23 UBB06-745B-48 | ***UBB06-751B-54RA | UBB06-27OSSG UBB06-37OSSG |
| 1/4 | UBB08-755-23 UBB08-755-48 | ****UBB08-713A-58RA | UBB08-27OSSG UBB08-37OSSG |
FOOTNOTES
| GB754 installs the listed fasteners |
|---|
| *ALL OFFSET OSSG SERIES NOSES REQUIRE 353206-1 ADAPTER. *ALL OFFSET 208 SERIES NOSES REQUIRE 745208 ADAPTER. **NOSE REQUIRES 745751 ADAPTER |
|---|
| ***-54RA RIGHT ANGLE SERIES NOSES REQUIRE 745751 ADAPTER WITH 754152 STROKE LIMITER |
|---|
| ****-58RA RIGHT ANGLE NOSES REQUIRE 745751 ADAPTER. |
|---|
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
|---|

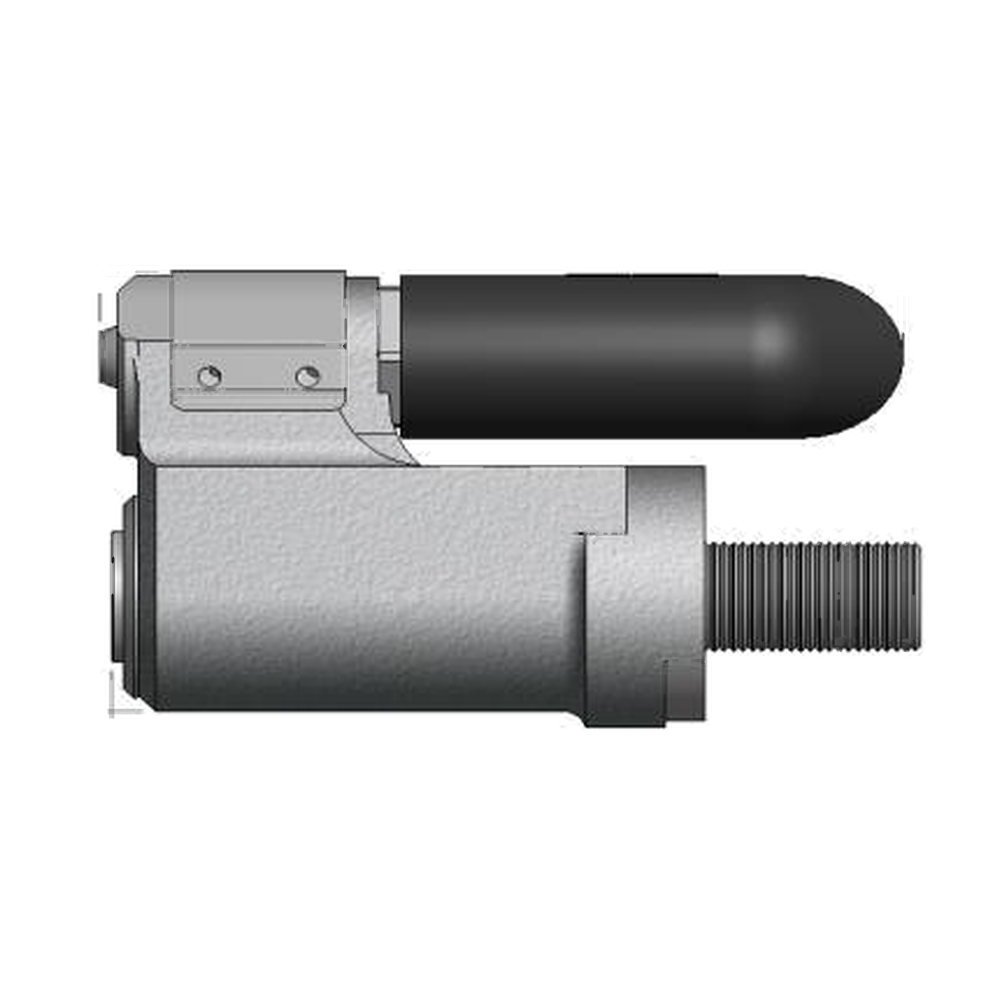

Compatible nose assemblies
