בית » מוצרים » Honsel RivSmart eBZ ZERO S Smart Battery-Powered Blind Rivet Tool

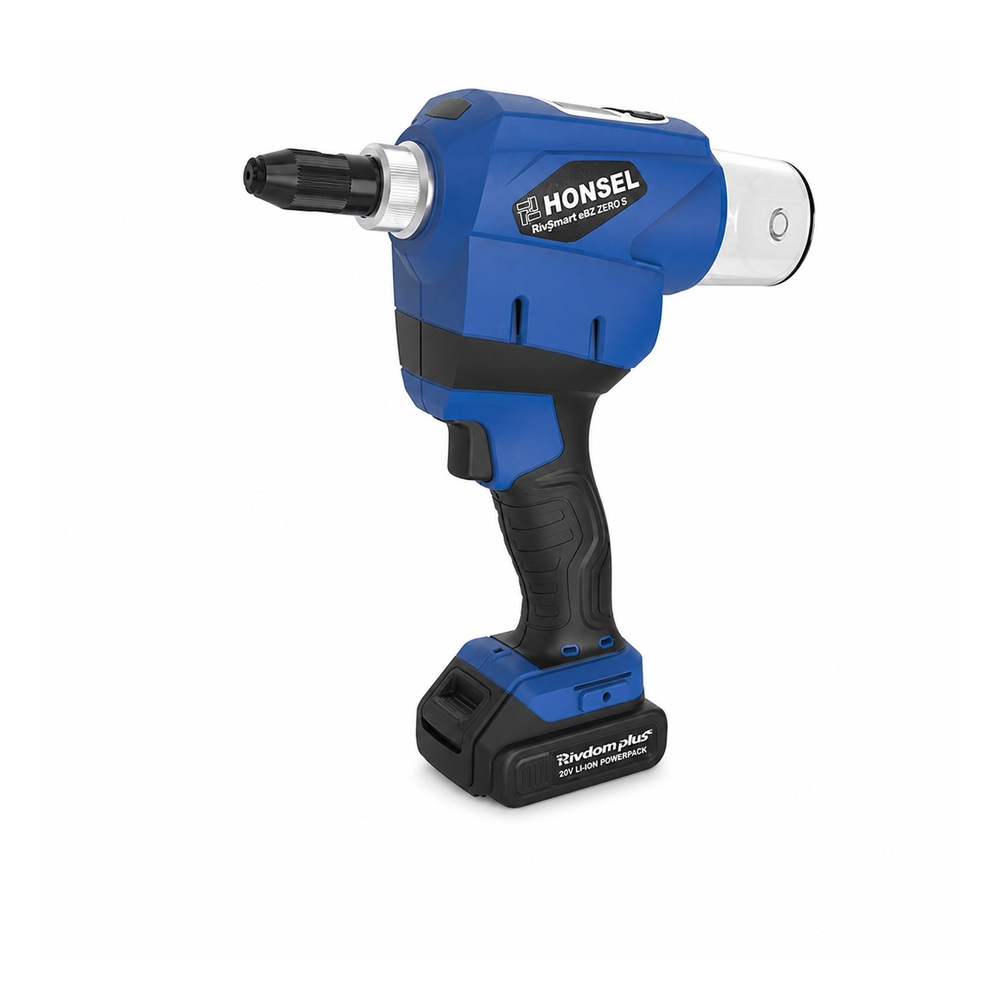

Honsel RivSmart eBZ ZERO S Smart Battery-Powered Blind Rivet Tool

Name: Honsel RivSmart eBZ ZERO S Smart Battery-Powered Blind Rivet Tool
Brand: Honsel

A smart cordless blind rivet tool with integrated process monitoring for diameters up to 4.0 mm, data logging and 6,800 N pulling force.

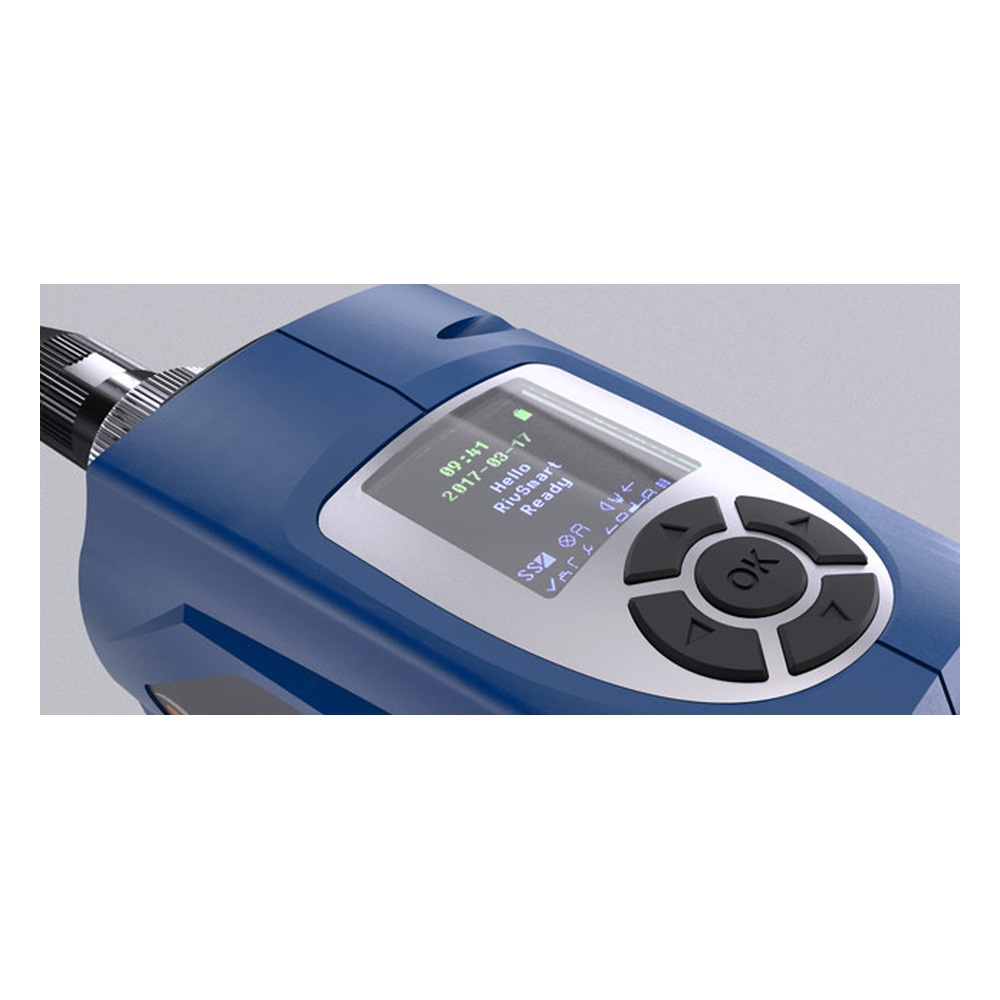

The Honsel RivSmart eBZ ZERO S combines blind-rivet installation with process control and documentation. Its DMSD-lite system records tool data, cycle time, counters, errors, stroke and force for production environments that require traceability.

Key Features

Riveting-process monitoring and control
Integrated DMSD-lite system
DMSD 2G or PLC connection options
Logging of time, counter, errors, stroke and force
Broad accessory range

Technical Specifications

Parameter	Value
Application	Blind rivets up to 4.0 mm (5/32 in)
Pulling force	6,800 N
Stroke	20 mm
Weight with battery	1.3 kg
Weight without battery	1.1 kg
Maximum mandrel diameter	3.4 mm
Settings per battery	More than 1,100 rivets with a 2.0 Ah battery

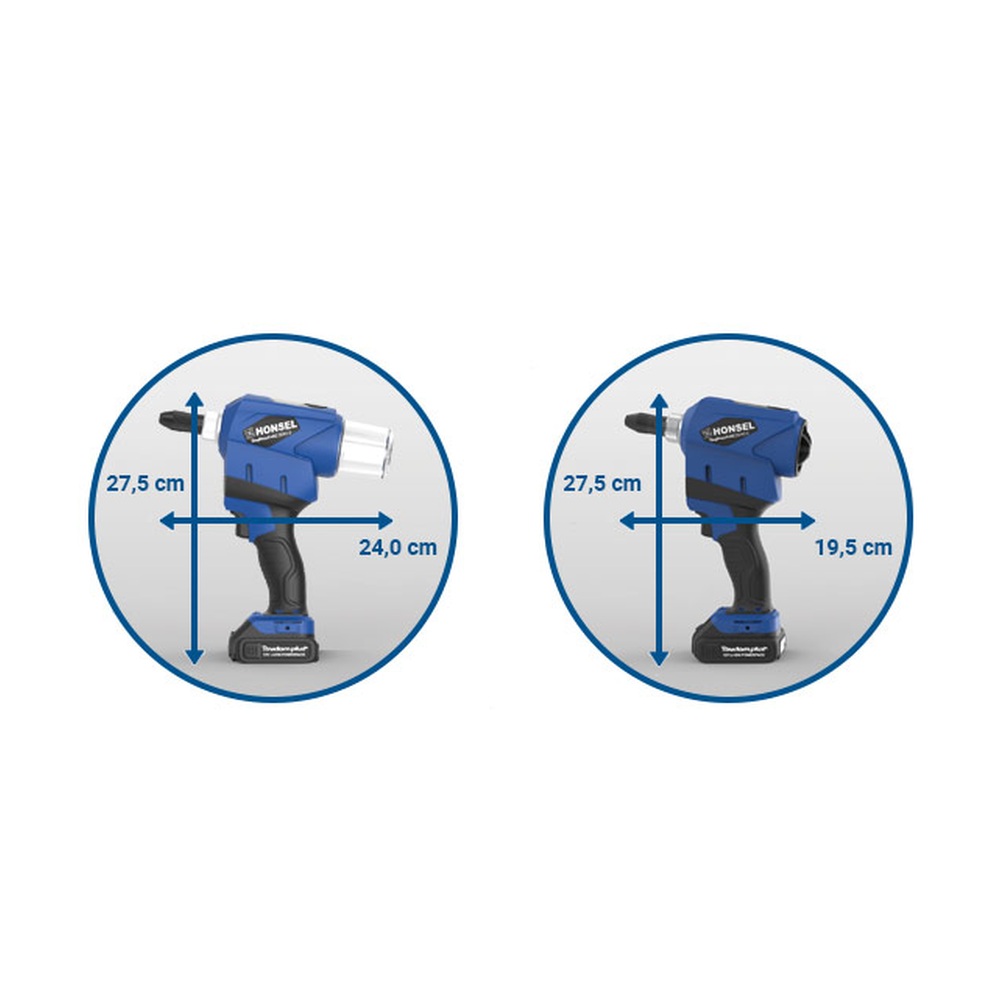

Length without mandrel collector	195 mm
Charging time	22 min to 90%; less than 30 min to full charge
Battery platform	Rivdom-PLUS 12 V

Blind Rivet Capacity by Material and Diameter - Metric

Material	2.0 mm	2.4 mm	3.0 mm	3.2 mm	4.0 mm
Aluminum	o	✓	✓	✓	✓
Steel	o	✓	✓	✓	✓
Stainless Steel A2	o	✓	✓	✓	✓
Copper	o	✓	✓	✓	✓

Table symbols

Processing possible

Processing possible with optional equipment

Blank cell - Not supported by the tool

Blind Rivet Capacity by Material and Diameter - Inch

Material	5/64″	3/32″	1/8″	5/32″
Aluminum	o	✓	✓	✓
Steel	o	✓	✓	✓
Stainless Steel A2	o	✓	✓	✓
Copper	o	✓	✓	✓

Table symbols

Processing possible

Processing possible with optional equipment

Blank cell - Not supported by the tool

Ordering Configurations

SKU	Battery quantity	Battery	Charger	Packaging
320200000000-010	1	12 V, 2.0 Ah	Included	L-Boxx
320200000000-020	2	12 V, 2.0 Ah	Included	L-Boxx

Included Items

Tool
Battery quantity according to version
Charger
4 nosepieces
S-size mandrel collector
Belt clip
Tool hanger
Protective cap
Rivet application plate

Accessories and Spare Parts

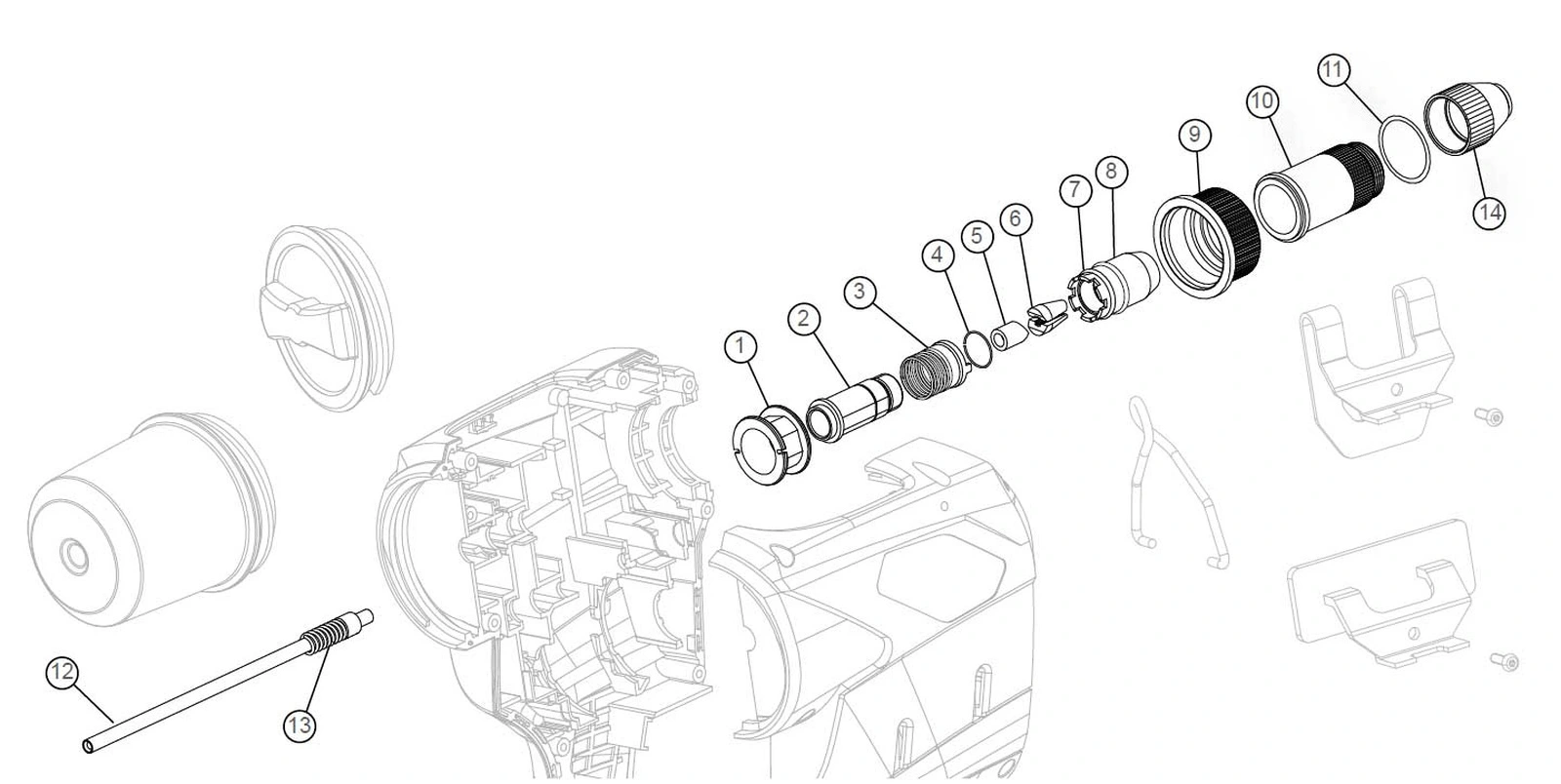

SPARE AND WEAR PARTS

No.	Item no.	Description
1	321200000020	Dummy-Sensorring
2	321200000054	Spacer
3	321200000055	Quick release ring + spring
4	321200000056	Quick release c-ring
5	321200000017	Guide sleeve (various Ø)
6	311002000132	Clamping jaws (1 set = 2 pcs.)

SPARE AND WEAR PARTS

No.	Item no.	Description
7	321200000010	O-Ring 14 x 1.0
8	321200000016	Clamping sleeve
9	321200000018	Union ring (silver)
10	321200000015	Front sleeve incl. O-Ring
11	321200000019	O-Ring 14 x 1.0
12	321200000049	Mandrel discharge tube (various Ø)
13	321200000014	Pressure spring

STANDARD NOSE PIECES

No.	Item no.	Description
14	321200000121	Standard nosepiece 2.0 mm
14	321200000122	Standard nosepiece 2.4 mm

STANDARD NOSE PIECES

No.	Item no.	Description
14	321200000123	Standard nosepiece 3.0/3.2 mm
14	321200000124	Standard nosepiece 4.0 mm

ACCESSORIES

Item no.	Description
321200000021	Li-Ion RivdomPLUS battery 12V/2,0Ah
321200000022	Li-Ion RivdomPLUS battery 12V/4,0Ah
321500000001	Universal quick charger 200 V (12 V/16 V/20 V)
321500000003	Multiple charging station
321500000004	Adapter multiple charging station for 1 x RivdomPLUS battery

ACCESSORIES

Item no.	Description
321200000031	Mandrel container S (5.5 cm)
321300100031	Mandrel container L (8.0 cm)
321401000030	Mandrel container L+ (8.0 cm)
321501000030	Mandrel container XL+ (11.0 cm)
321200000018	Union ring (blue)
321200000018	Union ring (gold)
321200000018	Union ring (red)
321200000018	Union ring (black)
321200000029	Hanger
321200000006	Belt clip
321200000005	Name plate
321401000004	Cover cap

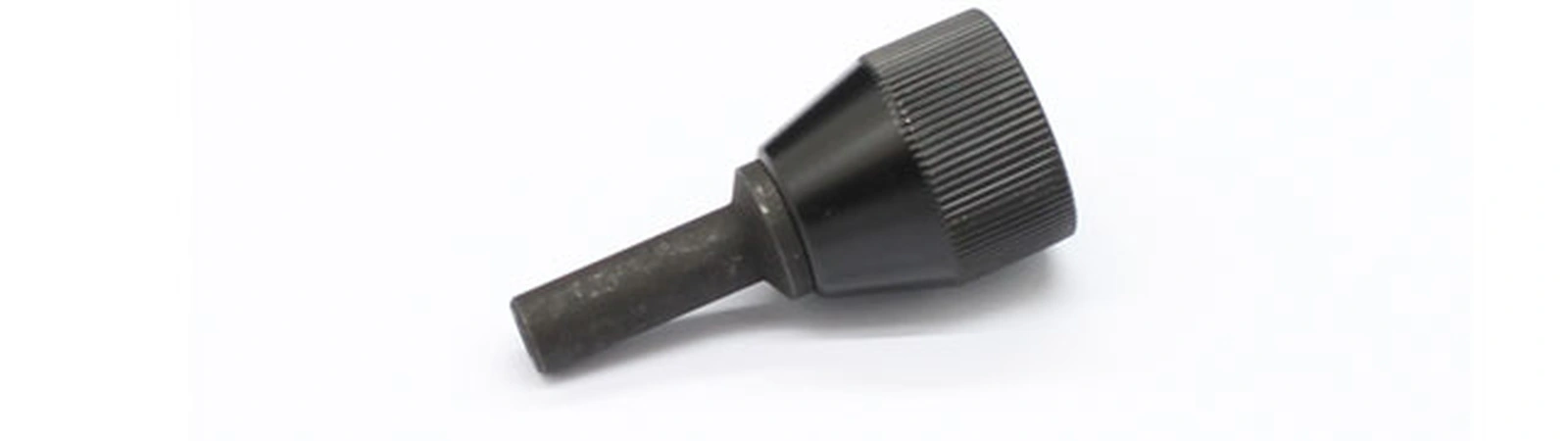

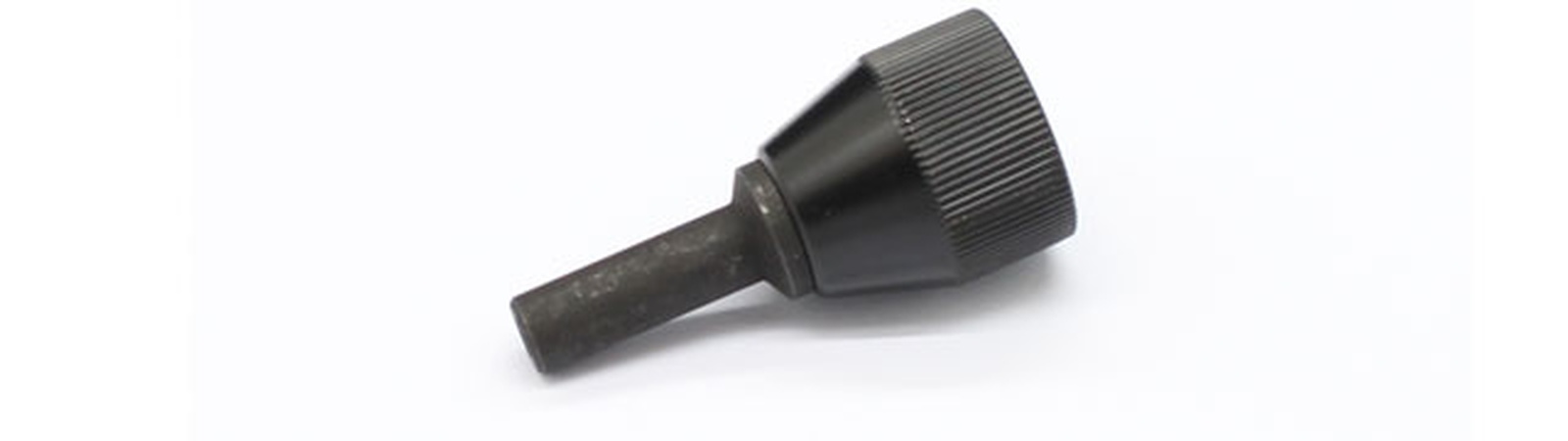

SPECIAL NOSE PIECES

Item no.	Description
321200932070	Extended nose piece (7 mm) 3.0/3.2 mm
321200940070	Extended nose piece (7 mm) 4.0 mm

SPECIAL NOSE PIECES

Item no.	Description
321200932200	Extended nose piece (20 mm) 3.0/3.2 mm
321200940200	Extended nose piece (20 mm) 4.0 mm

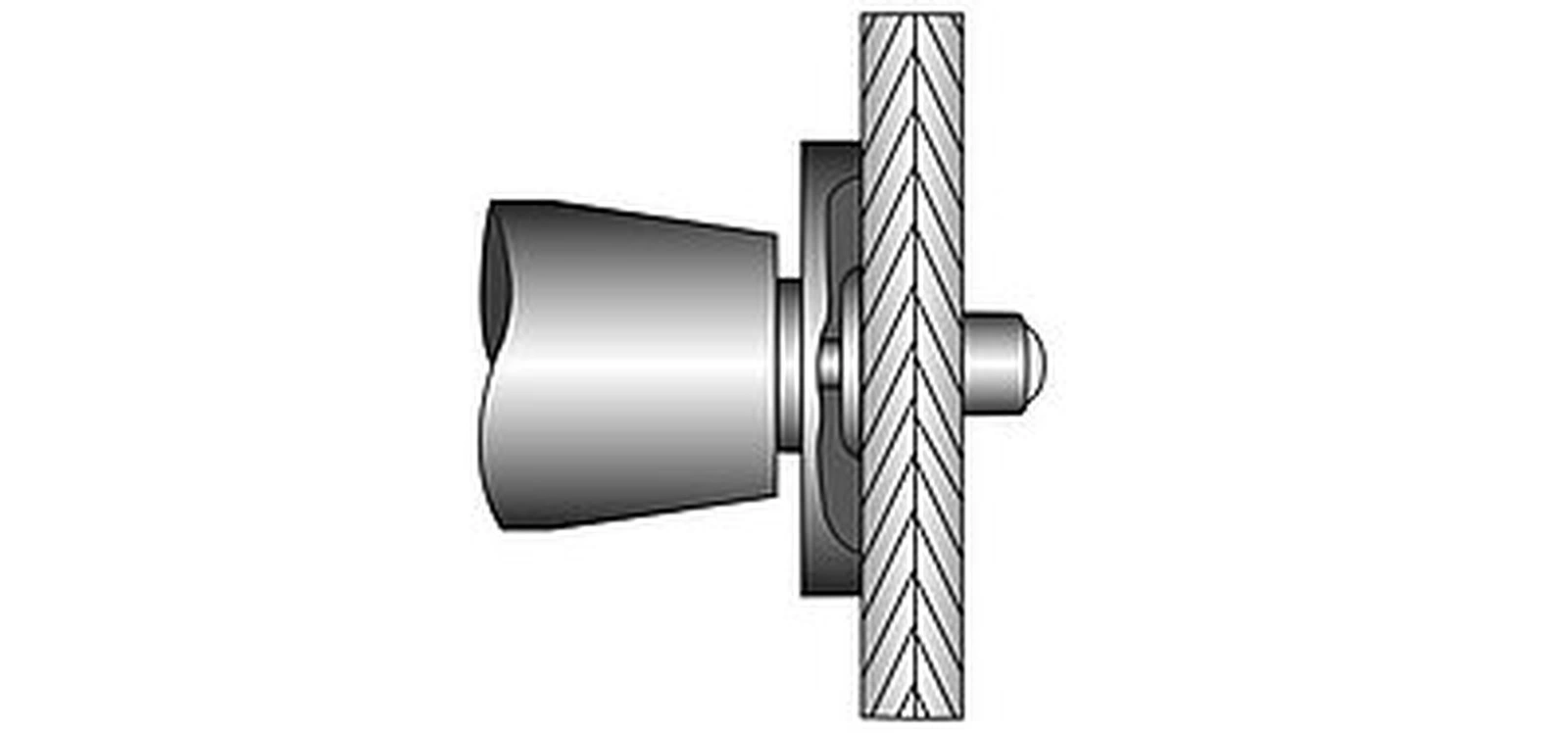

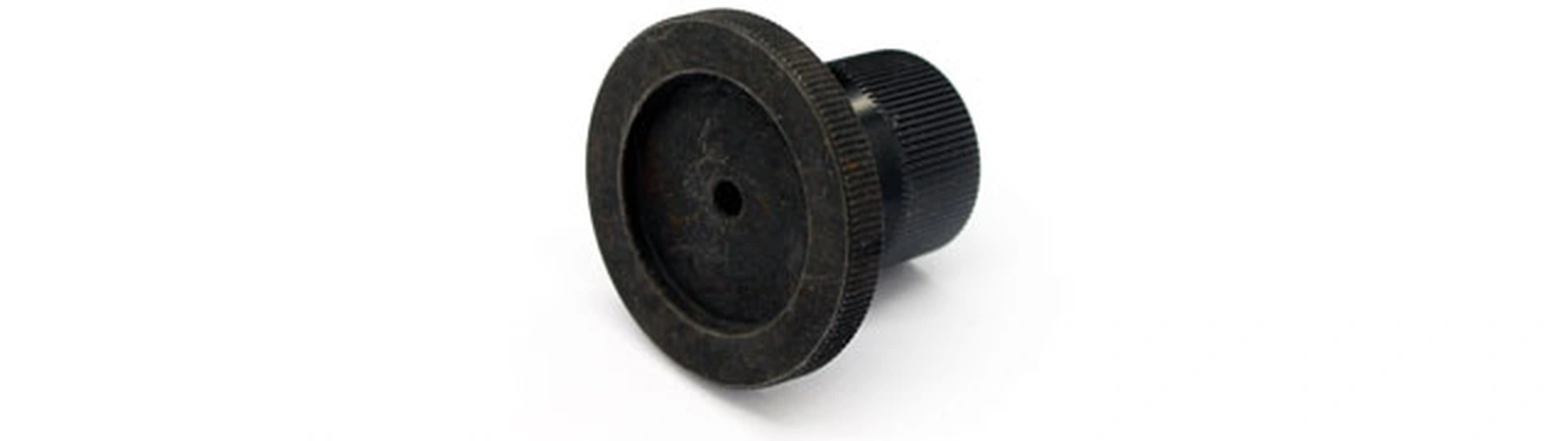

SPECIAL NOSE PIECES

Item no.	Description
321200000416	Facade nose piece head 16.0 mm
321200000424	Facade nose piece head 24.0 mm

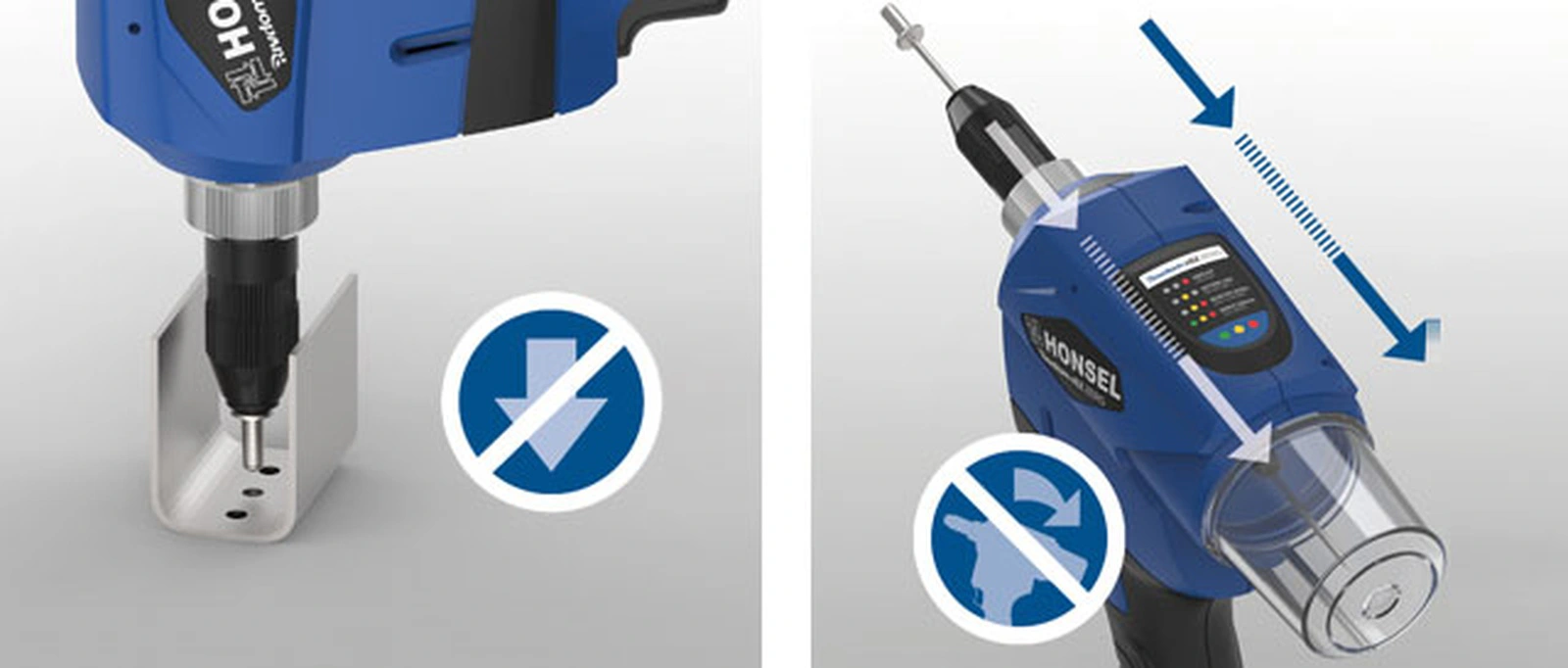

RETENTION NOSE PIECES

S	No.	Item no.	Description
≤1,7		321120000224-0-1	SET from position 1, 2 and 3
	1	321200000132-01-1	Retention nose piece 2.4/3.2 mm
	2	321200000017-0-4	Guide sleeve
	3	321200000049-0-4	Mandrel discharge tube

RETENTION NOSE PIECES

S	No.	Item no.	Description
≤2,2		321120000232-0-1	SET from position 1, 2 and 3
	1	321200000134-01-1	Retention nose piece 3.0/3.2 mm
	2	321200000017-0-3	Guide sleeve
	3	321200000049-0-3	Mandrel discharge tube

RETENTION NOSE PIECES

S	No.	Item no.	Description
≤2,7		321120000240-0-1	SET from position 1, 2 and 3
	1	321200000136-01-1	Retention nose piece 4.0 mm
	2	321200000017-0-2	Guide sleeve
	3	321200000049-0-2	Mandrel discharge tube

Extended retention nose pieces 7.0 mm

S	Item no.	Description
≤1,7	321200924070-01-1	(7 mm) 2.4 mm
≤2,2	321200932070-01-1	(7 mm) 3.0/3.2 mm
≤2,7	321200940070-01-1	(7 mm) 4.0 mm

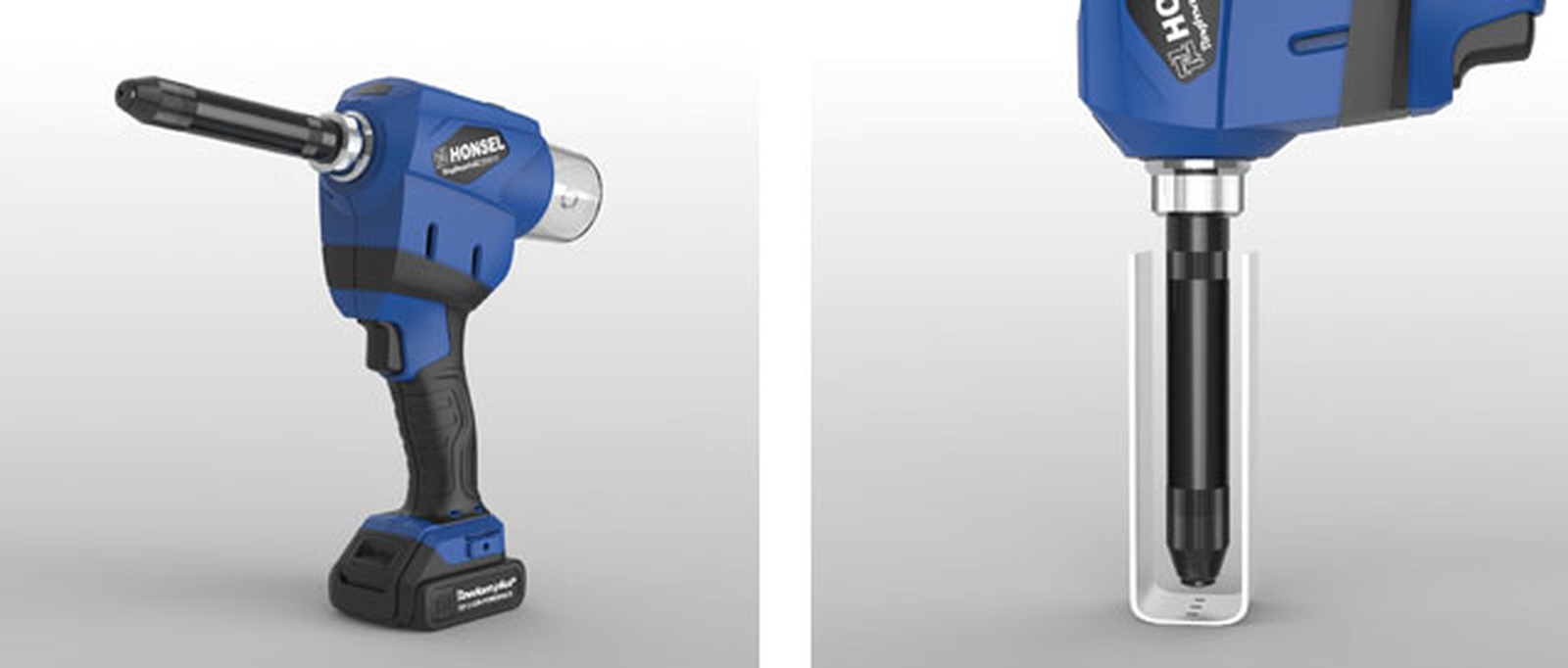

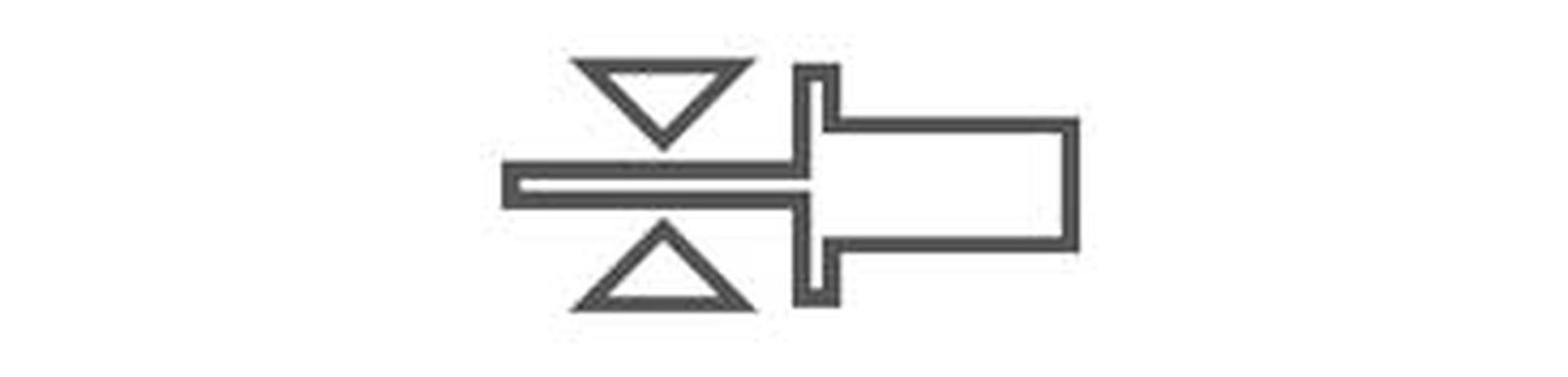

EXTENDED FRONT SLEEVES

S	Item no.	Description
	321200000072-0-1	1x Extension piece 80 mm without mandrel discharge tube
≤1,7	321200000072-01-4	1x Extension piece 80 mm and mandrel discharge tube
≤2,2	321200000072-01-3	1x Extension piece 80 mm and mandrel discharge tube
≤2,7	321200000072-01-2	1x Extension piece 80 mm and mandrel discharge tube
≤1,7	321200000072-02-4	2x Extension piece 80 mm and mandrel discharge tube
≤2,2	321200000072-02-3	2x Extension piece 80 mm and mandrel discharge tube
≤2,7	321200000072-02-2	2x Extension piece 80 mm and mandrel discharge tube

Warranty

36-month warranty provided by HADI, subject to the warranty terms and the supplied product configuration.

Additional Videos

Additional Documents

Extended Front Sleeve Instructions

Would you like to check whether Honsel RivSmart eBZ ZERO S Smart Battery-Powered Blind Rivet Tool fits your application?

The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Honsel RivSmart eBZ ZERO S Smart Battery-Powered Blind Rivet Tool.
