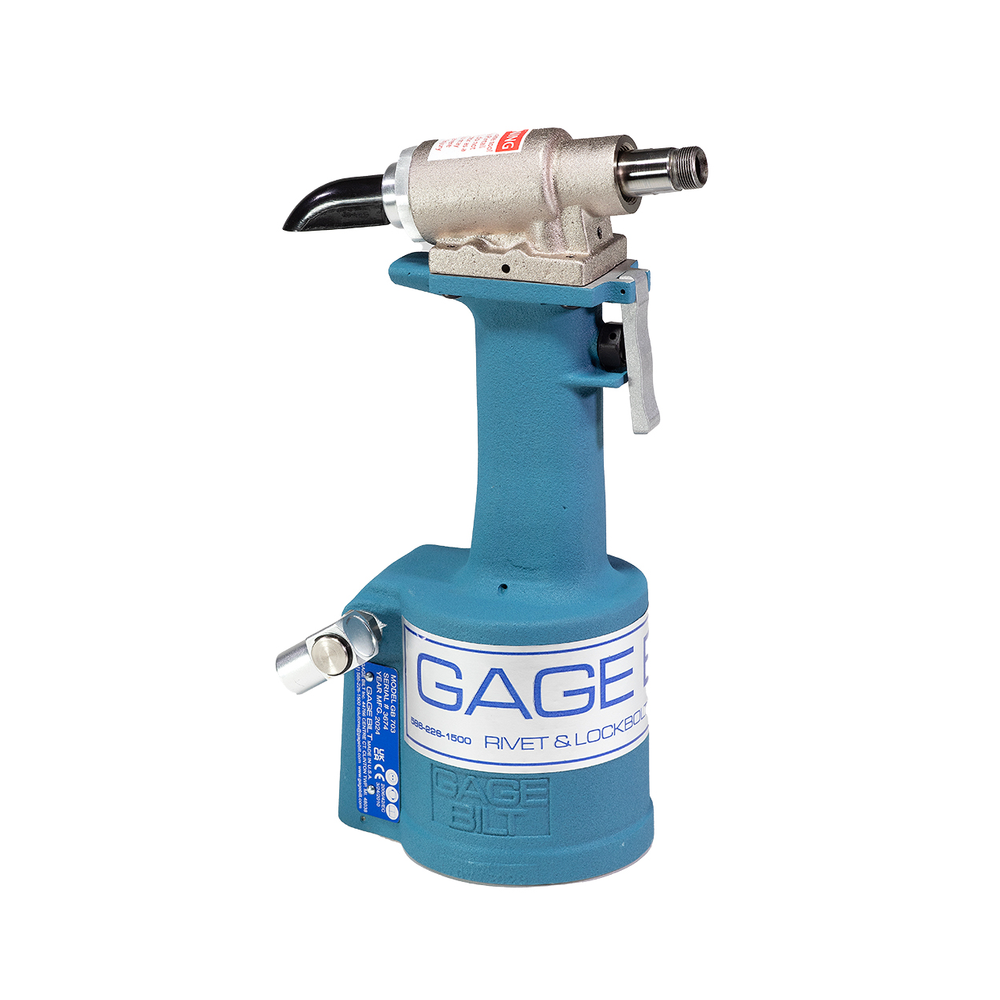

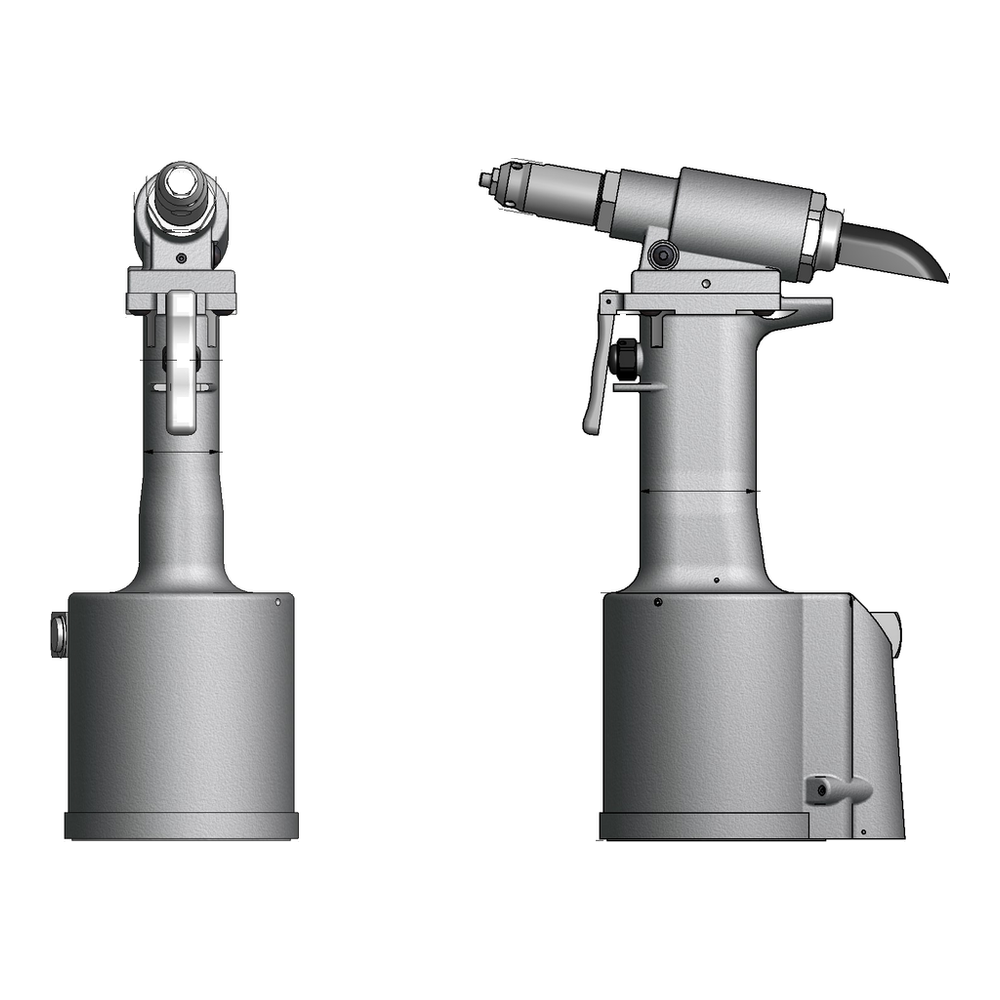

The GB703 is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of blind rivets. It weighs 4.50 lbs. (2 kg) and can be operated in any position. It has a 0.780" (19.8 mm) fastener setting stroke and a rated pull load of 2,200 lbs. (9.8 kN) with 90 psi (6.2 bar) air pressure at the air inlet. The GB703 installation tool operates on 90 to 100 psi (6.2 – 6.9 bar) of air pressure, with 90 psi (6.2 bar) providing the maximum efficiency. At 90 psi (6.2 bar) air pressure, the GB703 does not exceed 81.5 dB(A) and consumes 0.16 SCF/cycle (4.53 L/cycle). The air inlet is provided with 1/4 – 18 female pipe thread to accept the users air hose fitting.
The GB703SH and GB703SR variants use a split configuration that reduces handheld weight; the GB703SH includes an 8 ft (2.4 m) hose and the GB703SR includes a 3 ft (0.91 m) hose.

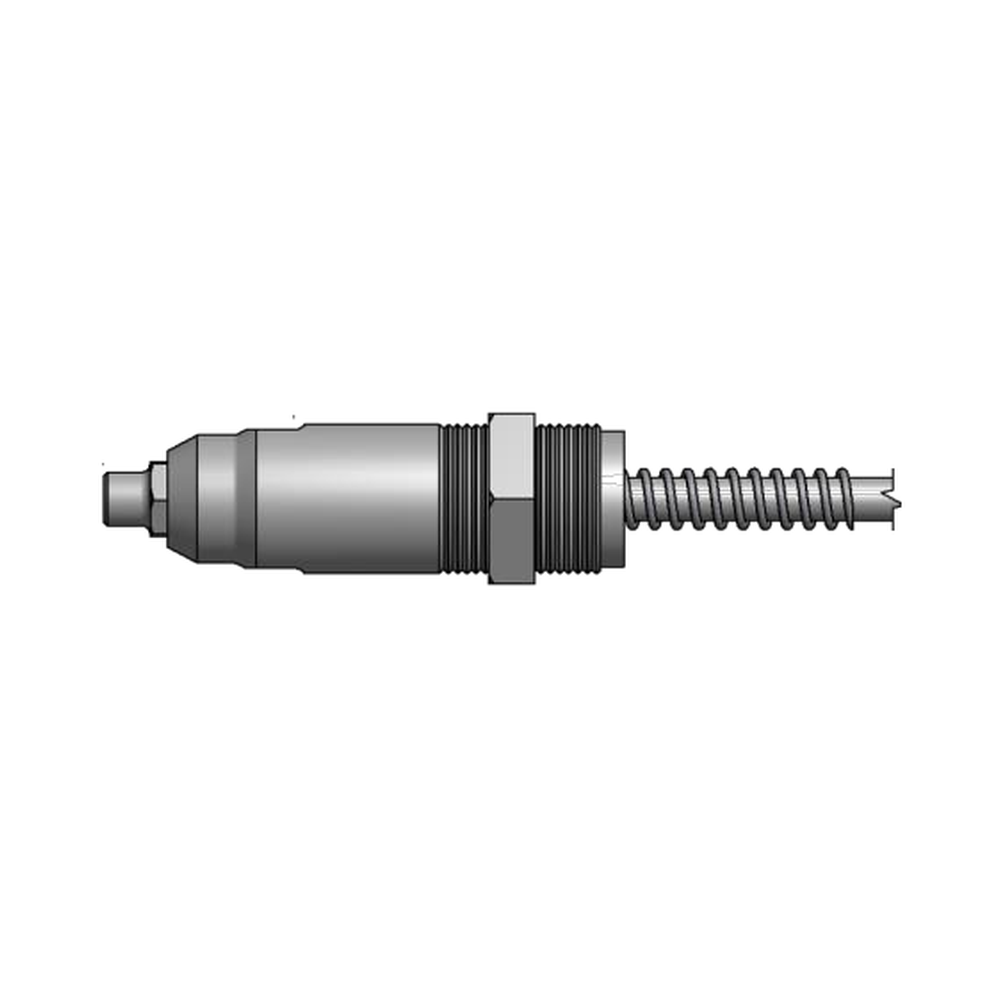

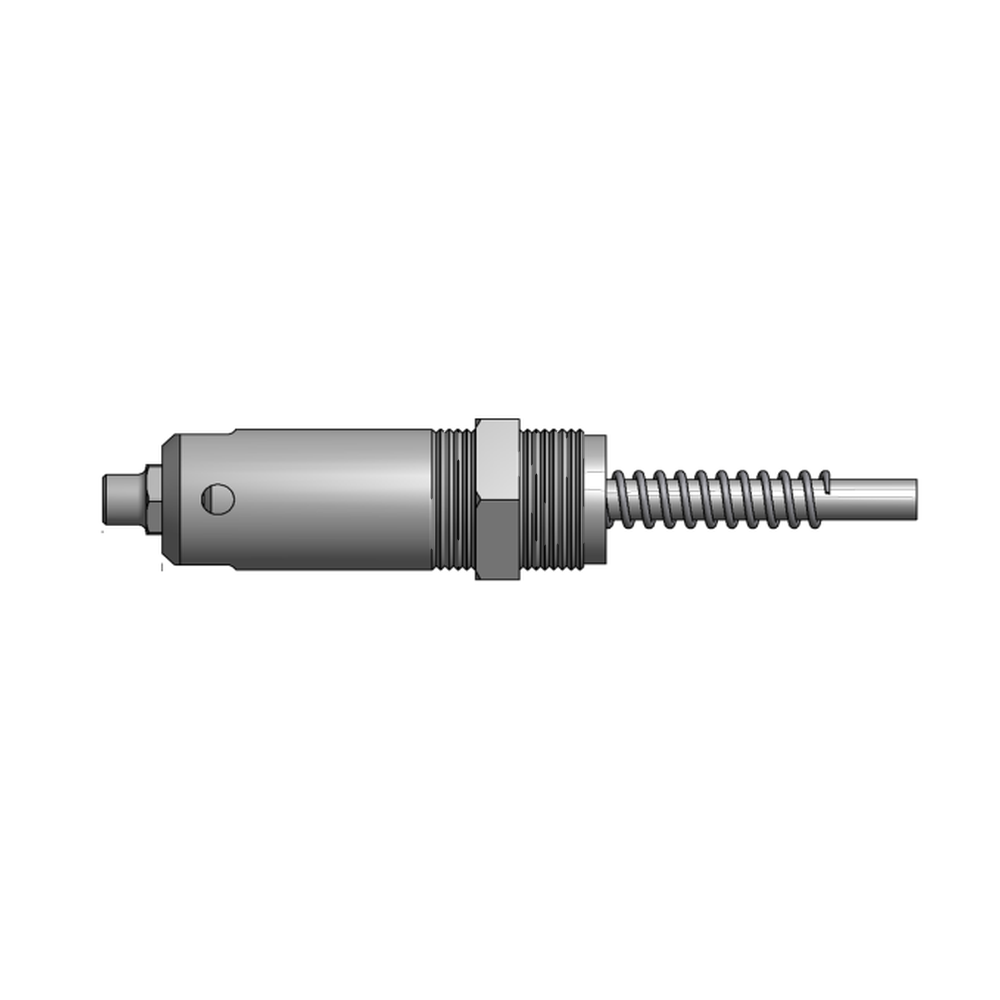

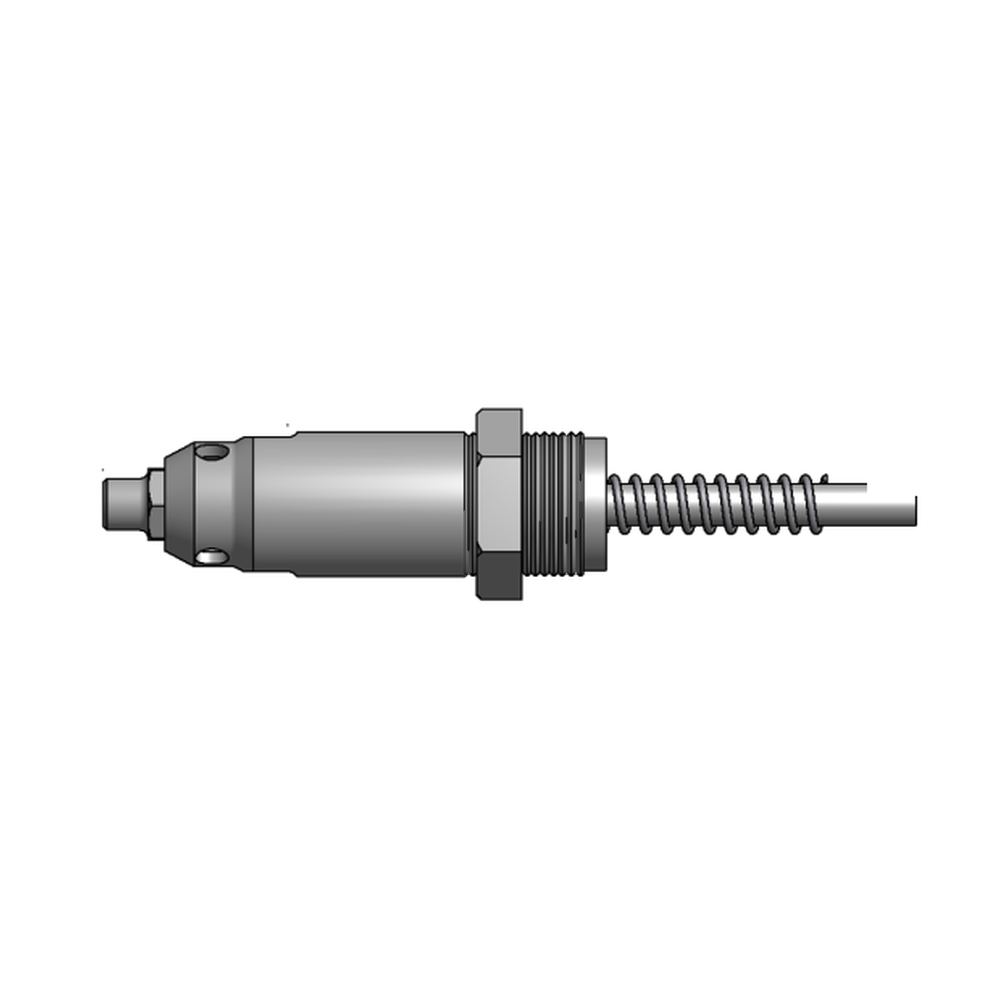

| Weight | 4.50 lbs. (2 kg) |
|---|---|
| Rated Pull Load | 2,200 lbs. (9.8 kN) |
| Stroke | 0.780" (19.8 mm) |
| Width | 7.97 (202.1 mm) |
| Noise Level | 81.5 dB(A) |
| Warranty | 1 year |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | AV6-703-18 1 | 10141 | 30617 | 40605 | AV6 |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | 6C-703-18 1 | 10141-1 | 30617 | 40605 | 6C |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | 6KT-703-18 1 | 10263 | 30617 | 40605 | 6KT |
| 1/4 | 8KT-743-24 2 | – | – | – | 8KT |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 5 MM | MS5M-703-18 1 | 10332 | 30617 | 40605 | 5 MM |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 1/8 | MBC04-703-18 1 | 10251 | 30617 | 40307 | MBC04 |
| 5/32 | MBC05-703-18 1 | 10252 | 30617 | 40605 | MBC05 |
| 3/16 | MBC06-703-18 1 | 10253 | 30617 | 40605 | MBC06 |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 4 MM | KSP4-743-24 2 | 10203 | 30824 | 48808 | KSP4 |
| 5 MM | KSP5-743-24 2 | 10204 | 30824 | 48808 | KSP5 |
| 6 MM | KSP6-743-24 2 | 13469 | 30824 | 48808 | KSP6 |
| 7 MM | KSP78-743-24 2 | 12340-1 | 30824 | 48808-2 | KSP78 |
| 8 MM | KSP78-743-24 2 | 12340-1 | 30824 | 48808-2 | KSP78 |
| 9 MM | KSP910-743-24 2 | 12340-2 | 30824 | 48808-2 | KSP910 |
| 10 MM | KSP910-743-24 2 | 12340-2 | 30824 | 48808-2 | KSP910 |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | MB06-734A-20 2,5 | – | – | – | MB06 |
| 1/4 3 | MB08-734A-20 2,5 | – | – | – | MB08 |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/32 | 3NP-703-18 1 | 10231 | 30617 | 40307 | 3NP |
| 1/8 | 5N-703-18 1 | 10203 | 30617 | 40605 | 5N |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/32 | 3N-703-18 1 | 10201 | 30617 | 40307 | 3N |
| 1/8 | 4N-703-18 1 | 10202 | 30617 | 40307 | 4N |
| 5/32 | 5N-703-18 1 | 10203 | 30617 | 40605 | 5N |
| 3/16 | 6N-703-18 1 | 10204 | 30617 | 40605 | 6N |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/32 | 3N-703-18 1 | 10201 | 30617 | 40307 | 3N |
| 1/8 | 4CEA-703-18 1 | 13471 | 30617 | 40307 | 4CEA |
| 5/32 | 5CEA-703-18 1 | 13472 | 30617 | 40605 | 5CEA |
| 3/16 | 6CEA-703-18 1 | 13473 | 30617 | 40605 | 6CEA |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/32 | 3N-703-18 1 | 10201 | 30617 | 40307 | 3N |
| 1/8 | 4CES-703-18 1 | 13475 | 30617 | 40307 | 4CES |
| 5/32 | 5CES-703-18 1 | 13476 | 30617 | 40605 | 5CES |
| 3/16 | 6CES-703-18 1 | 13477 | 30617 | 40605 | 6CES |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/32 | 3P-703-18 1, 6 | 10247-1 | 30617 | 40307 | 3P |
| 1/8 | 4P-703-18 1, 6 | 10202-4 | 30617 | 40307 | 4P |
| 5/32 | 5P-703-18 1, 6 | 10203-2 | 30617 | 40605 | 5P |
| 3/16 | 6P-703-18 1, 6 | 10167 | 30617 | 40605 | 6P |
| 1/4 | 8P-743-24 2, 6 | – | – | – | 8P |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | 6SR-703-18 1 | 13506 | 30617 | 40605 | 6SR |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|

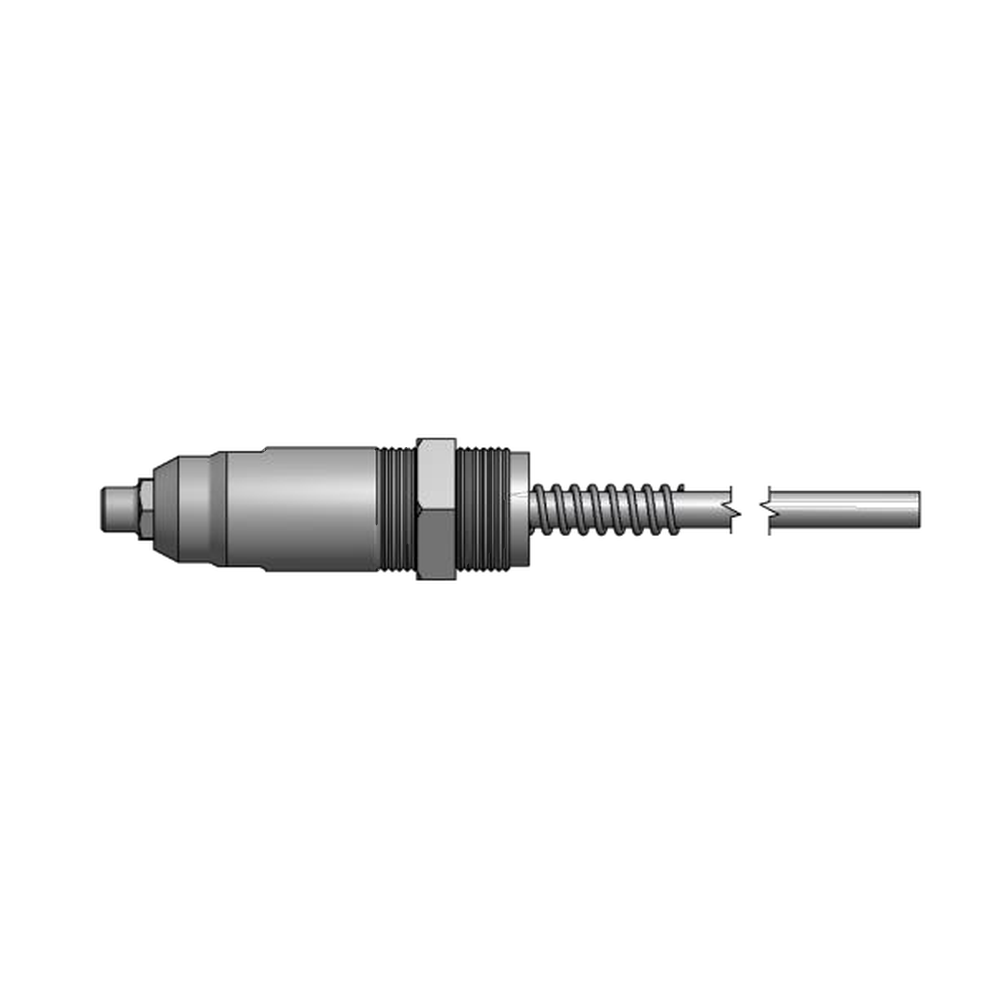

| 3/16 | 6T-703-18 1 | 10209 | 30617 | 40605 | 6T |
| 1/4 3 | 8T-743-24 2 | – | – | – | 8T |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 1/4 | 8TLR-743-24 2 | – | – | – | 8TLR |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | C6-734A-20 2,5 | – | – | – | C6 |
| 1/4 4 | C8-734A-20 2,5 | – | – | – | C8 |
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | PH6-734A-20 2,5 | – | – | – | PH6 |
| 1/4 4 | PH8-734A-20 2,3,5 | – | – | – | PH8 |
| 1) YOU CAN CHANGE THE 703-18 NOSE ASSEMBLY (INCLUDED WITH TOOL) TO INSTALL OTHER FASTENERS BY PURCHASING NOSE TIP 1 SHOWN AND USING APPROPRIATE FOLLOWER SHOWN. | |
|---|---|
| 2) NOSE ASSEMBLIES WITH A 743-24 AND 734A-20 DESIGNATION, I.E. 8N-743-24, MUST BE ORDERED AS COMPLETE NOSE ASSEMBLY. | |
| 3) ALUMINUM RIVET STEEL MANDREL ONLY (100 PSI REQUIRED FOR ALL 1/4" STEEL RIVETS). | |
| 4) 1/4" ALUMINUM ONLY. | |
| 5) NOSE ASSEMBLIES WITH A 734A DESIGNATION, I.E. PH6-734A-20, ARE FOR SERRATED STEM RIVETS ONLY. IF YOU ARE PULLlING BOTH SMOOTH AND SERRATED STEM RIVETS YOU MUST ORDER THE NOSE ASSEMBLY WITH A 743 DESIGNATION, I.E. MGL06-743-24. | |
| 6) MAY REQUIRE MORE THAN (1) PULL. Gage Bilt RECOMMENDS GB734 TOOL. | |
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
