The GB744 is a pneumatic-hydraulic installation tool for 1/4" CHERRYMAX and AllMax fasteners, as well as blind rivets.
The GB744 is a pneumatic-hydraulic installation tool for 1/4" CHERRYMAX and AllMax fasteners, as well as blind rivets.

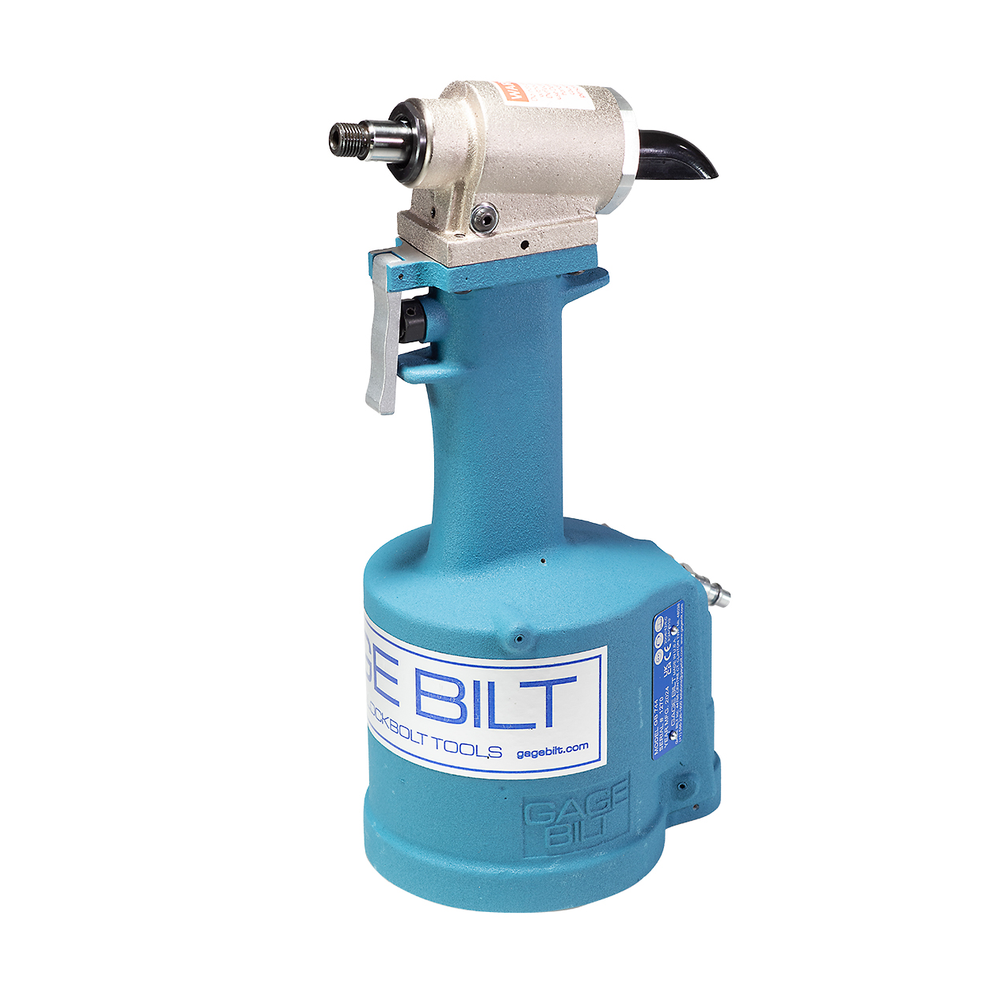

The GB744 is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of 1/4" CHERRYMAX & AllMax fasteners, as well as blind rivets. It weighs just over 7 lbs. (3.2 kg) and can be operated in any position. It has a 0.580" (14.73 mm) fastener setting stroke and a rated pull load of 3,800 lbs. (16.9 kN) on 90 psi (6.2 bar) air pressure at the air inlet. The GB744 installation tool operates on 90 to 100 psi (6.2 – 6.9 bar) of air pressure, with 90 psi (6.2 bar) air pressure providing the maximum efficiency. At 90 psi (6.2 bar) air pressure, the GB744 does not exceed 81.5 dB(A) and consumes 0.30 SCF/cycle (8.50 L/cycle). The air inlet is provided with 1/4 – 18 female pipe thread for accepting the user's air hose fitting.

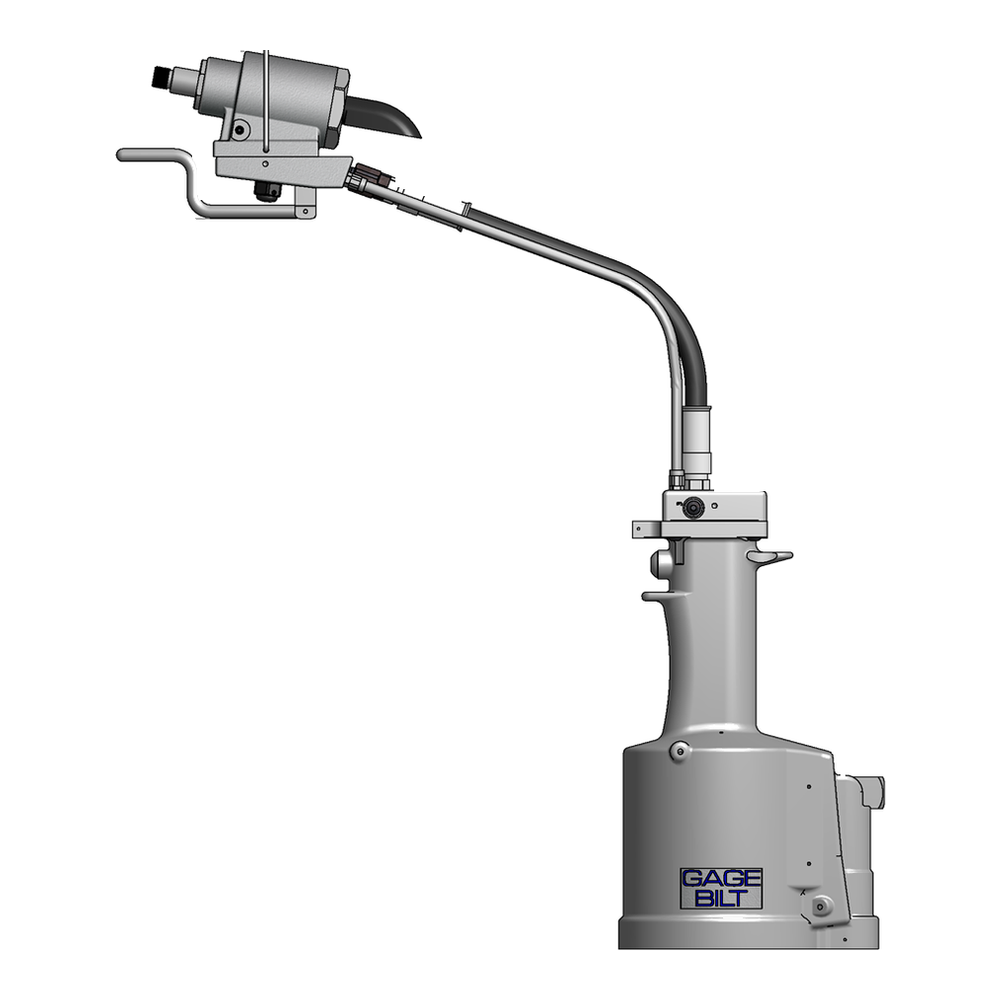

The GB744SH and GB744SR variants use a split configuration that reduces handheld weight.
| Weight | 7 lbs. (3.2 kg) |
|---|---|
| Rated Pull Load | 3,800 lbs. (16.9 kN) |
| Stroke | 0.580" (14.73 mm) |
| Width | 6.60 (167.6 mm) |
| Noise Level | 81.5 dB(A) |
| Warranty | 1 year |
| DIA. | STRAIGHT | RIGHT ANGLE (3) | OFFSET |
|---|---|---|---|
| 1/8 | 456MAX-701-17 1,2 | 456MAX-704-54RA 1,2 | 456MAX-704-43OS 1,2 |
| 5/32 | 456MAX-744-20 1 | 456MAX-744-50OS 1 | |
| 3/16 | 456MAX-749-35 1,2,3 | ||
| 1/4 | 08MAX-744-20 | 08MAX-744A-50OS |
| DIA. | RIGHT ANGLE (3) |
|---|---|
| 5/32 | SB05-704A-54RA 2,6 SB05-744-58RA 7 |
| 3/16 | SB06-704-54RA 2,5,6 SB06-744-58RA 7 |
| DIA. | RIGHT ANGLE (3) |
|---|---|
| 5/32 | UBB05-704A-54RA 2,6 UBB05-744-58RA 7 |
| 3/16 | UBB06-704-54RA 2,5,6 UBB06-744-58RA 7 |
| GB744 installs the listed fasteners | |
|---|---|
| 1) INSTALLS 1/8", 5/32" AND 3/16" DIAMETERS | |
| 2) NOSE ASSEMBLIES REQUIRE THE 744704 ADAPTER | |
| 3) FRONT END EJECTING NOSE ASSEMBLY. | |
| 4) RIGHT ANGLE NOSE ASSEMBLY MAY REQUIRE MORE THAN 1 PULL | |
| 5) FOR MAINTENANCE ONLY | |
| 6) NOSE ASSEMBLIES REQUIRE THE 744156 STROKE LIMITER | |
| 7) HEAVY DUTY |
| Image | Model | Compatibility | |
|---|---|---|---|

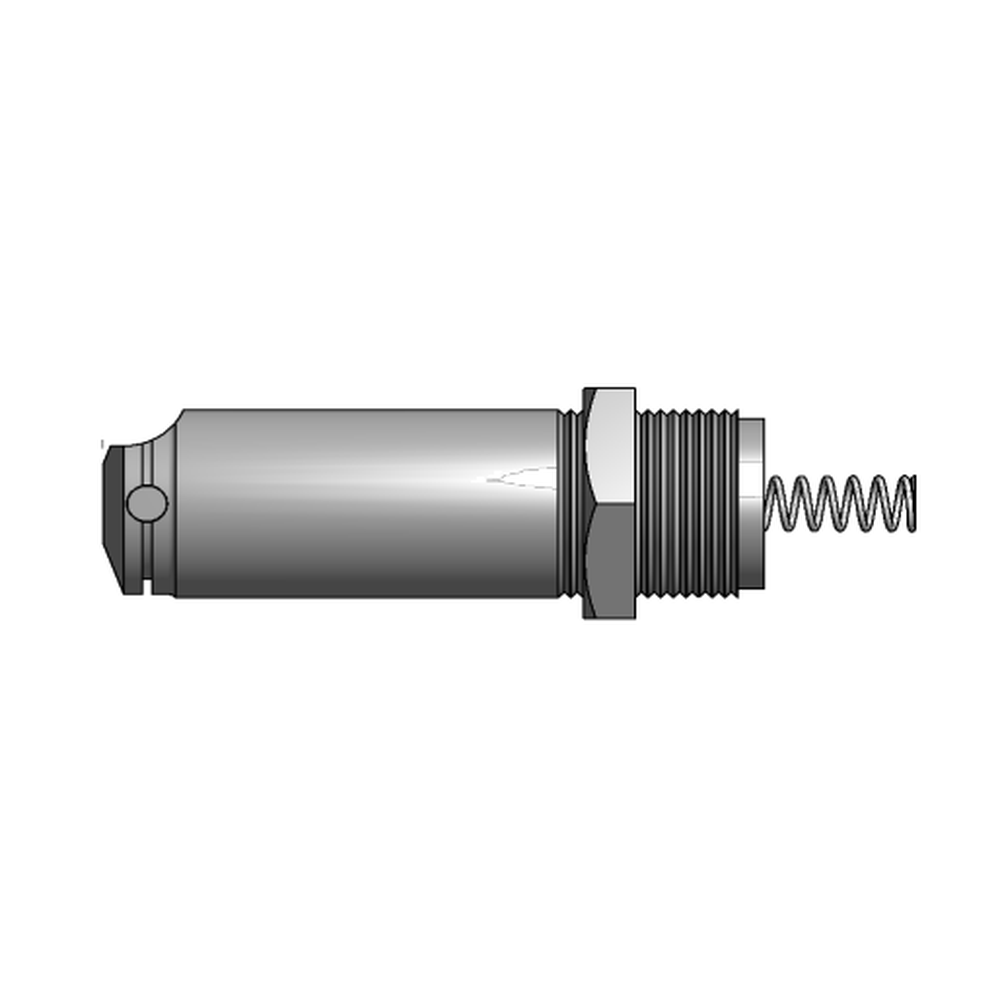

 | 08MAX-744-20 | Recommended | |

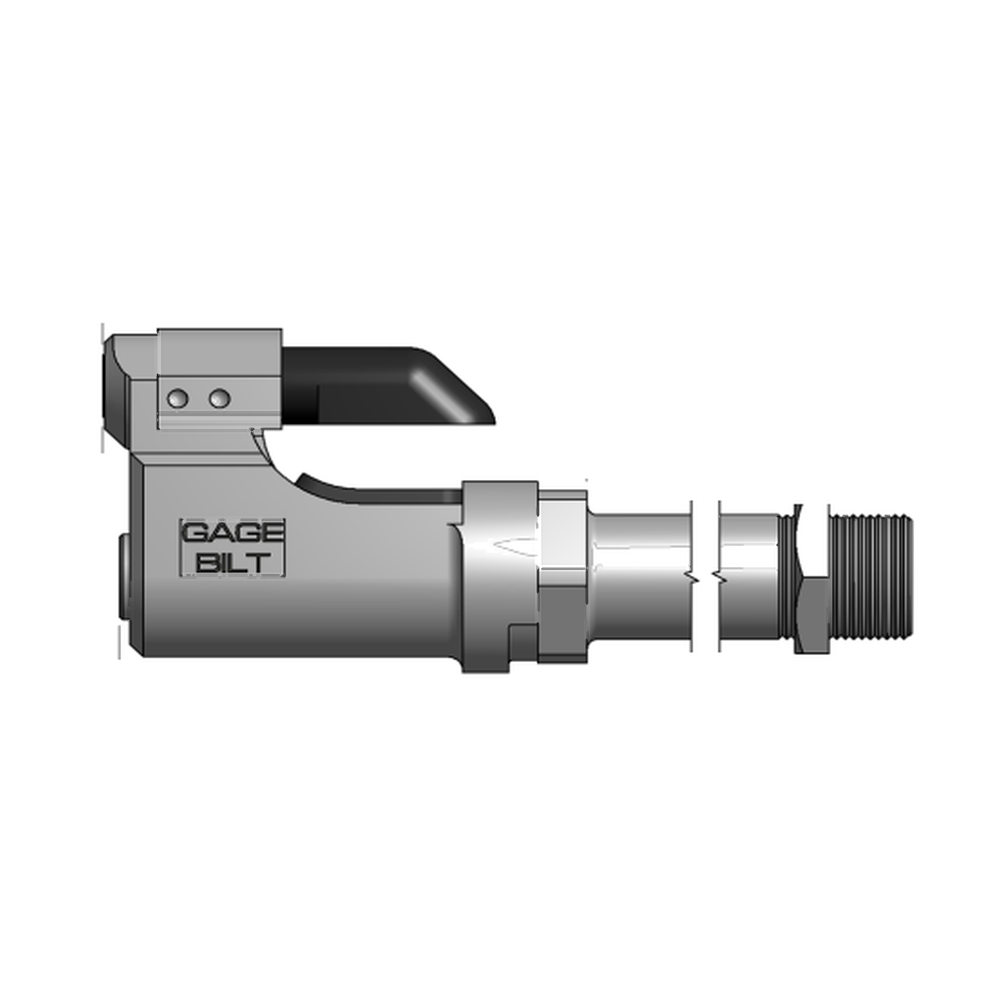

 | 08MAX-744A-50OS | Recommended | |
 | 456MAX-744-20 | Recommended | |

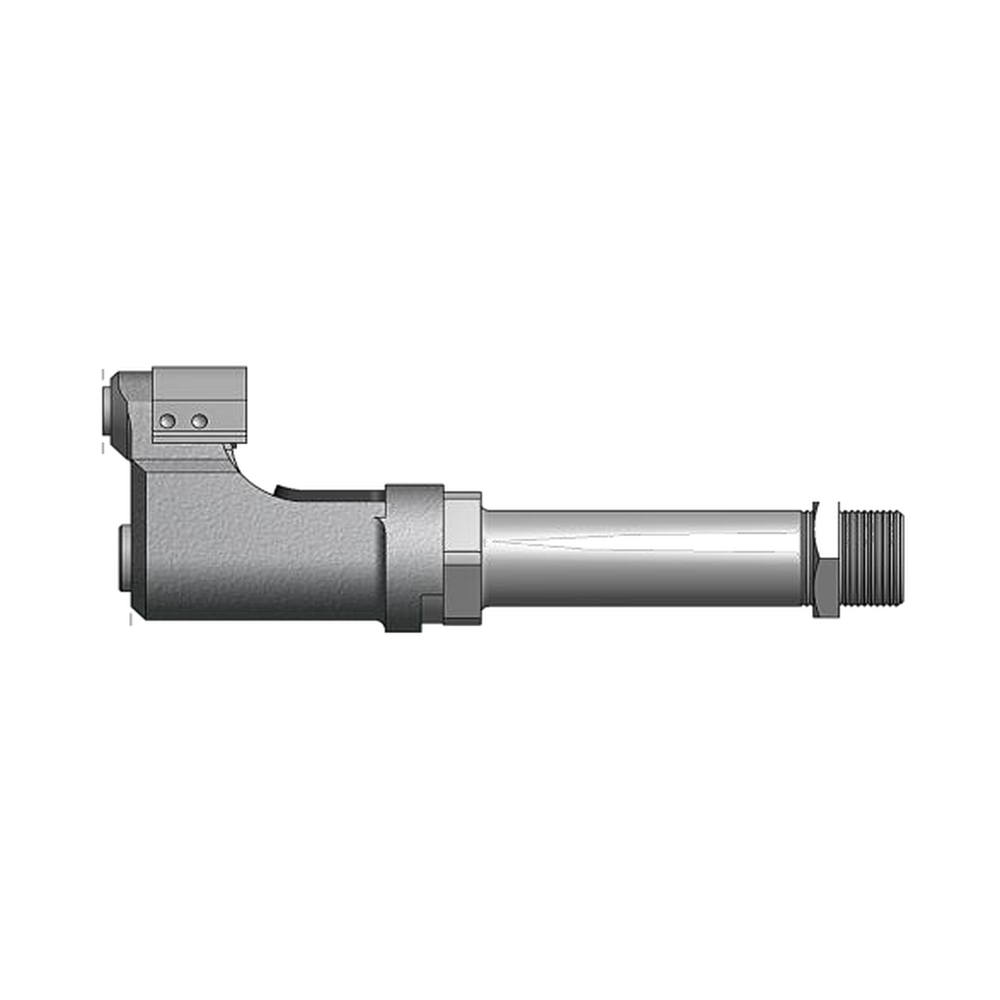

 | 456MAX-744-50OS | Recommended | |
 | SB-744-58RA | Recommended | |
 | SB05-704-54RA | Alternate | |
 | SB05-704A-54RA | Alternate | |

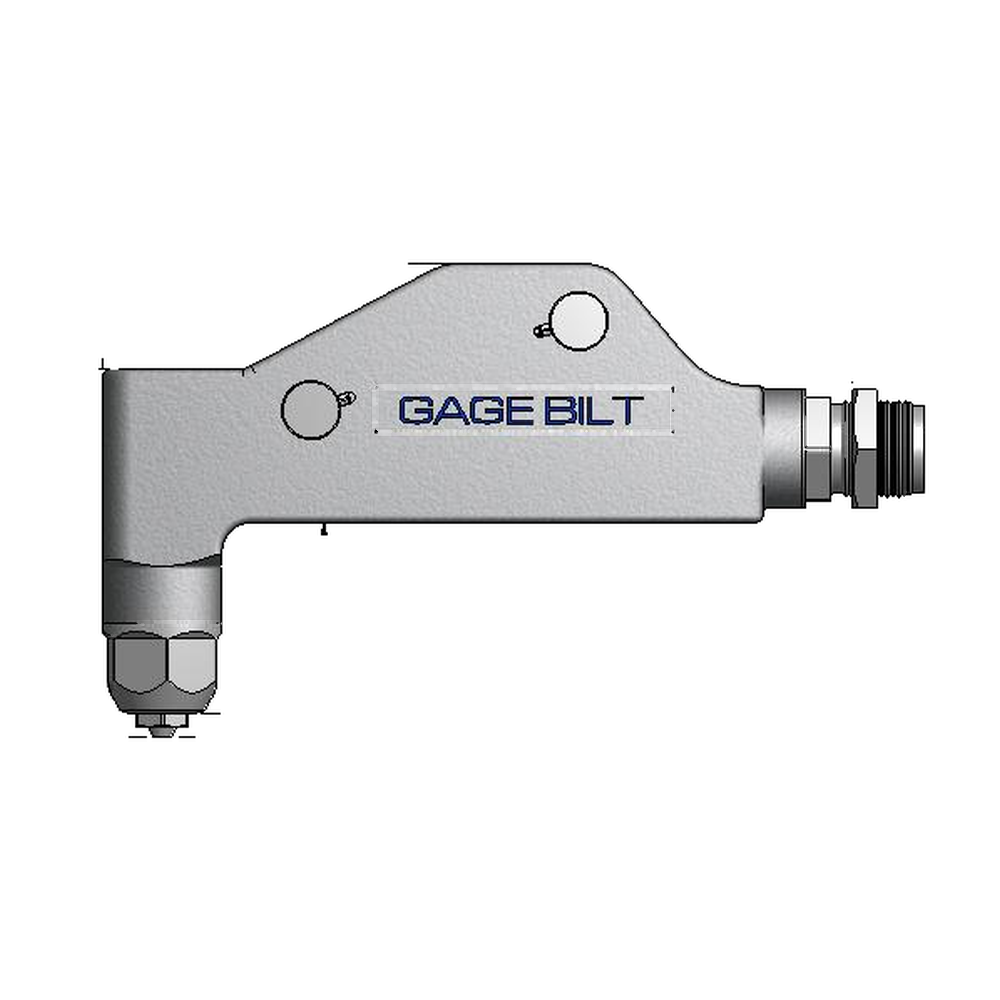

 | SB05-744-58RA | Recommended | |

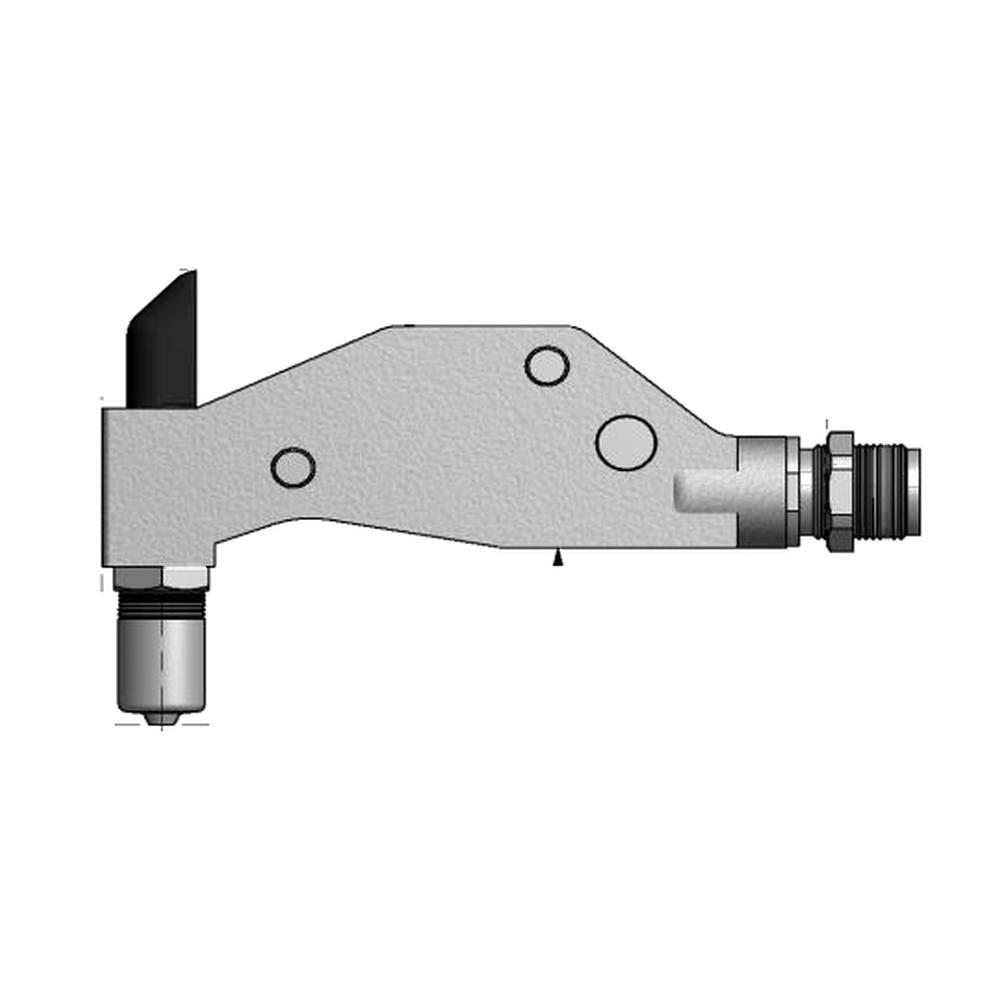

 | SB06-704-54RA | Alternate | |
 | SB06-744A-58RA | Recommended | |
 | UBB05-744-58RA | Recommended | |

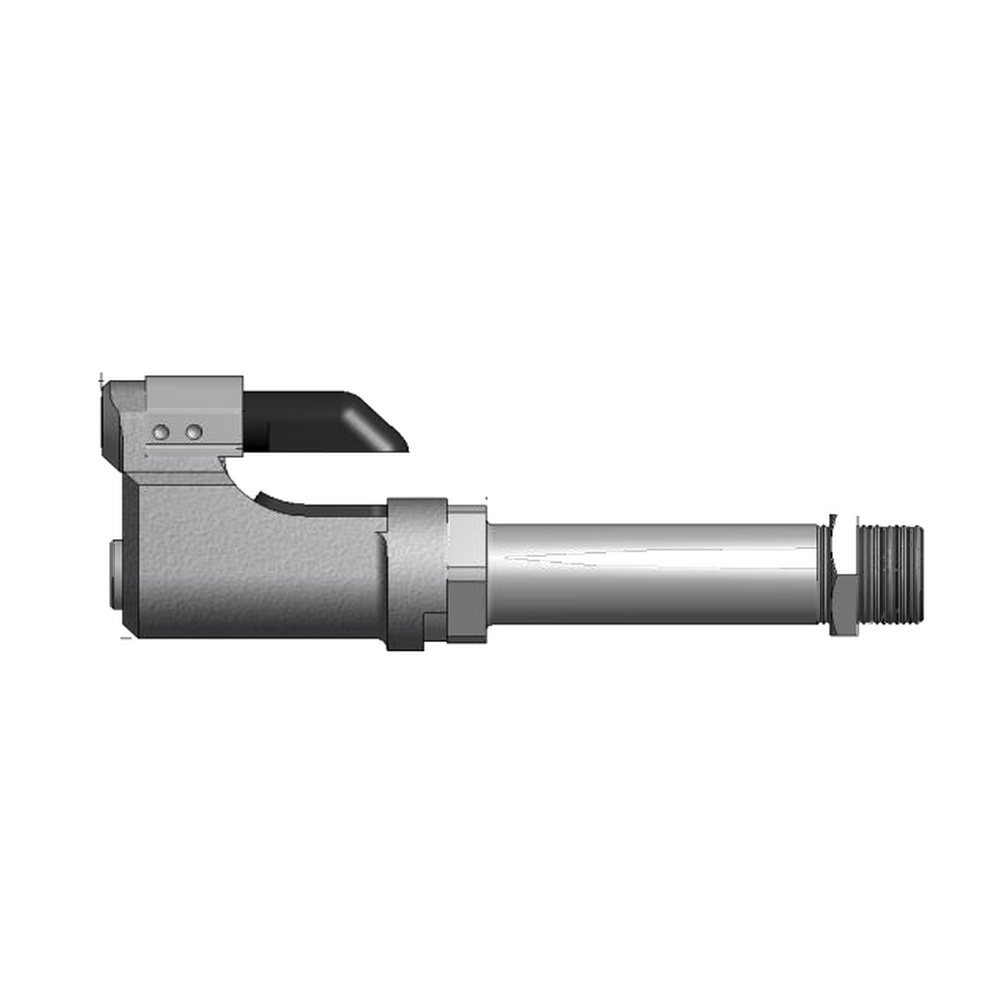

 | UBB06-744-50OS | Recommended |
