The GB743 is a pneumatic-hydraulic installation tool for blind rivets.
The GB743 is a pneumatic-hydraulic installation tool for blind rivets.

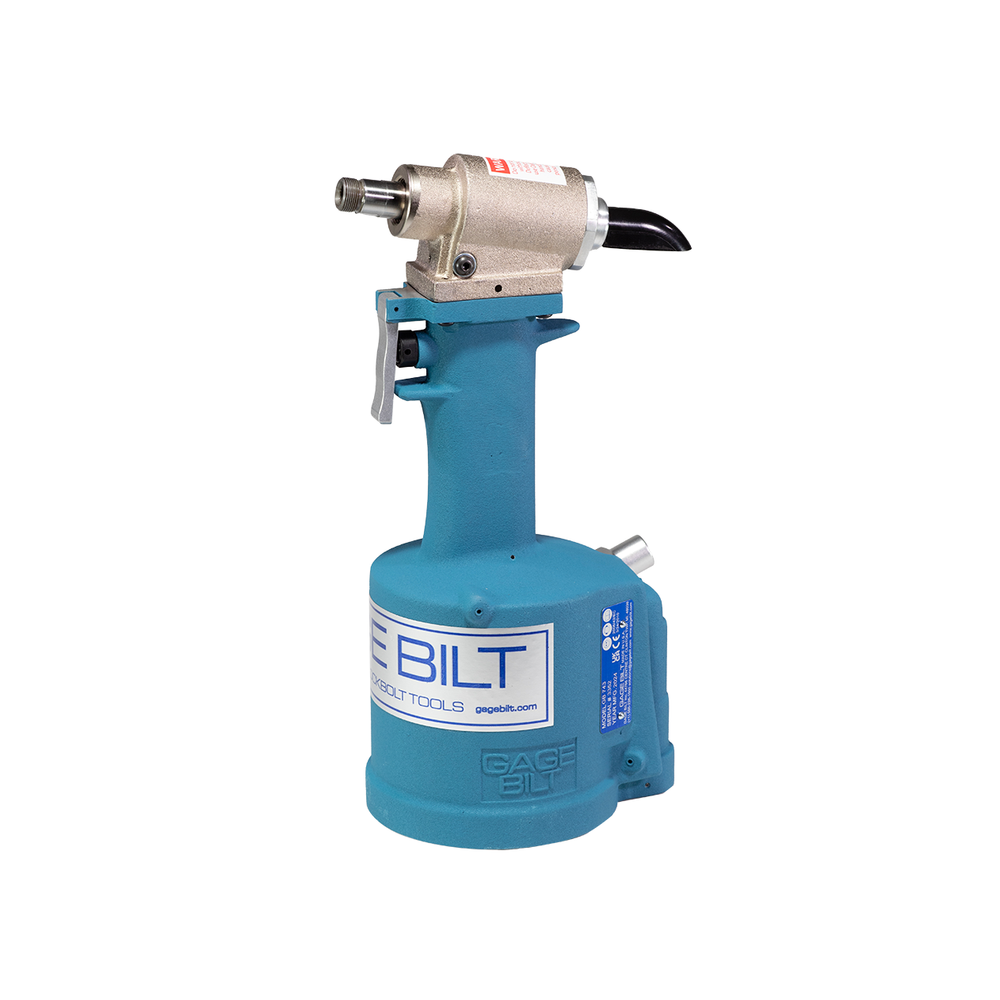

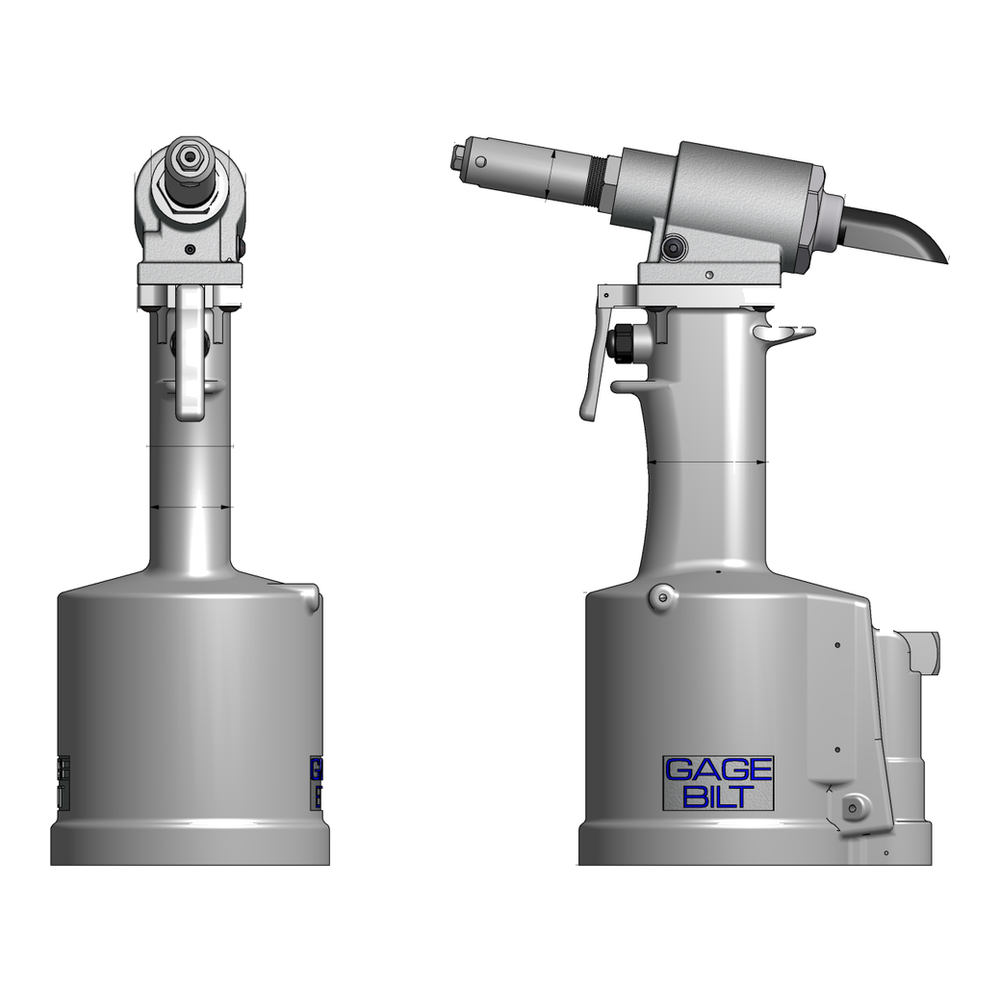

The GB743 is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of blind rivets. It weighs 6.25 lbs. (2.83 kg) and can be operated in any position. It has a 0.900" (22.86 mm) fastener setting stroke and a rated pull load of 4,000 lbs. (17.8 kN) with 90 psi (6.2 bar) air pressure at the air inlet. The GB743 installation tool operates on 90 to 100 psi (6.2 – 6.9 bar) of air pressure, with 90 psi (6.2 bar) providing the maximum efficiency. At 90 psi (6.2 bar) of air pressure, the GB743 does not exceed 81.5 dB(A) and consumes 0.30 SCF/cycle (8.50 L/cycle). The air inlet is provided with 1/4 – 18 female pipe thread to accept the users air hose fitting.
The GB743SH and GB743SR variants use a split configuration that reduces handheld weight; the GB743SH includes an 8 ft (2.4 m) hose and the GB743SR includes a 3 ft (0.91 m) hose.

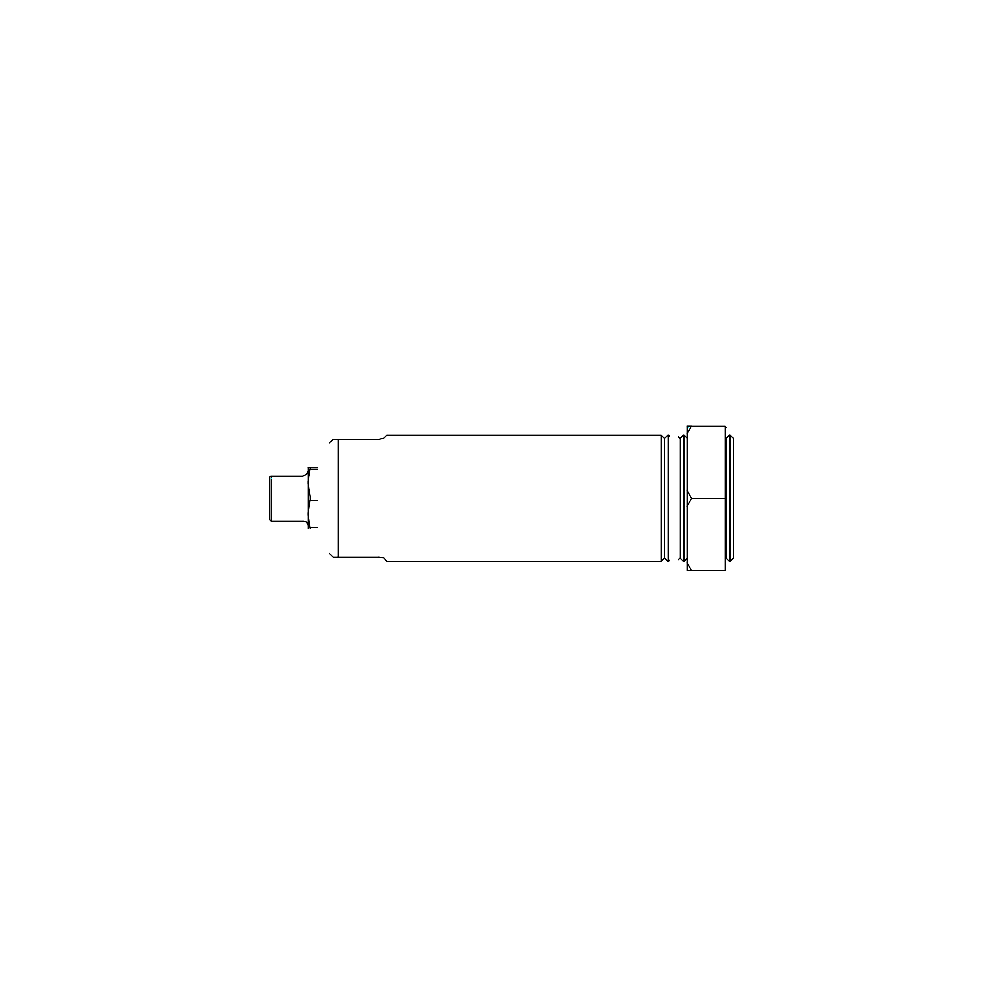

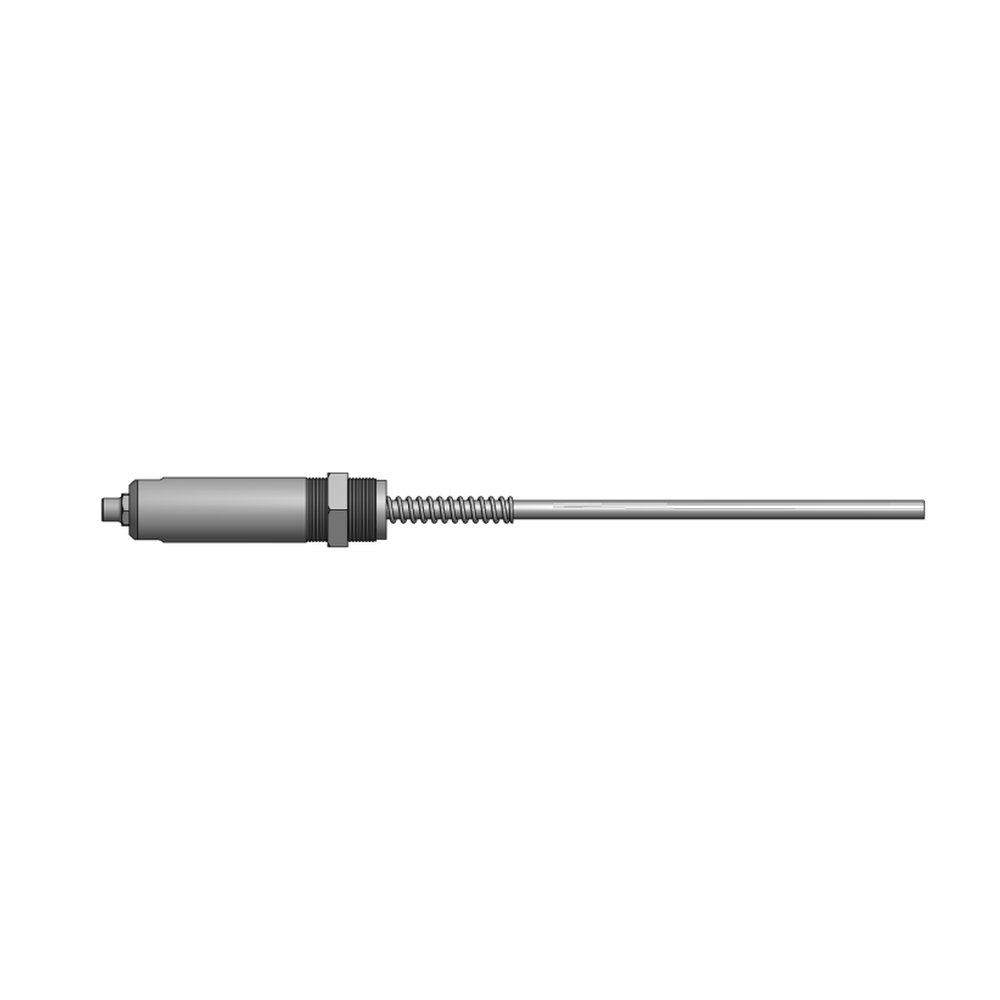

| Weight | 6.25 lbs. (2.83 kg) |
|---|---|
| Rated Pull Load | 4,000 lbs. (17.8 kN) |
| Stroke | 0.900" (22.86 mm) |
| Width | 8.87 (222.6 mm) |
| Noise Level | Less than 81.5 dB(A) |
| Warranty | 1 year |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | AV6-743-24 1 | 10248-7 | 30824 | 48808 | AV6 |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | 6C-743-24 1 | 10248-8 | 30824 | 48808 | 6C |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | BT06-743-24 1 | 12282-1 | 30824 | 48808 | BT06 |
| 1/4 | BT08-743-24 1 | 10391 | 30824 | 48808 | BT08 |

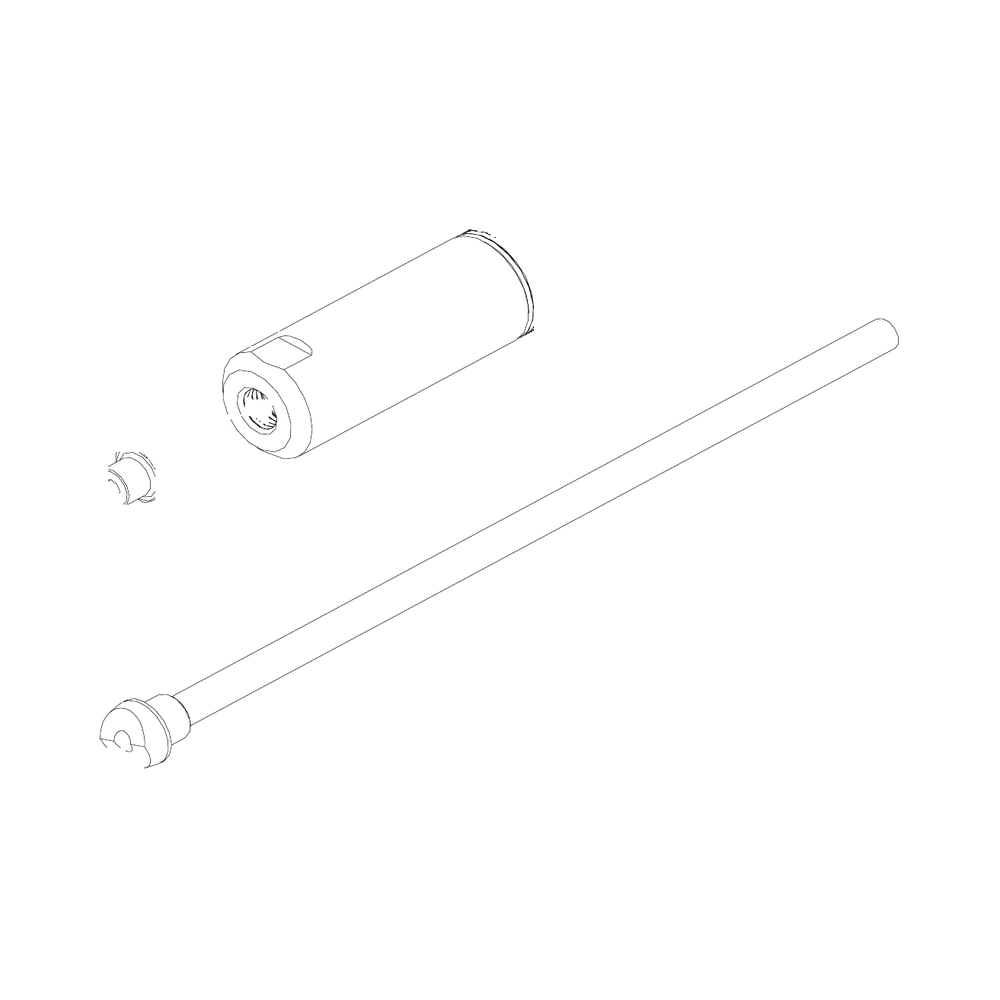

| 9/32 | BT09-743-24 1 | 10289 | 30824 | 40901 | BT09 |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | 6KT-743-24 1 | 10263 | 30824 | 48808 | 6KT |
| 1/4 | 8KT-743-24 1 | 10262 | 30824 | 48808 | 8KT |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | 6MTL-743-24 1 | 12384 | 30824 | 48808 | 6MTL |
| 1/4 | 8MTL-743-24 1 | 12385 | 30824 | 48808 | 8MTL |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | 6MTP-743-24 1 | 12382 | 30824 | 48808 | 6MTP |
| 1/4 | 8MTP-743-24 1 | 12383 | 30824 | 48808 | 8MTP |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 4 MM | KSP4-743-241 1 | 10203 | 30824 | 48808 | KSP4 |
| 5 MM | KSP5-743-2 1 | 10204 | 30824 | 48808 | KSP5 |
| 6 MM | KSP6-743-2 1 | 13469 | 30824 | 48808 | KSP6 |
| 7 MM | KSP78-743-24 1 | 12340-1 | 30824 | 48808-2 | KSP78 |
| 8 MM | KSP78-743-24 1 | 12340-1 | 30824 | 48808-2 | KSP78 |
| 9 MM | KSP910-743-24 1 | 12340-2 | 30824 | 48808-2 | KSP910 |
| 10 MM | KSP910-743-24 1 | 12340-2 | 30824 | 48808-2 | KSP910 |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | MB06-734A-20 2 | – | – | – | MB06 |

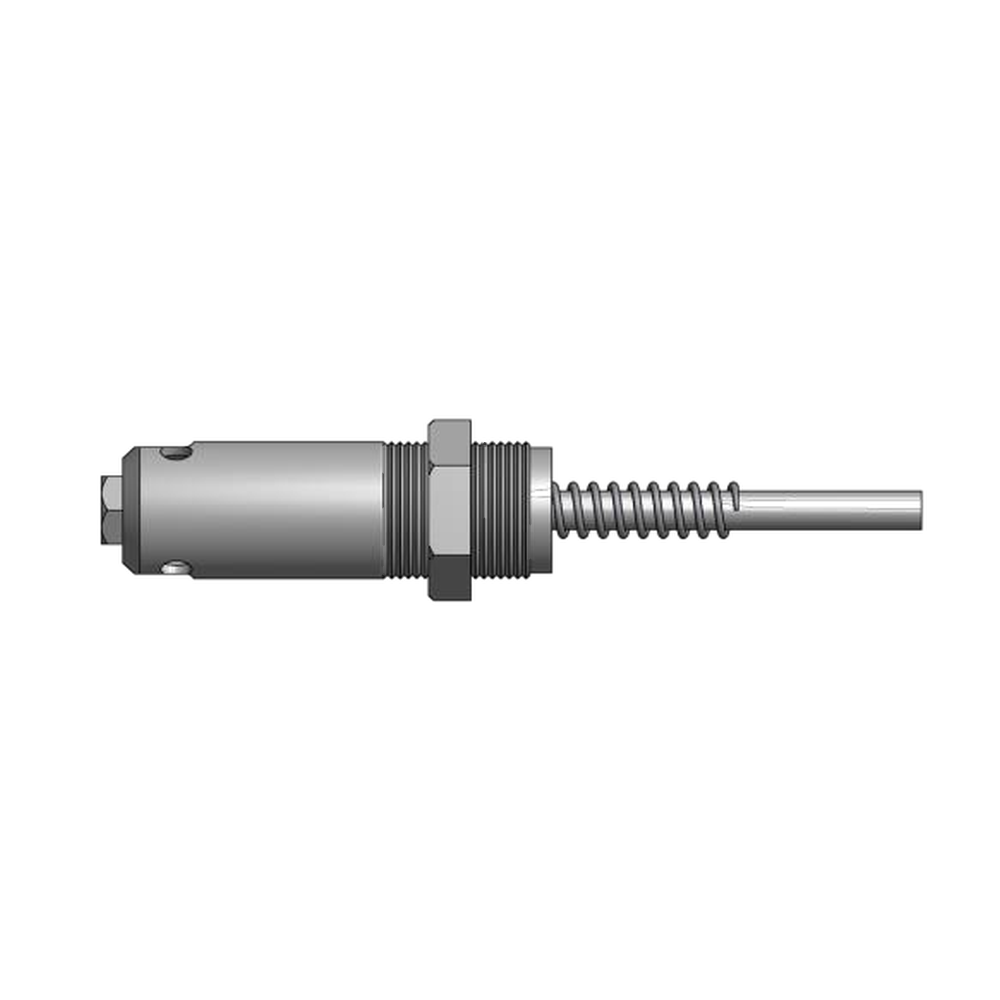

| 1/4 | MB08-734A-20 2,4 | – | – | – | MB08 |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/32 | 3N-703-18 2 | – | – | – | 3N |
| 1/8 | 4N-703-18 2 | – | – | – | 4N |
| 5/32 | 5N-743-24 1 | 10203 | 30824 | 48808 | 5N |
| 3/16 | 6N-743-24 1 | 10204 | 30824 | 48808 | 6N |

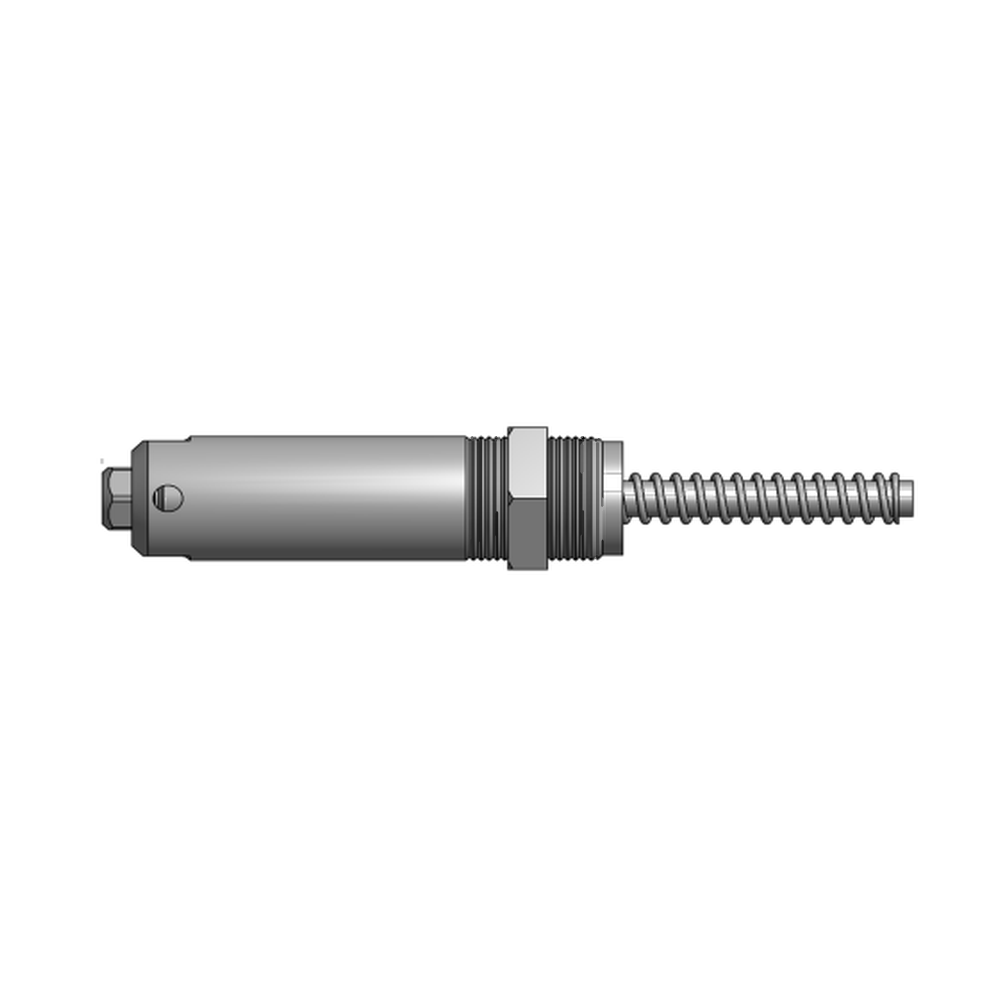

| 1/4 | 8N-743-24 1 | 10211 | 30824 | 48808 | 8N |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/32 | 3N-703-18 2 | – | – | – | 3N |
| 1/8 | 4CEA-703-18 2 | – | – | – | 4CEA |
| 5/32 | 5CEA-743-24 1 | 13472 | 30824 | 48808 | 5CEA |
| 3/16 | 6CEA-743-24 1 | 13473 | 30824 | 48808 | 6CEA |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/32 | 3N-703-18 2 | – | – | – | 3N |
| 1/8 | 4CES-703-18 2 | – | – | – | 4CES |
| 5/32 | 5CES-743-24 1 | 13476 | 30824 | 48808 | 5CES |
| 3/16 | 6CES-743-24 1 | 13477 | 30824 | 48808 | 6CES |
| 1/4 | 8CES-743-24 1 | 13469 | 30824 | 48808 | 8CES |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/32 | 3P-703-18 2,3 | – | – | – | 3P |
| 1/8 | 4P-703-18 2,3 | – | – | – | 4P |
| 5/32 | 5P-743-24 1,3 | 10203-2 | 30824 | 48808 | 5P |

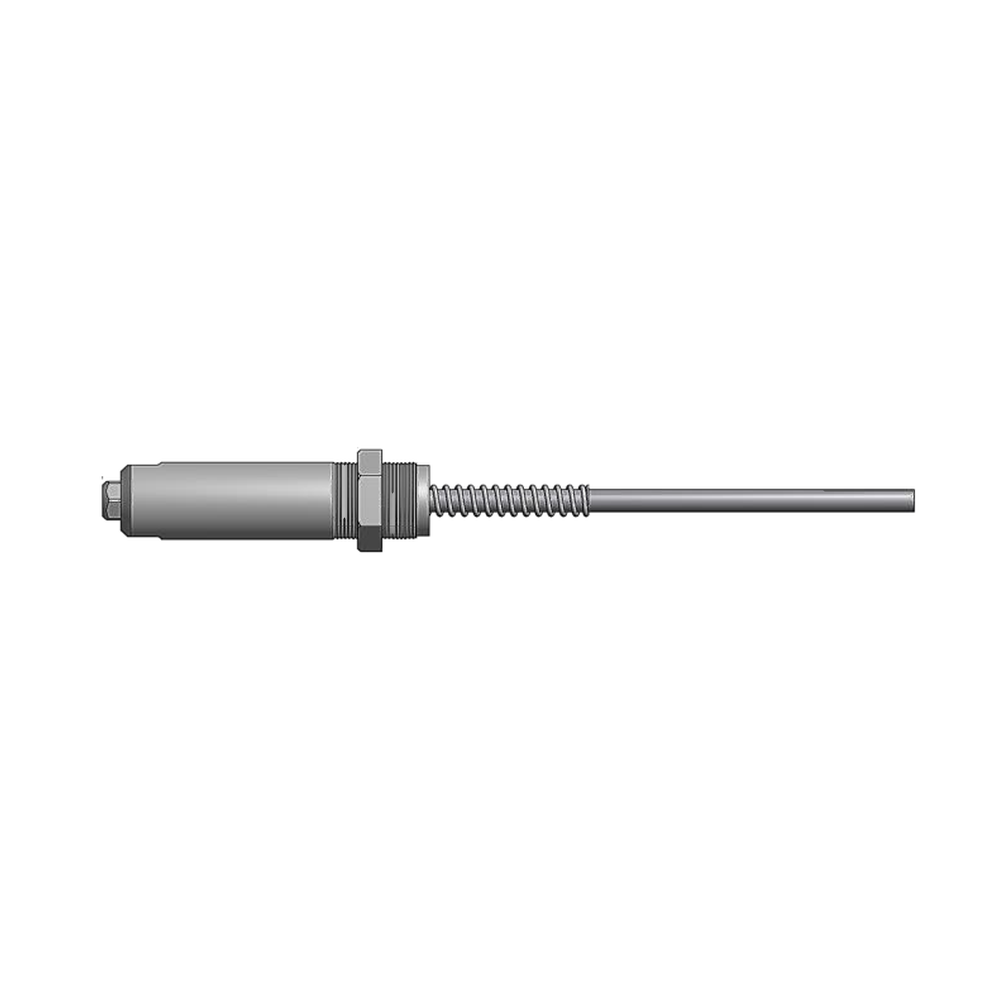

| 3/16 | 6P-743-24 1,3 | 10167 | 30824 | 48808 | 6P |
| 1/4 | 8P-743-24 1,3 | 10166 | 30824 | 48808 | 8P |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | 6T-743-24 1 | 10209 | 30824 | 48808 | 6T |
| 1/4 | 8T-743-24 1 | 10286 | 30824 | 48808 | 8T |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 1/4 | 8TLR-743-24 1 | 10246 | 30824 | 48808 | 8TLR |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | C6-734A-20 2 | – | – | – | C6 |
| 1/4 | C8-734A-20 2,4 | – | – | – | C8 |
| DIA. | NOSE ASSEMBLY | NOSE TIP | JAW | FOLLOWER | DESIGNATION |
|---|---|---|---|---|---|
| 3/16 | PH6-734A-20 2,4 | – | – | – | PH6 |
| 1/4 | PH8-734A-20 2,4 | – | – | – | PH8 |
| 1) YOU CAN CHANGE THE 743-24 NOSE ASSEMBLY (INCLUDED WITH TOOL) TO INSTALL OTHER FASTENERS BY PURCHASING NOSE TIP SHOWN AND USING APPROPRIATE FOLLOWER SHOWN. | |
|---|---|
| 2) NOSE ASSEMBLIES WITH A 703-18 AND 734A-20 DESIGNATION, I.E. 5P-703-18, MUST BE ORDERED AS COMPLETE NOSE ASSEMBLY. | |
| 3) MAY REQUIRE MORE THAN (1) PULL. Gage Bilt RECOMMENDS GB734 TOOL. | |
| 4) REQUIRES 100 PSI AIR PRESSURE | |
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Gage Bilt Pneudraulic Rivet Tool GB743.
