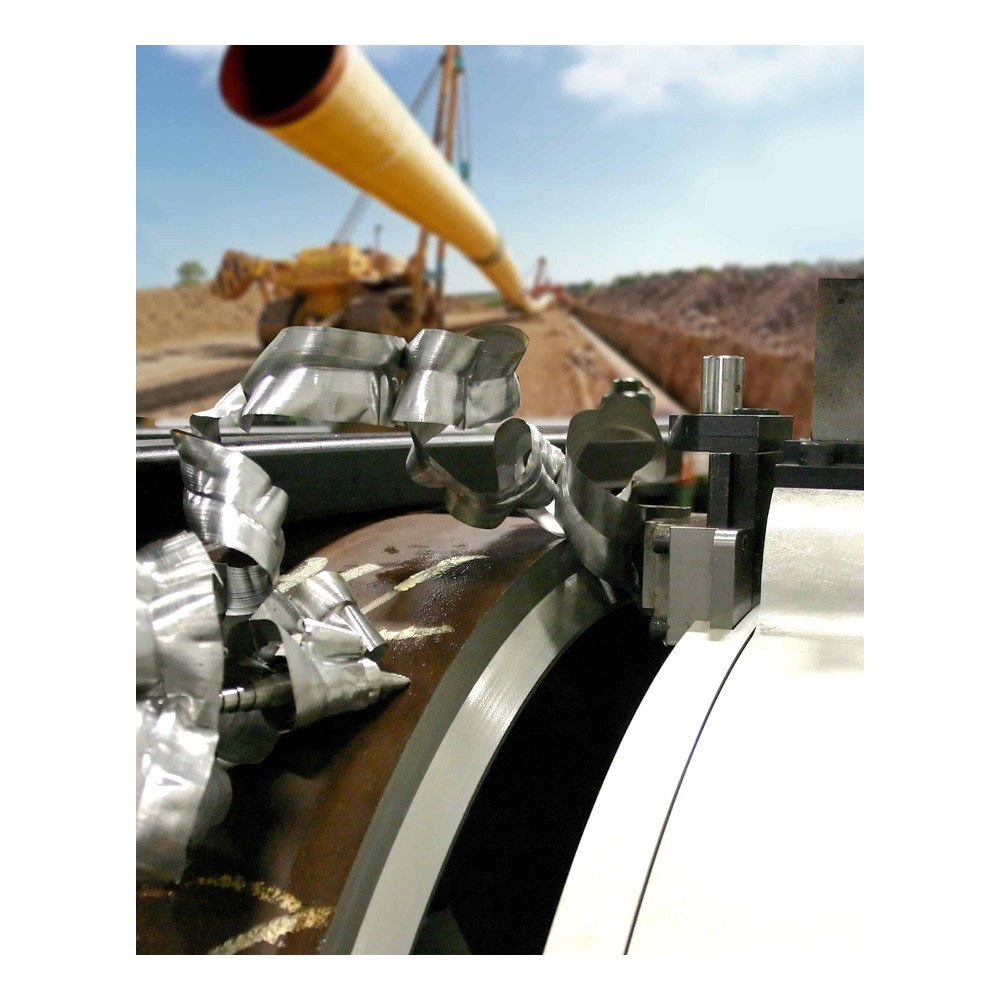

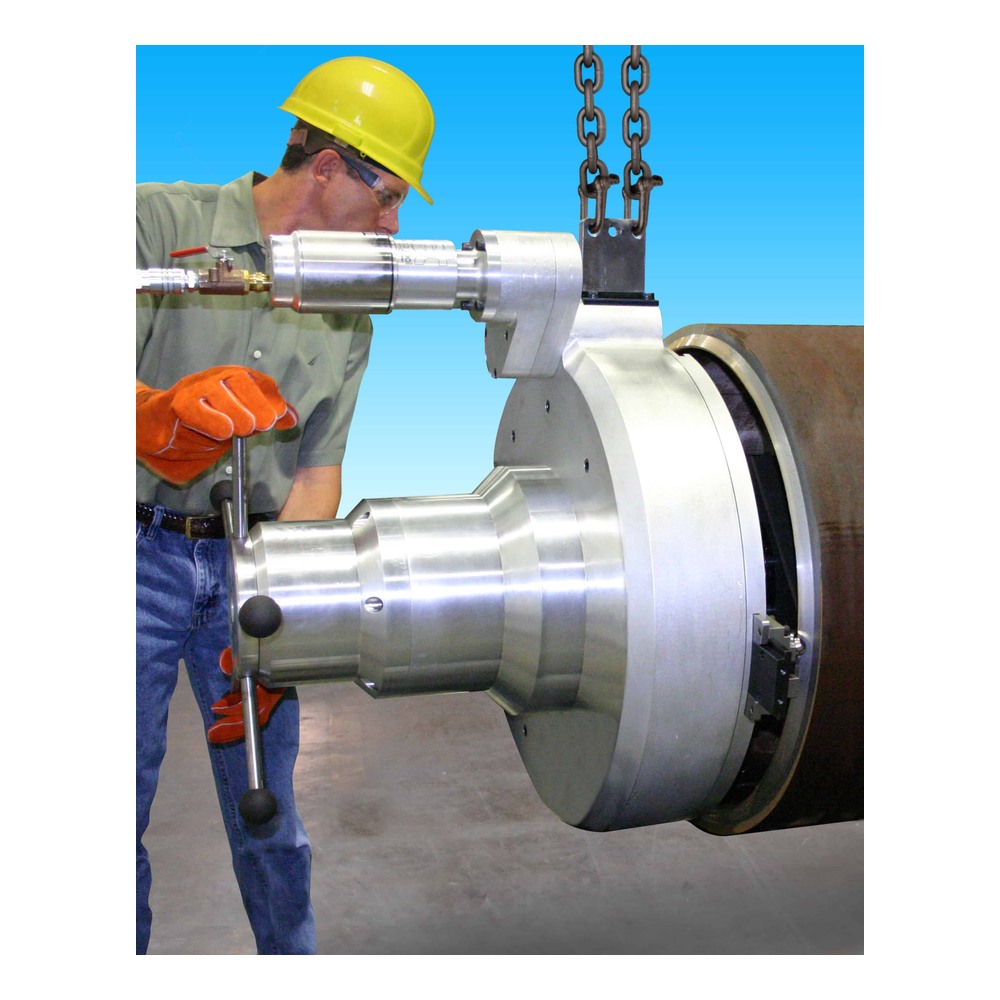

The Terminator MILLHOG is a ruggedly constructed precision pipe beveling machine for performing weld joint bevels at any angle on pipe ends up to 36″. Built with state-of-the-art materials precision machined, heat treated, and hardened.
The Terminator MILLHOG is a ruggedly constructed precision pipe beveling machine for performing weld joint bevels at any angle on pipe ends up to 36″. Built with state of the art materials that are precision machined, heat treated and hardened, the Terminator is designed to provide years of trouble free service on the toughest applications.

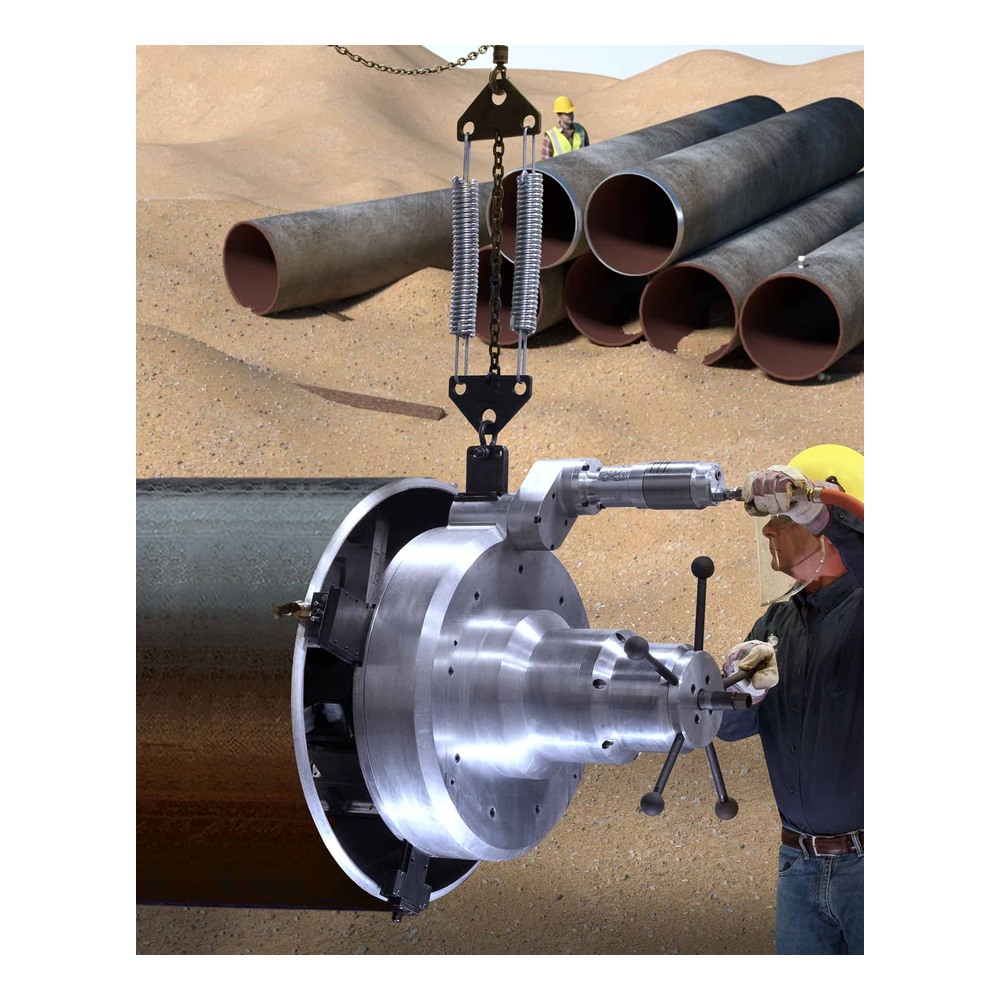

The included Safety Spring Hanger permits the Terminator to be safely and easily aligned and secured square to the pipe.
| Specification | Imperial | Metric |
|---|---|---|
| Working Range | 8.75″ I.D. – 36.0″ O.D. | 222.25 mm I.D. – 914.4 mm O.D. |
| Blade Series | M-Series Blades | M-Series Blades |
| Min. Width | 30″ | 762 mm |
| Head Length | 50″ | 1270 mm |
| Pneumatic – Power | 5 hp | 3728 W |
| Pneumatic – Air Pressure | 90 psi | 6.2 bar |
| Pneumatic – Air Flow | 95 cfm | 2690 L/min |
| Hydraulic – Power | 5 hp | 3728 W |
| Hydraulic – Pressure | 1500 psi | 102 bar |
| Hydraulic – Flow | 8-12 gpm | 30.3-45.4 L/min |
| Cutterhead Speed – Pneumatic | 4 rpm | 4 rpm |
| Cutterhead Speed – Hydraulic | 1-4 rpm | 1-4 rpm |
| Cutterhead Speed (gear box) – Pneumatic | 2 rpm | 2 rpm |
| Cutterhead Speed (gear box) – Hydraulic | 1-2 rpm | 1-2 rpm |
| Working Weight – Pneumatic | 700 lbs | 318 kg |
| Working Weight – Hydraulic | 704 lbs | 319.1 kg |
| Shipping Weight – Pneumatic | 1375 lbs | 623.7 kg |
| Shipping Weight – Hydraulic | 1379 lbs | 625.3 kg |
| Shipping Dimensions | 36″ × 54″ × 48″ | 915 mm × 1372 mm × 1219 mm |
| Wedge | Clamp Rib Set | I.D. Range (in) | I.D. Range (mm) |
|---|---|---|---|
| Small Wedge | T-01 | 8.625 – 10.750 | 219.1 – 273.1 |
| T-01 & T-02 | 10.500 – 12.750 | 266.7 – 323.9 | |
| T-01 & T-03 | 12.500 – 14.750 | 317.5 – 374.7 | |
| T-01 & T-04 | 14.500 – 16.750 | 368.3 – 425.5 | |
| T-01 & T-05 | 16.500 – 18.750 | 419.1 – 476.3 | |
| T-01 & T-219 Ext. & T-02 | 18.500 – 20.750 | 469.9 – 527.1 | |
| T-01 & T-219 Ext. & T-03 | 20.500 – 22.750 | 520.7 – 577.9 | |
| T-01 & T-219 Ext. & T-04 | 22.500 – 24.750 | 571.5 – 628.7 | |
| T-01 & T-219 Ext. & T-05 | 24.500 – 26.750 | 622.3 – 679.5 | |
| Large Wedge | T-01 | 14.750 – 16.250 | 374.7 – 412.8 |
| T-01 & T-02 | 16.000 – 18.500 | 406.4 – 469.9 | |
| T-01 & T-03 | 18.000 – 20.500 | 457.2 – 520.7 | |
| T-01 & T-04 | 20.000 – 22.500 | 508.0 – 571.5 | |
| T-01 & T-05 | 22.000 – 24.500 | 558.8 – 622.3 | |
| T-01 & T-06 | 24.000 – 26.500 | 609.6 – 673.1 | |
| T-01 & T-374 Ext. & T-02 | 26.000 – 28.500 | 660.4 – 723.9 | |
| T-01 & T-374 Ext. & T-03 | 28.000 – 30.500 | 711.2 – 774.7 | |
| T-01 & T-374 Ext. & T-04 | 30.000 – 32.500 | 762.0 – 825.5 | |
| T-01 & T-374 Ext. & T-05 | 32.000 – 34.500 | 812.8 – 876.3 | |
| T-01 & T-374 Ext. & T-06 | 34.000 – 36.500 | 863.6 – 927.1 |
| Accessory | Details |
|---|---|
| Tool Post – See Chart | The Terminator MILLHOG kits are sold with 2 tool post bases and 1 straight tool post so that another tool post can be selected. In addition to a flat tool post, there are also angled tool posts that are most commonly used on heavy wall pipe (in excess of 2.0″/50.8 mm) with a straight blade for rigidity. |
| I.D. Tracking Attachment – T-100 | The I.D. Tracking Attachment for the Terminator MILLHOG is used for pipe that is out-of-round or has varying wall thickness. This attachment rides along the inside diameter and moves in/out as the cutterhead rotates, leaving a consistent bevel despite the pipe’s imperfect shape. |
| Torque Multiplier Gear Box – T-101 | The Torque Multiplier Gear Box for the Terminator MILLHOG is designed to be easily installed with all motor options. When the Gear Box is attached, the cutterhead rpm is cut in half while torque is doubled. |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Esco Tool TERMINATOR MILLHOG Pipe Beveling Tool.
