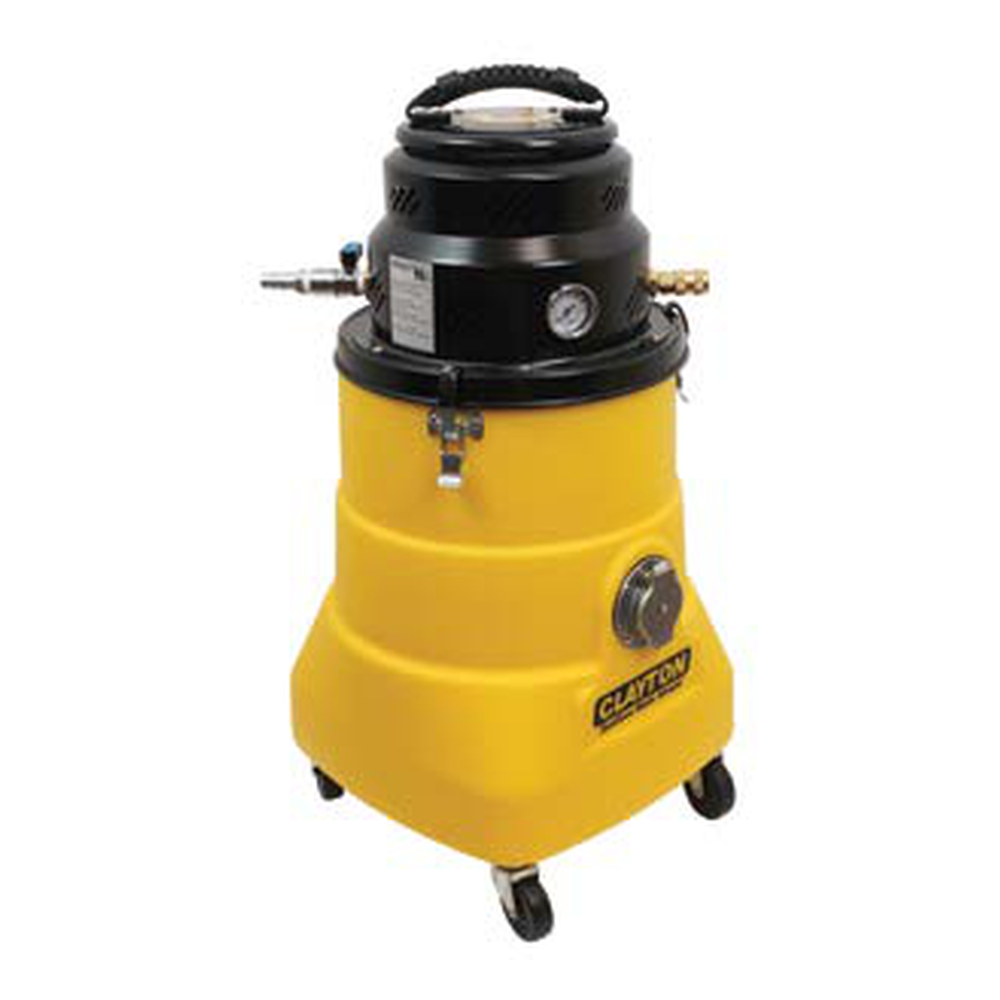

The pneumatic Clayton WartHog Cleanup is driven by a machined-aluminum adjustable peripheral-injection annular venturi with no electric motor – ideal for areas without power or for continuous duty. It is built for dust extraction and general cleanup with absolute HEPA filtration.
The pneumatic Clayton WartHog Cleanup is driven by a machined-aluminum adjustable peripheral-injection annular venturi with no electric motor – ideal for areas without power or for continuous duty. It is built for dust extraction and general cleanup with absolute HEPA filtration.
It features a 1/2″ compressed-air inlet with ball valve, a 1/4″ air tool connection, a screw-on H14 HEPA filter (99.995% @ 0.3 micron) and a self-closing vacuum port. The tank is offered in poly (5 & 15 gal) or steel (2, 5, 15 & 30 gal).
| SKU | Select |
| Tank material | Select |
| Tank capacity | Select |
| Power | Air-powered (venturi) |
| Air consumption | 60 CFM @ 90 PSI (1,699 lpm) |
| Vacuum airflow | 105 CFM (2,973 lpm) |
| Sealed suction (water lift) | 180″ H2O (447 mbar) |
| Noise level | 79 dBA |
| Filter | H14 HEPA, 99.995% @ 0.3 micron |
| Air inlet | 1/2″ air inlet with ball valve; 1/4″ tool connection |
| Casters | heavy-duty 2″ casters |
| Features | Self-closing vacuum port; non-marring latches |
| Weight | 23 lbs (5 gal), 44 lbs (15 gal) |
| Applications | Dust extraction and general cleanup in industrial, military and aerospace settings requiring absolute HEPA filtration |
| Included | HEPA filter & pre-filter, filter bags (5-pack), cord & hose straps |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Clayton WartHog Cleanup Pneumatic HEPA Vacuum.
