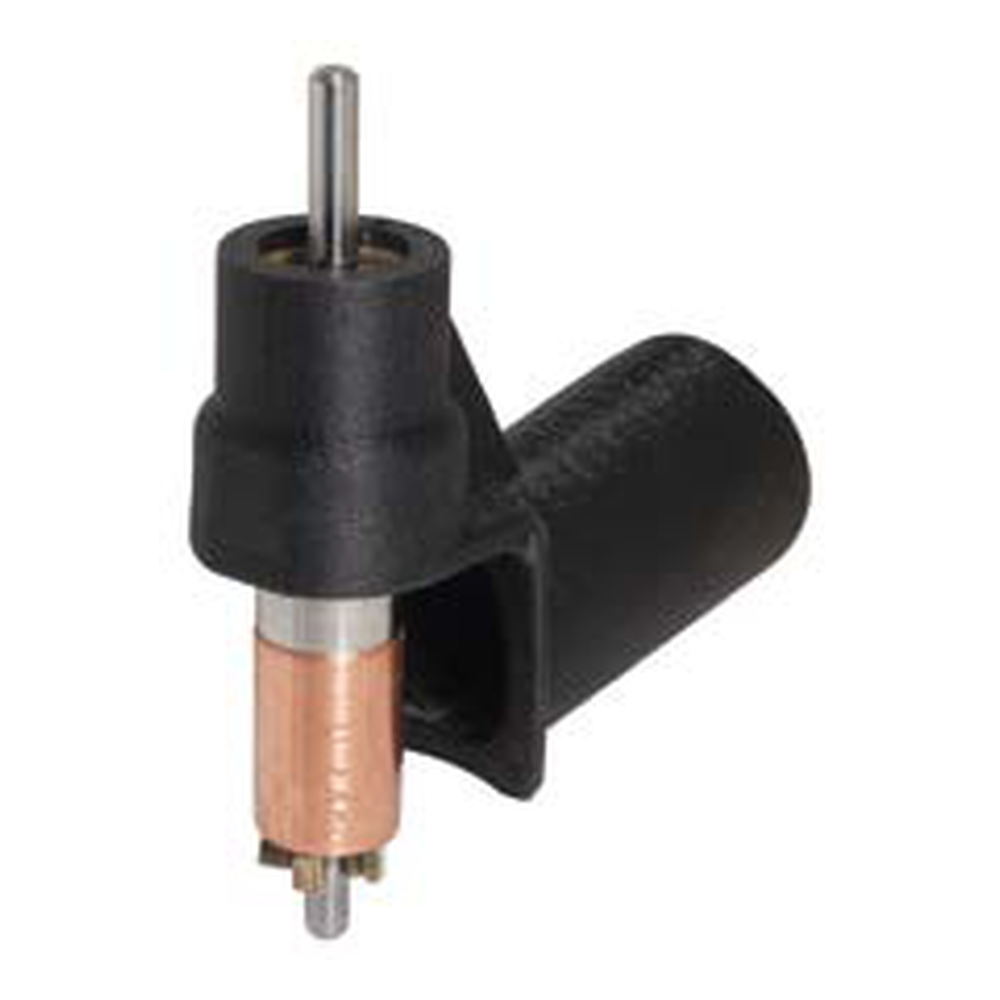

The Piloted Bonding Brush Shroud is built for metal bonding brushes with tightly spaced metal bristles that clean paint, primer and corrosion around rivet holes for positive electrical contact (bonding) and to eliminate static. The shroud swivels freely around the mandrel and features a Positive Lock swivel fitting.
The Piloted Bonding Brush Shroud is built for metal bonding brushes with tightly spaced metal bristles that clean paint, primer and corrosion around rivet holes for positive electrical contact (bonding) and to eliminate static. The shroud swivels freely around the mandrel and features a Positive Lock swivel fitting.
Available in four shroud configurations: Tight Access Notched and Tight Access (1/8in mandrel, for brushes up to 5/8in OD), 1in Clear Revolution (up to 3/4in OD) and 2in Clear Revolution (up to 1-1/4in OD). Tight Access shrouds include a 2ft x 3/4in hose whip; Clear Revolution shrouds include a 2ft x 1in hose whip. Brushes are sold separately (call for available diameters).
| SKU | Select |
| Shroud configuration | Select |
| Brush capacity | Select |
| Application | Cleaning paint/primer/corrosion around rivet holes for electrical bonding and static elimination |
| Hose connection | Tight Access: 2ft x 3/4in whip; Clear Revolution: 2ft x 1in whip; Positive Lock swivel fitting |
| Included | Mandrel, hose whip, swivel adapter for 1in vacuum hoses (brushes sold separately) |
| Metric mandrel option | Metric mandrel option (774-) does not apply to Tight Access shrouds |
