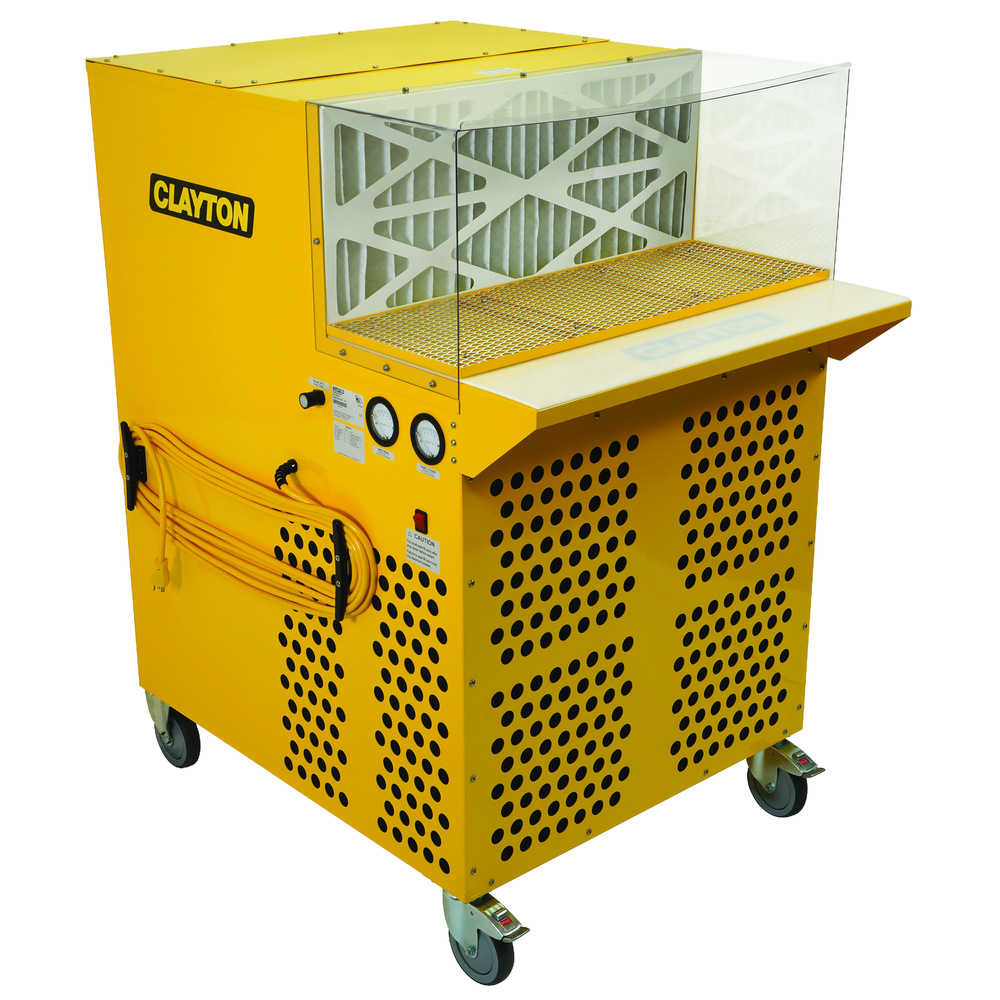

The Clayton HEPA Grinding Station is a self-contained, HEPA-filtered grinding workstation. An operator stands at it to grind, sand or work small parts without needing source-capture vacuum tools. 1,350 CFM of airflow at a 450 ft/min face velocity entrains the dust and a three-stage filtration system captures it.
The Clayton HEPA Grinding Station is a self-contained, HEPA-filtered grinding workstation. An operator stands at it to grind, sand or work small parts without needing source-capture vacuum tools. 1,350 CFM of airflow at a 450 ft/min face velocity entrains the dust and a three-stage filtration system captures it.
Filtration runs in three stages: a Stage 1 MERV 8 primary panel filter, a Stage 2 MERV 13 secondary panel filter, and Stage 3 HEPA cartridges that capture 99.97% of particles down to 0.3 micron. A Safe Filter Change design lets users swap the Stage 1 & 2 panel filters without exposure to hazardous dust, and two differential pressure gauges monitor filter status.
A crystal-clear Lexan shield surrounds the work area to shield the worker’s eyes, a removable large debris tray collects coarse debris, and the station rides on 5-inch casters (two locking) for easy mobility. It requires a 120 V 20 A circuit and ships with a 25′ power cord..
| SKU | GS-1350-01 |
| Airflow | 1350 CFM |
| Face velocity | 450 ft/min |
| Filtration | Three-stage: Stage 1 MERV 8 primary panel, Stage 2 MERV 13 secondary panel, Stage 3 HEPA cartridges |
| HEPA efficiency | 99.97% of particles down to 0.3 micron |
| Filter monitoring | Differential pressure gauges |
| Safe Filter Change | Change Stage 1 & 2 panel filters without exposure to hazardous dust |
| Work area | 31 w x 12d x 13h (in); open face 31 w x 13h; shelf 31 w x 6h |
| Overall dimensions | 32 w x 37d x 50h (in) |
| Weight | 300 lbs |
| Electrical | 120 V 20 A circuit; 25′ power cord |
| Casters | 5″ casters, two locking |
| Shield | Crystal-clear Lexan shield surrounding the work area |
| Debris tray | Removable large debris tray |
| Applications | Grinding, sanding and working small parts without source-capture vacuum tools |
| Replacement parts | MERV 8 panel filter (627-1350PM08), MERV 13 panel filter (627-1350PM13), HEPA filter 14×30 in – 2 required (627-1350H), Lexan shield (610-202G) |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Clayton GS-1350-01 HEPA Grinding Station - 1,350 CFM Three-Stage Filtration.
