The Clayton FOD Pod C-130 Kit is designed to be used with the C-130 fuel & oxygen overboard vent port. The vent port is normally capped with an AN929-16 cap; the kit includes a 1-1/4in rubber hose cuff that pushes onto the port once the cap is removed.
The Clayton FOD Pod C-130 Kit is designed to be used with the C-130 fuel & oxygen overboard vent port. The vent port is normally capped with an AN929-16 cap; the kit includes a 1-1/4in rubber hose cuff that pushes onto the port once the cap is removed.
When the C-130 is pressurized and at altitude, the pressure differential between the cabin and outside air acts as the vacuum source – no separate vacuum is needed. Two 20 ft vacuum hoses provide a total 40 ft reach, extending to the tail and cockpit.
| SKU | FP-100-01 |
| Type | C-130 aircraft vacuum system |
| Vacuum source | Cabin-to-outside pressure differential at altitude (no separate vacuum) |
| Aircraft connection | 1-1/4in rubber hose cuff onto the overboard vent port (AN929-16 cap point) |
| Vacuum reach | 40 ft total – reaches tail and cockpit |

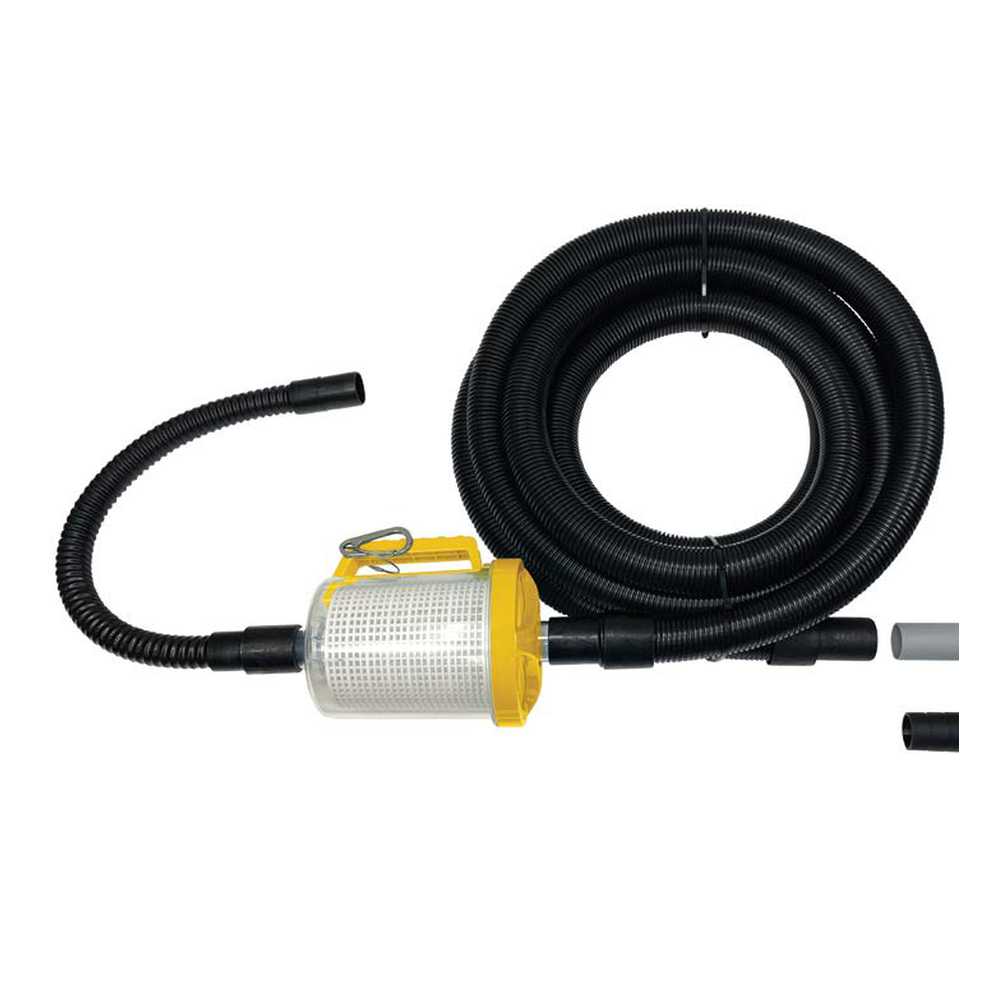

| Hoses | 2 ft aircraft-connection hose; 2 x 20 ft vacuum hoses (40 ft total) |
| Includes | 2-piece wand, dust brush, crevice tool |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Clayton FOD Pod C-130 Aircraft Vacuum System.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
