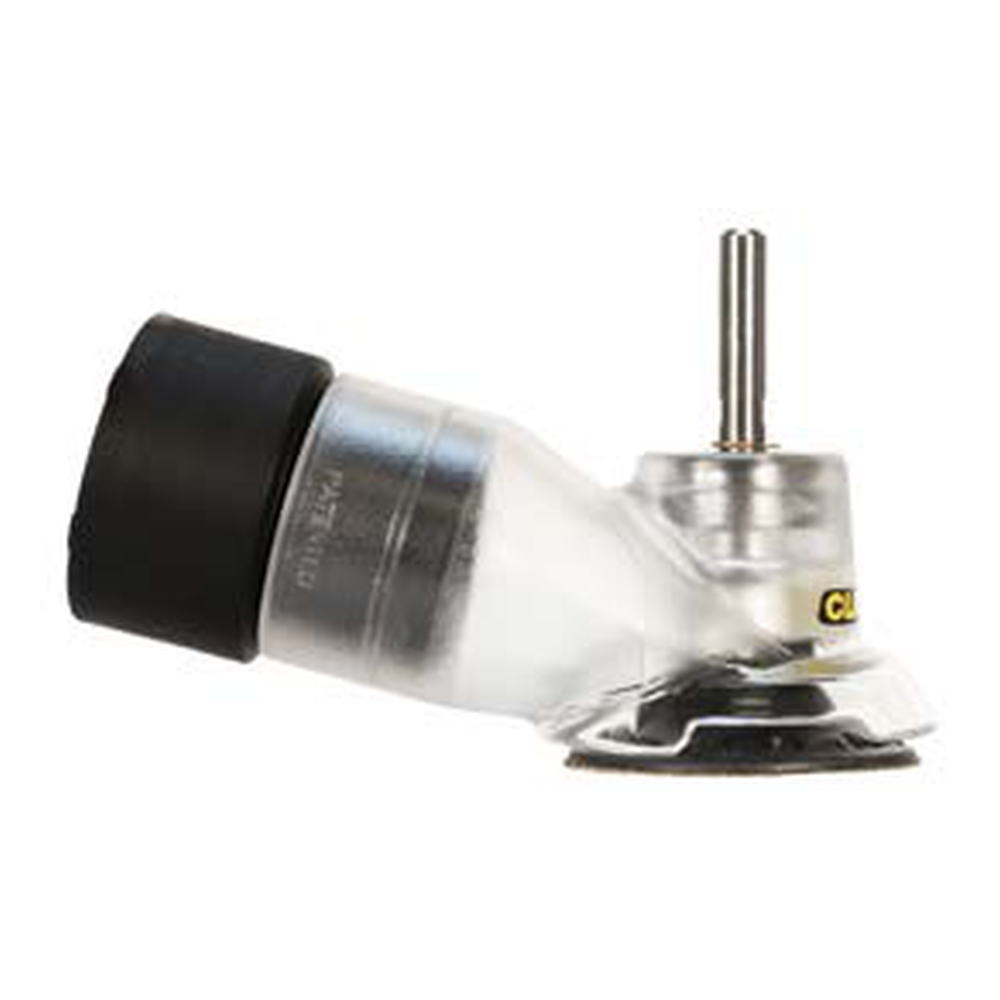

The Clear Revolution shroud is Clayton’s flagship Universal Shroud – a crystal-clear dust-capture shroud made of Lexan polycarbonate, the same material used for aerospace cockpits and space helmets. The shroud floats on a bearing mounted to a 1/4in mandrel, so it fits any grinder or sander with a 1/4in collet (straight or right angle) with no tool modifications.
The Clear Revolution shroud is Clayton’s flagship Universal Shroud – a crystal-clear dust-capture shroud made of Lexan polycarbonate, the same material used for aerospace cockpits and space helmets. The shroud floats on a bearing mounted to a 1/4in mandrel, so it fits any grinder or sander with a 1/4in collet (straight or right angle) with no tool modifications.
The clear window offers 225 degrees of visibility and does not obscure the working edge of the abrasive discs. A high-flow 1in swivel hose connection with a Positive Lock fitting keeps the hose from pulling free. Available in three abrasive sizes (1in, 2in, 3in) and three pad styles (TR / TS / TP). Every shroud includes a mandrel, disc pad, 2ft x 1in hose whip and a swivel adapter for connection to 1in vacuum hoses.
| SKU | Select |
| Abrasive size | Select |
| Pad style | Select |
| Material | Lexan polycarbonate, virtually indestructible, guaranteed for life |
| Visibility | Crystal-clear window, 225° |
| Tool speed | Recommended 12,000 RPM; Max 20,000 RPM |
| Mandrel & collet | 1/4in mandrel; fits any tool with a 1/4in collet (straight or right angle) |
| Hose connection | High-flow 1in swivel connection, Positive Lock fitting |
| Included | Mandrel, disc pad, 2ft x 1in hose whip, swivel adapter for 1in vacuum hoses |
| Replacement parts | Mandrel 672-004R; disc pads 672-1016TR/TS/TP (1in), 672-1032TR-09/TS-09/TP-06 (2in), 672-1048TR-12/TS-12/TP-06 (3in); bearing replacements 674-A1216B/A1232B/A1248B |
| Metric mandrel option | For a metric mandrel replace the 674- prefix with 774- and add a suffix: -48S/-48L (4.8 mm), -49S/-49L (4.95 mm), -60S/-60L (6 mm) |
