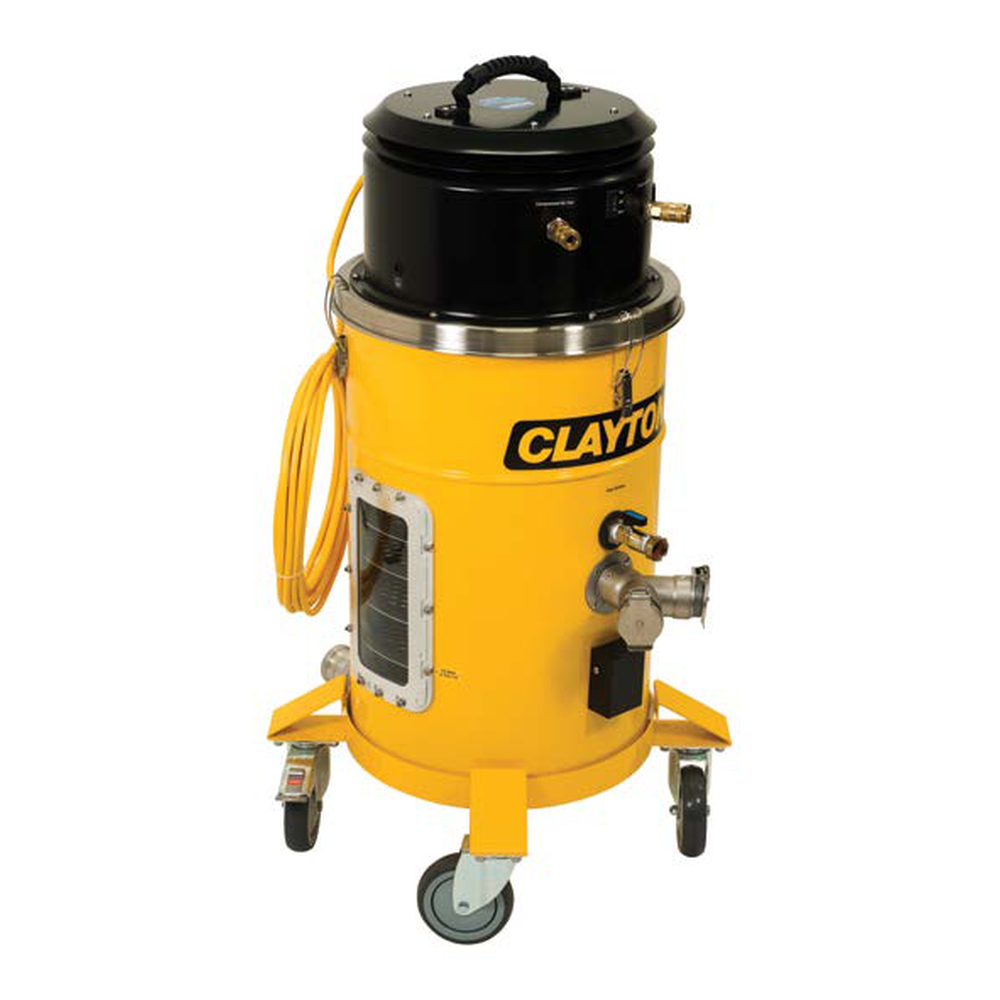

The Barracuda is a stainless-steel immersion vacuum designed specifically to capture live sparks, embers and combustible dust such as aluminum and titanium. A powerful vacuum motor draws air and collected particulate into the immersion tank and forces it through a roiling water bath, instantly quenching sparks and thoroughly wetting dust out of the airstream; additional stages of filtration ensure the air exhausted from the system is dust- and moisture-free.
The Barracuda is a stainless-steel immersion vacuum designed specifically to capture live sparks, embers and combustible dust such as aluminum and titanium. A powerful vacuum motor draws air and collected particulate into the immersion tank and forces it through a roiling water bath, instantly quenching sparks and thoroughly wetting dust out of the airstream; additional stages of filtration ensure the air exhausted from the system is dust- and moisture-free.
It is built entirely of never-rust stainless steel and features a multi-nozzle internal wash-down system, a large window to monitor water level and vacuum activity, a 4-stage filtration system, a drain filter for easy collection and disposal of sludge, low-level water shutoff and pneumatic tool-sync auto on/off. To empty, pull the valve lever to dump water and debris through a filter sock into any floor drain, then connect a garden hose so internal spray heads flush the tank and prevent sediment build-up.
The line is offered in four configurations sharing the same stainless body and 4-gallon (15 L) tank: an electric Volt model (120 V or 220-240 V), a pneumatic Air model for HazLoc/explosive environments, and a no-power-head Immersion Pre-Separator that runs off an external vacuum source. Compatible accessories include a coalescing hydrophobic HEPA filter, filter socks, stainless coalescing filters, conductive vacuum/air hoses, cleanup toolkits and an aircraft grounding cable. Carries a LIFETIME WARRANTY.
| SKU | Select |
| Configuration | Select |
| Consumption / Power | Select |
| Vacuum airflow | Select |
| Suction (water lift) | Select |
| Noise | Select |
| Motor | Select |
| Tank capacity | 4 Gal (15 L) |
| Users | Two users |
| Filtration | 4-stage filtration system |
| Construction | All stainless steel (never rusts) |
| Wash-down | Multi-nozzle internal wash-down system |
| Water-level monitoring | Large viewing window; low-level water shutoff |
| On/Off control | Pneumatic tool-sync auto on/off |
| Emptying | Easy-empty gate valve with 5-micron sludge filter and drain sock; garden-hose refill |
| Safety | Integrated hydrogen vent; self-closing vacuum ports |
| Casters | 5″ locking casters |
| Applications | Live sparks, embers and combustible dust (aluminum, titanium) |
| Warranty | Lifetime warranty |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Clayton Barracuda Two-User Immersion Vacuum.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
