Clean, controlled sanding with flexible pad and dust extraction options.

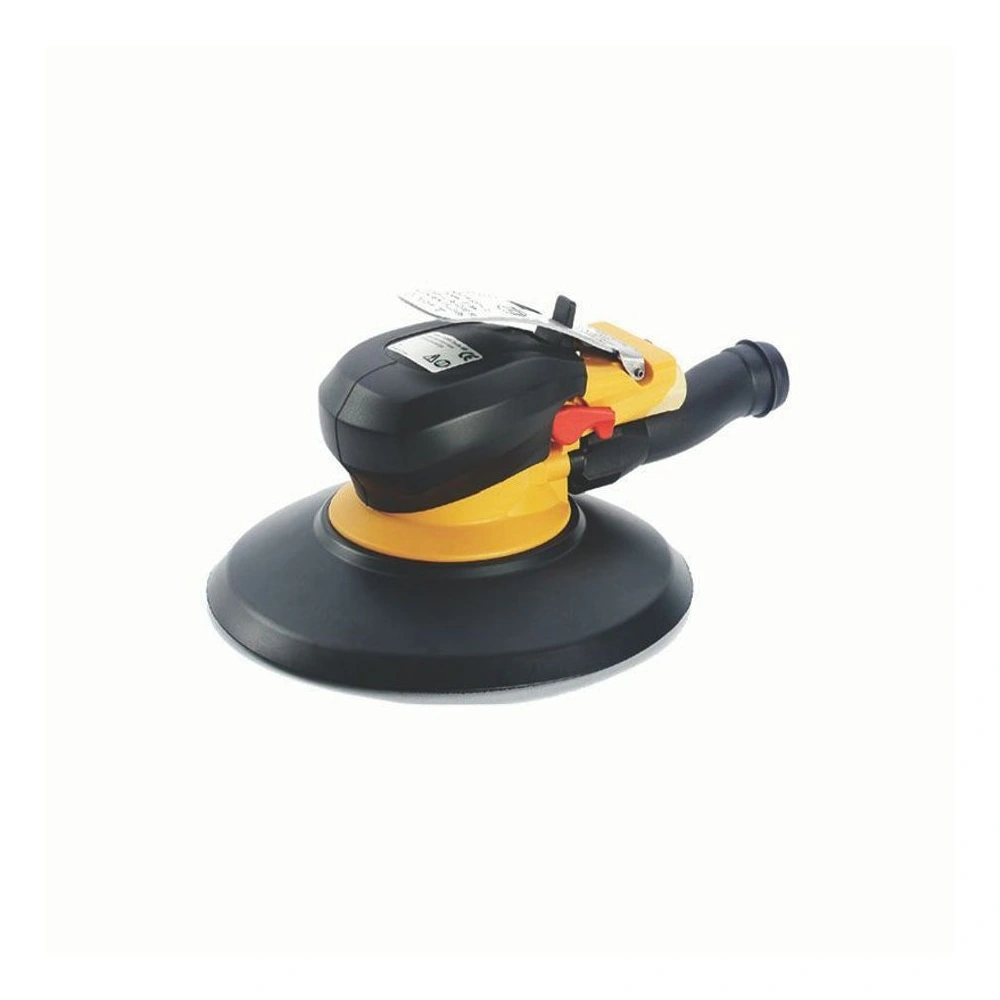

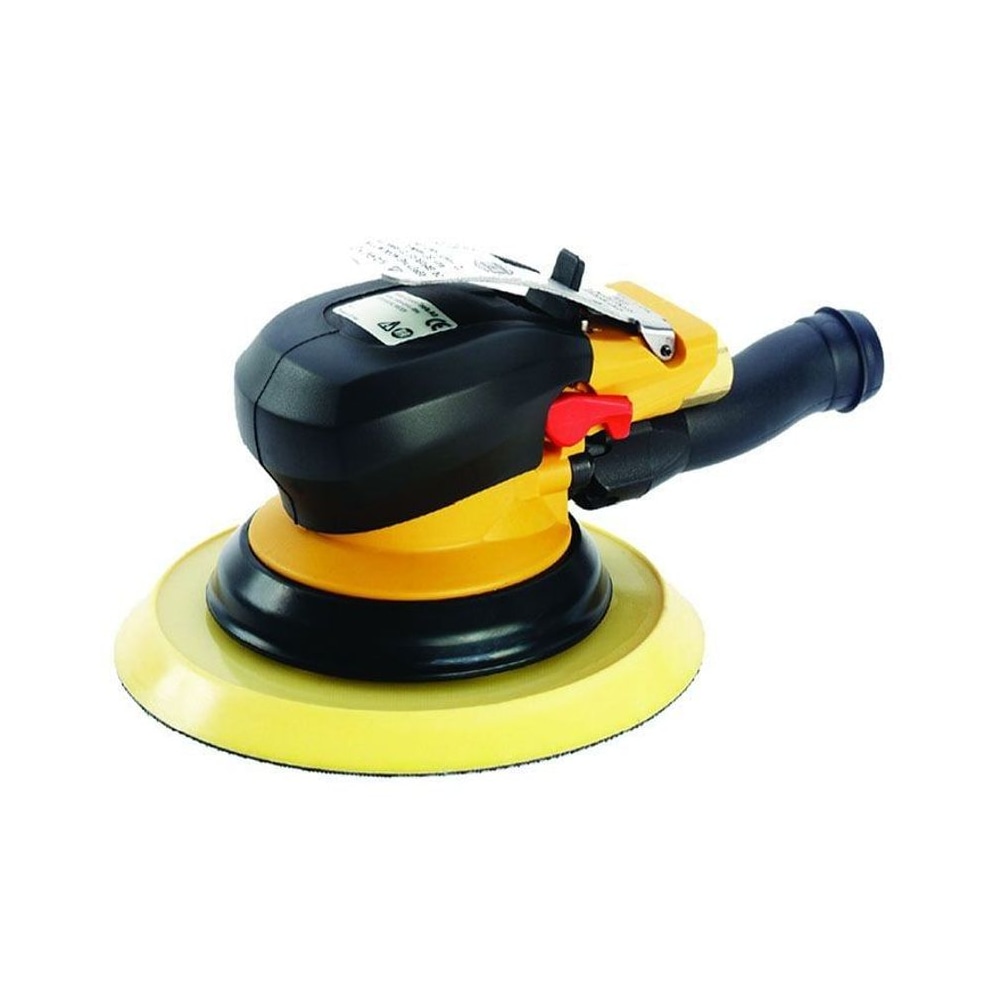

Atlas Copco LST22 is a pneumatic random orbital sander for consistent sanding and finishing work.
The family fits production, maintenance, and surface-prep tasks, with accessory options that help match the tool to the work station and dust extraction setup.
How do I choose the right LST22 model?
Step 1: Choose the pad diameter that matches your work, 125 mm or 150 mm.
Step 2: Decide whether you need a velcro or self stick pad.
Step 3: Match the dust extraction solution to the suction requirement at your station.
Step 4: Confirm that the accessories fit your connection and working setup.
When should I choose 125 mm versus 150 mm pads?
125 mm is typically the better choice for more focused work. 150 mm is suited to covering a larger area per pass.
Which dust extraction accessories are available?
The series includes a 1.5 m dust extraction hose and 1.8 m hoses in 25 mm, 32 mm, and 38 mm diameters, depending on the suction requirement.
What is included with the sander?
Available accessories for the series include pad velcro, hose nipple, pin key, adapter, maintenance tool, and dust extraction hoses, depending on the ordering setup.
Is there MULTIFLEX compatibility?
Yes.
MULTIFLEX versions and accessories are available, including MULTIFLEX-1/4, MULTIFLEX-1/4-NPT, and a cover.
How should the LST22 be maintained?
For routine use, the dedicated maintenance tool can help with service tasks, and the connection accessories and hoses should be checked as part of regular upkeep.
| Model | Max free speed (r/min) | Max pad size (mm) | Orbit dia (mm) | Height over spindle (mm) | Air inlet thread (in) BSP (in) | Max output (W) | Weight (kg) | Air consumption at free speed (l/s) | Rec hose size (mm) | Handle (With) | (Without) | Ordering No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LST22 R550 (central suction – Required air fol w 60 m3/h or 35 cfm) | 12000 | 125 | 5 | 84 | 1/4 | 200 | 0.85 | 8 | 8 | – | • | 8423036171 |
| LST22 R650 (central suction – Required air fol w 60 m3/h or 35 cfm) | 12000 | 150 | 5 | 84 | 1/4 | 200 | 0.85 | 8 | 8 | – | • | 8423036175 |

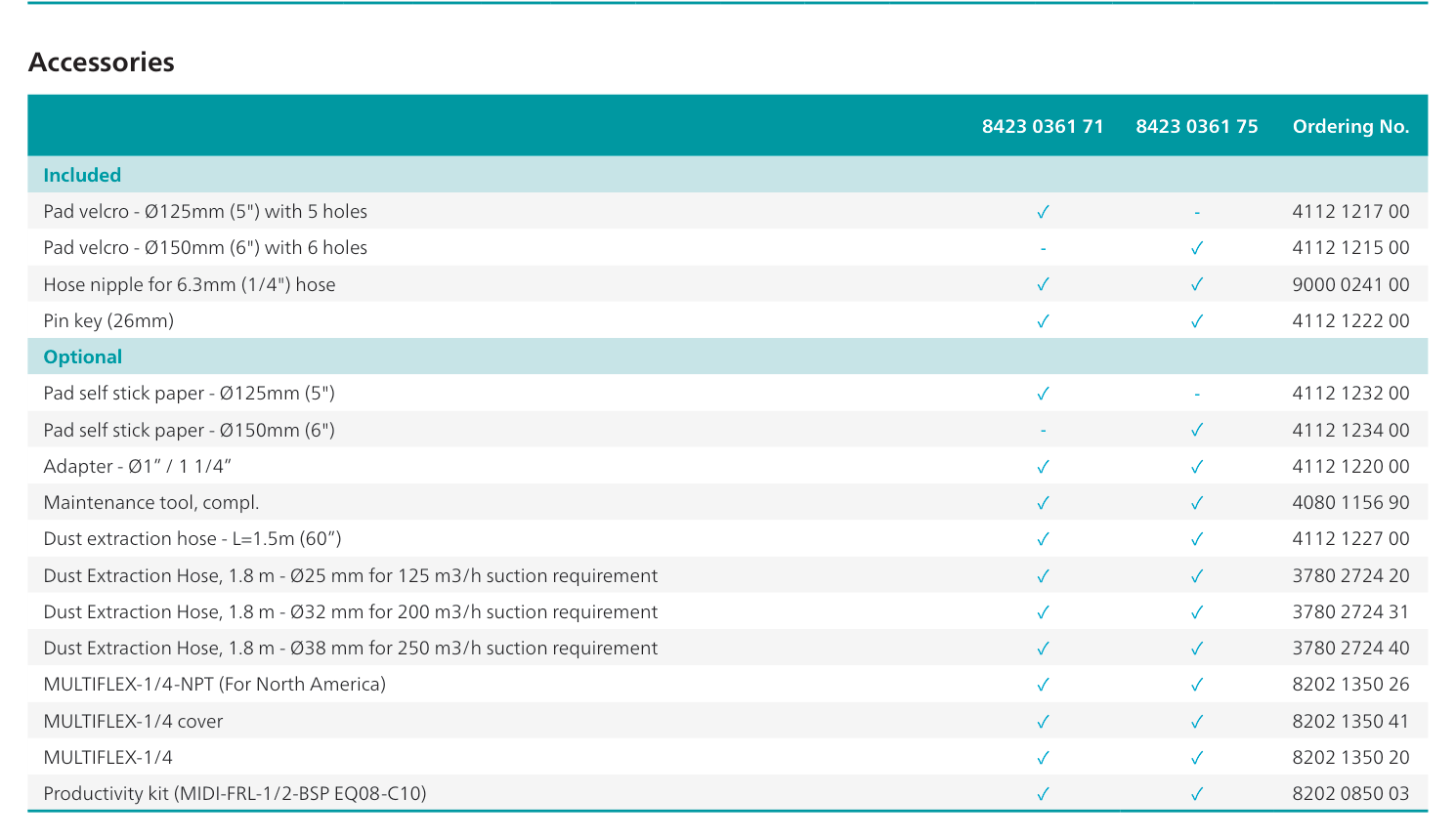

The complete accessories tables, exactly as they appear in the Atlas Copco catalog – every ordering number, dimension and drawing. The PDF attached to this page is also available for download.
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Atlas Copco LST22 Pneumatic Random Orbital Sander.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
