Angle Nutrunner QST-CTV for Automation

Angle Nutrunner QST-CTV for Automation

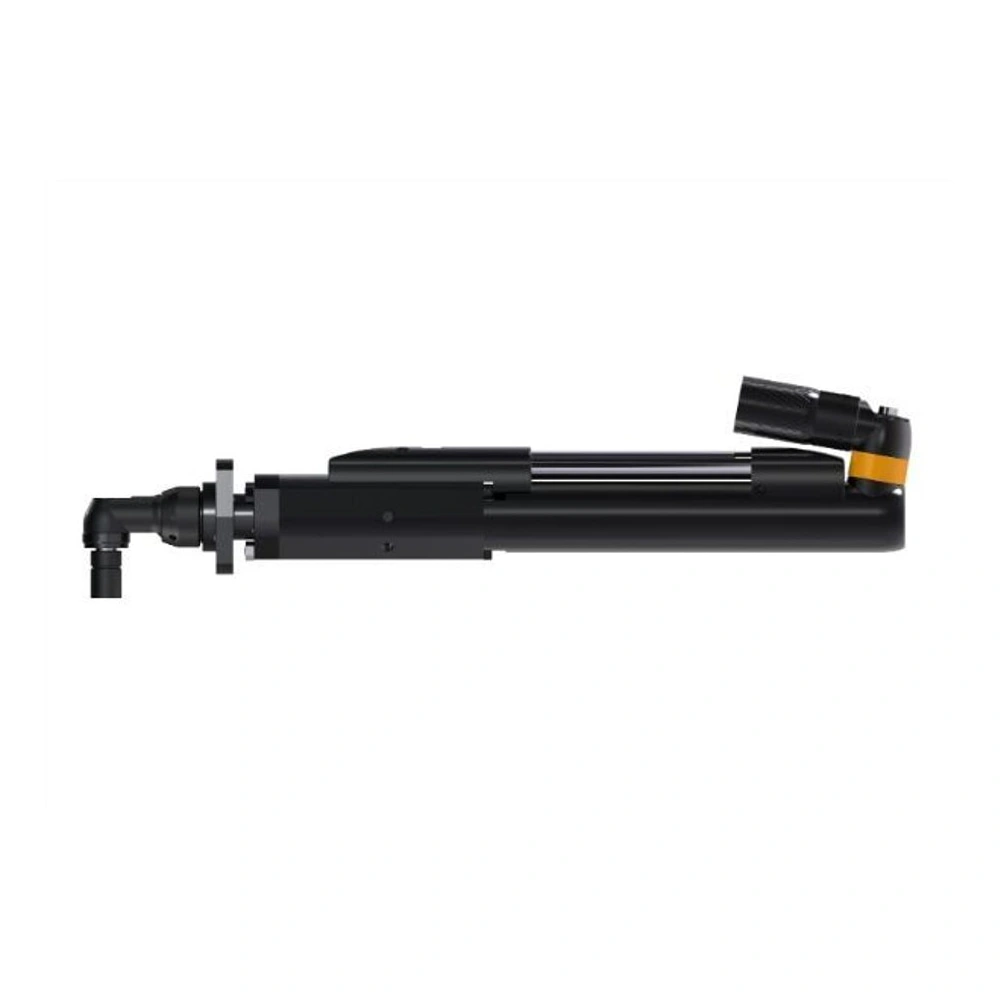

The Angle Nutrunner QST-CTV is an advanced engineering solution for automation and robotics applications where space constraints or accessibility require an angle head configuration. This series, designed in an Angle Head setup, combines the extreme precision of the QST series with a slim, ergonomic structure for optimal integration into assembly machines and dense production lines.

The QST-CTV series guarantees perfect fastening performance with +/- 2.5% accuracy. Every nutrunner comes standard with built-in torque transducers and angle sensors. For Safety Critical applications requiring maximum protection, you can choose QST-CTTV models featuring a double torque transducer, or QST-CATTV models offering full redundancy with double torque transducers and double angle sensors. These nutrunners are engineered for 24/7 heavy-duty operation and offer an exceptionally long service interval of one million cycles, with full connectivity to Power Focus 6000 and PowerMACS 4000 controllers for real-time data monitoring.

Key Features of Angle Nutrunner QST-CTV

• • Access to Restricted Spaces: The Angle Head configuration allows for fastening in tight spots or low-clearance areas.
  • High Level of Safety (Redundancy): Available versions with double backup (CTTV/CATTV) to ensure uncompromising fastening quality at critical joints.
  • Precision & Quality: Complies with strict quality standards with a minimal torque deviation of +/- 2.5%.
  • Smart Robotic Integration: Compact structure and advanced digital connectivity allow for full control over all tightening stages.

Frequently Asked Questions

Q: What is the difference between QST-CTV and CTTV/CATTV nutrunners?
A: The QST-CTV is the base model with one transducer. CTTV models include an additional torque transducer, and CATTV models include both an extra transducer and an extra angle sensor for increased safety.

Q: Is this nutrunner suitable for automated production lines?
A: Yes, these nutrunners were specifically designed for fixtured applications and robotics, featuring Hot Swap support and industrial protocol connectivity.
