Straightforward. Accurate. Ergonomic – center-lock wheel changes with confidence

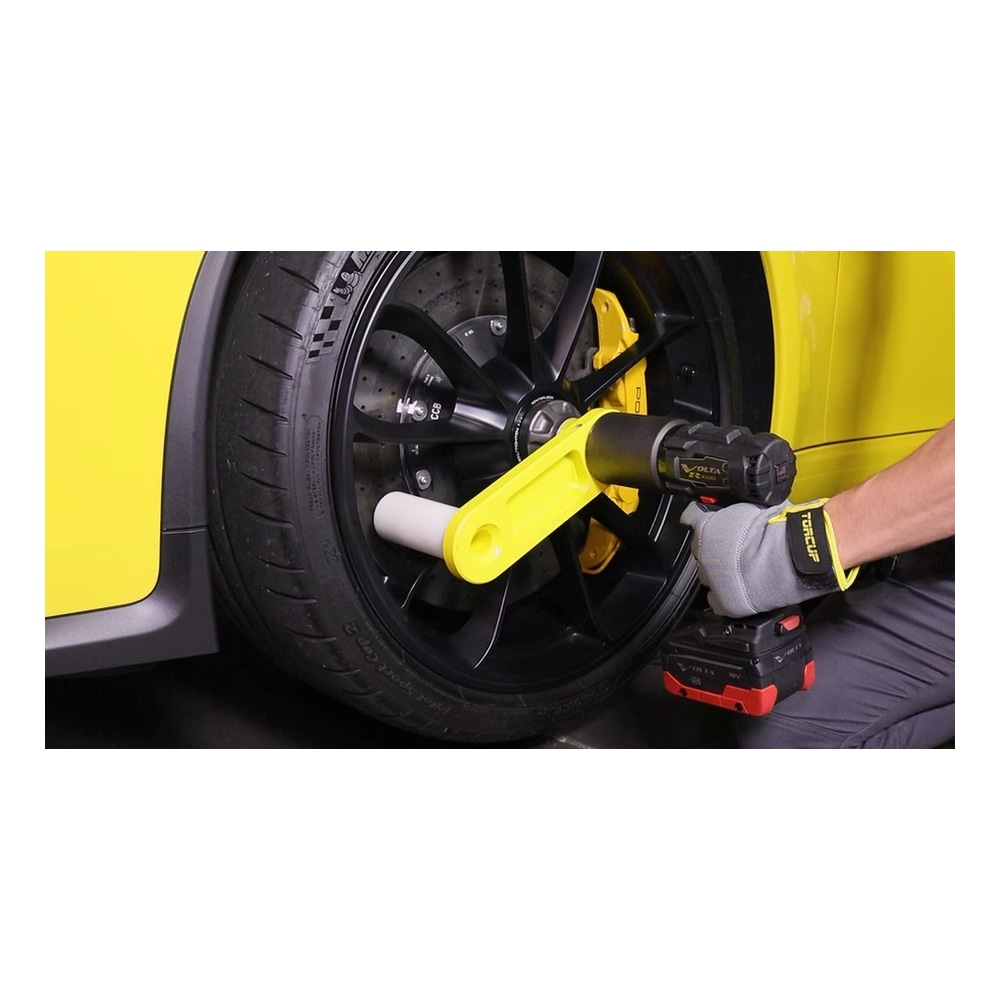

The VTR Center Lock wrench performs center-lock wheel changes effortlessly, accurately and repeatably, eliminating the need for a manual torque wrench and two-person operation.

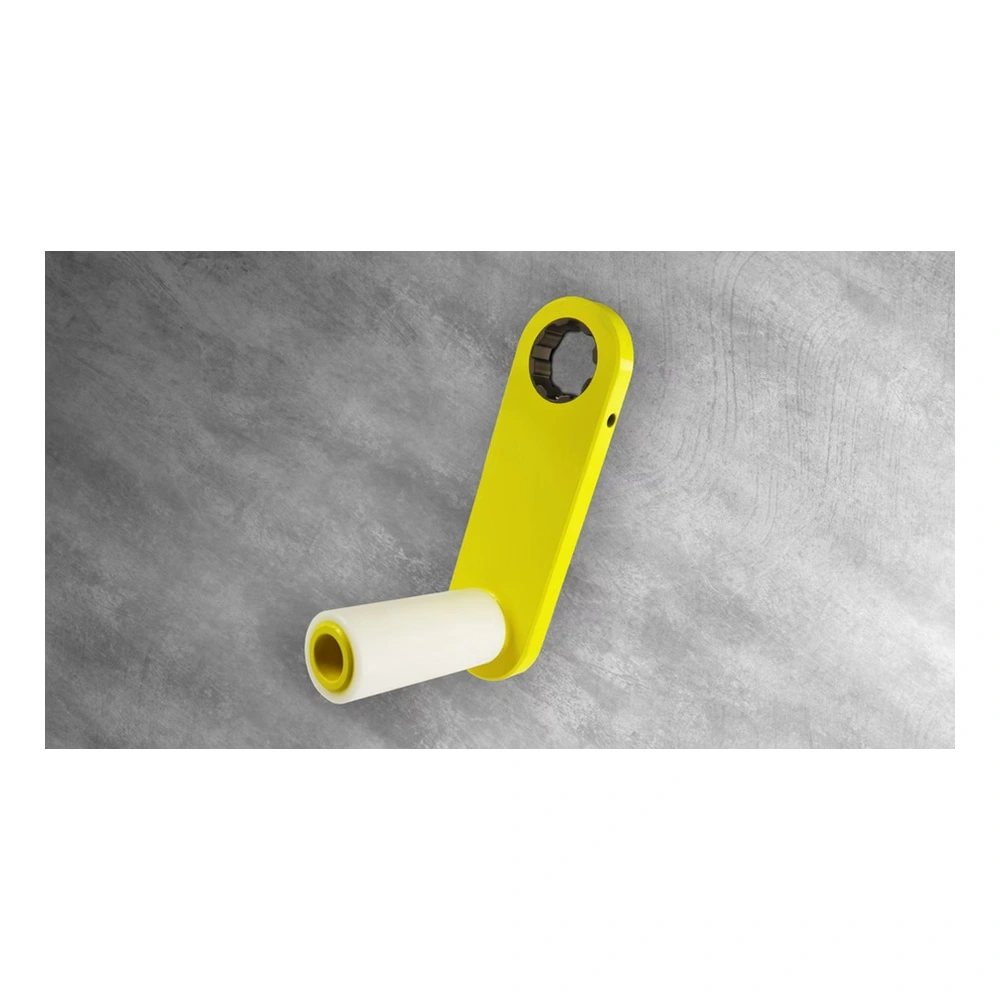

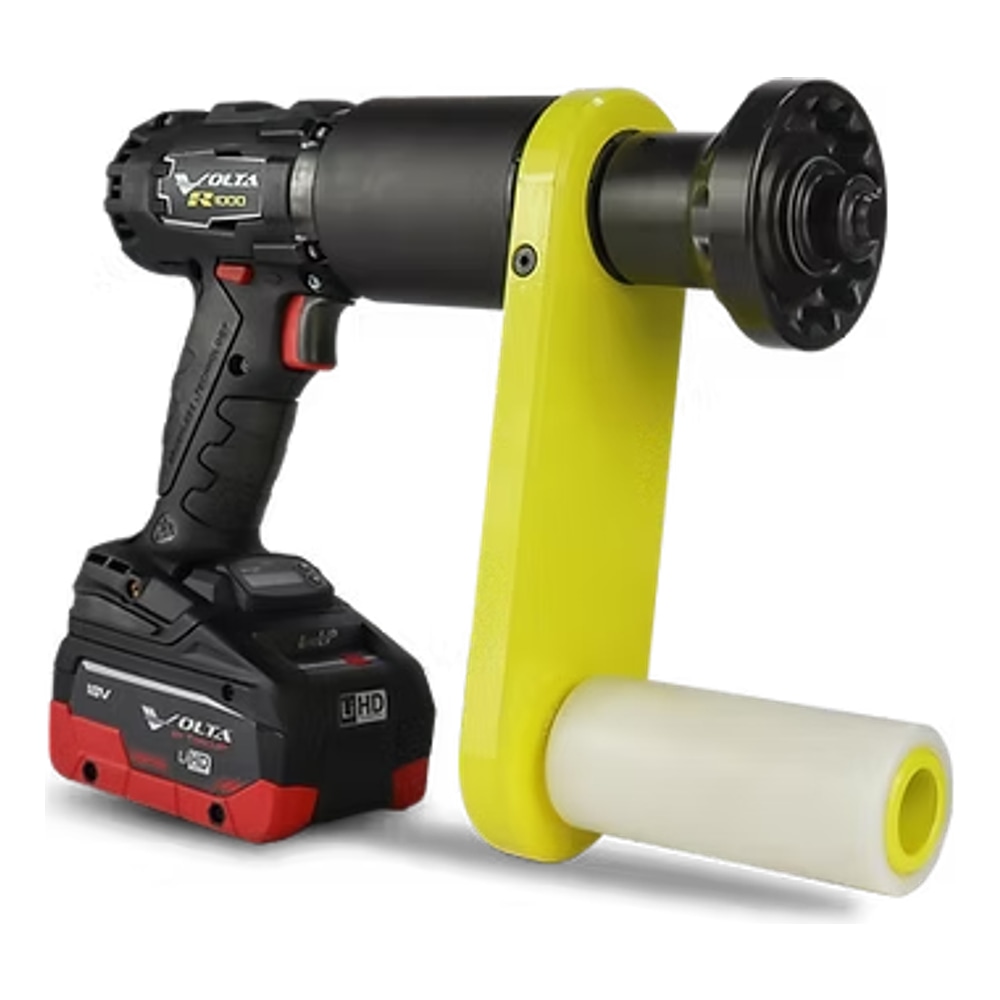

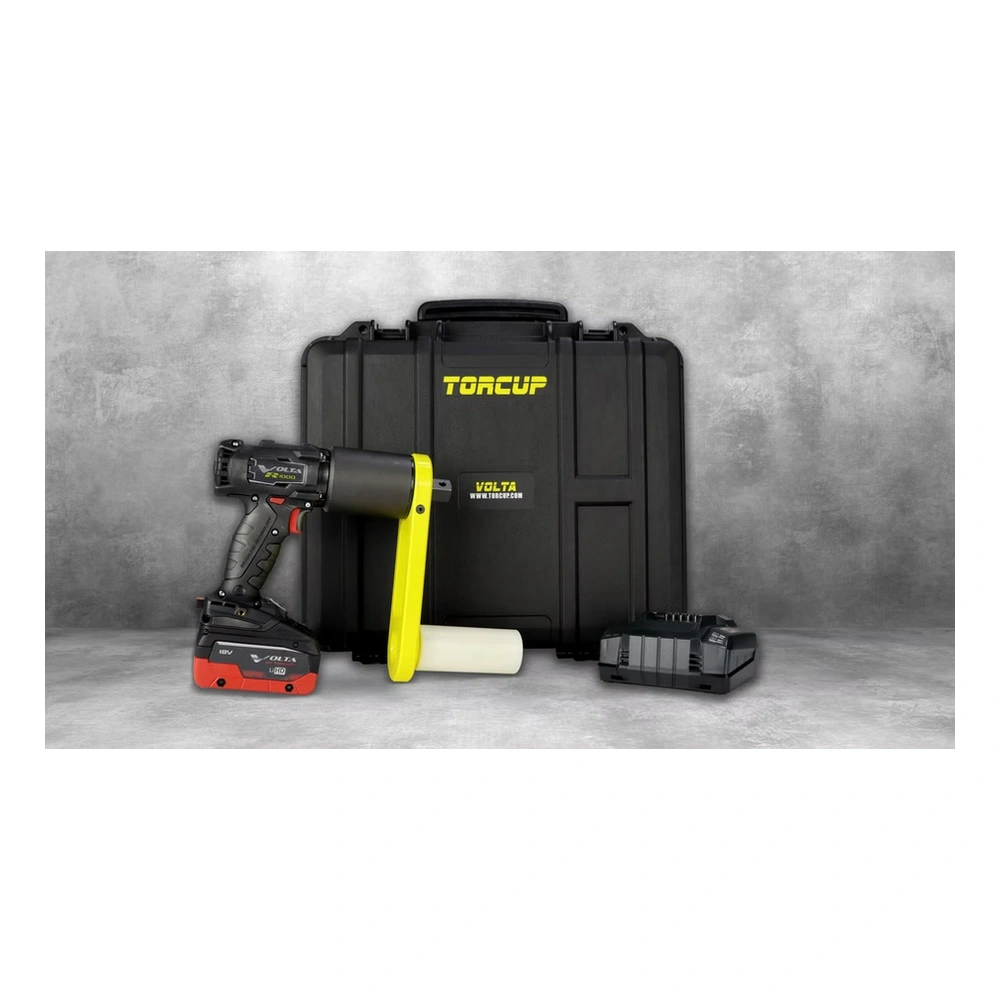

The custom reaction arm fits most spoke configurations and features a non-marring Delrin® sleeve that protects the rim. Calibrated torque settings range from 200–1,000 lbf-ft to tighten and remove any center-lock nuts. Every tool ships with an ISO 17025 accredited calibration certificate, the battery fully charges in under 60 minutes, and a custom carrying case is included for storage and transport. Always refer to OEM torque specifications and wheel-change procedure; center-lock socket not included.

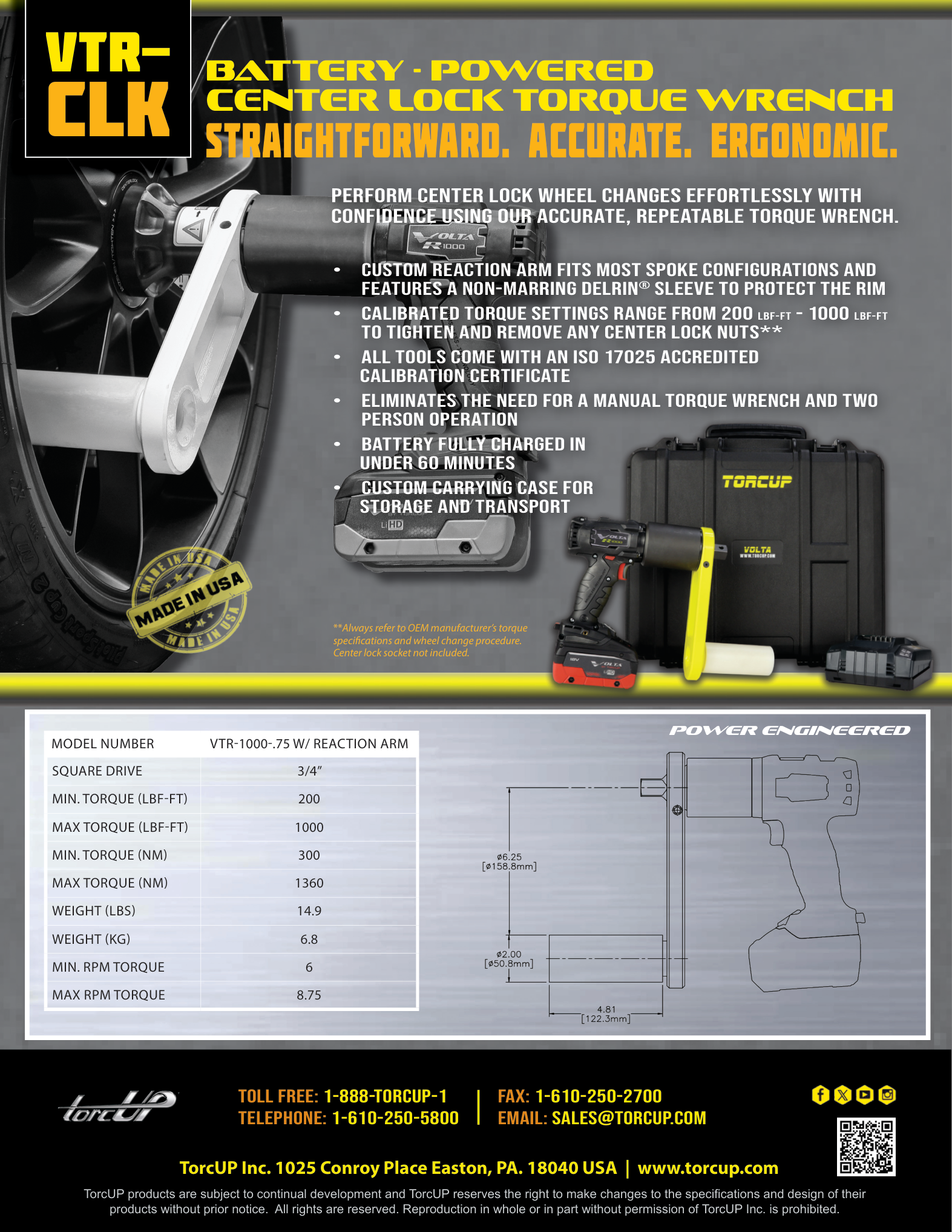

| Model | VTR-1000-.75 W/ REACTION ARM |
|---|---|
| SQUARE DRIVE | 3/4” |
| MIN. TORQUE (LBF-FT) | 200 |
| MAX TORQUE (LBF-FT) | 1000 |
| MIN. TORQUE (NM) | 300 |
| MAX TORQUE (NM) | 1360 |
| WEIGHT (LBS) | 14.9 |
| WEIGHT (KG) | 6.8 |
| MIN. RPM TORQUE | 6 |
| MAX RPM TORQUE | 8.75 |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about TorcUP VTR Center Lock Battery Torque Wrench.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
