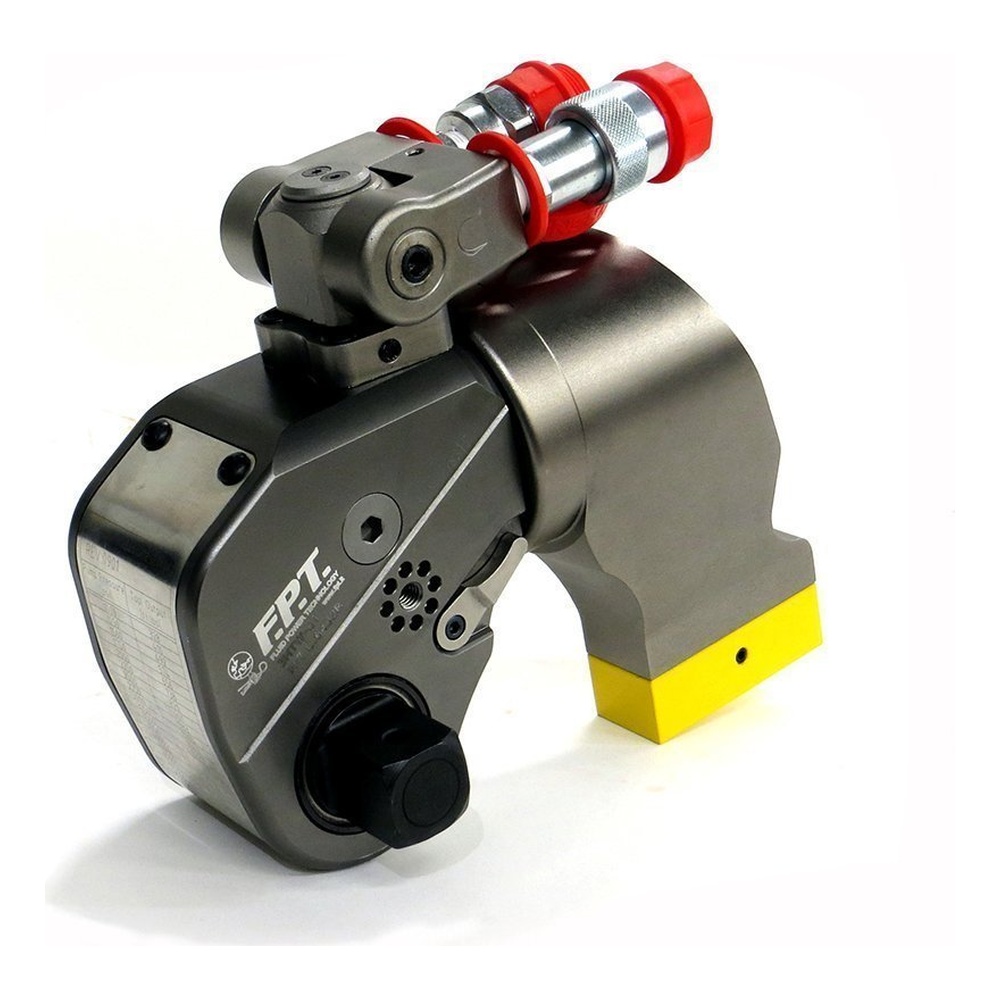

A gray and black hydraulic torque wrench with red fittings and a yellow

בית » מוצרים » Hydraulic torque wrench square drive

Hydraulic torque wrench square drive

Name: Hydraulic torque wrench square drive
Brand: F.P.T. - Fluid Power Technology

Square drive hydraulic torque wrench from the HTW-S series, designed for controlled tightening and loosening in industrial applications.

Hydraulic torque wrench square drive

The HTW-S hydraulic torque wrench square drive is designed for controlled tightening and loosening of connections, delivering professional performance in industrial applications.

It is compact and lightweight, made of aluminium, and operates at 700 bar. The range supports a wide variety of applications and can be used with accessories such as twin hoses, reductions and pumps.

Key Features

Tightening and loosening: Designed for both tightening and loosening operations with controlled torque application.
Accuracy: Accurate to +/- 3% with calibration chart supplied.
Construction: Compact, lightweight aluminium construction for long service life.
Working pressure: Working pressure 700 Bar.
Range: Available from ¾” with 1,727 Nm to 2 ½” with 36,992 Nm.
Accessories: A wide range of accessories is available, such as twin hoses, reduction and pumps, and more hydraulic torque wrenches can be used with one FPT pump to obtain maximum productivity.

Frequently Asked Questions

Can you help us choose the right torque wrench?
Yes, we will be happy to help select the right wrench and accessories for your application in Israel.

Are matching accessories available?
Yes, a wide range of accessories is available, including twin hoses, quick couplings, bushings, reductions and reaction arms in different sizes.

Can special versions be requested?
Yes, special models and accessories can be requested according to the application and working needs.

Hydraulic torque wrenches square drive

MODEL	SQUARE DRIVE	MIN	MAX	Kg	L1	L2	H1	H2	H3	H4	R1	R2
07 HTW-BT	3/4″	112	1,120	1.80	111	139	42	66	76	108	21	68
1 HTW-BT	3/4″	183	1,837	2.50	145	174	50	72	96	131	26	85
3 HTW-BT	1″	451	4,512	5.00	178	229	68	95	127	177	34	114
5 HTW-BT	1-1/2″	752	7,528	8.00	211	271	80	123	149	199	39	137
8 HTW-BT	1-1/2″	1,078	10,780	11.00	222	293	90	134	167	217	47	153
10 HTW-BT	1-1/2″	1,551	15,516	15.00	246	318	100	142	182	232	51	154
20 HTW-BT	2-1/2″	2,666	26,664	26.50	308	384	120	183	220	270	59	186
25 HTW-BT	2-1/2″	3,472	34,725	35.00	323	401	137	200	247	297	66	199
35 HTW-BT	2-1/2″	4,866	48,666	50.00	373	497	153	216	282	332	77	241
50 HTW-BT	2-1/2″	7,200	72,000	87.00	400	516	160	223	291	341	81	259

Hydraulic torque wrenches square drive

MODEL	SQUARE DRIVE	MIN	MAX	Kg	L1	L2	H1	H2	H3	H4	R
17 HTW-S	3/4″	172	1,727	2	129	167	51	73	90	131	25
45 HTW-S	1″	452	4,529	4.60	167	218	68	98	121	170	34
100 HTW-S	1-1/2″	1,006	10,064	10	223	293	92	135	163	211	46
150 HTW-S	1-1/2″	1,497	14,974	15	264	323	100	141	177	225	50
370 HTW-S	2-1/2″	3,699	36,992	32	329	432	137	104	240	288	66

Would you like to check whether Hydraulic torque wrench square drive fits your application?

The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Hydraulic torque wrench square drive.
