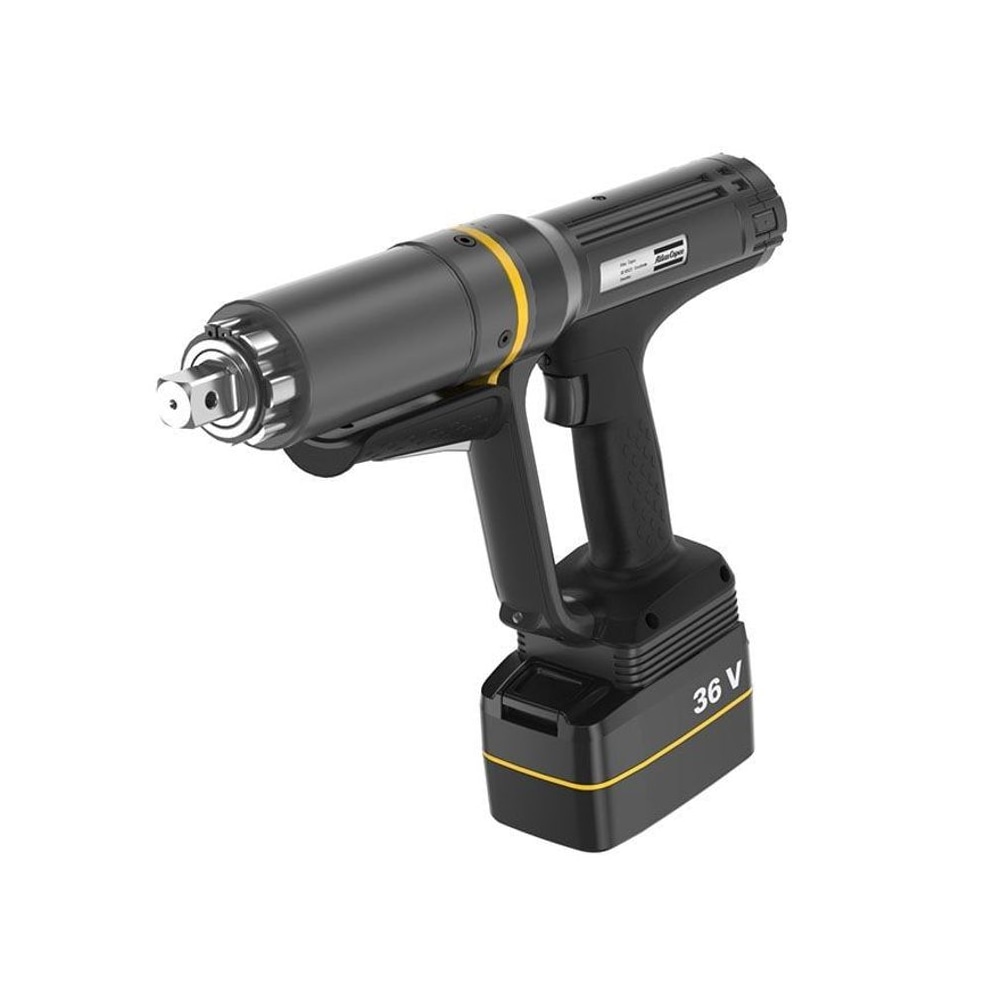

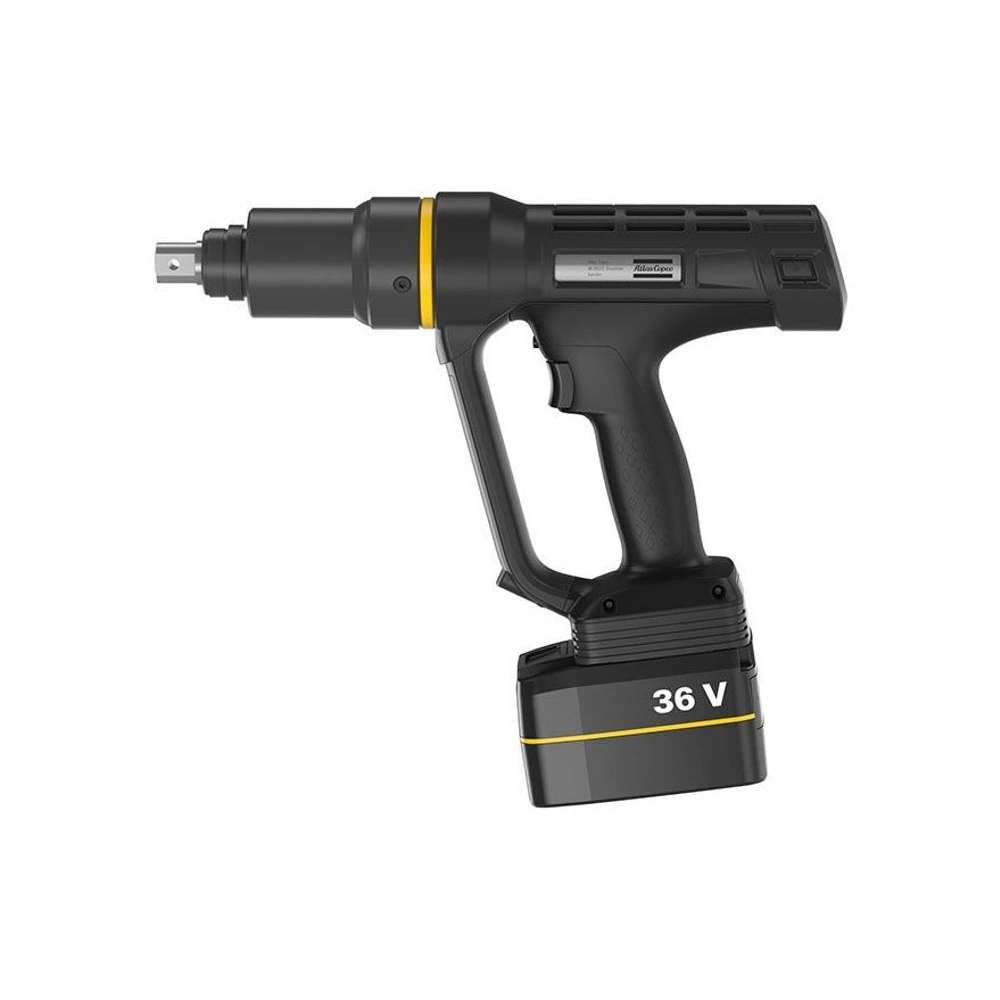

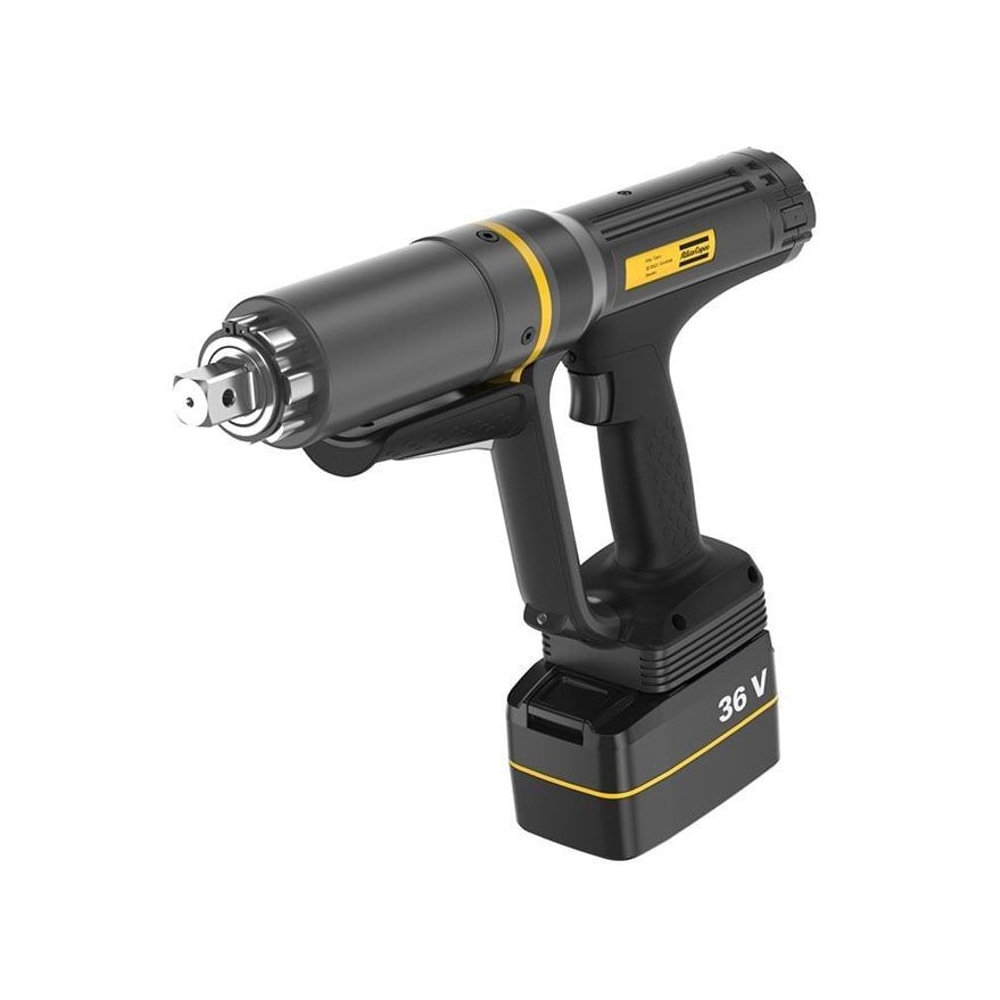

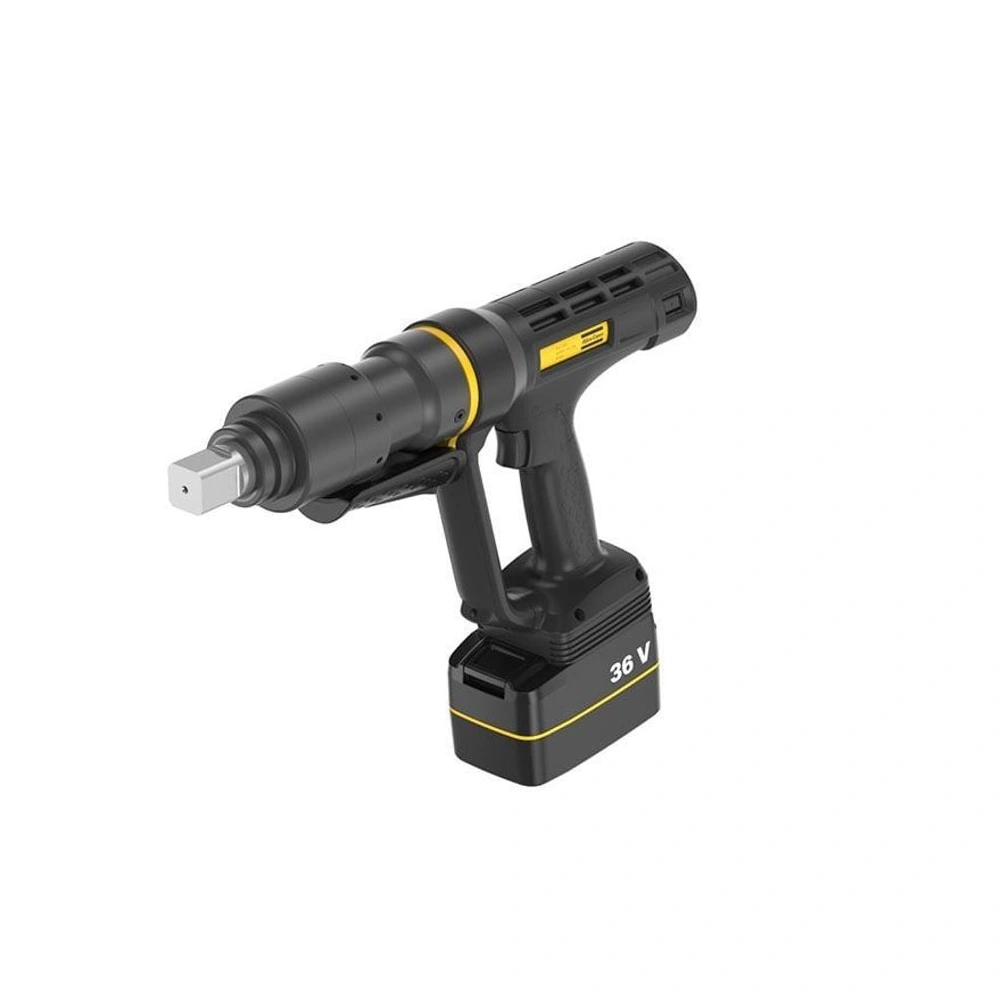

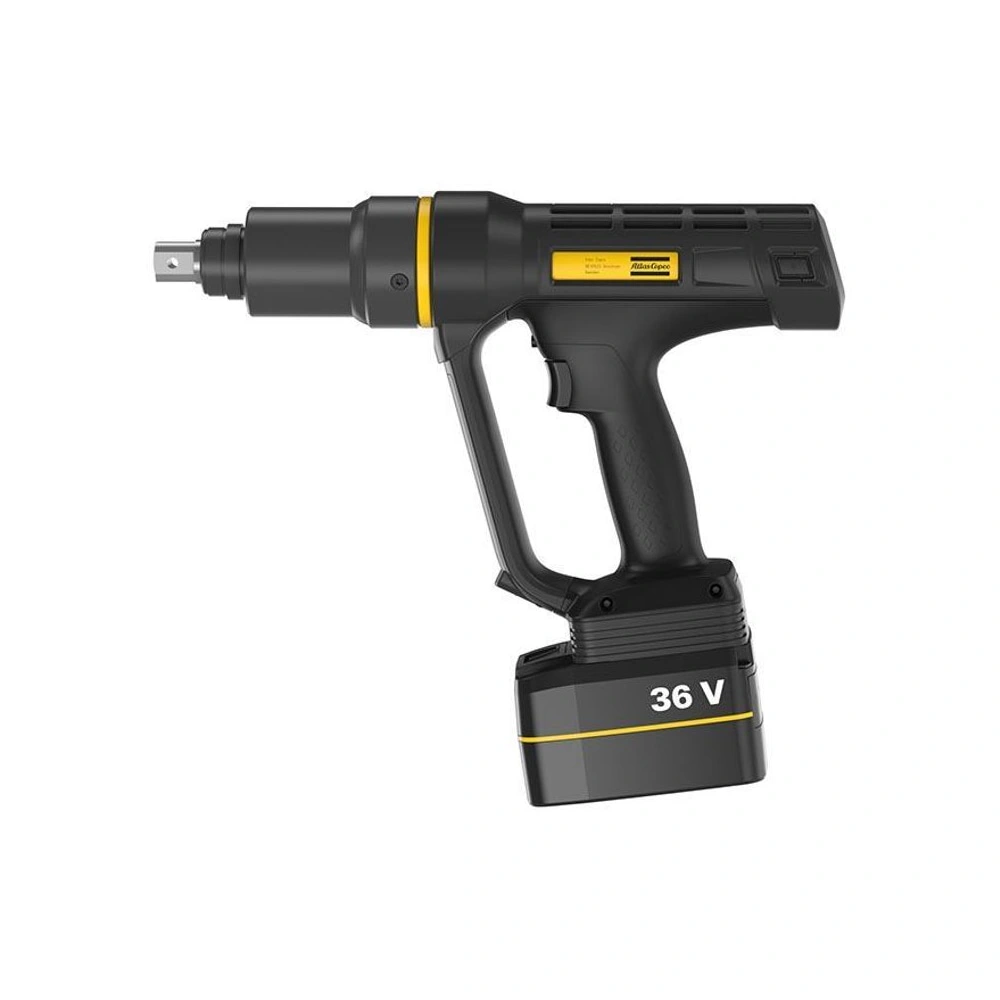

Smart battery-powered torque wrenches for accurate, fast, and comfortable assembly work.
The Atlas Copco SRBHA series combines a 36 V smart battery, a high-performance motor, and built-in torque and angle sensing.
It is designed for industrial assembly work where precision, consistency, and easy handling matter in every tightening cycle.
How do I choose the right SRBHA model for my assembly line?
Step 1: Define the tightening requirement for the application.
Step 2: Match the tool model to the working range and joint access.
Step 3: Check whether the D version or HA version fits the station layout and accessory setup.
Step 4: Confirm the needed accessories and protective covers for that model.
What is the difference between the SRB81 model variants?
The models differ in tool configuration and intended setup, including D versions and HA versions.
The right choice depends on the application, access to the fastener, and the mounting accessory needed.
Does the tool come with a battery and charger?
The tool is ordered with a 36 V Li-Ion 2.6 Ah battery and an 18-36 V multicharger as separate ordering items.
A tool protective cover is included with the tool.
Which accessories are available for the SRBHA series?
Available accessories include Steel Bar, S-type, Sliding drive, and Square bracket options.
The correct accessory depends on the tool model and how it is integrated into the workstation.
What is the benefit of built-in torque and angle sensors?
Built-in sensing supports tighter control over the tightening process.
It helps maintain consistent results across cycles and supports structured production work.
How should I maintain the tool in daily use?
Keep the tool clean, use the included protective cover, and store the battery and charger according to station procedures.
If extra protection is needed, a battery protective cover is also available.
| Model | Torque range (Nm) | Speed (rpm) | Weight (kg) | Spline type | Spline / Wave size | square drive (in) | Gear dia (mm) | Length (mm) | Ordering No. |
|---|---|---|---|---|---|---|---|---|---|
| ETP SRB81-200-20 | 60-200 | 139 | 3.63 | S | 3 | 3/4″ | 54 | 338 | 8433250111 |
| ETP SRB81-200-20-D | 60-200 | 139 | 3.63 | S | 3 | 3/4″ | 54 | 338 | 8433250101 |
| ETP SRB81-300-20 | 90-300 | 103 | 3.63 | S | 3 | 3/4″ | 54 | 338 | 8433250211 |
| ETP SRB81-500-20-D | 150-500 | 65 | 4.56 | S | 4 | 3/4″ | 67 | 368 | 8433250301 |
| ETP SRB81-950-25-D | 285-950 | 35 | 5.04 | S | 5 | 1″ | 67 | 398 | 8433259501 |
| ETP SRB81-1300-20-HA | 390-1300 | 23 | 4.7 | W | 40 | 3/4″ | 63 | 384 | 8433250611 |
| ETP SRB81-1300-20-HA-D | 390-1300 | 23 | 4.7 | W | 40 | 3/4″ | 63 | 384 | 8433250601 |
| ETP SRB81-2400-25-HA | 720-2400 | 11 | 6 | W | 47 | 1″ | 67 | 431 | 8433250711 |
| ETP SRB81-2400-25-HA-D | 720-2400 | 11 | 6 | W | 47 | 1″ | 67 | 431 | 8433250701 |
| ETP SRB81-3400-25-HA | 1020-3400 | 7 | 7.7 | W | 60 | 1″ | 82 | 444 | 8433250811 |
| ETP SRB81-3400-25-HA-D | 1020-3400 | 7 | 7.7 | W | 60 | 1″ | 82 | 444 | 8433250801 |
| ETP SRB81-4000-25-HA-D | 1200-4000 | 5 | 7.7 | W | 60 | 1″ | 82 | 444 | 8433250801 |
| ETP SRB81-4500-HA | 1350-4500 | 3.6 | 7.9 | W | 60 | 1,5″ | 82 | 444 | 8433250901 |
| ETP SRB81-6500-HA | 1950-6500 | 2.6 | 9.9 | W | 72 | 1,5″ | 102 | 481 | 8433251011 |

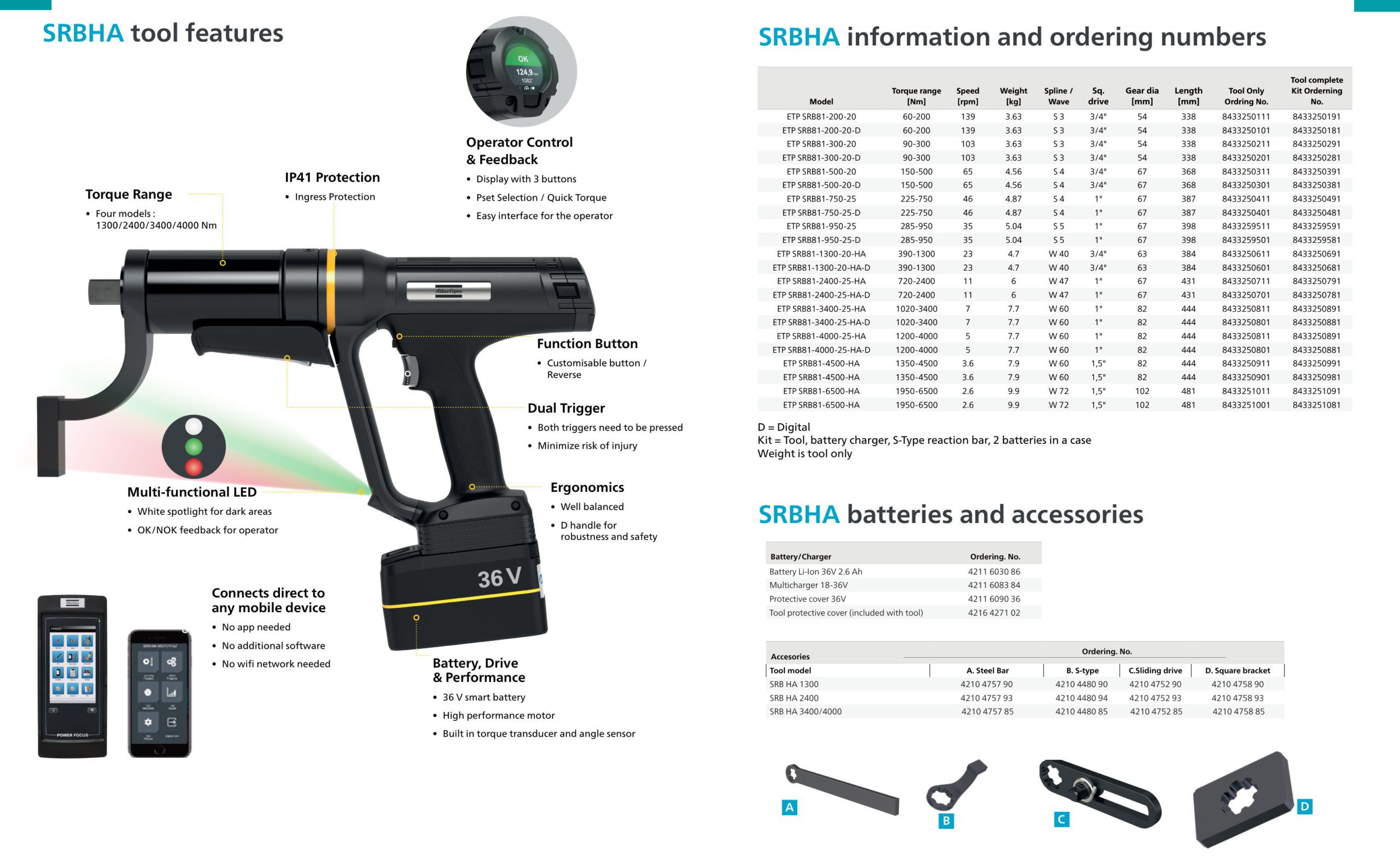

Technical diagram from the Atlas Copco catalog (p. 10)
-D = model with Display (built-in controller)
part number = Tool Only (Tool Only). For the complete kit (Tool complete Kit) see catalog
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Atlas Copco SRBHA Battery Torque Wrenches.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
