The freedom and flexibility of cordless operation combined with industrial torque power

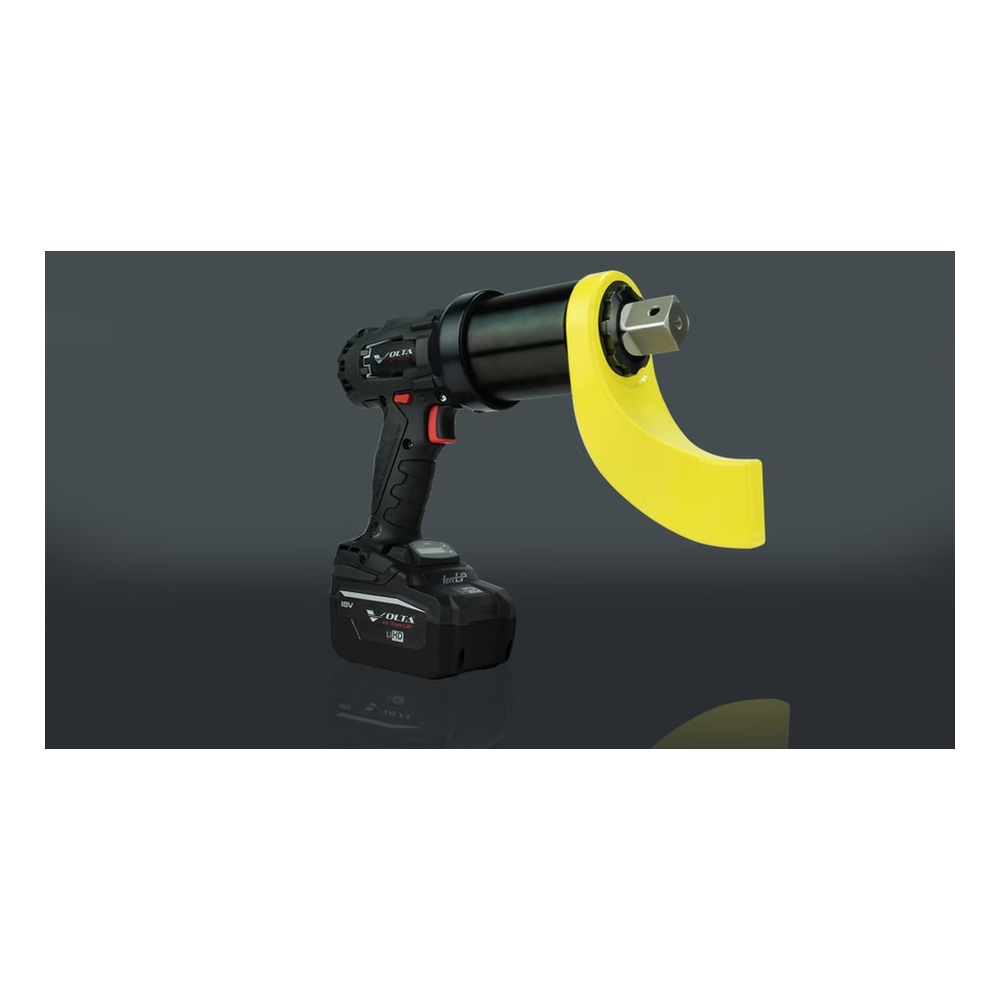

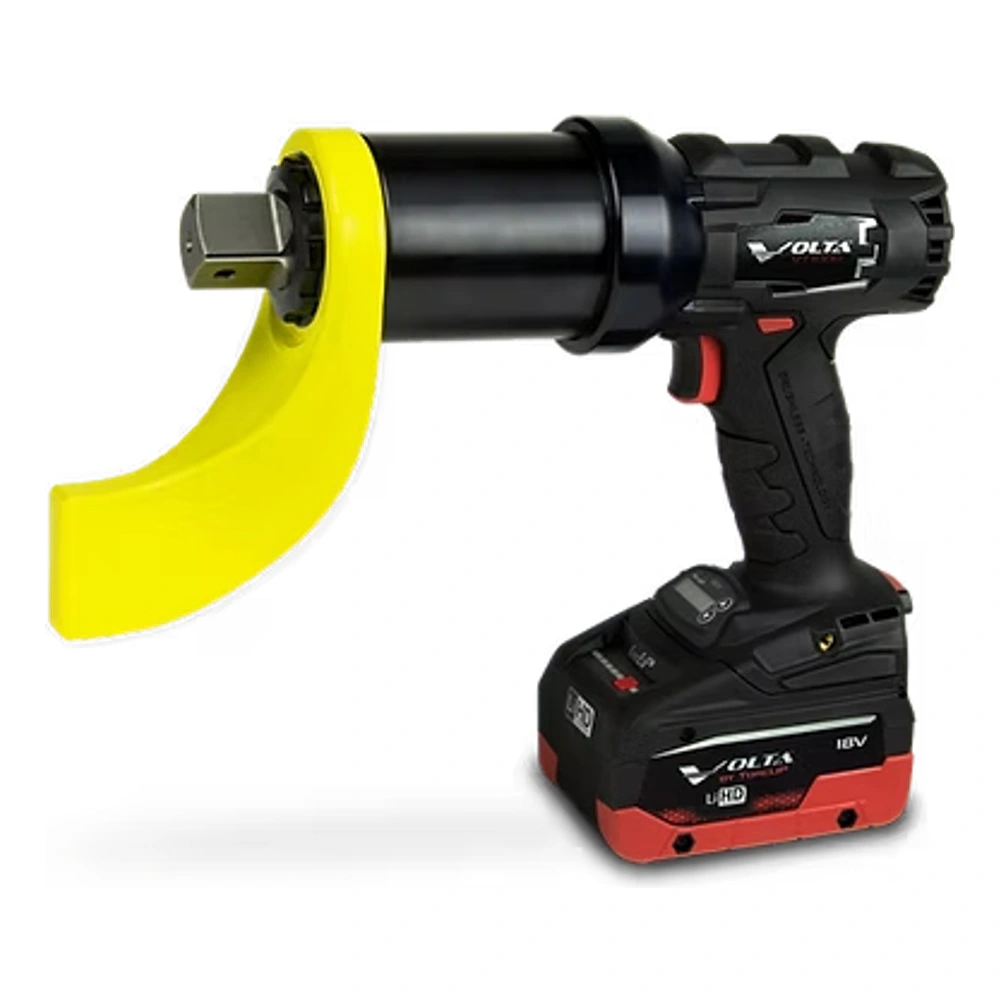

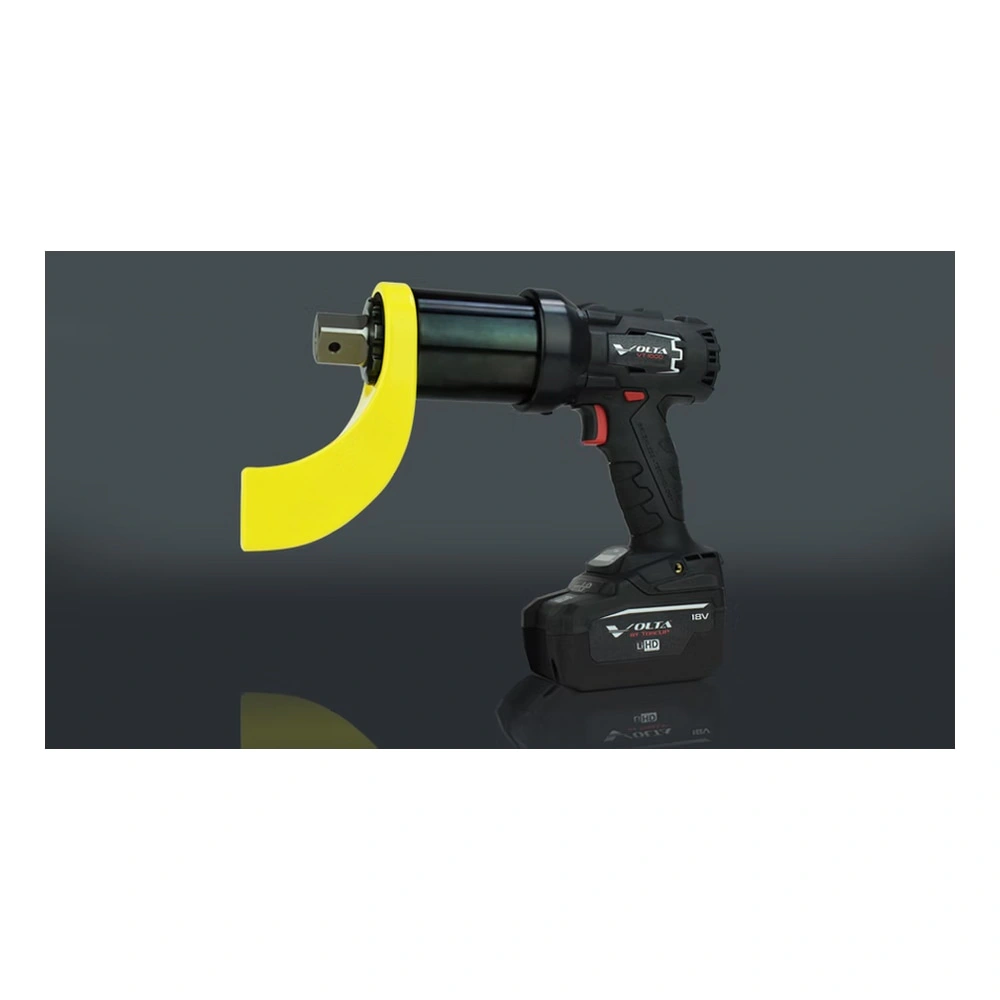

The VT Series introduces the first battery-powered industrial torque wrench. The VOLTA is engineered to master any application effortlessly: fully charged in under 60 minutes, its lithium power enables hundreds of fastening operations with no hoses or cords to limit your reach.

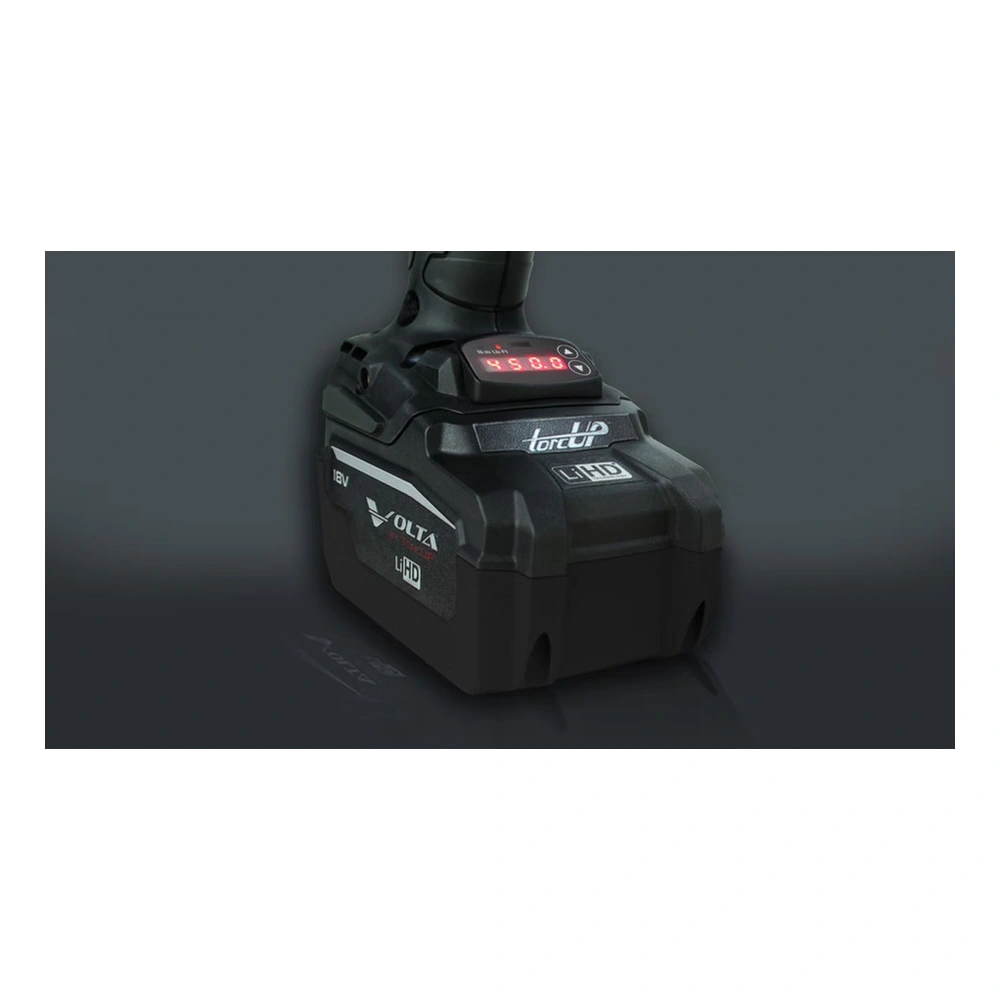

A digital motor vectoring system provides accurate, repeatable torque across the full range. The brushless motor delivers efficiency, extended runtime and lower operating temperatures, and the patented planetary gear design provides consistent torque without impacting. The tool includes a digital display, torque memory settings, automatic reaction-arm release and ft-lb↔Nm conversion. Five models span 120 to 6,000 lbf-ft, with a Lithium-Ion 8.0 Ah battery, ISO 17025 calibration, Made in USA.

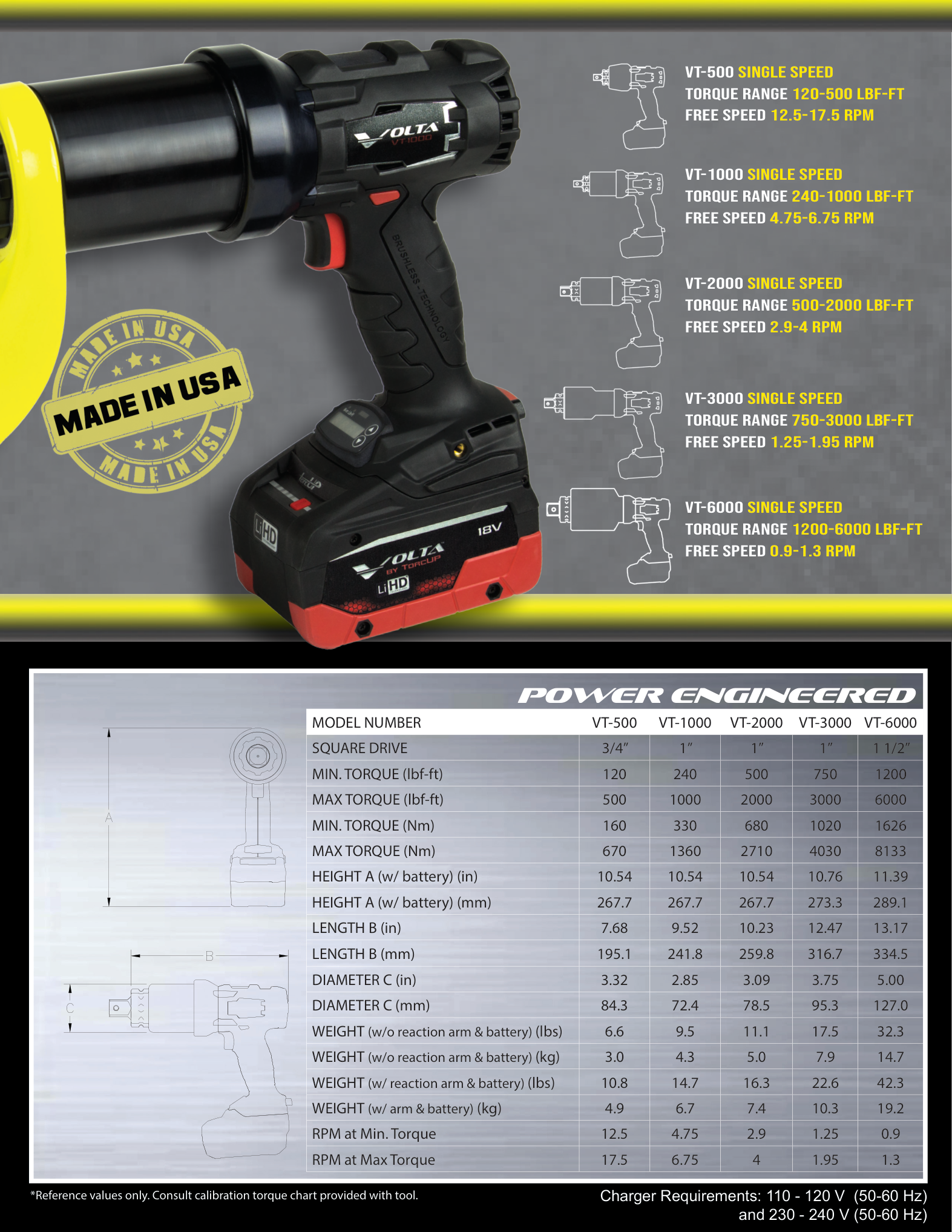

| Model | VT-500 | VT-1000 | VT-2000 | VT-3000 | VT-6000 |
|---|---|---|---|---|---|
| SQUARE DRIVE | 3/4” | 1” | 1” | 1” | 1 1/2” |
| MIN. TORQUE (lbf-ft) | 120 | 240 | 500 | 750 | 1200 |
| MAX TORQUE (lbf-ft) | 500 | 1000 | 2000 | 3000 | 6000 |
| MIN. TORQUE (Nm) | 160 | 330 | 680 | 1020 | 1626 |
| MAX TORQUE (Nm) | 670 | 1360 | 2710 | 4030 | 8133 |
| HEIGHT (w/ battery) (in) | 10.54 | 10.54 | 10.54 | 10.76 | 11.39 |
| HEIGHT (w/ battery) (mm) | 267.7 | 267.7 | 267.7 | 273.3 | 289.1 |
| LENGTH (in) | 7.68 | 9.52 | 10.23 | 12.47 | 13.17 |
| LENGTH (mm) | 195.1 | 241.8 | 259.8 | 316.7 | 334.5 |
| DIAMETER (in) | 3.32 | 2.85 | 3.09 | 3.75 | 5.00 |
| DIAMETER (mm) | 84.3 | 72.4 | 78.5 | 95.3 | 127.0 |
| WEIGHT (w/o reaction arm & battery) (lbs) | 6.6 | 9.5 | 11.1 | 17.5 | 32.3 |
| WEIGHT (w/o reaction arm & battery) (kg) | 3.0 | 4.3 | 5.0 | 7.9 | 14.7 |
| WEIGHT (w/ reaction arm & battery) (lbs) | 10.8 | 14.7 | 16.3 | 22.6 | 42.3 |
| WEIGHT (w/ arm & battery) (kg) | 4.9 | 6.7 | 7.4 | 10.3 | 19.2 |
| RPM at Min. Torque | 12.5 | 4.75 | 2.9 | 1.25 | 0.9 |
| RPM at Max Torque | 17.5 | 6.75 | 4 | 1.95 | 1.3 |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about TorcUP VT Series VOLTA Battery Torque Wrench.
