Digital Torque Meter (DTM) fits between the tool and socket to provide an easy-to-read torque display with a flash memory card that stores the date, time, and torque measurement for each bolt tightened. This information can be downloaded for reporting and quality assurance. The DTM21 reads a torque range of 620-1590 ft-lb. and is compatible with select wrenches.

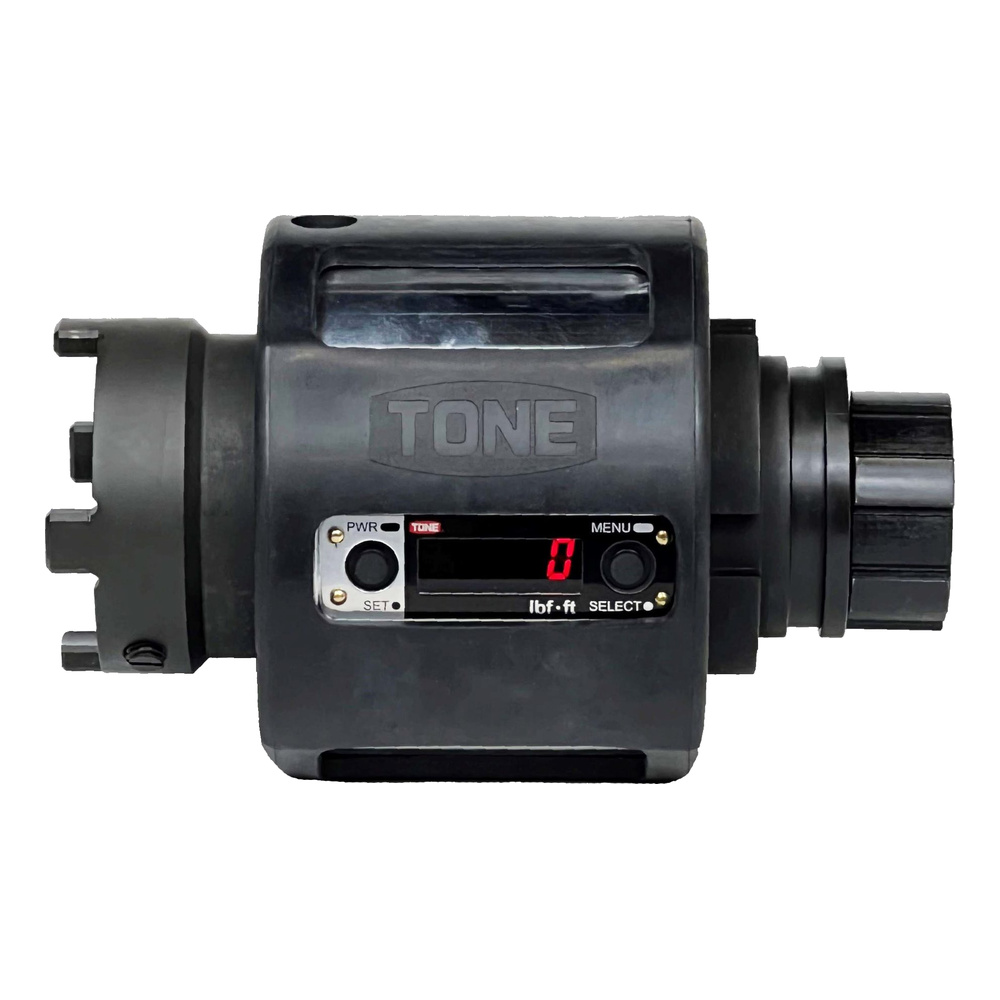

The TONE DTM21EF digital torque meter fits between the tool and socket and provides a clear torque readout during tightening. A flash memory card stores the date, time, and torque measurement for each tightened bolt, and the data can be downloaded for reporting and quality assurance. It also supports clockwise and counterclockwise measurement and rotational capacity testing.
According to the supplied specifications, the DTM21EF reads 620–1,590 ft-lb. (840–2,160 N-m) and offers ±3% repeatable accuracy. It uses an LED display and control section, is powered by four AAA batteries, and provides up to 10,000 readings.
The supplied kit includes a microSD card, instruction manual, flathead screwdriver, Allen wrench, plastic carrying case, and calibration certificate. Compatibility is listed for TN-30EZ Turn-of-Nut use, GNR-211E and CNR-210 torque wrenches, and discontinued SR-171E and SR-211E models.
| Model | TONE DTM21EF |
|---|---|
| Torque Readout Range | 620-1,590 ft-lb. (840-2160 N-m) |
| Turn-of-Nut Compatibility | TN-30EZ |

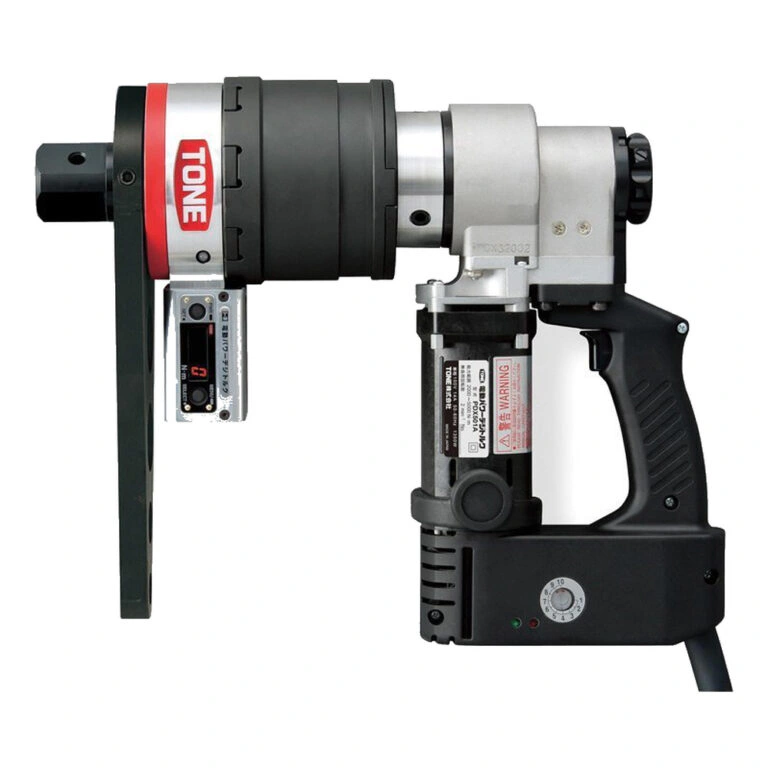

| Torque Wrench Compatibility | GNR-211E & CNR-210 |
| Discontinued Models Compatibility | SR-171E & SR-211E |
| Weight | 6.6 lb. (3.0 kg) |

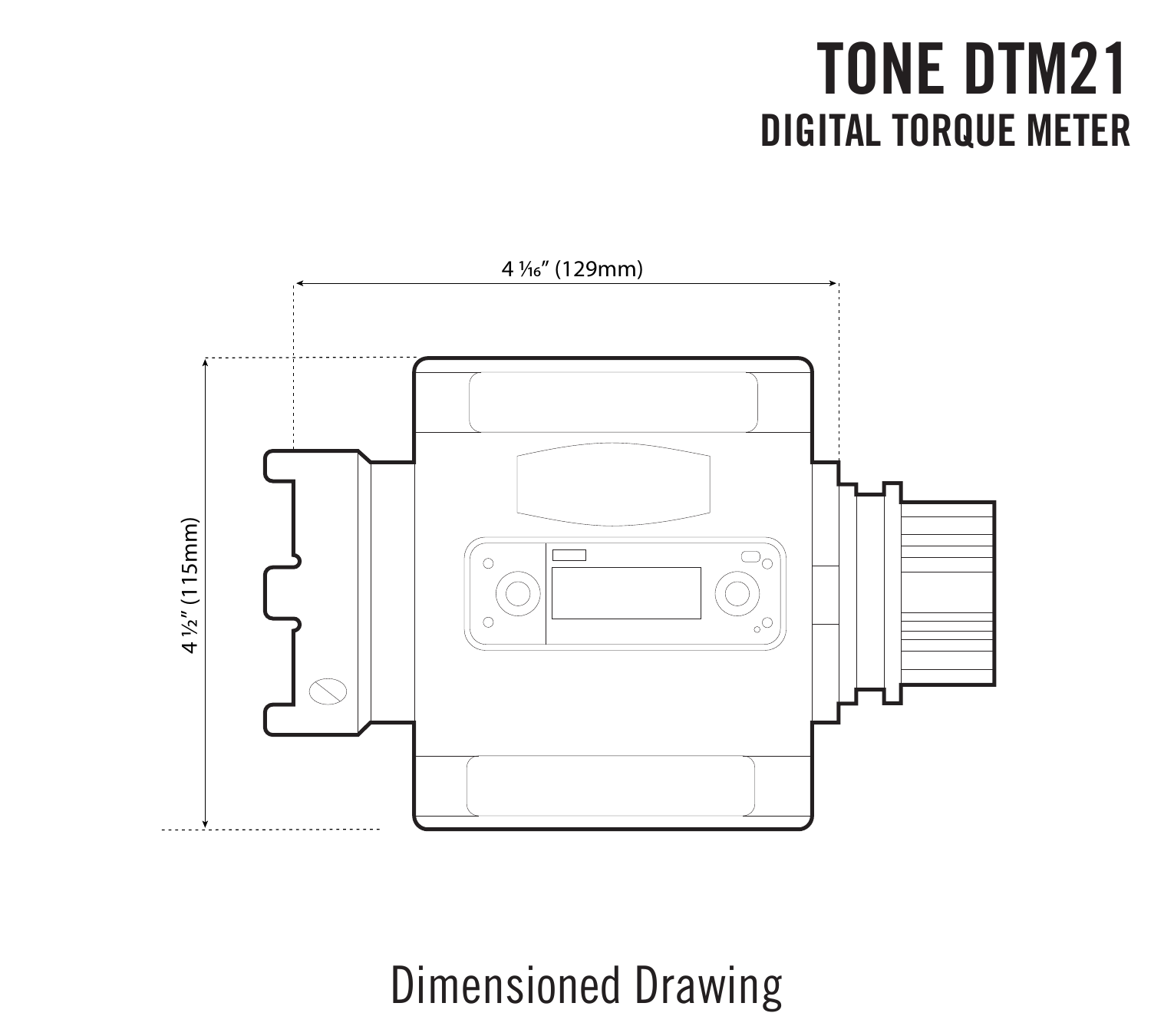

The complete drawings below retain the original technical content after removal of the source distributor branding.
