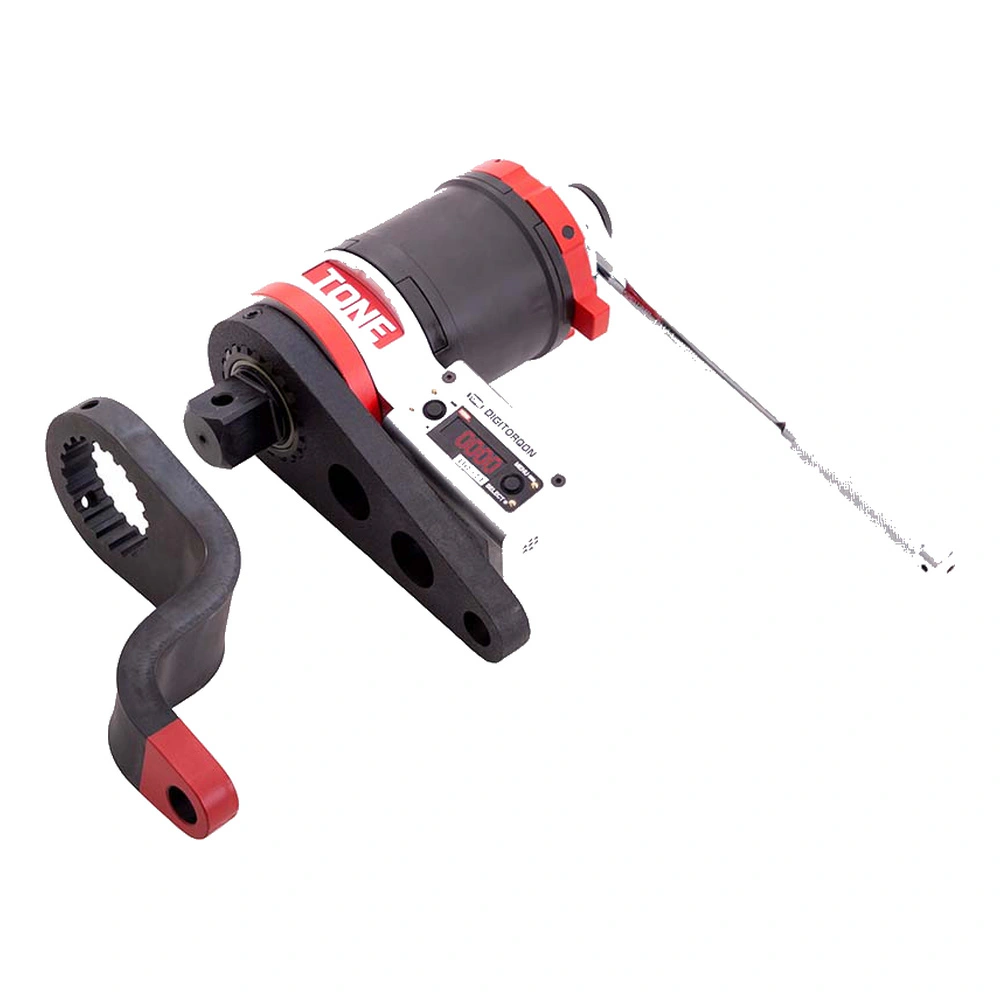

The PD-150EFA is the smallest TONE digital torque multiplier available for tightening bolts with minimal effort even in confined spaces. The reaction bar absorbs the installation torque instead of the worker for enhanced safety.
The TONE PD-150EFA digital torque multiplier is a compact tightening tool designed to reduce the effort needed for bolt installation, including in confined spaces. Its reaction bar absorbs the installation torque instead of the worker, helping improve safety during use.
This model provides an easy-to-read digital display, an audible alert when the preset torque is reached, and clockwise and counterclockwise operation. It also supports repeated tightening accuracy of ±4% and uses a square drive configuration.
The supplied kit includes a reaction bar, ratchet wrench, instruction manual, flathead screwdriver, metal carrying case, and calibration certificate. The specifications list model TONE PD150EFA, a torque range of 220–1,100 ft-lb (300–1,500 N-m), an output square drive of 1″ (25.4 mm), an input square drive of 1/2″ (12.7 mm), and a body weight of 9.9 lb. (4.5 kg).
| Model | TONE PD150EFA |
|---|---|
| Torque Range | 220-1,100 ft-lb (300-1,500 N-m) |
| Output Square Drive | 1″ (25.4 mm) |
| Input Square Drive | 1/2″ (12.7 mm) |
| Body Weight | 9.9 lb. (4.5 kg) |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about TONE PD-150EFA Digital Torque Multiplier.
