The Mactech Dual Pin industrial drill reaches 394 rpm for casing work across diameters from 6″ to 36″. Two hydraulic motor options provide either high-speed drilling or up to 390 ft-lb of torque for higher-force cuts. A through-spindle coolant system removes debris during drilling and helps protect tool life.
The Mactech Dual Pin industrial drill reaches 394 rpm for casing work across diameters from 6″ to 36″. Two hydraulic motor options provide either high-speed drilling or up to 390 ft-lb of torque for higher-force cuts. A through-spindle coolant system removes debris during drilling and helps protect tool life.

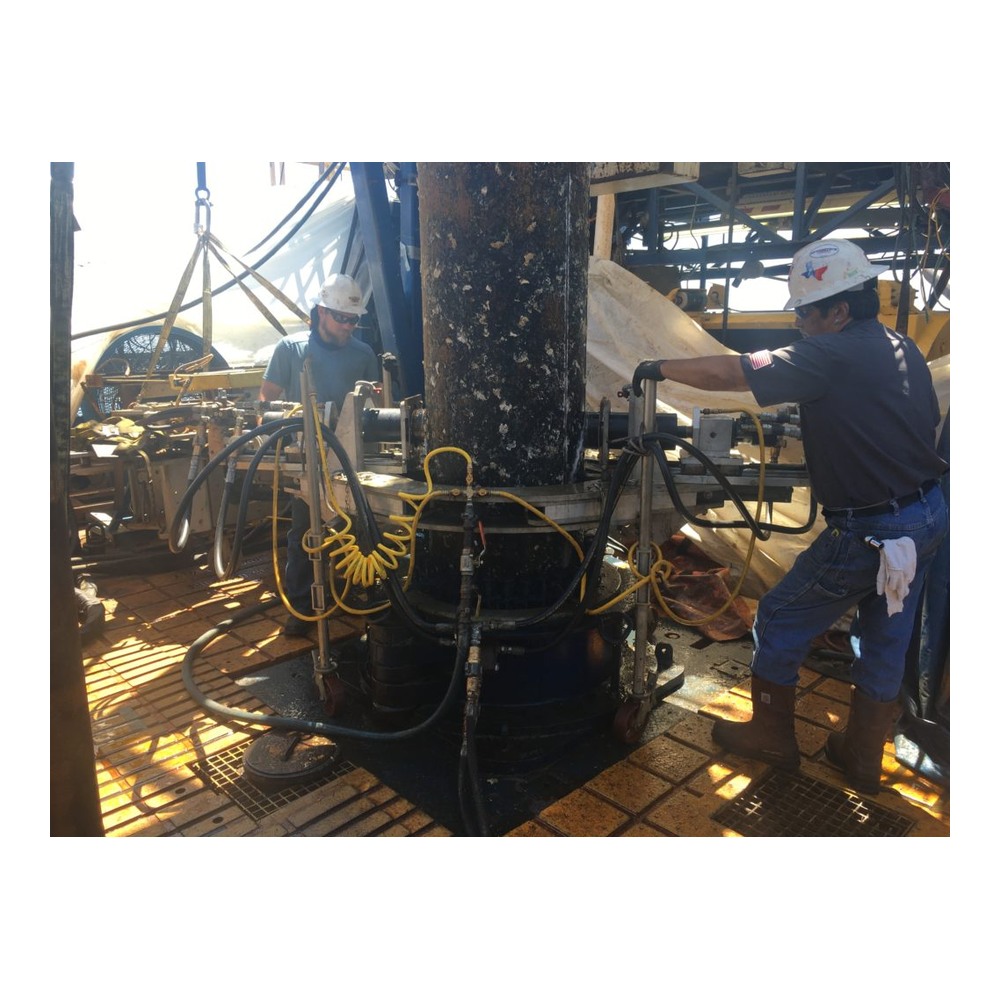

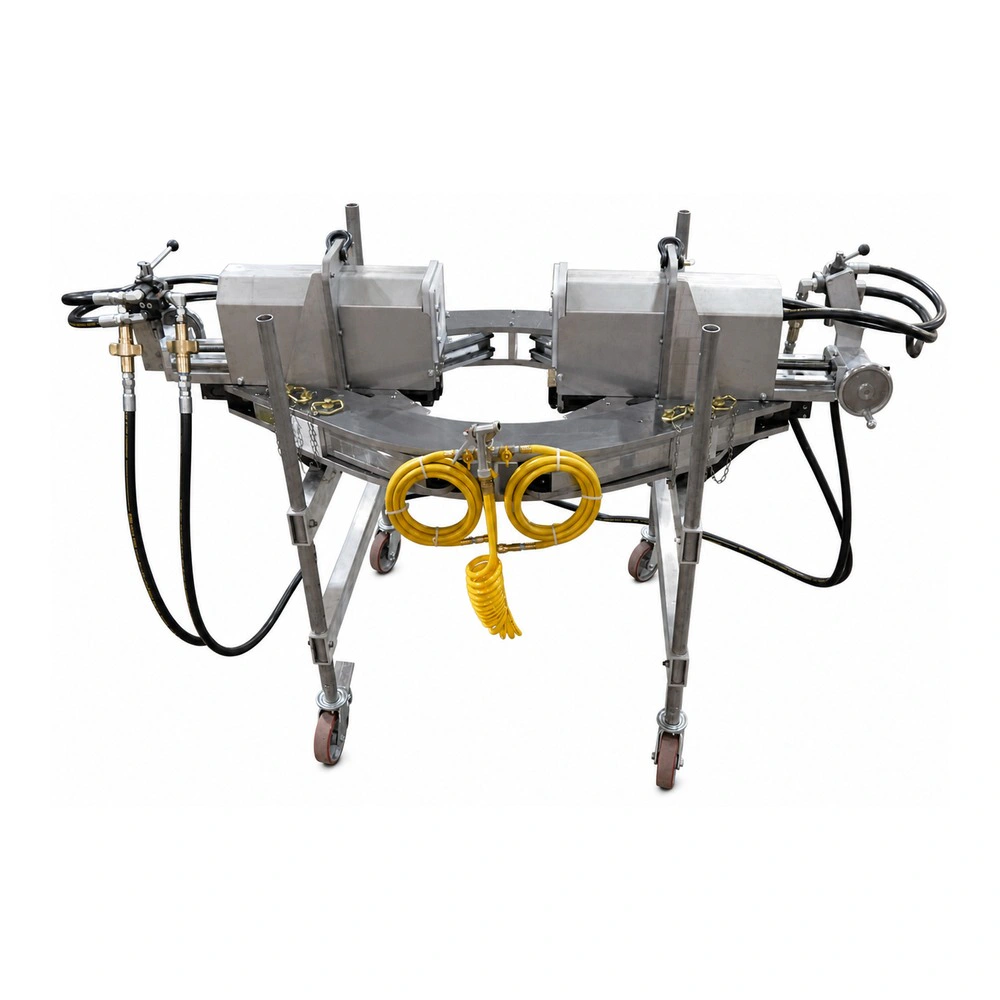

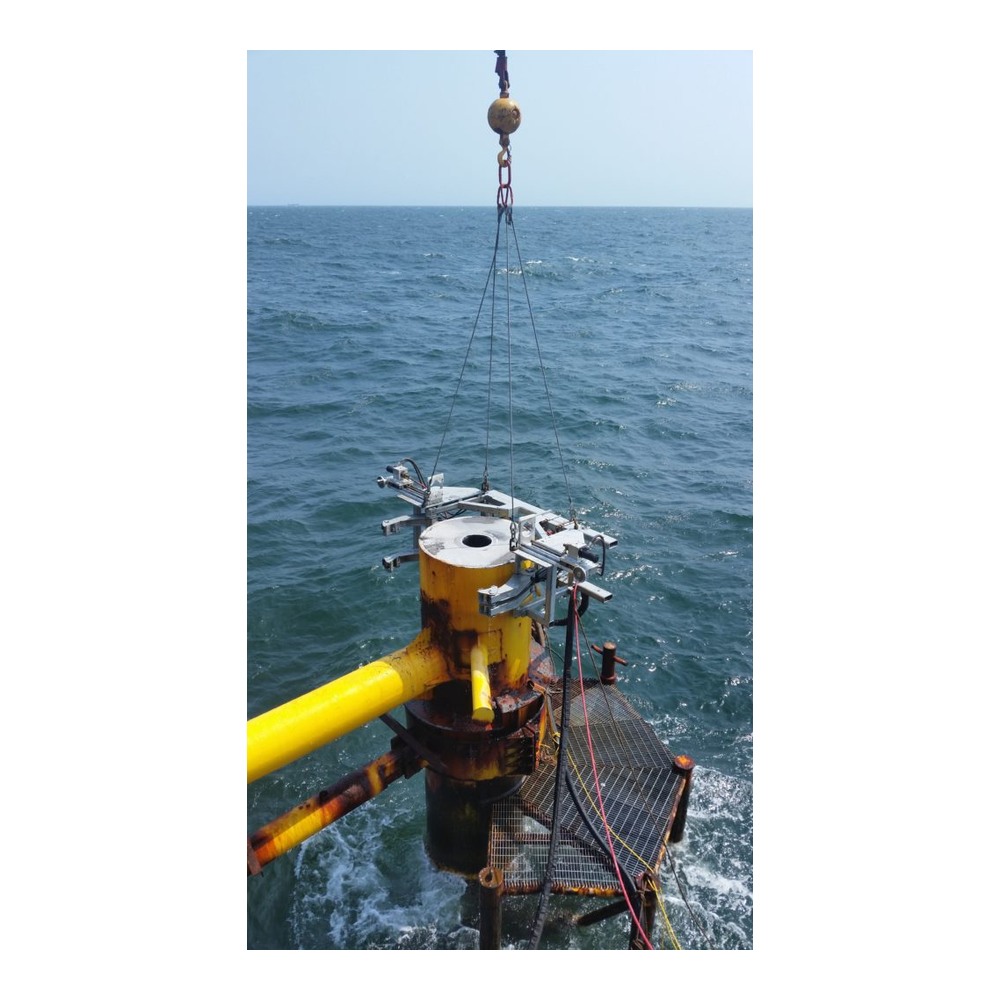

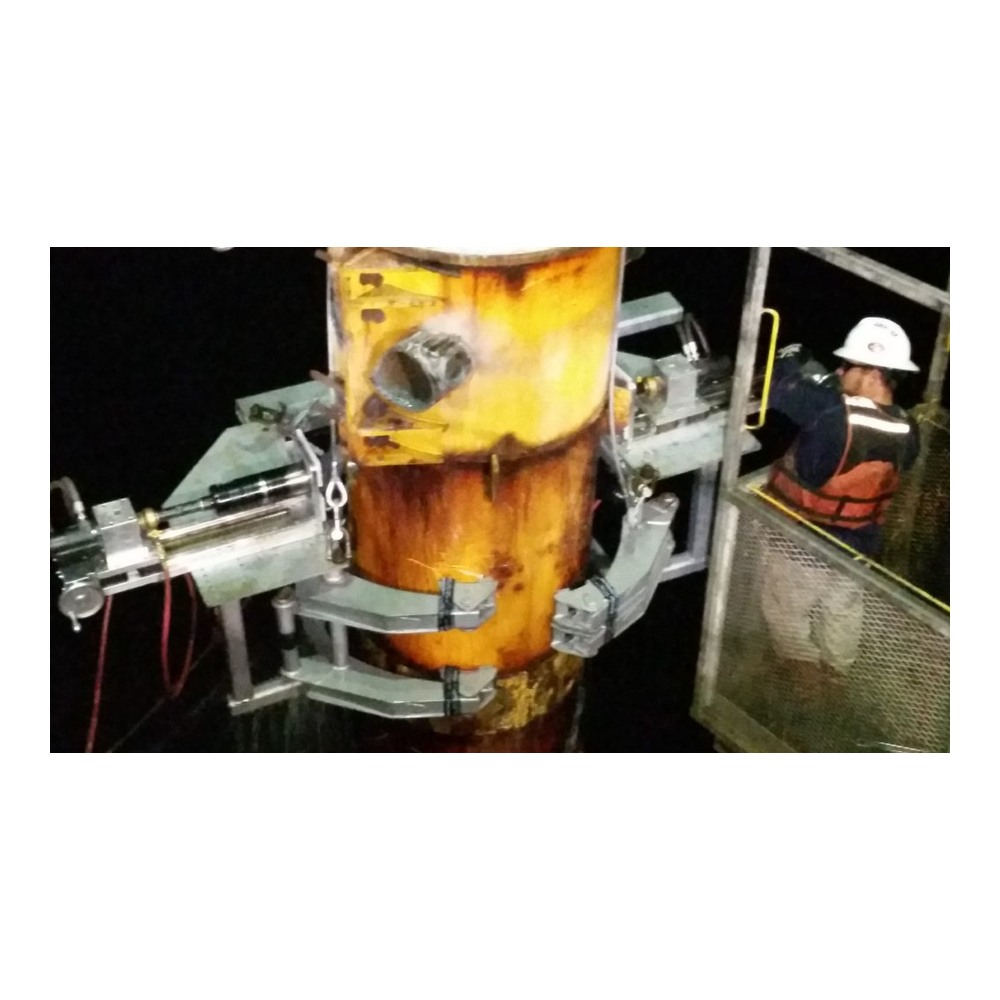

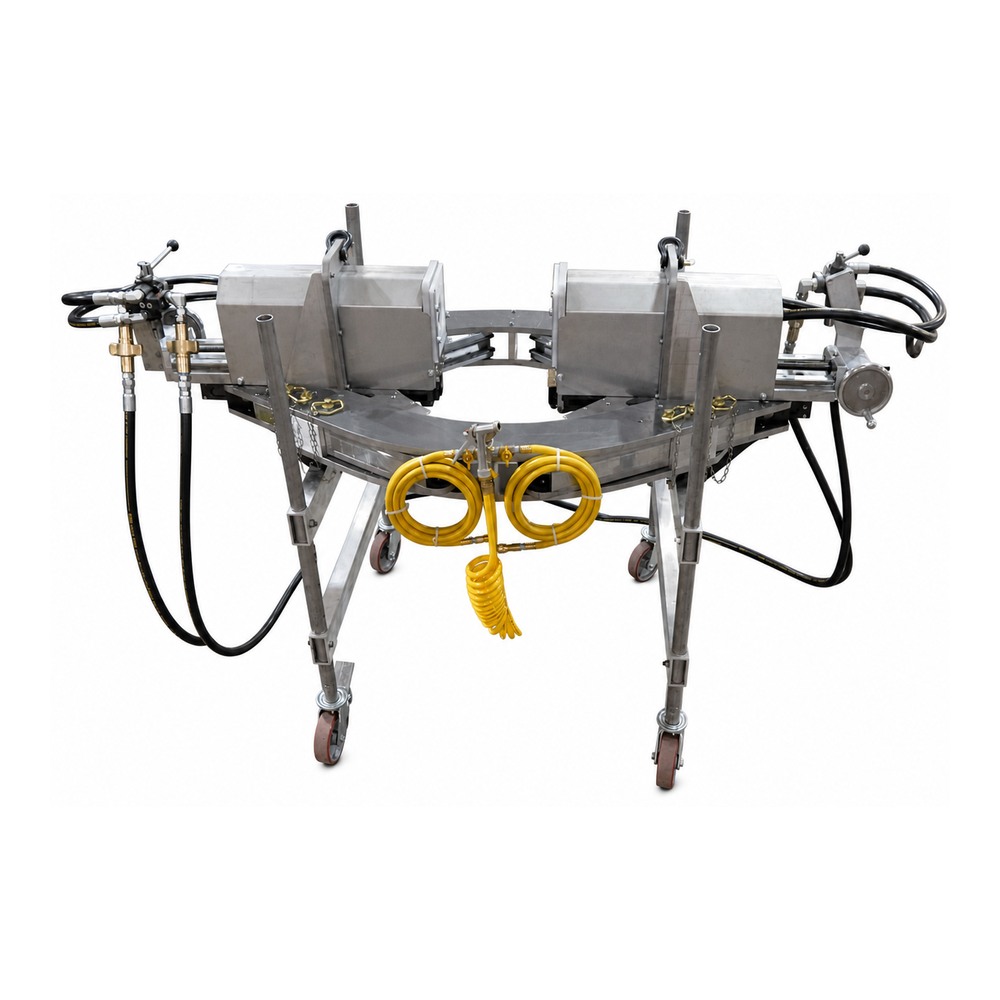

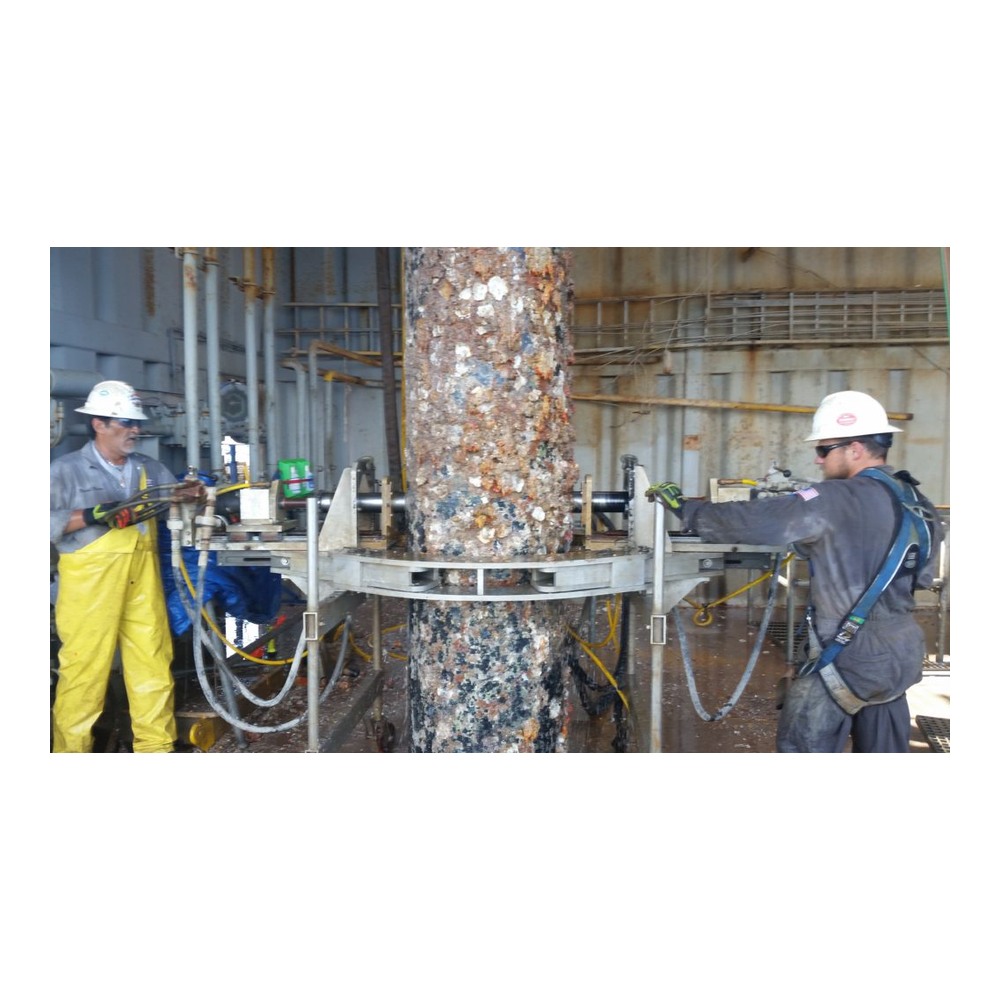

The dual-drill arrangement cuts from both sides at the same time. A dual-pin mounting system anchors the drills for offshore rigging and structural-steel work. The high-strength spindle accepts standard 1 1/4-7 threaded hole saws. Single-side setups cover diameters from 6 to 18 inches, while dual-side setups cover 16 to 36 inches, reducing the need to reposition the machine.
| Single Pin Drill Config. | Dual Pin Drill Config. | |
|---|---|---|
| Minimum Pipe Diameter | 6″ (152 mm) | 16″ (406 mm) |
| Maximum Pipe Diameter | 18″ (457 mm) | 36″ (914 mm) |
| Stroke | 21″ (533 mm) | 21″ (533 mm) |
| Feed Rate per Handwheel Revolution | 0.10″ (2.5 mm) | 0.10″ (2.5 mm) |
| Length | 51″-65″ (1,295-1651 mm) | 93″-115″ (2,362-2921 mm) |
| Width | 39″-50″ (990-1270 mm) | 39″-50″ (990-1270 mm) |
| Height | 61″ (1549 mm) | 61″ (1549 mm) |
The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Mactech Dual Pin Portable Industrial Drill.
The right solution starts with a clear brief
The HADI product development and engineering team can adapt a tool, product or system to your application.
