בית » מוצרים » Honsel Rivdom eBZ 1 Battery-Powered Blind Rivet Tool

Honsel Rivdom eBZ 1 Battery-Powered Blind Rivet Tool

Name: Honsel Rivdom eBZ 1 Battery-Powered Blind Rivet Tool
Brand: Honsel

A cordless tool for serial blind-rivet work up to 5.0 mm, with 10,000 N of pulling force and the AMPShare battery platform.

The Honsel Rivdom eBZ 1 is intended for serial installation of blind rivets in several material combinations. Its brushless motor, 25 mm stroke and adjustable return point support consistent cycle times and application-specific setup.

Key Features

Designed for industrial serial work

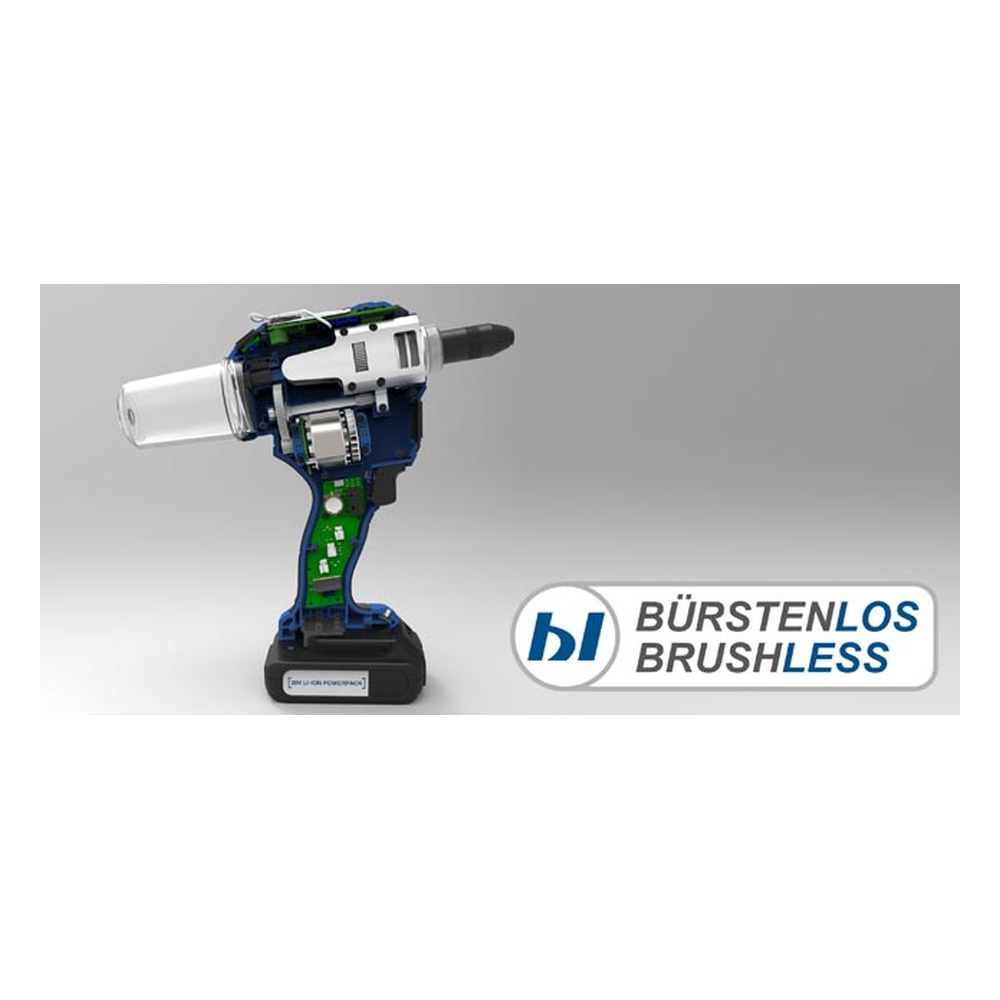

Brushless BLDC motor
AMPShare battery platform
Application-specific return-point setting
Tool-free maintenance access

Technical Specifications

Parameter	Value
Application	Blind rivets up to 5.0 mm (3/16 in)
Pulling force	10,000 N
Stroke	25 mm
Weight with battery	1.6 kg
Maximum mandrel diameter	3.4 mm

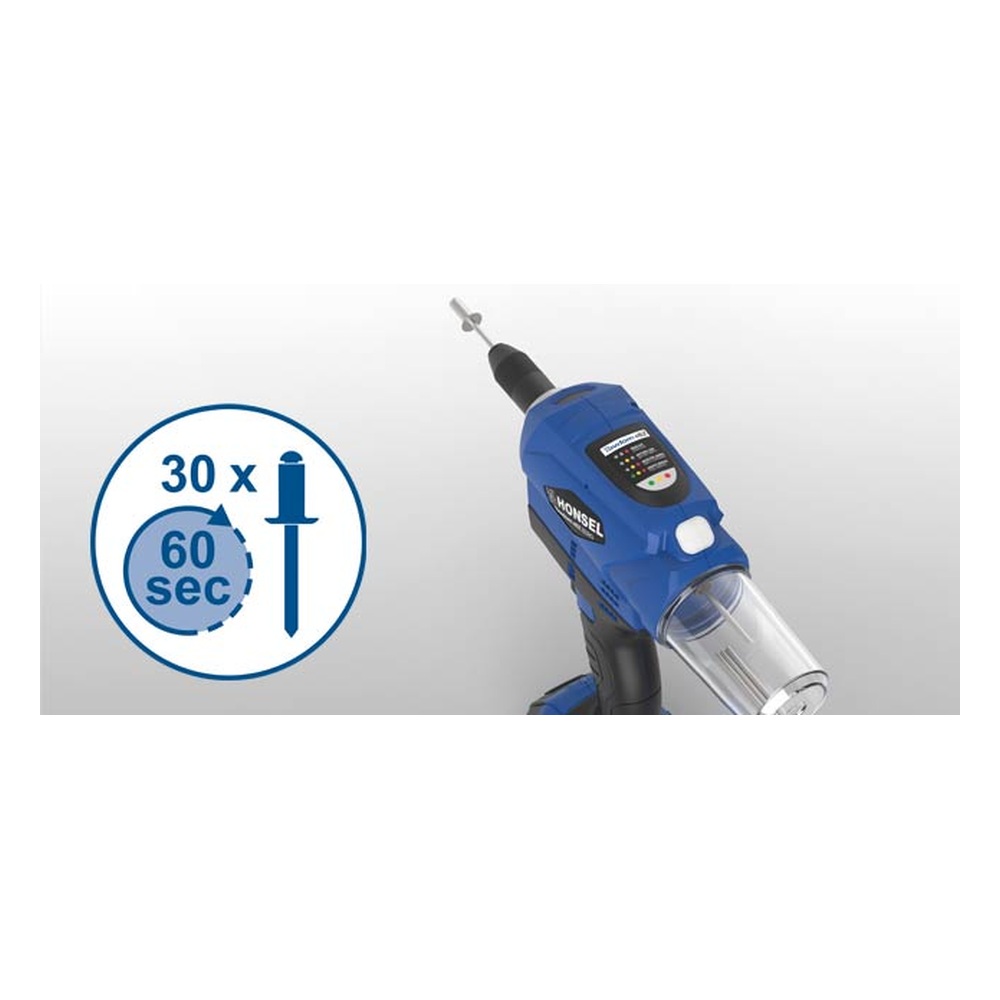

Operating speed	Less than 1 second per cycle; up to 30 cycles/min
Settings per battery	More than 1,200 rivets with a 2.0 Ah battery
Length without mandrel collector	210 mm
Charging time	24 min to 80%; 35 min to full charge
Battery platform	AMPShare 18 V

Blind Rivet Capacity by Material and Diameter - Metric

Material	2.4 mm	3.0 mm	3.2 mm	4.0 mm	4.8 mm	5.0 mm	6.0 mm
Aluminum	✓	✓	✓	✓	✓	✓	o
Steel	✓	✓	✓	✓	✓	✓
Stainless Steel A2	✓	✓	✓	✓	✓	✓
Copper	✓	✓	✓	✓	✓	✓

Table symbols

Processing possible

Processing possible with optional equipment

Blank cell - Not supported by the tool

Blind Rivet Capacity by Material and Diameter - Inch

Material	3/32″	1/8″	5/32″	3/16″	1/4″
Aluminum	✓	✓	✓	✓	o
Steel	✓	✓	✓	✓
Stainless Steel A2	✓	✓	✓	✓
Copper	✓	✓	✓	✓

Table symbols

Processing possible

Processing possible with optional equipment

Blank cell - Not supported by the tool

Ordering Configurations

SKU	Battery quantity	Battery	Charger	Packaging	Configuration
320421000000-010-1	1	18 V, 2.0 Ah GBA	GAL18V-40	L-Boxx
320421000000-020-1	2	18 V, 2.0 Ah GBA	GAL18V-40	L-Boxx
320421000000-099-1	0		Not included	L-Boxx	Tool without battery or charger
320421000000-199-1	0		Not included	Cardboard box	Tool without battery or charger

Included Items

Tool
Battery and charger according to version
4 nosepieces
L-size mandrel collector
Belt clip
Tool hanger
Protective cap

Accessories and Spare Parts

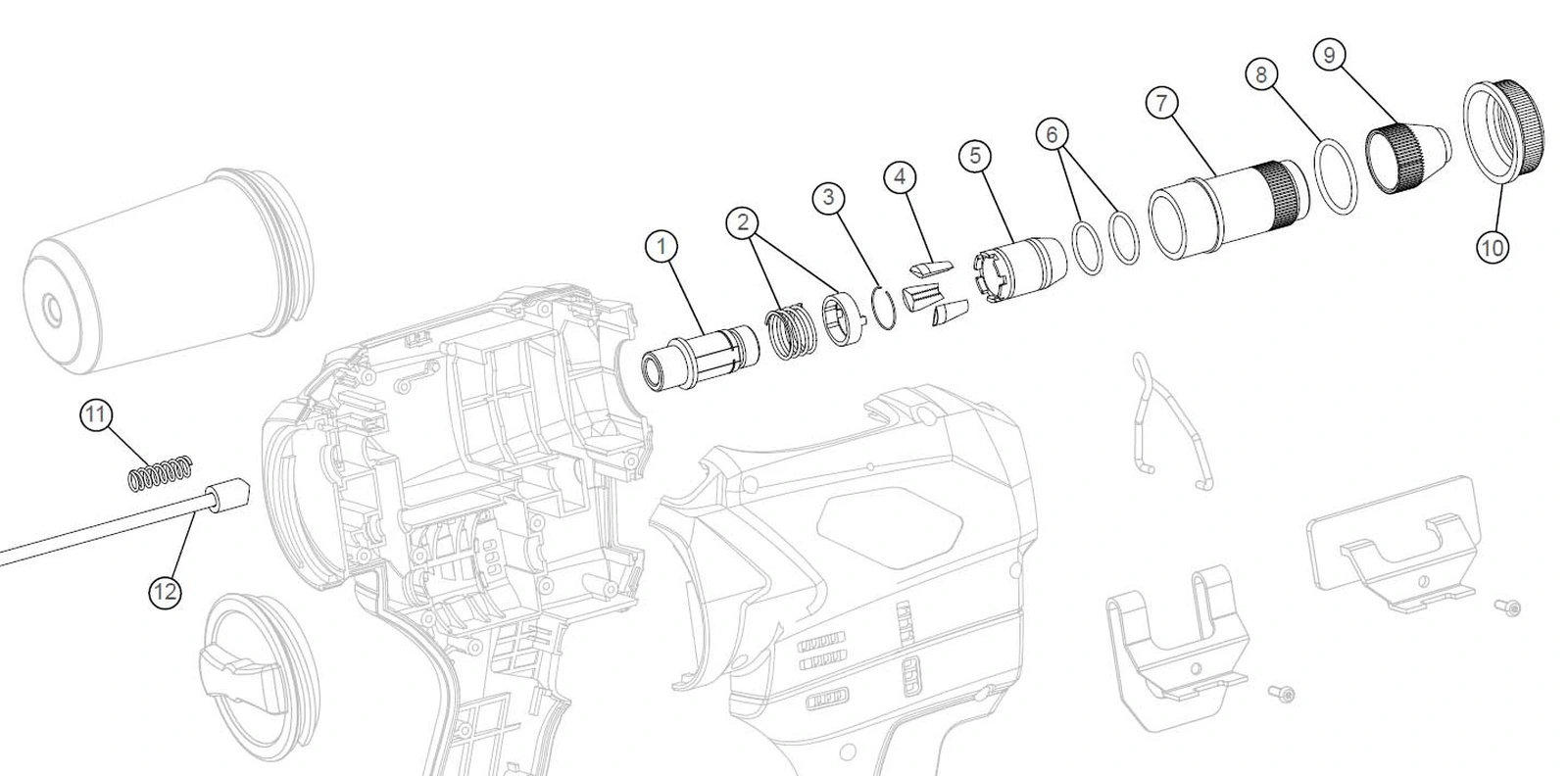

SPARE AND WEAR PARTS

No.	Item no.	Description
1	321420000054	Spacer
2	321420000055	Quick release ring + spring
3	321420000056	Quick release c-ring
4	321020000006	Clamping jaws (1 set = 3 pcs.)
5	321420000016	Clamping sleeve
6	321121000045	O-Ring 16×1,5

SPARE AND WEAR PARTS

No.	Item no.	Description
7	321420000015	Front sleeve incl. O-Ring
8	321420000019	O-Ring 23 x 2.0
10	321420000018	Union ring (silver)
11	321420000014	Pressure spring
12	321420000049	Guide sleeve wit mandrel discharge tube (various Ø)

ACCESSORIES

Item no.	Description
321500000010	AMPShare Starter Set (2 x 2.0Ah, 1 AMPShare quick charger) - EU
321500000011	AMPShare Starter Set (1 x 2.0Ah, 1×4.0Ah, 1 AMPShare quick charger) - EU
321500000012	AMPShare Starter Set (2 x 4.0Ah, 1 AMPShare quick charger) - EU
321500000005	AMPShare Quick Charger GAL 18V-40 (EU)
321500000024	AMPShare 18V 2.0 Ah GBA Li-Ion battery (EU)
321500000025	AMPShare 18V 4.0 Ah ProCore Li-Ion battery (EU)

ACCESSORIES

Item no.	Description

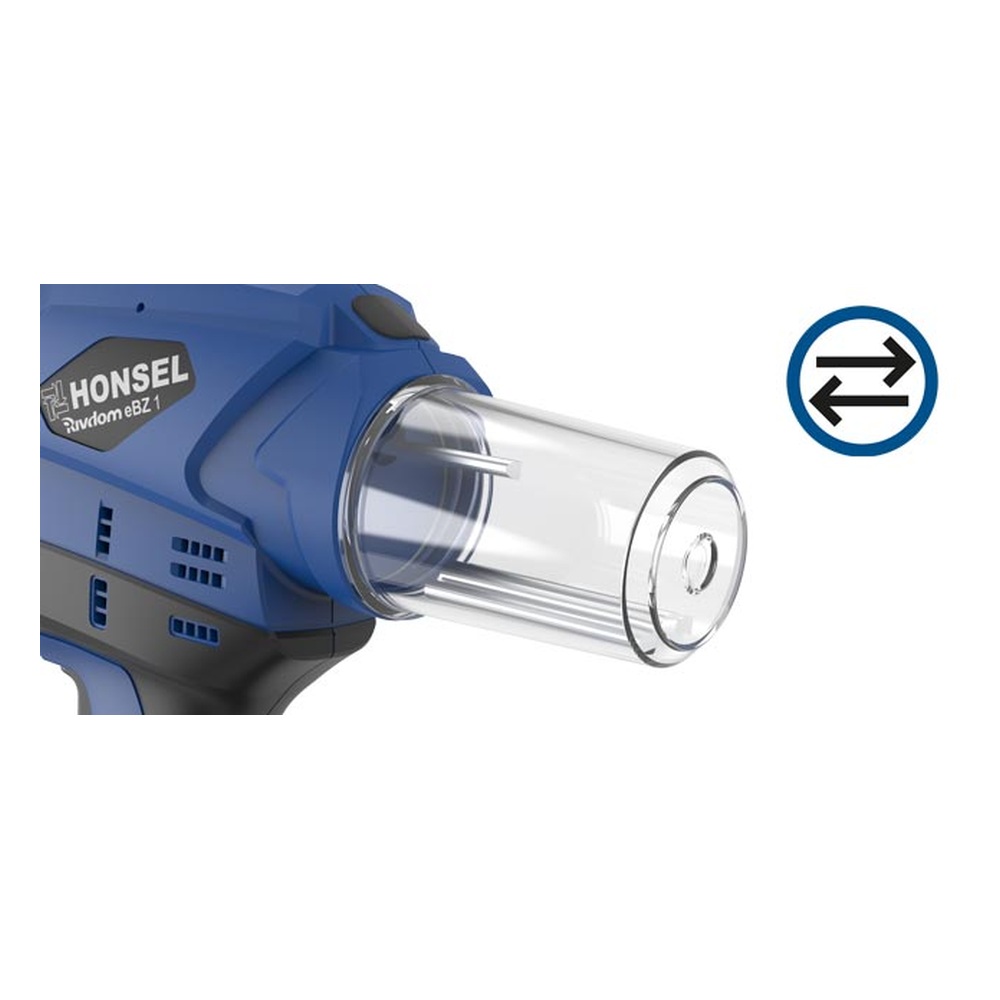

321200000031	Mandrel container S (5.5 cm)
321300100031	Mandrel container L (8.0 cm)
321401000030	Mandrel container L+ (8.0 cm)
321501000030	Mandrel container XL+ (11.0 cm)
321420000018	Union ring (blue)
321420000018	Union ring (gold)
321420000018	Union ring (red)
321420000018	Union ring (black)
321200000029	Hanger
321200000006	Belt clip
321200000005	Name plate
321401000004	Cover cap

STANDARD NOSE PIECES

No.	Item no.	Description
9	321420000122	Standard nose piece 2.4 mm
9	321420000123	Standard nose piece 3.0/3.2 mm

STANDARD NOSE PIECES

No.	Item no.	Description
9	321420000124	Standard nose piece 4.0 mm
9	321420000125	Standard nose piece 4.8/5.0 mm

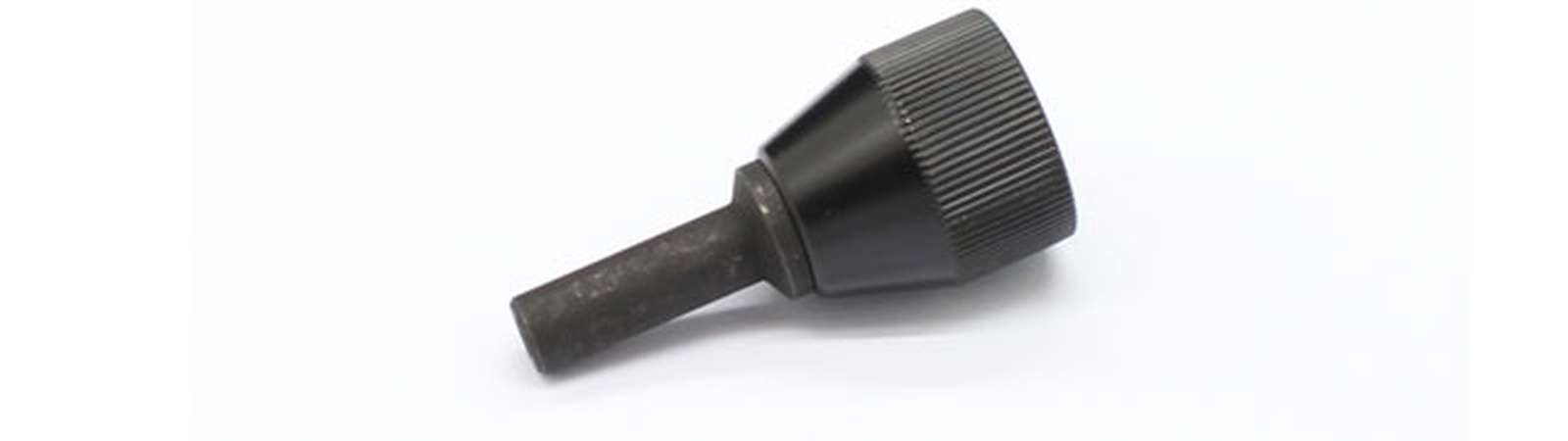

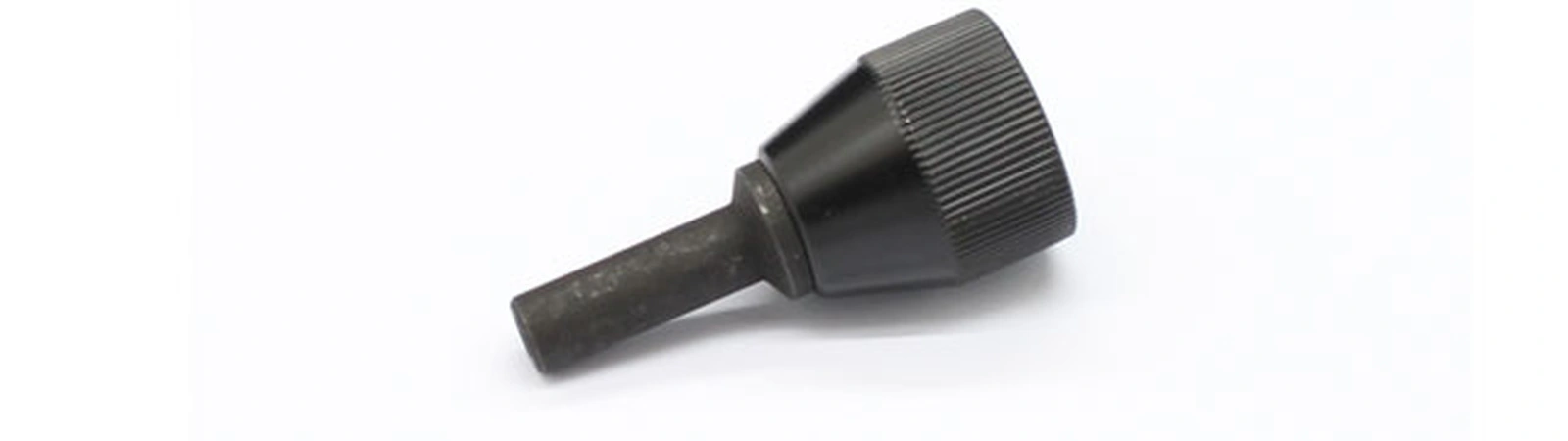

For recessed riveting points

Item no.	Description
321420924050	Extended retention nose piece (5 mm) 2.4 mm
321420932050	Extended retention nose piece (5 mm) 3.0/3.2 mm
321420940050	Extended retention nose piece (5 mm) 4.0 mm
321420950050	Extended retention nose piece (5 mm) 4.8/5.0 mm

For recessed riveting points

Item no.	Description
321420932200	Extended retention nose piece (20 mm) 3.0/3.2 mm
321420924200	Extended retention nose piece (20mm) 2.4 mm
321420940200	Extended retention nose piece (20 mm) 4.0 mm
321420950200	Extended retention nose piece (20 mm) 4.8/5.0 mm

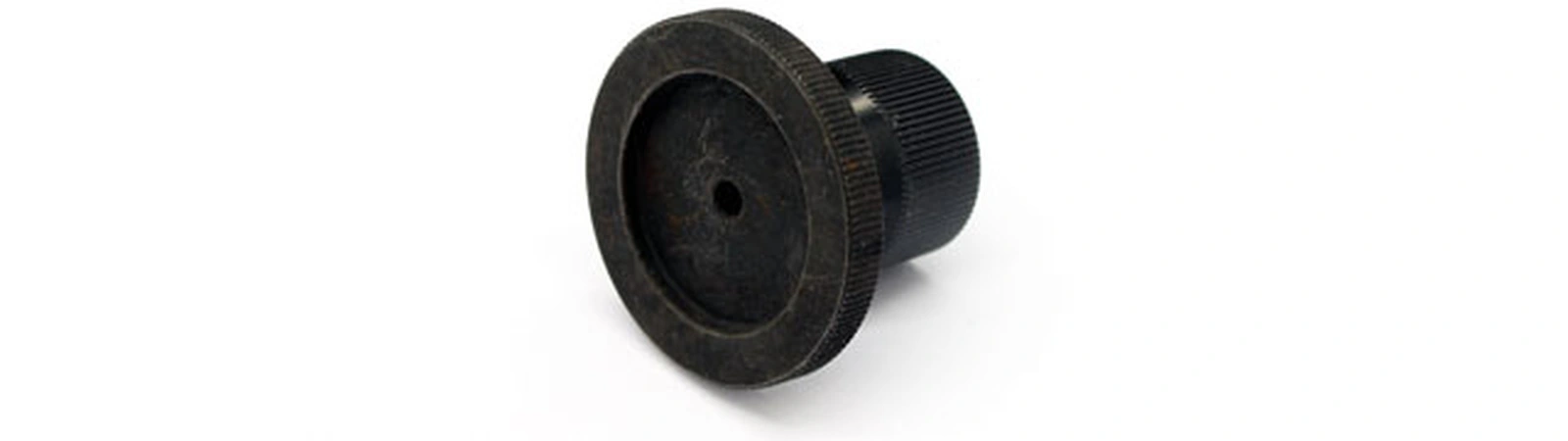

Façade nose pieces

Item no.	Description
321420000424	Façade nosepiece 4.0 mm to head 24 mm
321420000524	Façade nose piece 4.8/5.0 mm to head 24 mm

Façade nose pieces

Item no.	Description
321420008401	Nose piece FERO BOLT 4.8 mm

Façade nose pieces

Item no.	Description
321420716052	Folding rivet nose piece 5.2 mm

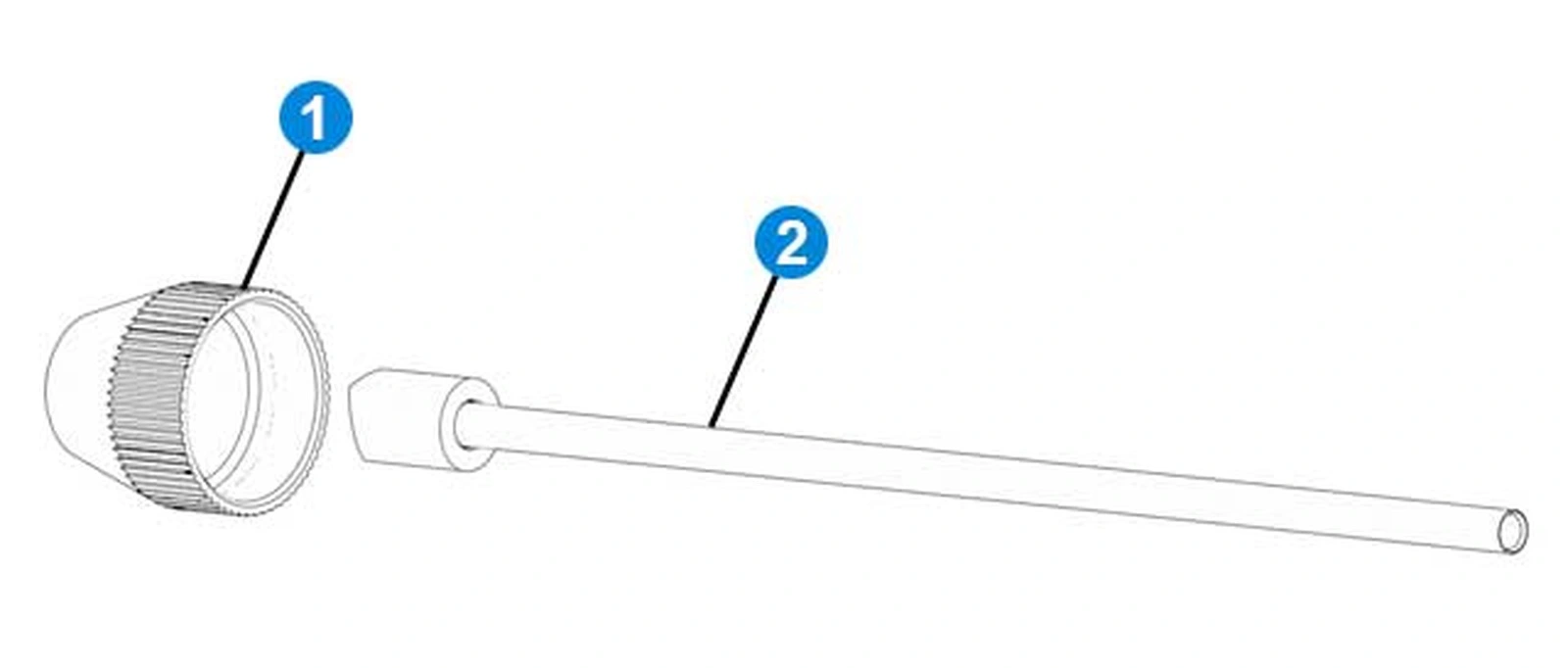

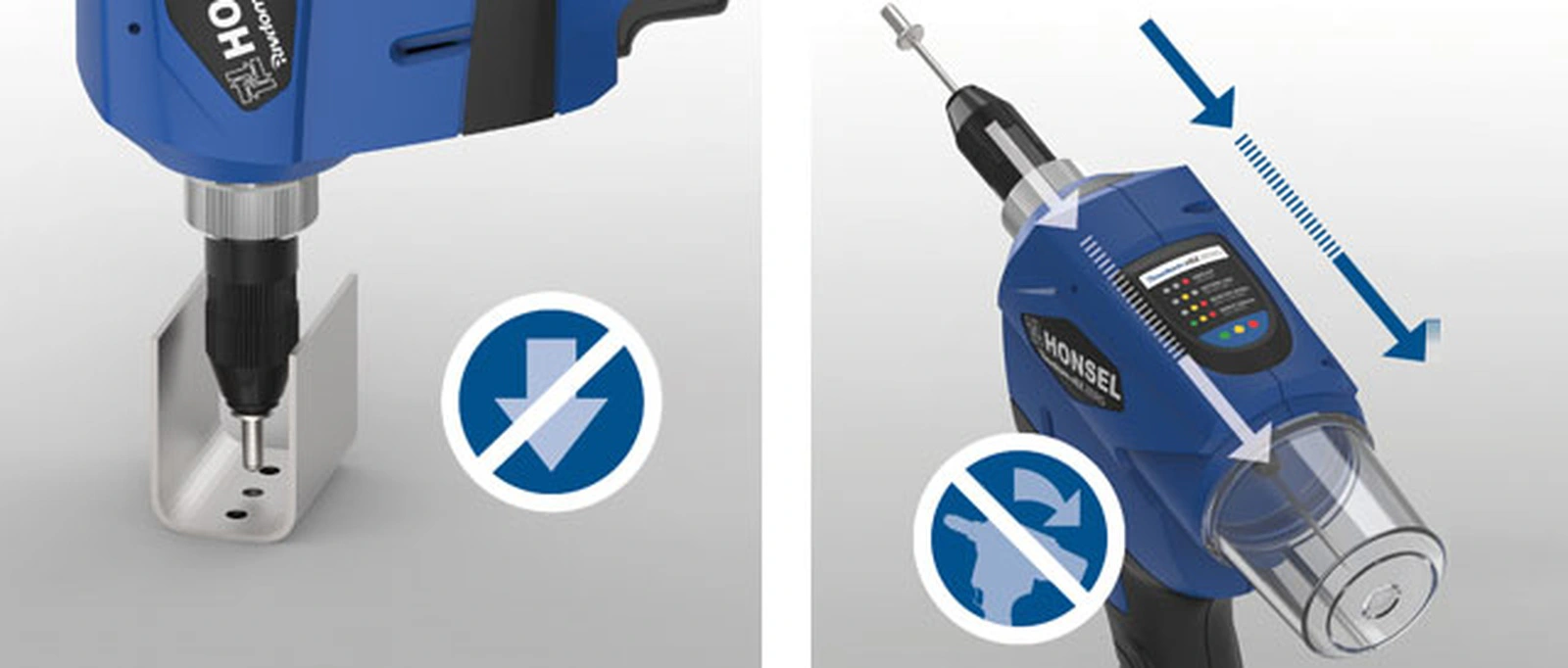

RETENTION NOSE PIECES

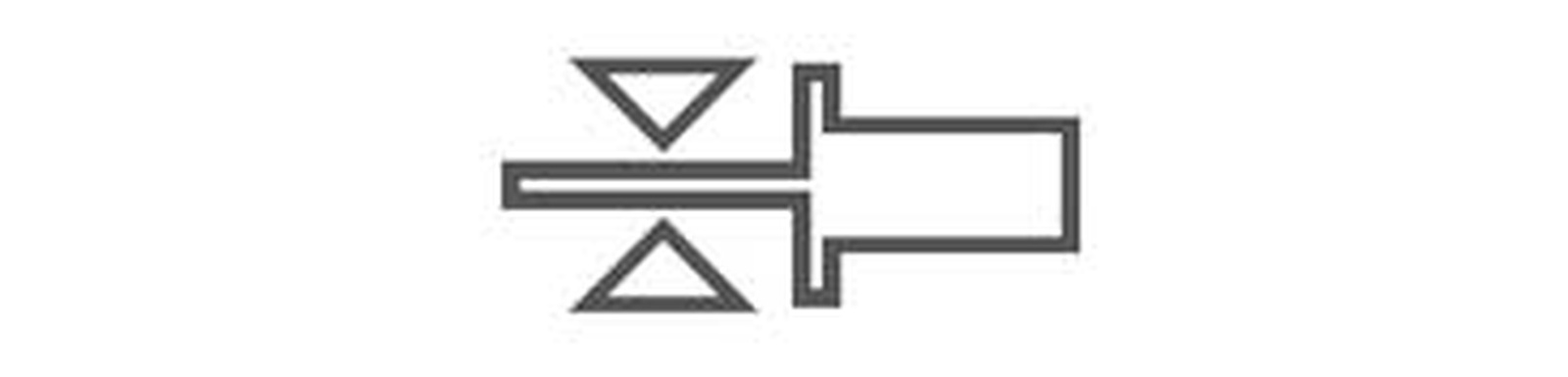

S	No.	Item no.	Description
≤1,7		321420000224-0-1	SET from position 1 and 2
	1	321420000132-01-1	Retention nose piece 2.4 mm
	2	321420000049-0-4	Mandrel discharge tube and guide sleeve

RETENTION NOSE PIECES

S	No.	Item no.	Description
≤2,2		321420000232-0-1	SET from position 1 and 2
	1	321420000134-01-1	Retention nose piece 3.0/3.2 mm
	2	321420000049-0-3	Mandrel discharge tube and guide sleeve

RETENTION NOSE PIECES

S	No.	Item no.	Description
≤2,7		321420000240-0-1	SET from position 1 and 2
	1	321420000136-01-1	Retention nose piece 4.0 mm
	2	321420000049-0-2	Mandrel discharge tube and guide sleeve

RETENTION NOSE PIECES

S	No.	Item no.	Description
≤3,2		321420000250-0-1	SET from position 1 and 2
	1	321420000138-01-1	Retention nose piece 4.8/5.0 mm
	2	321420000049-0-1	Mandrel discharge tube and guide sleeve

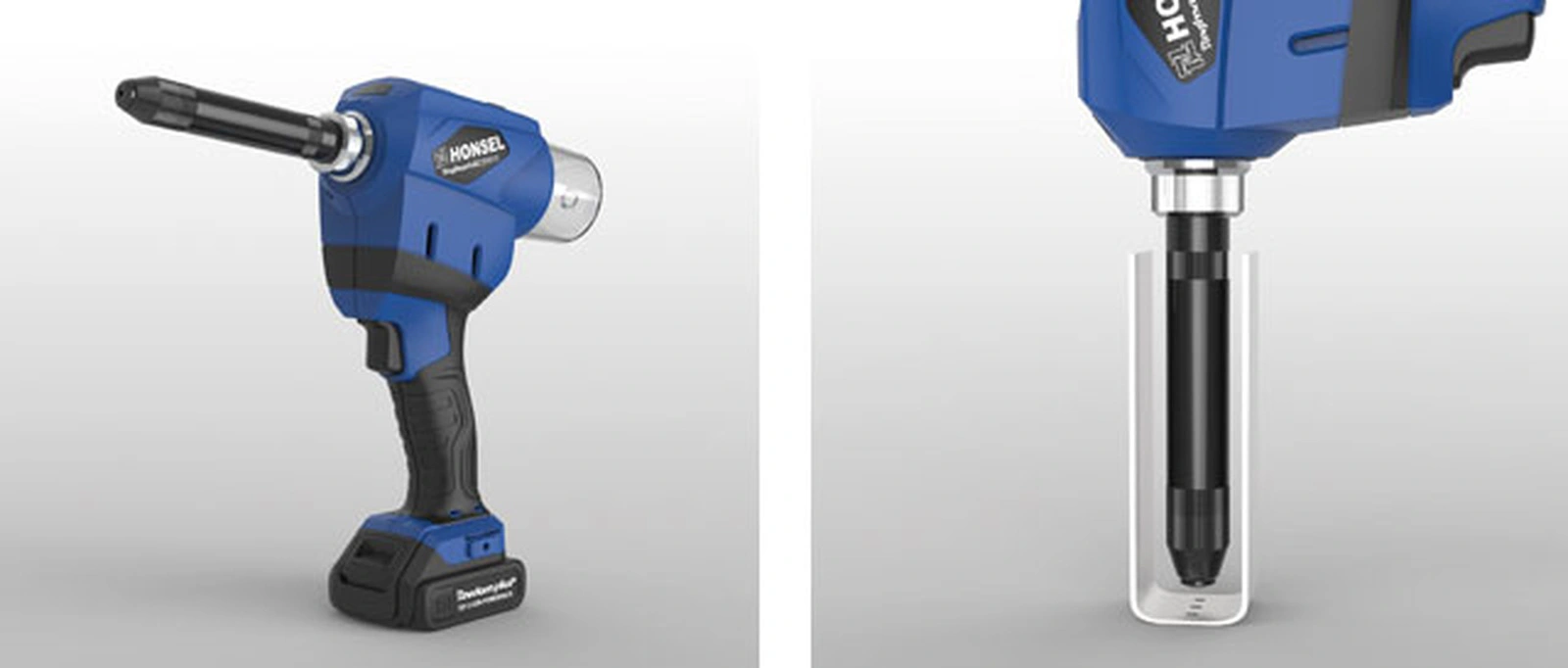

EXTENDED FRONT SLEEVES

S	Item no.	Description
	321420000072-1-1	1x Extension piece 80 mm without mandrel discharge tube
≤1,7	321420000072-01-4	1x Extension piece 80 mm and mandrel discharge tube
≤2,2	321420000072-01-3	1x Extension piece 80 mm and mandrel discharge tube
≤2,7	321420000072-01-2	1x Extension piece 80 mm and mandrel discharge tube
≤3,2	321420000072-01-1	1x Extension piece 80 mm and mandrel discharge tube
≤3,4	321420000072-01-5	1x Extension piece 80 mm and mandrel discharge tube
≤1,7	321420000072-02-4	2x Extension piece 80 mm and mandrel discharge tube
≤2,2	321420000072-02-3	2x Extension piece 80 mm and mandrel discharge tube
≤2,7	321420000072-02-2	2x Extension piece 80 mm and mandrel discharge tube
≤3,2	321420000072-02-1	2x Extension piece 80 mm and mandrel discharge tube
≤3,4	321420000072-02-5	2x Extension piece 80 mm and mandrel discharge tube

Warranty

24-month warranty provided by HADI, subject to the warranty terms and the supplied product configuration.

Additional Videos

Additional Documents

Extended Front Sleeve Instructions

Would you like to check whether Honsel Rivdom eBZ 1 Battery-Powered Blind Rivet Tool fits your application?

The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Honsel Rivdom eBZ 1 Battery-Powered Blind Rivet Tool.
