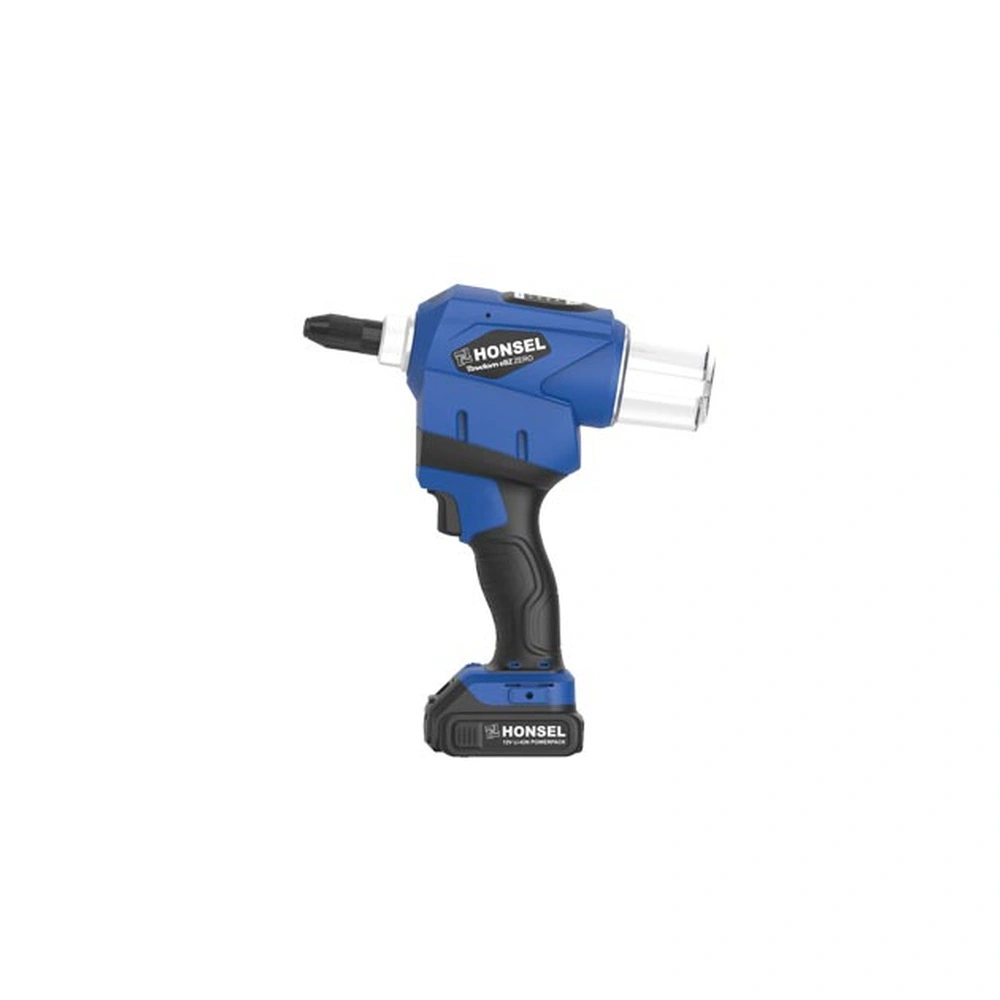

כלי הסמרור הנטען Honsel Rivdom eBZ ZERO על רקע לבן - Honsel Rivdom eBZ ZERO cordless riveting tool on a white background

כלי הסמרור הנטען Honsel Rivdom eBZ ZERO - Honsel Rivdom eBZ ZERO cordless riveting tool

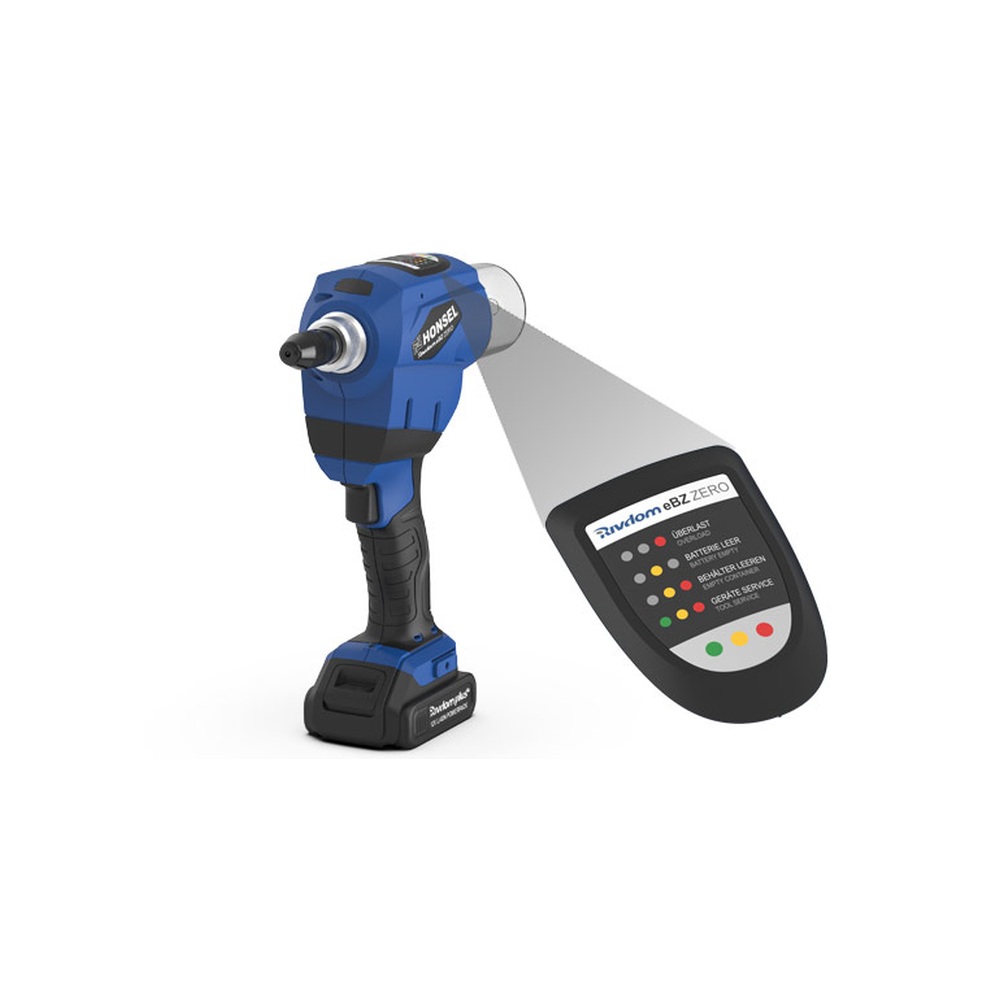

צג הבקרה של כלי הסמרור הנטען Honsel Rivdom eBZ ZERO - Control display of the Honsel Rivdom eBZ ZERO cordless riveting tool

ממדי כלי הסמרור הנטען Honsel Rivdom eBZ ZERO באחיזה - Handheld size of the Honsel Rivdom eBZ ZERO cordless riveting tool

מידות כלי הסמרור הנטען Honsel Rivdom eBZ ZERO - Dimensions of the Honsel Rivdom eBZ ZERO cordless riveting tool

מנוע ללא פחמים של כלי הסמרור הנטען Honsel Rivdom eBZ ZERO - Brushless motor of the Honsel Rivdom eBZ ZERO cordless riveting tool

בקרת מהלך החזרה בכלי הסמרור הנטען Honsel Rivdom eBZ ZERO - Return-stroke control on the Honsel Rivdom eBZ ZERO cordless riveting tool

גישה ללא כלי עבודה לתחזוקת Honsel Rivdom eBZ ZERO - Tool-free maintenance access on the Honsel Rivdom eBZ ZERO cordless riveting tool

שרטוט חלקים ממוספר של Honsel Rivdom eBZ ZERO לפיות וחלקי חילוף - Honsel Rivdom eBZ ZERO numbered parts drawing for spares and nosepieces

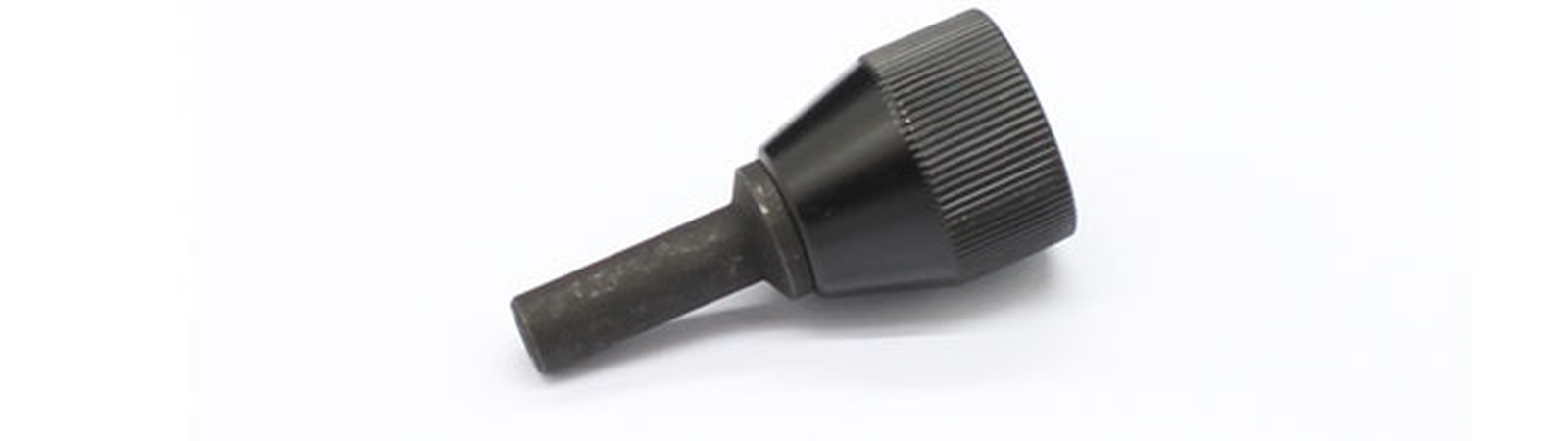

פיות מוארכות לנקודות סמרור שקועות עבור Honsel Rivdom eBZ ZERO - Extended nosepieces for recessed riveting points for Honsel Rivdom eBZ ZERO

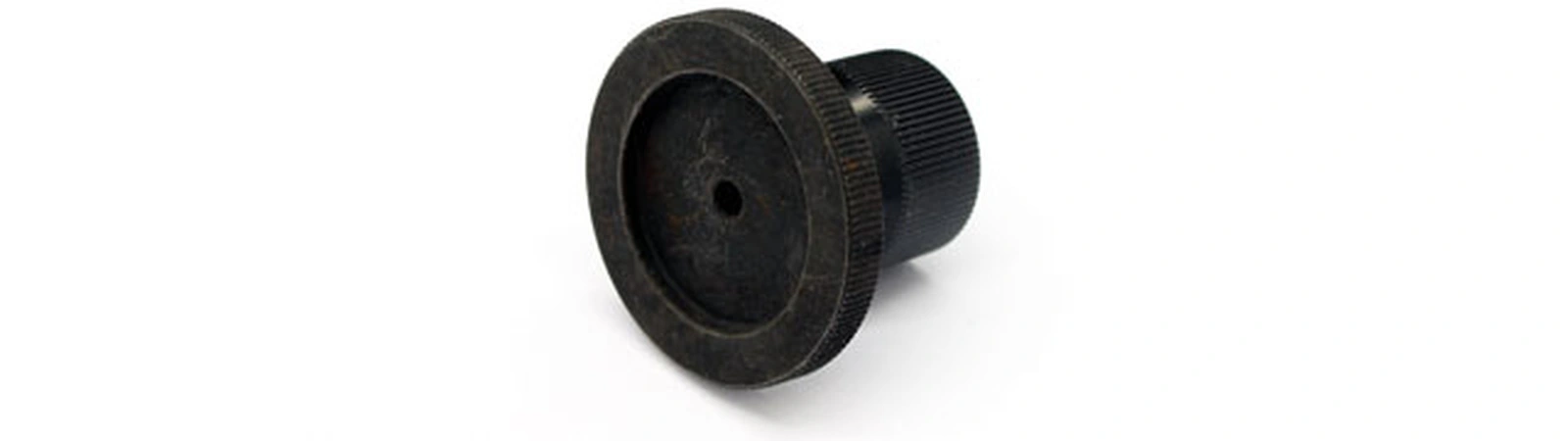

פיות למסמרות עיוורות בעלות ראש כיפה גדול עבור Honsel Rivdom eBZ ZERO - Nosepieces for large-dome-head blind rivets for Honsel Rivdom eBZ ZERO

פייה מפרקית לסמרור לוחות חזית - Articulated nosepiece for riveting facade panels

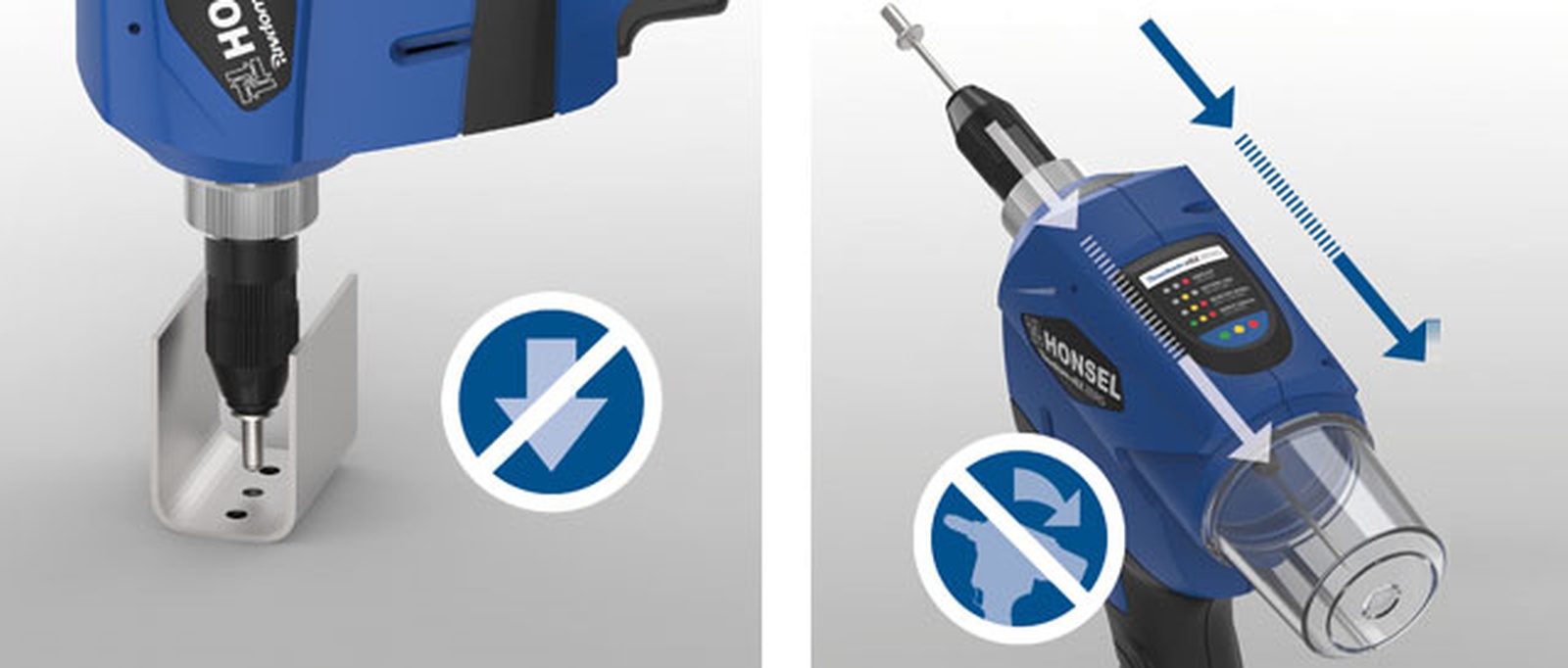

המחשת פעולת פיית אחיזה המונעת נפילת מסמרת עיוורת - Illustration of a retention nosepiece preventing a blind rivet from falling

פיית אחיזה וצינור פינוי גבעולים עבור Honsel Rivdom eBZ ZERO - Retention nosepiece and mandrel discharge tube for Honsel Rivdom eBZ ZERO

תרשים קוטר הגבעול S לבחירת פיית אחיזה מתאימה - Stud-diameter S diagram for selecting a compatible retention nosepiece

כלי Honsel עם שרוול קדמי מוארך לעבודה בנקודות שקועות - Honsel tool with an extended front sleeve for recessed applications

תרשים קוטר הגבעול S לבחירת שרוול קדמי מוארך - Stud-diameter S diagram for selecting an extended front sleeve

בית » מוצרים » Honsel Rivdom eBZ ZERO Battery-Powered Blind Rivet Tool

Honsel Rivdom eBZ ZERO Battery-Powered Blind Rivet Tool

Name: Honsel Rivdom eBZ ZERO Battery-Powered Blind Rivet Tool
Brand: Honsel

A compact cordless tool for setting blind rivets up to 4.0 mm, with 6,800 N of pulling force and a brushless motor.

The Honsel Rivdom eBZ ZERO is designed for blind-rivet installation in production, assembly and maintenance work where low weight, fast cycling and comfortable handling are important. It completes a setting cycle in under one second and can install more than 1,200 rivets with a 2.0 Ah battery.

Key Features

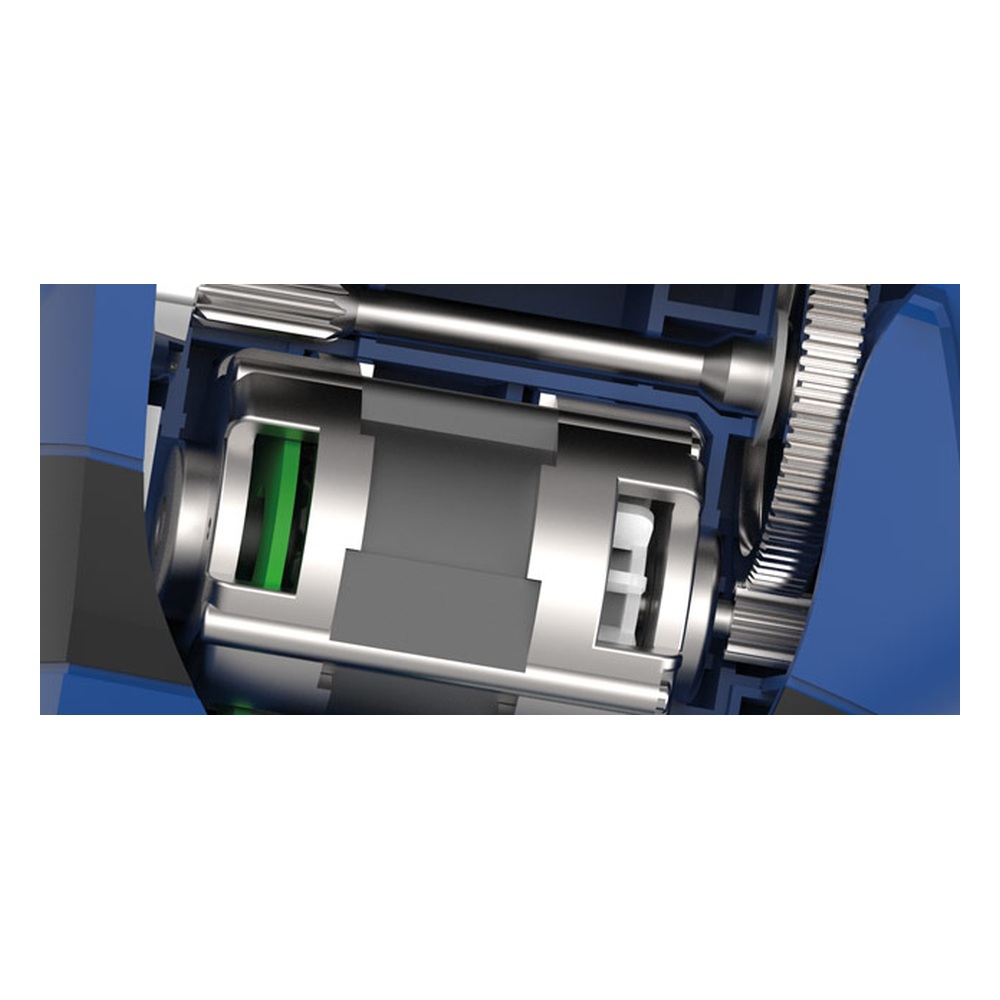

Brushless BLDC motor
Selectable manual or automatic return
Automatic spent-mandrel evacuation
Removable mandrel collector

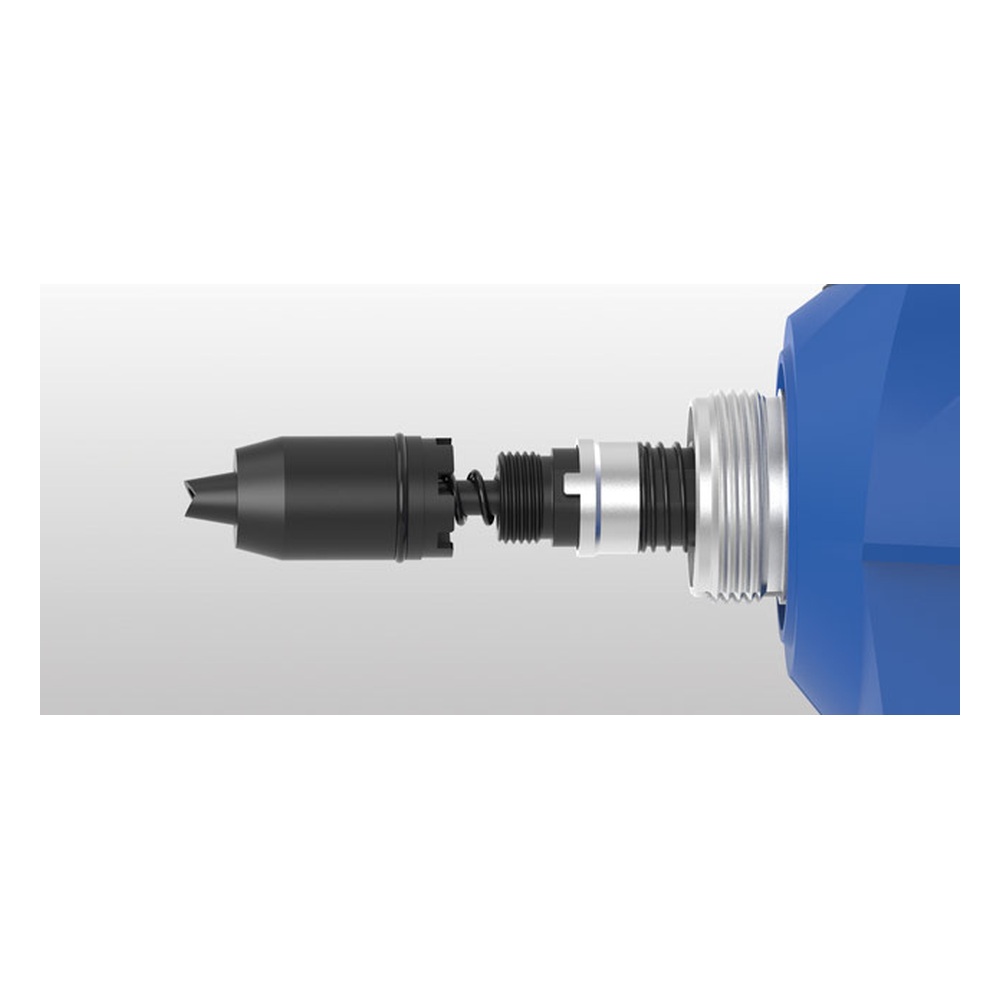

Tool-free maintenance access

Technical Specifications

Parameter	Value
Application	Blind rivets up to 4.0 mm (5/32 in)
Pulling force	6,800 N
Stroke	20 mm
Weight with battery	1.3 kg
Weight without battery	1 kg
Maximum mandrel diameter	3.4 mm
Operating speed	Less than 1 second per cycle; up to 30 cycles/min
Settings per battery	More than 1,200 rivets with a 2.0 Ah battery

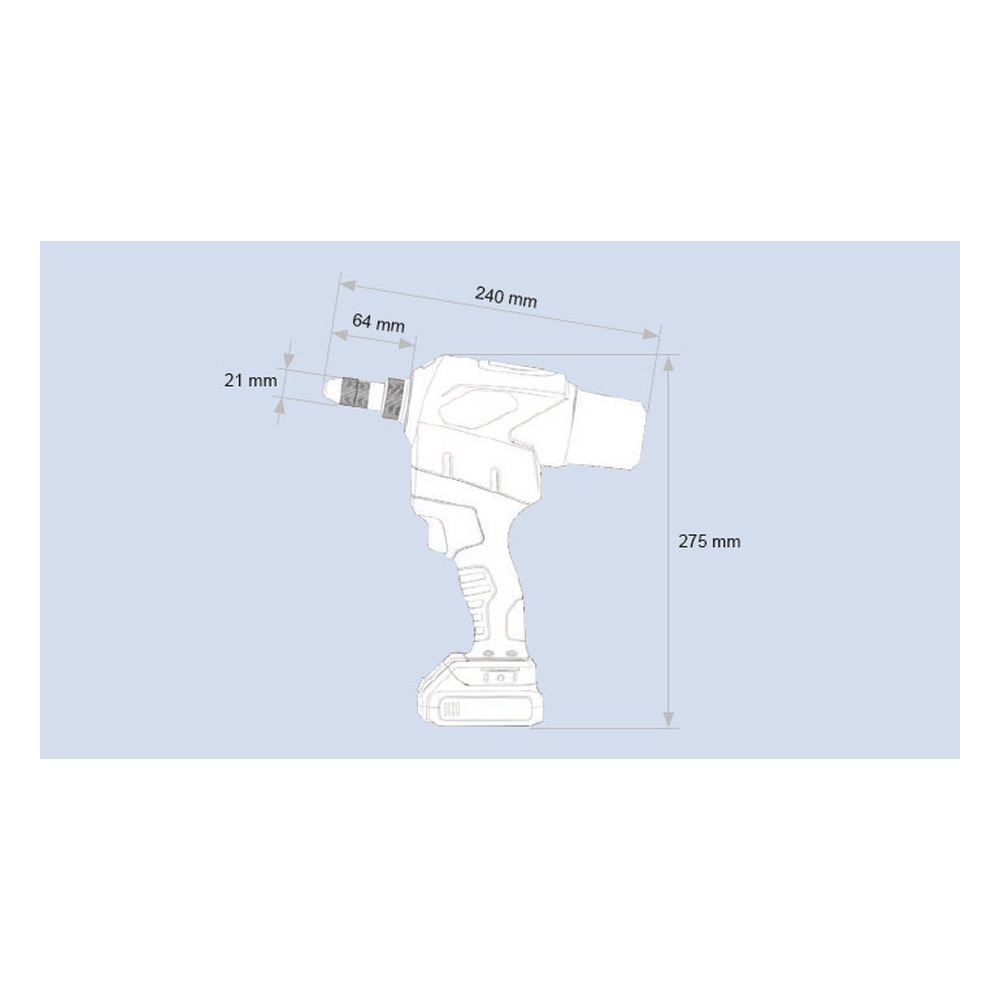

Length without mandrel collector	210 mm
Charging time	24 min to 80%; 35 min to full charge
Battery platform	Rivdom-PLUS 12 V

Blind Rivet Capacity by Material and Diameter - Metric

Material	2.0 mm	2.4 mm	3.0 mm	3.2 mm	4.0 mm
Aluminum	o	✓	✓	✓	✓
Steel	o	✓	✓	✓	✓
Stainless Steel A2	o	✓	✓	✓	✓
Copper	o	✓	✓	✓	✓

Table symbols

Processing possible

Processing possible with optional equipment

Blank cell - Not supported by the tool

Blind Rivet Capacity by Material and Diameter - Inch

Material	5/64″	3/32″	1/8″	5/32″
Aluminum	o	✓	✓	✓
Steel	o	✓	✓	✓
Stainless Steel A2	o	✓	✓	✓
Copper	o	✓	✓	✓

Table symbols

Processing possible

Processing possible with optional equipment

Blank cell - Not supported by the tool

Ordering Configurations

SKU	Battery quantity	Battery	Charger	Packaging
320210000000-010-1	1	12 V, 2.0 Ah	Included	L-Boxx
320210000000-020-1	2	12 V, 2.0 Ah	Included	L-Boxx

Included Items

Tool in L-Boxx
Battery quantity according to version
Rivdom-PLUS charger
3 standard nosepieces
S-size mandrel collector
Belt clip
Tool hanger
Protective cap

Accessories and Spare Parts

SPARE AND WEAR PARTS

No.	Item no.	Description
1	321200000020	Dummy-Sensorring
2	321200000054	Spacer
3	321200000055	Quick release ring + spring
4	321200000056	Quick release c-ring
5	321200000017	Guide sleeve (various Ø)
6	311002000132	Clamping jaws (1 set = 2 pcs.)

SPARE AND WEAR PARTS

No.	Item no.	Description
7	321200000010	O-Ring 14 x 1.0
8	321200000016	Clamping sleeve
9	321200000018	Union ring (silver)
10	321200000015	Front sleeve incl. O-Ring
11	321200000019	O-Ring 14 x 1.0
12	321200000049	Mandrel discharge tube (various Ø)
13	321200000014	Pressure spring

STANDARD NOSE PIECES

No.	Item no.	Description
14	321200000121	Standard nosepiece 2.0 mm
14	321200000122	Standard nosepiece 2.4 mm

STANDARD NOSE PIECES

No.	Item no.	Description
14	321200000123	Standard nosepiece 3.0/3.2 mm
14	321200000124	Standard nosepiece 4.0 mm

ACCESSORIES

Item no.	Description
321200000021	Li-Ion RivdomPLUS battery 12V/2,0Ah
321200000022	Li-Ion RivdomPLUS battery 12V/4,0Ah
321500000001	Universal quick charger 200 V (12 V/16 V/20 V)
321500000003	Multiple charging station
321500000004	Adapter multiple charging station for 1 x RivdomPLUS battery

ACCESSORIES

Item no.	Description
321200000031	Mandrel container S (5.5 cm)
321300100031	Mandrel container L (8.0 cm)
321401000030	Mandrel container L+ (8.0 cm)
321501000030	Mandrel container XL+ (11.0 cm)
321200000018	Union ring (blue)
321200000018	Union ring (gold)
321200000018	Union ring (red)
321200000018	Union ring (black)
321200000029	Hanger
321200000006	Belt clip
321200000005	Name plate
321401000004	Cover cap

SPECIAL NOSE PIECES

Item no.	Description
321200932070	Extended nose piece (7 mm) 3.0/3.2 mm
321200940070	Extended nose piece (7 mm) 4.0 mm

SPECIAL NOSE PIECES

Item no.	Description
321200932200	Extended nose piece (20 mm) 3.0/3.2 mm
321200940200	Extended nose piece (20 mm) 4.0 mm

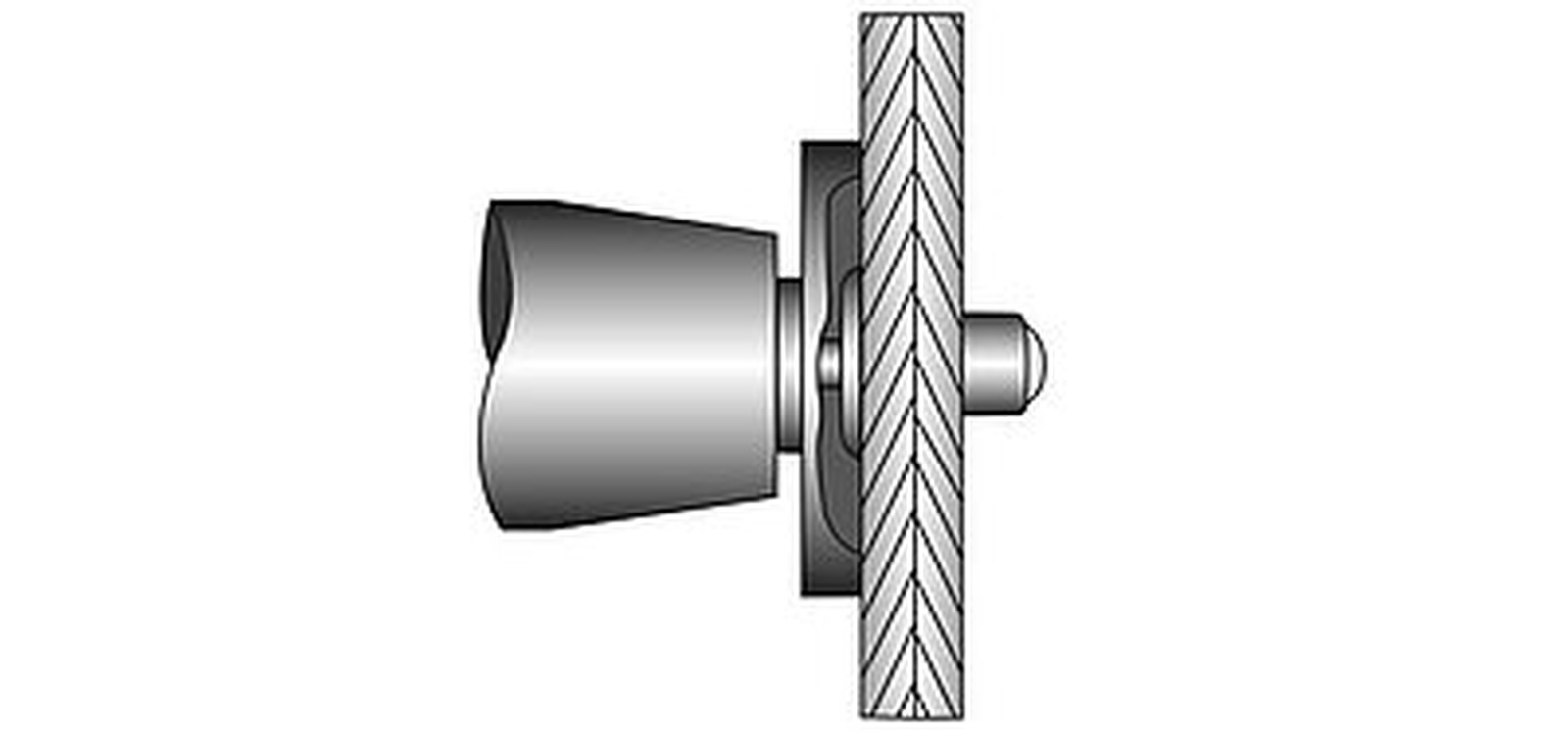

SPECIAL NOSE PIECES

Item no.	Description
321200000416	Facade nose piece head 16.0 mm
321200000424	Facade nose piece head 24.0 mm

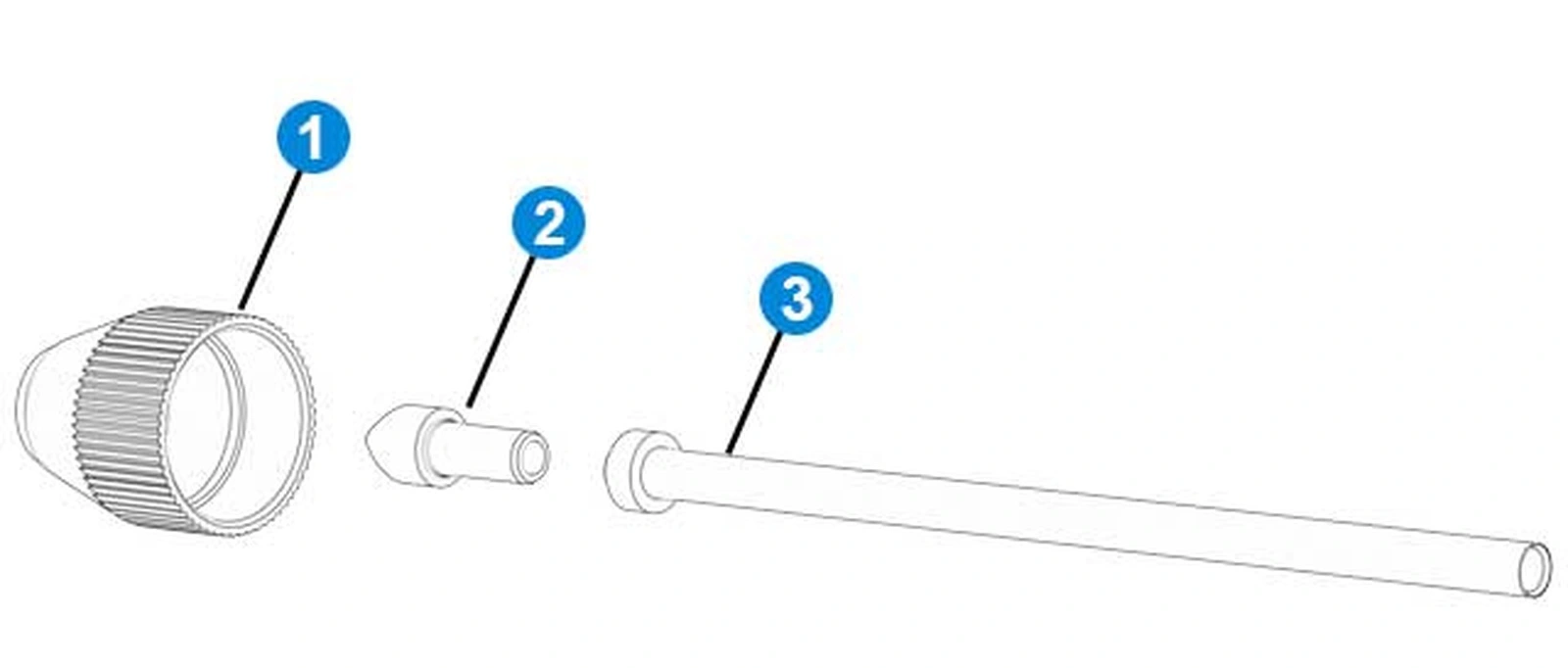

RETENTION NOSE PIECES

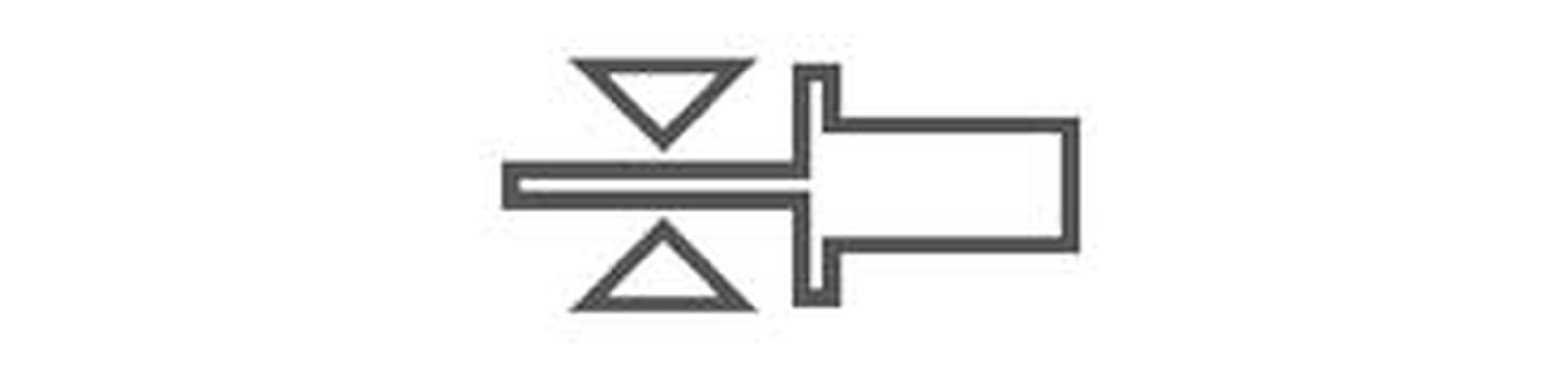

S	No.	Item no.	Description
≤1,7		321200000224-0-1	SET from position 1, 2 and 3
	1	321200000132-01-1	Retention nose piece 2.4/3.2 mm
	2	321200000017-0-4	Guide sleeve
	3	321200000049-0-4	Mandrel discharge tube

RETENTION NOSE PIECES

S	No.	Item no.	Description
≤2,2		321200000232-0-1	SET from position 1, 2 and 3
	1	321200000134-01-1	Retention nose piece 3.0/3.2 mm
	2	321200000017-0-3	Guide sleeve
	3	321200000049-0-3	Mandrel discharge tube

RETENTION NOSE PIECES

S	No.	Item no.	Description
≤2,7		321200000240-0-1	SET from position 1, 2 and 3
	1	321200000136-01-1	Retention nose piece 4.0 mm
	2	321200000017-0-2	Guide sleeve
	3	321200000049-0-2	Mandrel discharge tube

Extended retention nose pieces 7.0 mm

S	Item no.	Description
≤1,7	321200924070-01-1	(7 mm) 2.4 mm
≤2,2	321200932070-01-1	(7 mm) 3.0/3.2 mm
≤2,7	321200940070-01-1	(7 mm) 4.0 mm

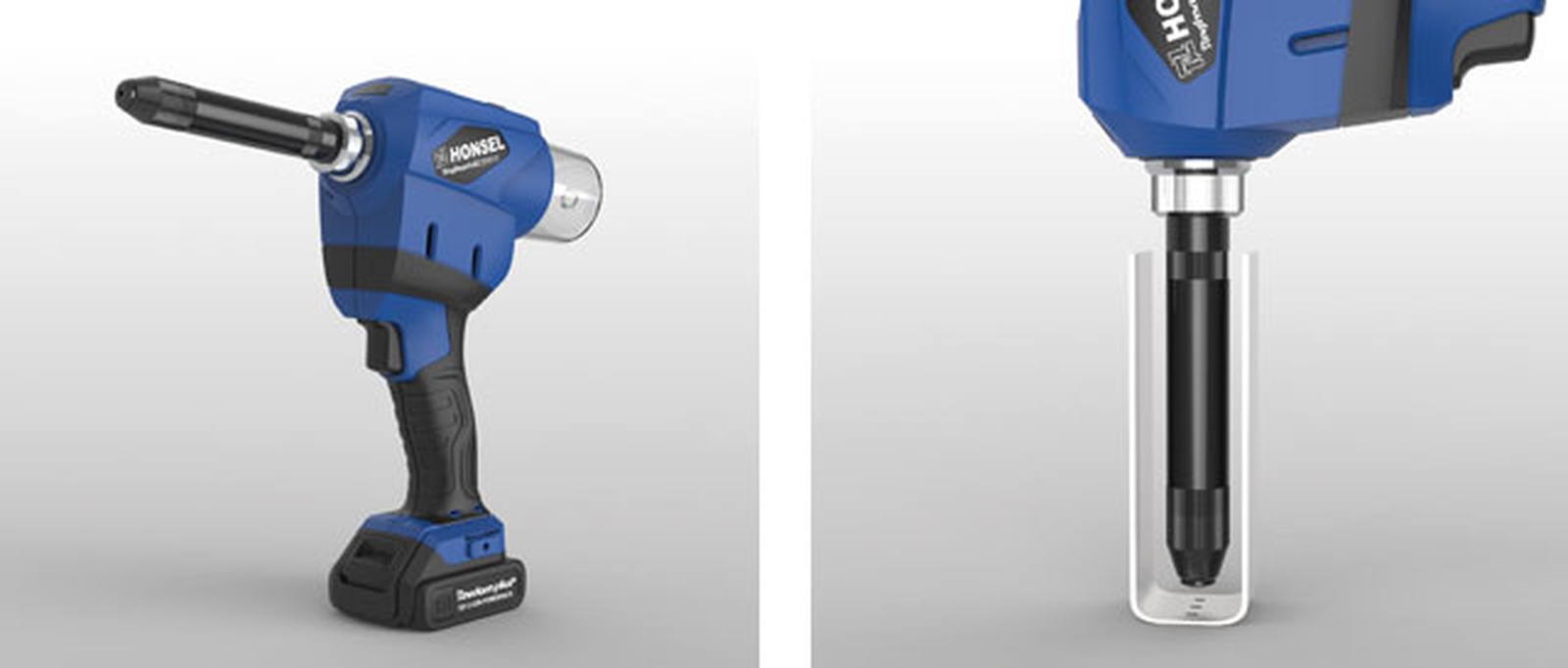

EXTENDED FRONT SLEEVES

S	Item no.	Description
	321200000072-0-1	1x Extension piece 80 mm without mandrel discharge tube
≤1,7	321200000072-01-4	1x Extension piece 80 mm and mandrel discharge tube
≤2,2	321200000072-01-3	1x Extension piece 80 mm and mandrel discharge tube
≤2,7	321200000072-01-2	1x Extension piece 80 mm and mandrel discharge tube
≤1,7	321200000072-02-4	2x Extension piece 80 mm and mandrel discharge tube
≤2,2	321200000072-02-3	2x Extension piece 80 mm and mandrel discharge tube
≤2,7	321200000072-02-2	2x Extension piece 80 mm and mandrel discharge tube

Warranty

24-month warranty provided by HADI, subject to the warranty terms and the supplied product configuration.

Additional Videos

Additional Documents

Extended Front Sleeve Instructions

Would you like to check whether Honsel Rivdom eBZ ZERO Battery-Powered Blind Rivet Tool fits your application?

The HADI Technologies team will help you select the right configuration, verify application requirements and provide technical information about Honsel Rivdom eBZ ZERO Battery-Powered Blind Rivet Tool.
