Overview

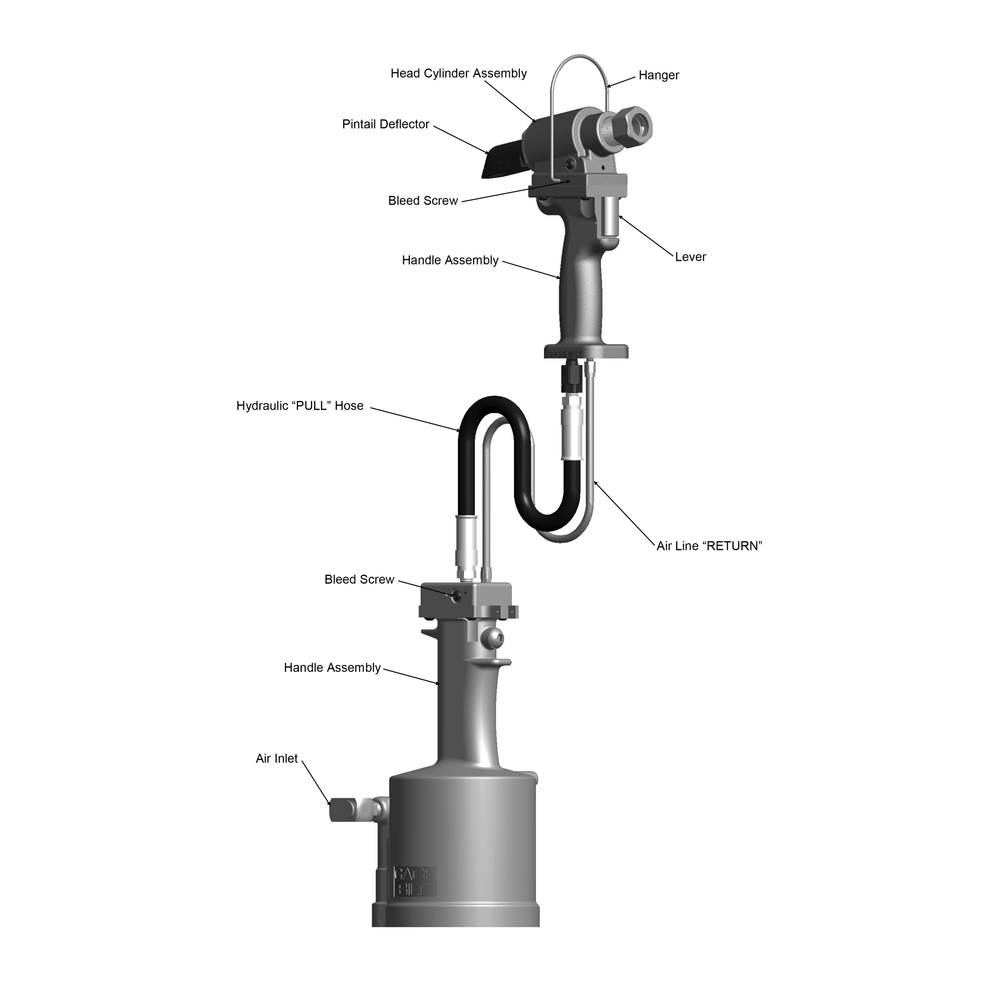

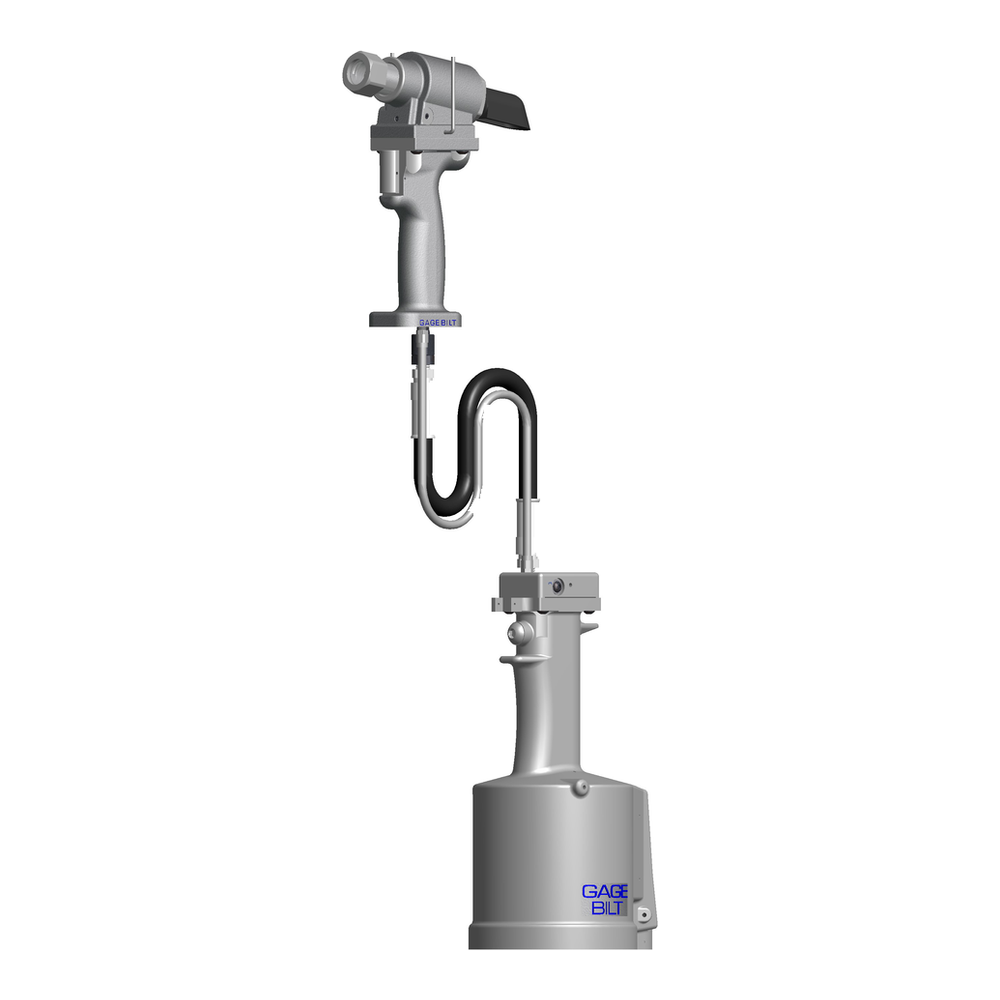

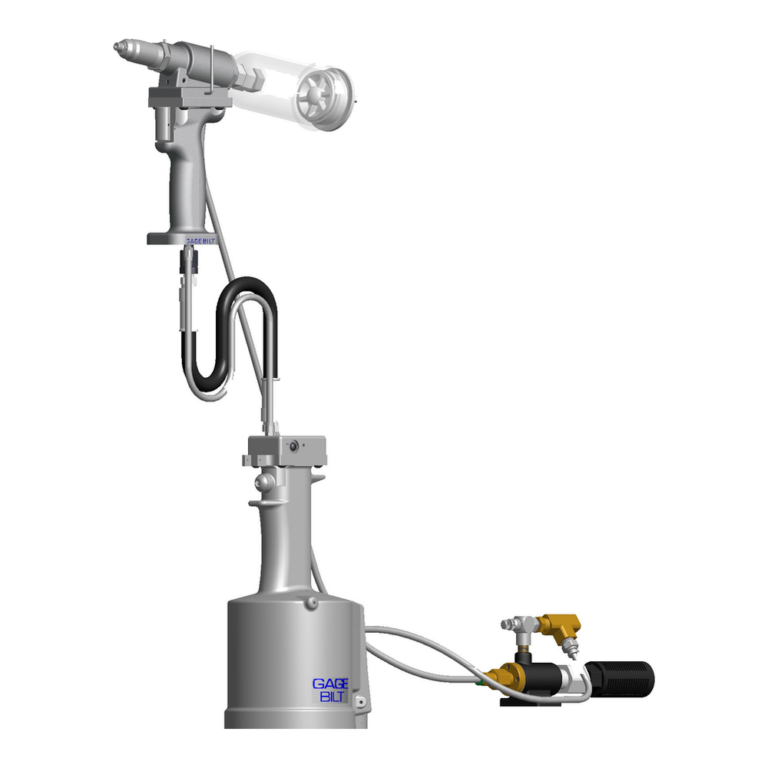

The GB752SH is a pneumatic-hydraulic split-handle installation tool for blind rivets and lockbolts. Its split configuration reduces the weight held by the operator. The handle and head-cylinder assembly weighs 2.50 lb (1.13 kg), the complete tool weighs 7.50 lb (3.40 kg), and the fastener-setting stroke is 0.500" (12.7 mm). Rated pull load is 3,800 lb (16.90 kN).
Specifications and compatibility tables
COMMERCIAL LOCKBOLTS
| DIA. | STRAIGHT |
|---|
| 3/16 | LB06-722-20 LB06-722-60 |
| 1/4 | LB08-722-20 LB08-722-60 |
MULTI-GRIP LOCKBOLTS
| DIA. | STRAIGHT |
|---|
| 3/16 | MG06-722-20 MG06-722-60 |
| 1/4 5 | MG08-722-20 MG08-722-60 |
BLIND BOLT (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER MS90353S & U / MS90354S & U MS21140S & U / MS21141S & U MAXIBOLT, BACB30YY, YU, & YT
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 1/8 | SB04-752C-20 SB04-752C-45 | SB04-751C-54RA | SB04-752B-43OS |
| 5/32 | SB05-752C-20 SB05-752C-45 SB05-752C-80 | SB05-751C-54RA | SB05-752A-43OS |
| 3/16 | SB06-752B-20 SB06-752B-45 SB06-752B-80 | SB06-751B-54RA 6 | SB06-204D-27OS |
BLIND BOLT (SINGLE ACTION) WITH DRIVE WASHER MS90353S & U / MS90354S & U MS21140S & U / MS21141S & U MAXIBOLT, BACB30YY, YU, & YT
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 1/8 | UBB04-752C-20 UBB04-752C-45 | UBB04-751C-54RA | UBB04-752B-43OS |
| 5/32 | UBB05-752C-20 UBB05-752C-45 UBB05-752C-80 | UBB05-751C-54RA | UBB05-752B-43OS |
| 3/16 | UBB06-752B-20 UBB06-752B-45 UBB06-752B-80 | UBB06-751B-54RA | UBB06-204D-27OS |
EN6122 & UAB130-EU EN6127 & UAB6127-EU EN6128 & UAB100-EU EN6129 & UABP-EU MAXIBOLT PLUS
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 5/32 | UAB05-752C-20 UAB05-752C-45 | UAB05-751C-54RA | UAB05-752B-43OS |
| 3/16 | UAB06-752B-20 UAB06-752B-45 | UAB06-751B-54RA 6 | UAB06-752B-43OS |
UNIMATIC BLIND RIVET (SINGLE ACTION) WITH OR W/OUT DRIVE WASHER NAS1900 S & U SERIES
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 1/8 | SMLS04-752C-20 SMLS04-752C-45 | SMLS04-751C-54RA | SMLS04-752B-43OS |
| 5/32 | SMLS05-752C-20 SMLS05-752C-45 | SMLS05-751C-54RA | SMLS05-752B-43OS |
| 3/16 | SMLS06-752B-20 SMLS06-752B-45 | SMLS06-751C-54RA | SMLS06-752B-43OS |
| 1/4 | SMLS08-713-20 SMLS08-713-45 | SMLS08-751B-54RA 6 | SMLS08-204D-27OS |
UNIMATIC BLIND RIVET (SINGLE ACTION) WITH DRIVE WASHER NAS1900 S & U SERIES
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 1/8 | 456UBR-751A-21 2 456UBR-751A-61 2 | 456UBR-751D-54RA 2 | 456MAX-731-43OS 2 |
| 5/32 | 456UBR-751A-21 2 456UBR-751A-61 2 | 456UBR-751D-54RA 2 | 456MAX-731-43OS 2 |
| 3/16 | 456UBR-751A-21 2 456UBR-751A-61 2 | 456UBR-751D-54RA 2 | 456MAX-731-43OS 2 |
| 1/4 | UBR08-713-20 UBR08-713-45 | UBR08-751B-54RA | UBR08-204D-27OS UBR08-204D-37OS |
"A" CODE NAS1398A & NAS1399A
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 3/32 | 3A-352B-25 | 3A-751C-54RA | |
| 1/8 | 4A-752C-20 4A-752C-45 | 4A-751C-54RA | 4A-752B-43OS |
| 5/32 | 5A-752C-20 5A-752C-45 | 5A-751C-54RA | 5A-752B-43OS |
| 3/16 | 6A-752B-20 6A-752B-45 | 6A-751C-54RA | 6A-752B-43OS |
| 1/4 | SMLS08-713-20 | | SMLS08-204D-27OS |
NUT PLATE RIVETS CCR244/264/274 BACR15DR MS20600
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 3/32 | 3NP-751-23 3NP-352-61 | 3NP-751B-54RA | 3NP-751A-43OS |
| 1/8 | 5N-751-23 5N-352-61 | 45N-751B-54RA | 5N-751A-43OS |
CHERRYMAX, CHERRYMAX 'AB', BACR15FR/FP, BACR15GF/GK
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 1/8 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
| 5/32 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
| 3/16 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
| 1/4 | 08MAX-752B-20 08MAX-752B-45 | | **08MAX-204D-27OS **08MAX-204D-37OS |
ASP ASP 2, ASP PF, ASP 4 FF, ASP 2 F, ASP 2 LC
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 13/64 | ASP06-752C-20 ASP06-752C-45 | ASP06-751C-54RA | ASP06-752B-43OS |
| 17/64 | ASP08-752B-20 ASP08-752B-45 | | ASP08-752B-43OS |
STANDARD MBC NAS1719, NAS1720 NAS1721
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 1/8 | MBC04-752C-20 MBC04-752C-45 | MBC04-751C-54RA | MBC04-752C-43OS |
| 5/32 | MBC05-752C-20 MBC05-752C-45 | MBC05-751C-54RA | MBC05-752C-43OS |
| 3/16 | MBC06-752B-20 MBC06-752B-45 | MBC06-751C-54RA | MBC06-752C-43OS |
MBC LOCK CREATOR NAS1719X(L), NAS1720X(L) NAS1721X(L)
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 1/8 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
| 5/32 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
| 3/16 | 456MAX-751-23 2 456MAX-751A-61 2 | 456MAX-751D-54RA 2 | 456MAX-731-43OS 2 |
GROUND STUD, M83454 & BACS53B 4
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 8/32 | GS8-752B-20 GS8-752B-45 | GS8-751C-54RA | GS8-752B-43OS |
| 10/32 | GS10-752B-20 GS10-752B-45 | GS10-752A-54RA | GS10-752B-43OS |
POP OPEN END NAIL RIVET
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 3/32 | 3N-751-23 3N-352-61 | 3N-751B-54RA | 3N-751A-43OS |
| 1/8 | 4N-751-23 4N-352-61 | 45N-751B-54RA | 4N-751A-43OS |
| 5/32 | 5N-751-23 5N-352-61 | 45N-751B-54RA | 5N-751A-43OS |
| 3/16 | 6N-751-23 6N-352-61 | 6N-751C-54RA | 6N-751A-43OS |
POP CLOSED END NAIL RIVET (ALUMINUM MANDREL)
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 3/32 | 3N-751-23 3N-352-61 | 3N-751B-54RA | 3N-751A-43OS |
| 1/8 | 4CEA-751-23 4CEA-352-61 | 45CEA-751B-54RA | 4CEA-751-43OS |
| 5/32 | 5CEA-751-23 5CEA-352-61 | 45CEA-751B-54RA | 5CEA-751-43OS |
| 3/16 | 6CEA-751-23 6CEA-352-61 | 6CEA-751C-54RA | 6CEA-751-43OS |
POP CLOSED END NAIL RIVET (STEEL MANDREL)
| DIA. | STRAIGHT | *RIGHT ANGLE 1 | **OFFSET |
|---|
| 3/32 | 3N-751-23 3N-352-61 | 3N-751B-54RA | 3N-751A-43OS |
| 1/8 | 4CES-751-23 4CES-352-61 | 4CES-751B-54RA | 4CES-751-43OS |
| 5/32 | 5CES-751-23 5CES-352-61 | 5CES-751B-54RA | 5CES-751-43OS |
| 3/16 | 6CES-751-23 6CES-352-61 | 6CES-751C-54RA | 6CES-751-43OS |
FOOTNOTES
| GB752 installs the listed fasteners See Gage Bilt's Nose Assembly information (data sheets) |
|---|
| *ALL RIGHT ANGLE NOSES REQUIRE 752142 STROKE LIMITER. |
|---|
| **ALL OFFSET 204 SERIES NOSES REQUIRE 751204 ADAPTER |
|---|
| 1) RIGHT ANGLE NOSE ASSEMBLY'S MAY REQUIRE MORE THAN ONE PULL. |
|---|
| 2) INSTALLS 1/8, 5/32 & 3/16 DIAMETERS |
|---|
| 3) INSTALLS 5/32 & 3/16 DIAMETERS |
|---|
| 4) BACS53B -10 ONLY |
|---|
| 5) TWO PULLS MAY BE REQUIRED FOR 1/4" DIAMETER MULTI-GRIP LOCKBOLTS |
|---|
| 6) THESE NOSES FOR LIGHT DUTY / REPAIR ONLY. Contact HADI Technologies FOR HIGH PRODUCTION APPLICATIONS |
|---|
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES GB752SR MODELS MUST USE -45 LENGTH OR LONGER ON ALL 752 STYLE NOSES |
|---|
