Overview

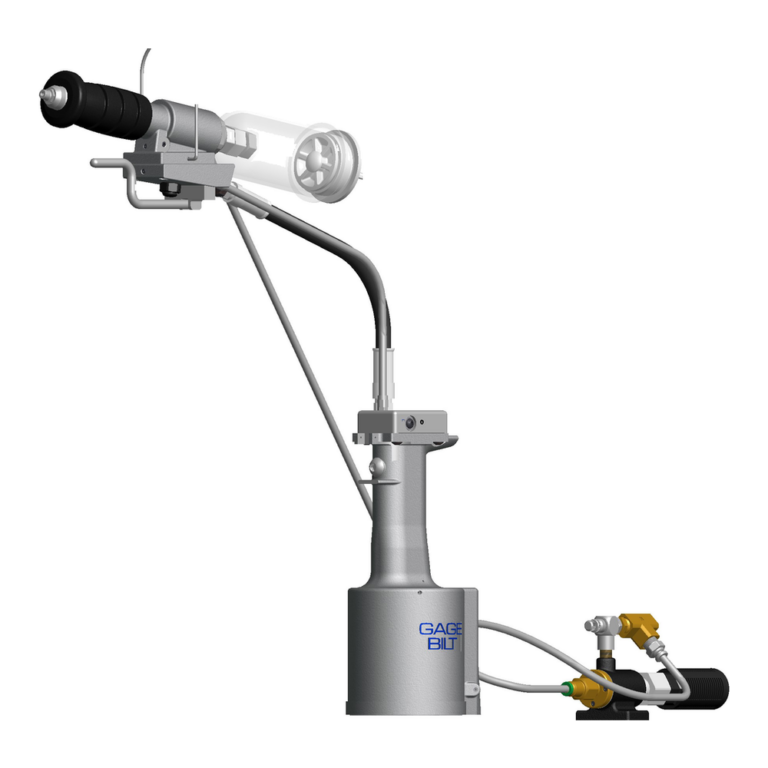

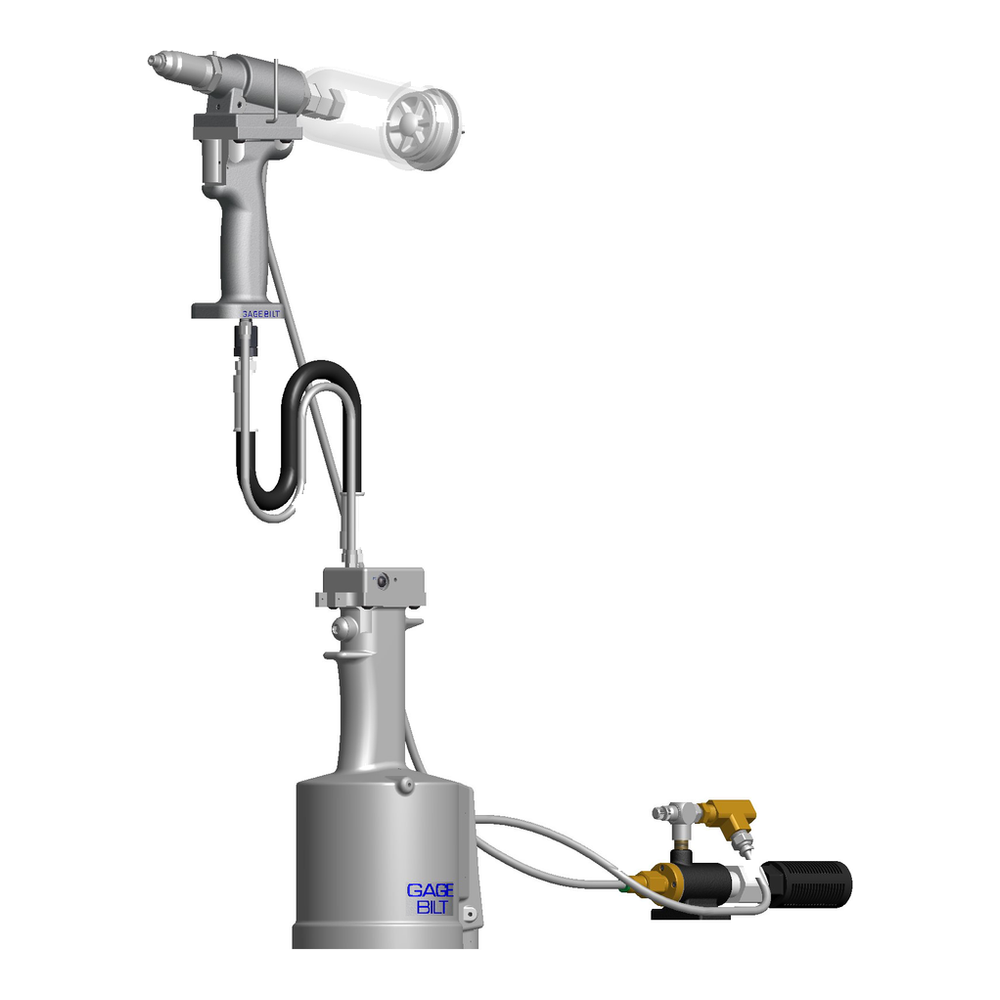

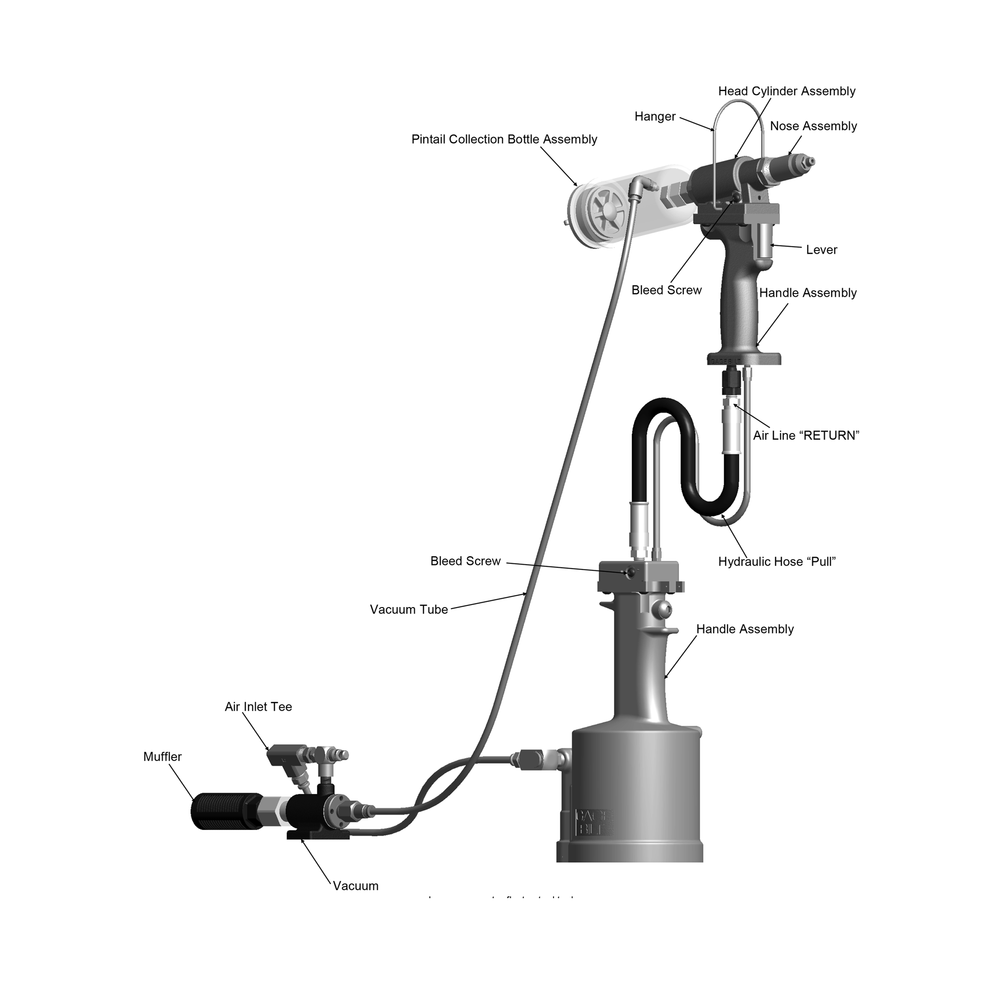

The GB703SHV is a pneumatic-hydraulic split-handle installation tool for blind rivets. Its split configuration gives the operator a lightweight, ergonomic handheld assembly. The handle and head assembly weighs 2.5 lb (1.1 kg), the complete tool weighs 7.25 lb (3.29 kg), and the fastener-setting stroke is 0.780" (19.8 mm). Rated pull load is 2,200 lb (9.79 kN).
Specifications and compatibility tables
AVEX (1624 PROTRUDING HEAD)
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | AV6-703-18V 1 | 10141 | 30617 | 703415 | AV6 |
AVEX (1624 COUNTERSUNKHEAD)
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | 6C-703-18V 1 | 10141-1 | 30617 | 703415 | 6C |
KLAMP-TITE (STRUCTURAL) RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | 6KT-703-18V 1 | 10263 | 30617 | 703415 | 6KT |
| 1/4 | 8KT-743-24V 2 | – | – | – | 8KT |
SFC KOENIG SEAL PLUG
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 4 MM | KSP4-743-24 2 | 10203 | 30824 | 48804 | KSP4 |
| 5 MM | KSP5-743-24 2 | 10204 | 30824 | 48804 | KSP5 |
| 6 MM | KSP6-743-24 2 | 13469 | 30824 | 48804 | KSP6 |
| 7 MM | KSP78-743-24 2 | 12340-1 | 30824 | 48808-2 | KSP7 |
| 8 MM | KSP78-743-24 2 | 12340-1 | 30824 | 48808-2 | KSP8 |
MONOBOLT RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | MB06-734A-20V 2,5 | – | – | – | MB06 |
| 1/4 3 | MB08-734A-20V 2,5 | – | – | – | MB08 |
NUT PLATE RIVETS MS20600 SERIES CCR244/264/274 MS/9SP/PT BACR15CC/CF/DA/DR
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/32 | 3NP-703-18V 1 | 10231 | 30617 | 703421 | 3NP |
| 1/8 | 5N-703-18V 1 | 10203 | 30617 | 703415 | 5N |
POP OPEN END NAIL RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/32 | 3N-703-18V 1 | 10201 | 30617 | 703421 | 3N |
| 1/8 | 4N-703-18V 1 | 10202 | 30617 | 703421 | 4N |
| 5/32 | 5N-703-18V 1 | 10203 | 30617 | 703415 | 5N |
| 3/16 | 6N-703-18V 1 | 10204 | 30617 | 703415 | 6N |
| 1/4 3 | 8N-743-24V 2 | – | – | – | 8N |
POP CLOSED END NAIL RIVET (ALUMINUM MANDREL)
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/32 | 3N-703-18V 1 | 10201 | 30617 | 703421 | 3N |
| 1/8 | 4CEA-703-18V 1 | 13471 | 30617 | 703421 | 4CEA |
| 5/32 | 5CEA-703-18V 1 | 13472 | 30617 | 703415 | 5CEA |
| 3/16 | 6CEA-703-18V 1 | 13473 | 30617 | 703415 | 6CEA |
POP CLOSED END NAIL RIVET (STEEL MANDREL)
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/32 | 3N-703-18V 1 | 10201 | 30617 | 703421 | 3N |
| 1/8 | 4CES-703-18V 1 | 13475 | 30617 | 70321 | 4CES |
| 5/32 | 5CES-703-18V 1 | 13476 | 30617 | 703415 | 5CES |
| 3/16 | 6CES-703-18V 1 | 13477 | 30617 | 703415 | 6CES |
| 1/4 3 | 8CES-743-24V 2 | – | – | – | 8CES |
PLASTIC SPLIT RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/32 | 3P-703-18V 1 | 10247-1 | 30617 | 703421 | 3P |
| 1/8 | 4P-703-18V 1 | 10202-4 | 30617 | 703421 | 4P |
| 5/32 | 5P-703-18V 1 | 10203-2 | 30617 | 703415 | 5P |
| 3/16 | 6P-703-18V 1 | 10167 | 30617 | 703415 | 6P |
| 1/4 | 8P-743-24V 2 | – | – | – | 8P |
T RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | 6T-703-18V 1 | 10209 | 30617 | 703415 | 6T |
| 1/4 3 | 8T-743-24V 2 | – | – | – | 8T |
TLR RIVET
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 1/4 | 8TLR-743-24V 2 | – | – | – | 8TLR |
PROTRUDING HEAD MAGNA-LOK & SERRATED STEM STRUCTURAL RIVETS
| DIA. | NOSE ASSEMBLY | NOSE TIP 1 | JAW | FOLLOWER | DESIGNATION |
|---|
| 3/16 | PH6-734A-20V 2,5 | – | – | – | PH6 |
| 1/4 4 | PH8-734A-20V 2,3,5 | – | – | – | PH8 |
FOOTNOTES
| 1) YOU CAN CHANGE THE 703-18 NOSE ASSEMBLY (INCLUDED WITH TOOL UNLESS TOOL WAS ORDERED SET-UP FOR A SPECIFIC RIVET) INSTALL OTHER FASTENERS BY PURCHASING NOSE TIP SHOWN AND USING APPROPRIATE FOLLOWER SHOWN. |
|---|
| 2) NOSE ASSEMBLIES WITH A 734A OR 743-24 DESIGNATION, I.E. 8N-743-24V, MUST BE ORDERED AS COMPLETE NOSE ASSEMBLY. |
|---|
| 3) ALUMINUM RIVET STEEL MANDREL ONLY (100 PSI REQUIRED FOR ALL 1/4" STEEL RIVETS). |
|---|
| 4) 1/4" ALUMINUM ONLY. |
|---|
| 5) NOSE ASSEMBLIES WITH A 734 DESIGNATION, I.E. PH6-734A-20V, ARE FOR SERRATED STEM RIVETS ONLY. IF YOU ARE PULlING BOTH SMOOTH AND SERRATED STEM RIVETS YOU MUST ORDER THE NOSE ASSEMBLY WITH A 743 DESIGNATION, I.E. MGL06-743-24. |
|---|
| NOTE : THE LAST 2 DIGITS OF THE NOSE ASSEMBLY REPRESENTS THE LENGTH THE NOSE EXTENDS FROM THE TOOL I.E. -20 = 2.0 INCHES |
|---|
